RAST systémy

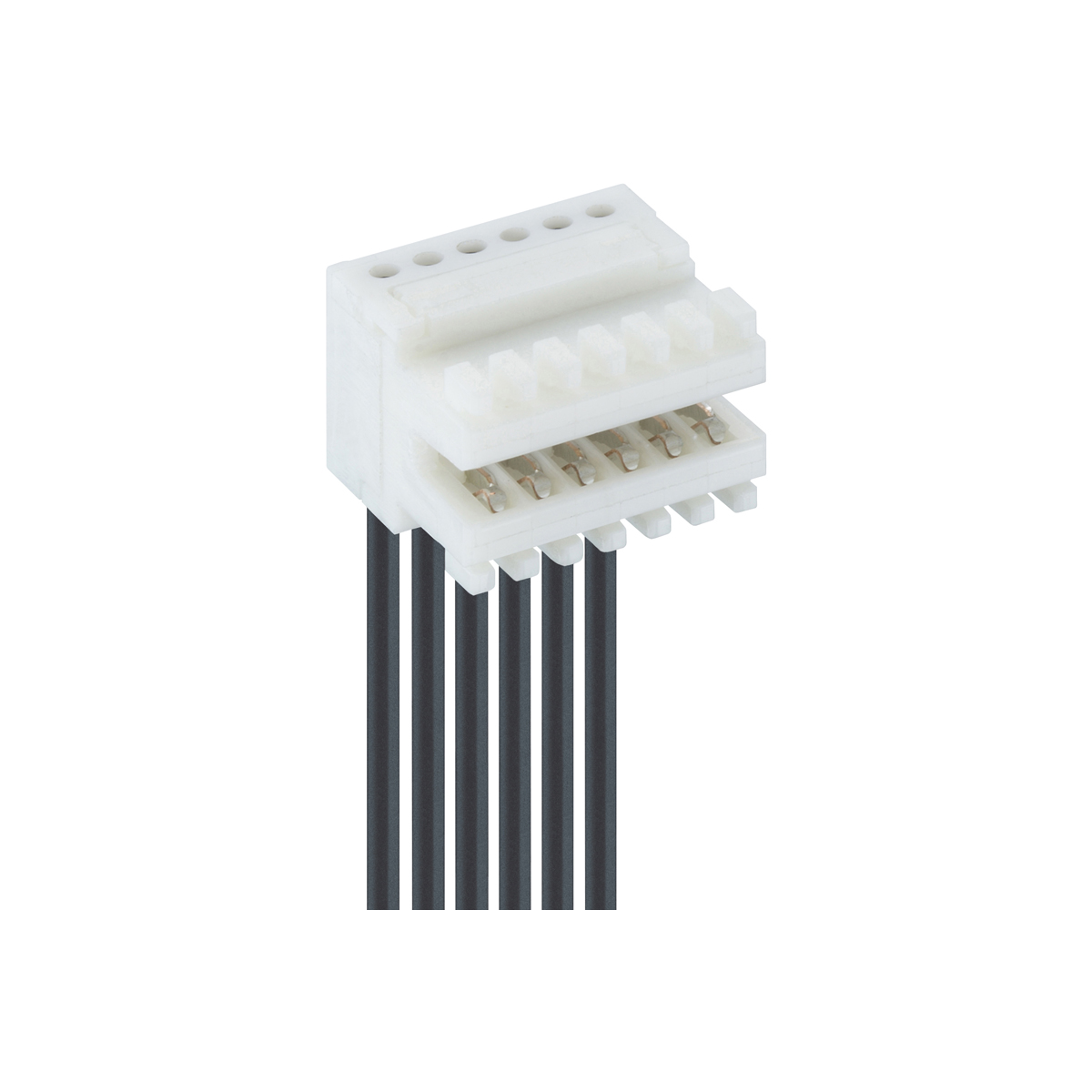

332100

RAST 1.5 connector for direct and indirect mating, insulation displacement technology (IDT)

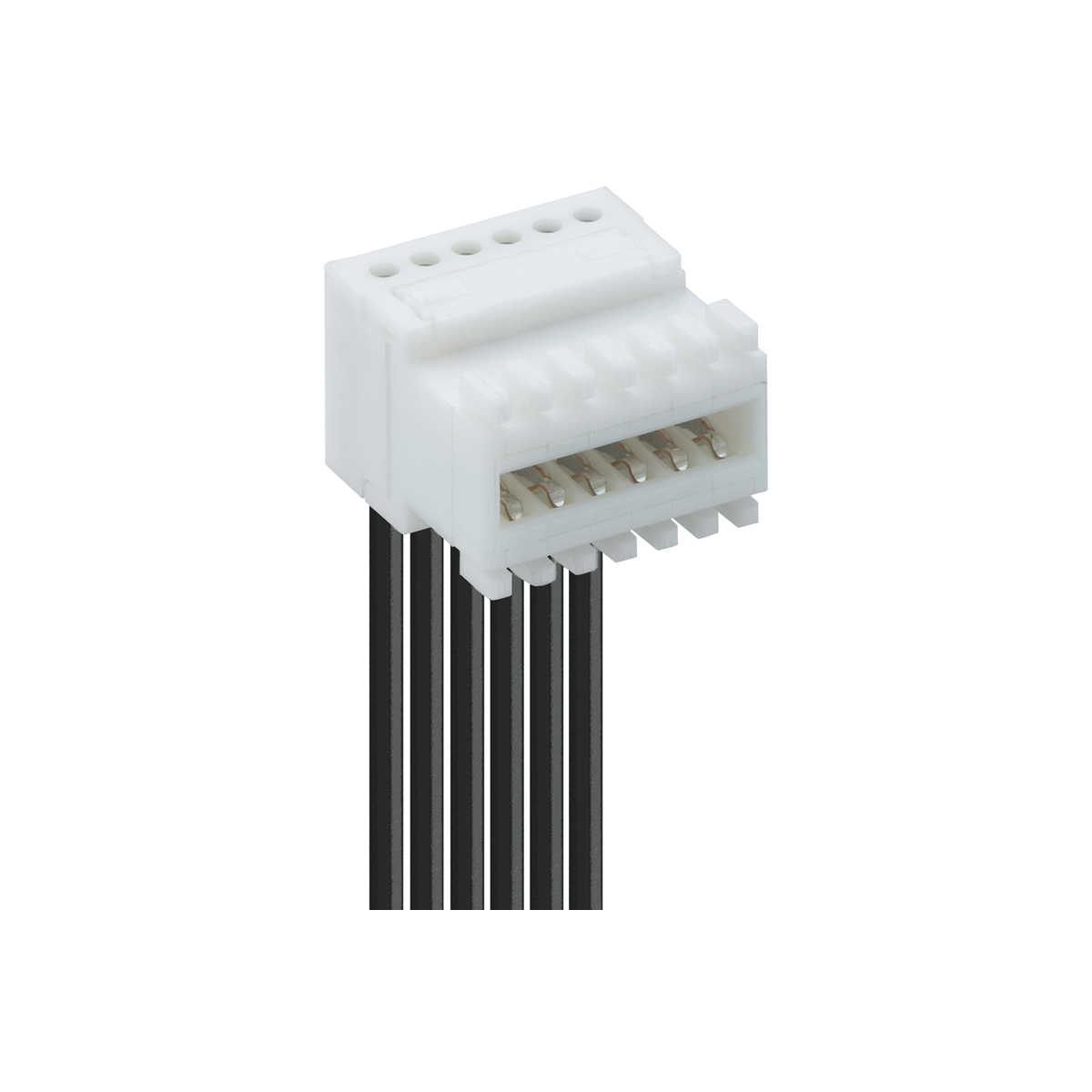

331000

RAST 1.5 connector for direct mating, insulation displacement technology (IDT), alternatively with or without closed sides

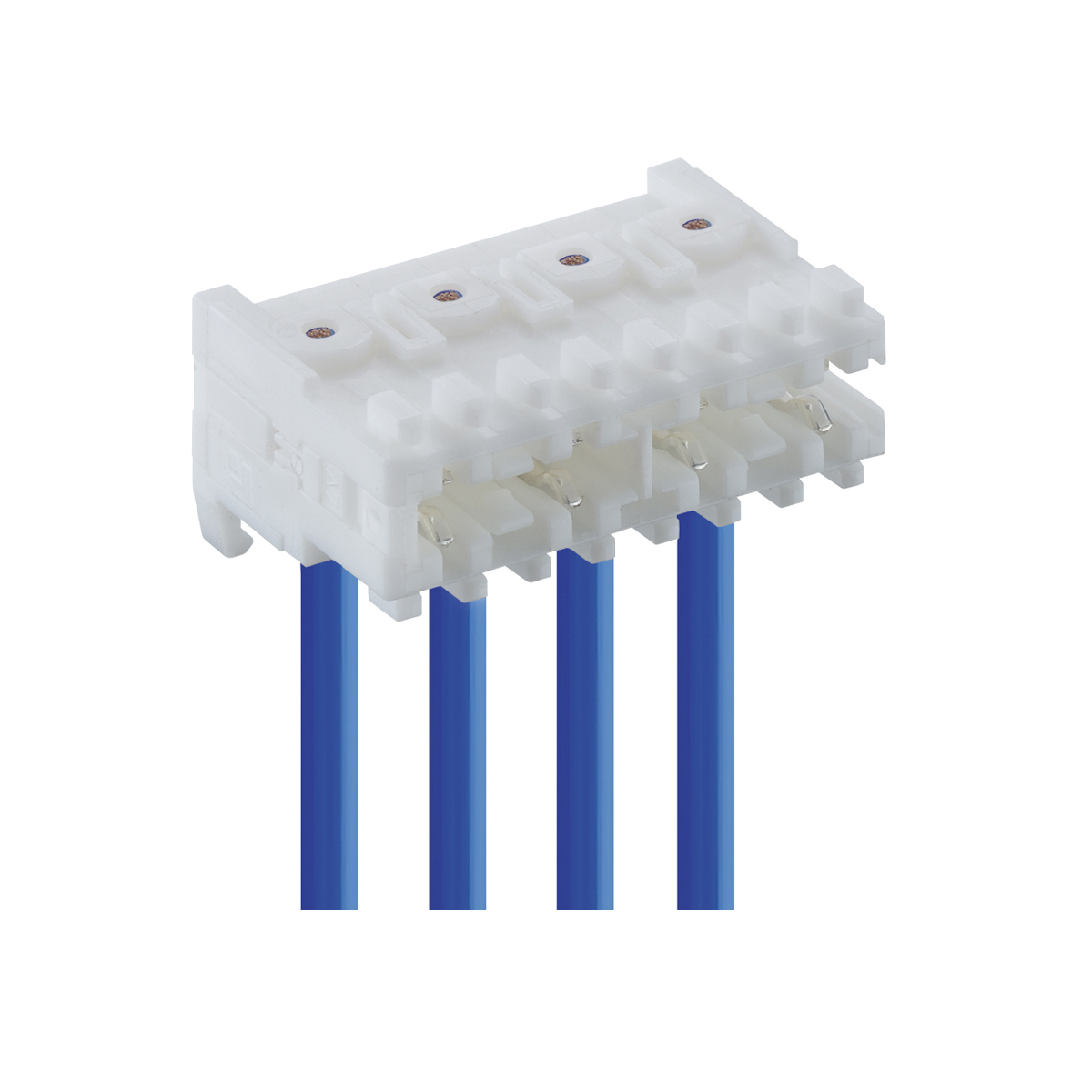

357600

RAST 2.5 Power plus™ connector for direct mating, insulation displacement technology (IDT), with double-sided keying, alternatively with or without locking on printed circuit board, with or without keying rib and closed sides, consecutive placement without loss of pitchcontact pitch 5.0 mm

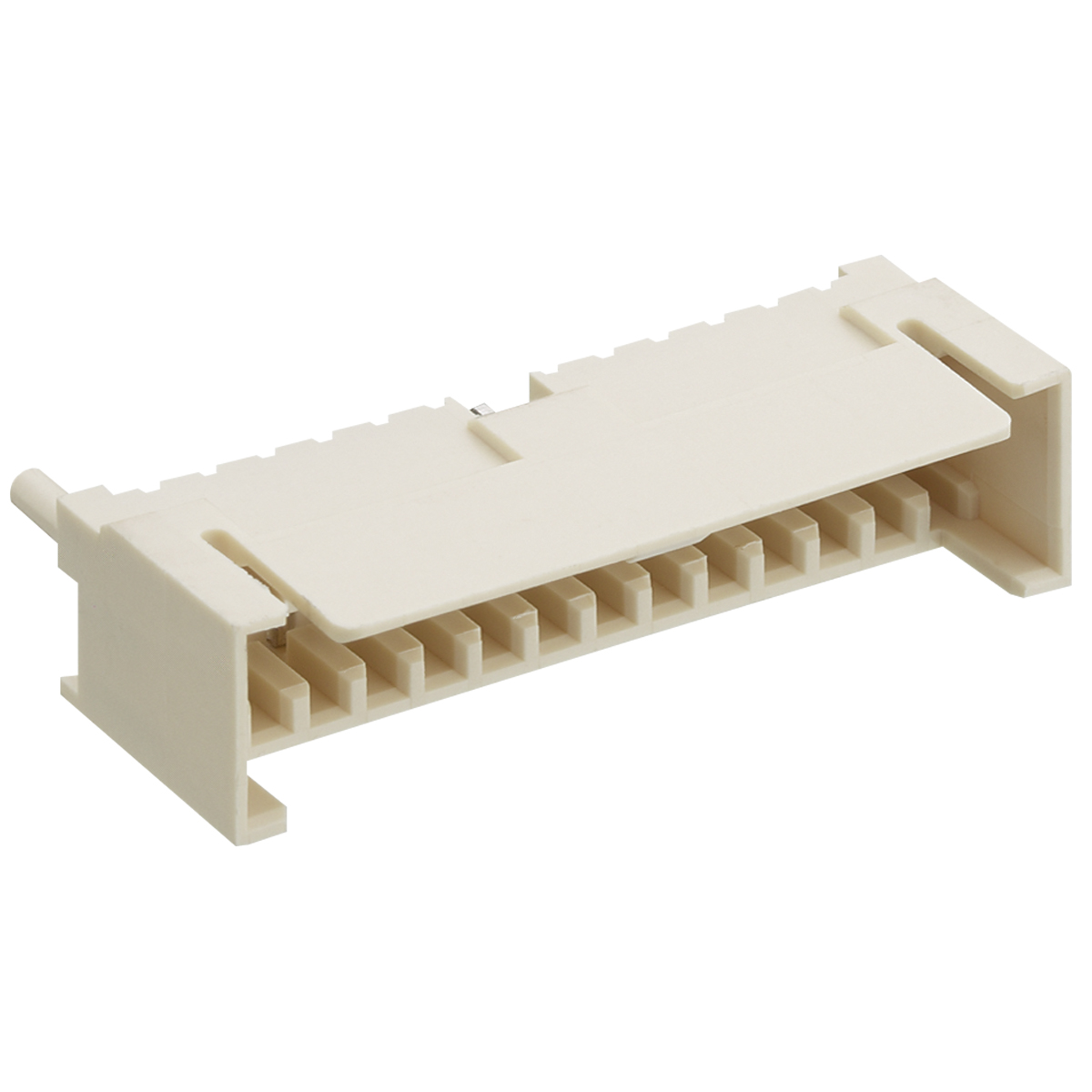

3556

RAST 2.5 pin header, angular, with locking latchcontact pitch 5.0 mm

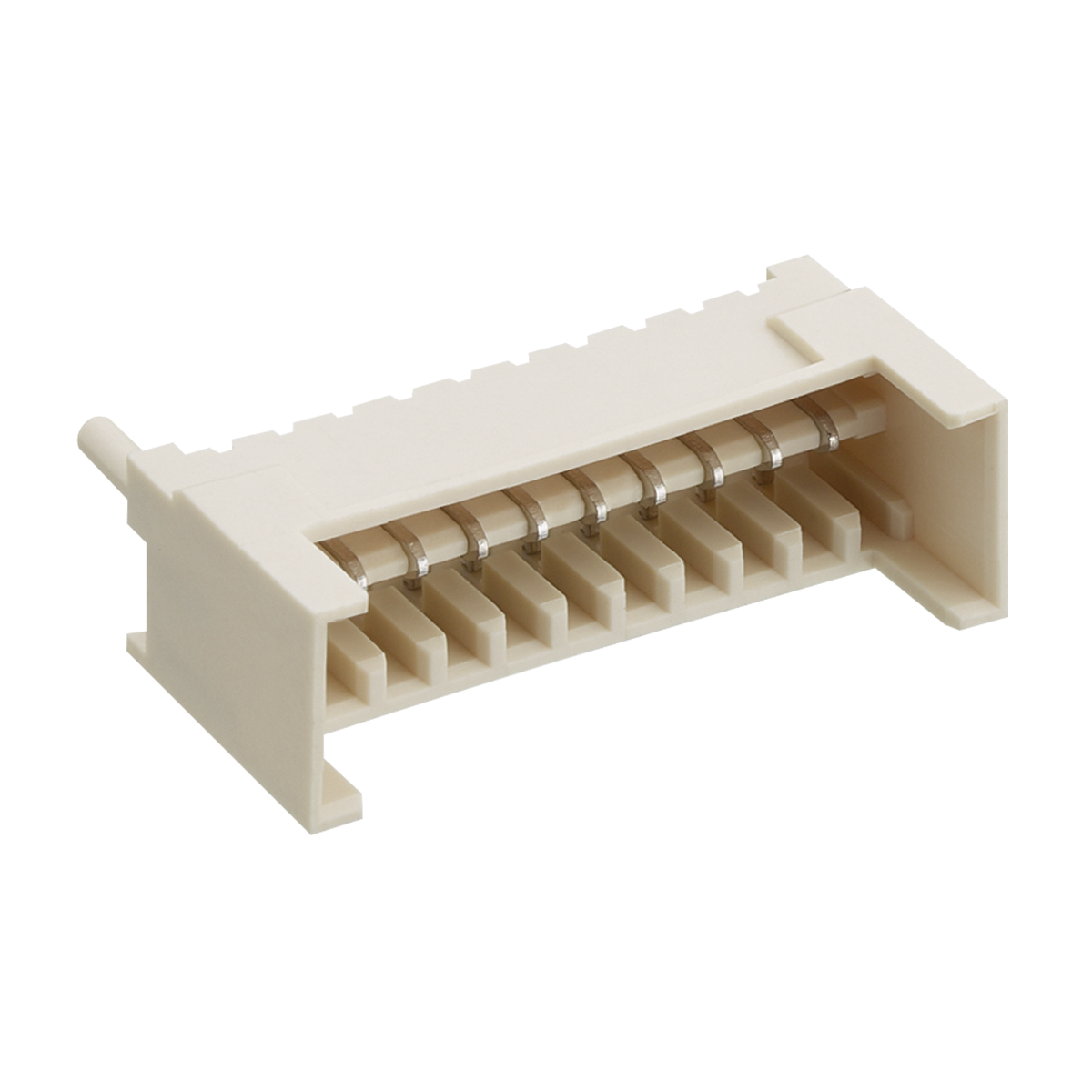

3555

RAST 2.5 pin header, angular, for interior locking, daisy chain possiblecontact pitch 2.5 mm

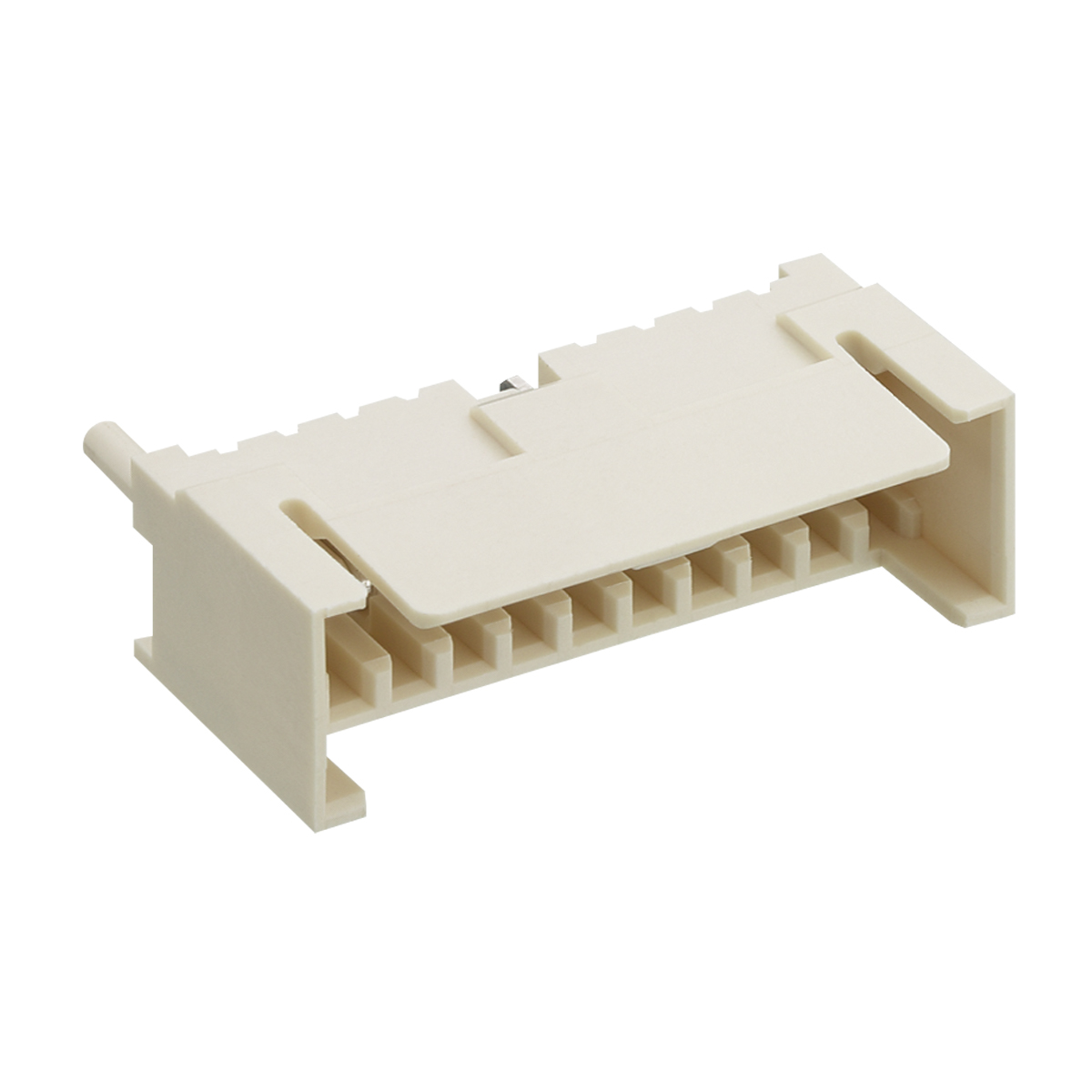

3554

RAST 2.5 pin header, angular, with locking latchcontact pitch 2.5 mm

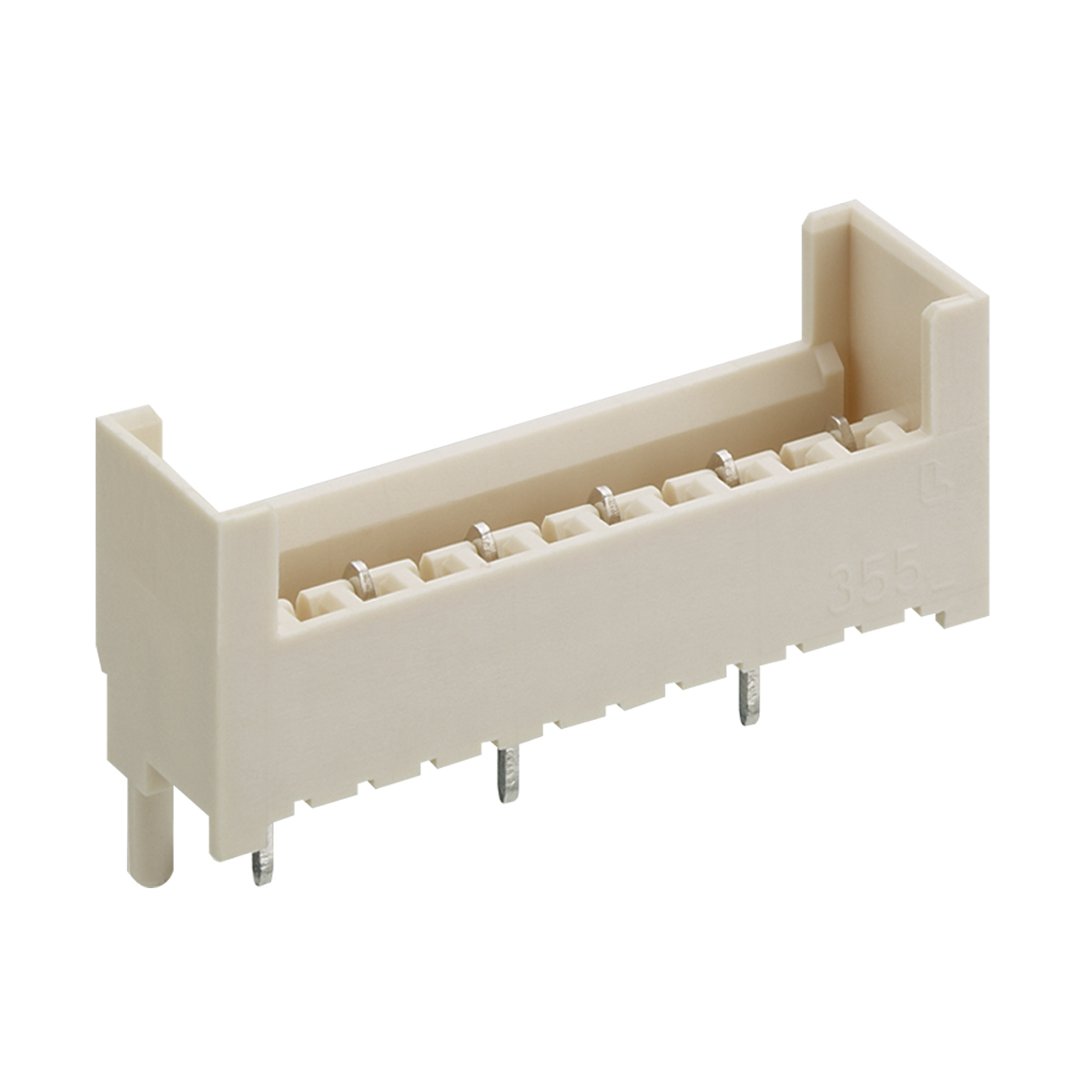

3553

RAST 2.5 pin header, upright, with positioning spigot, for interior locking, daisy chain possiblecontact pitch 5.0 mm

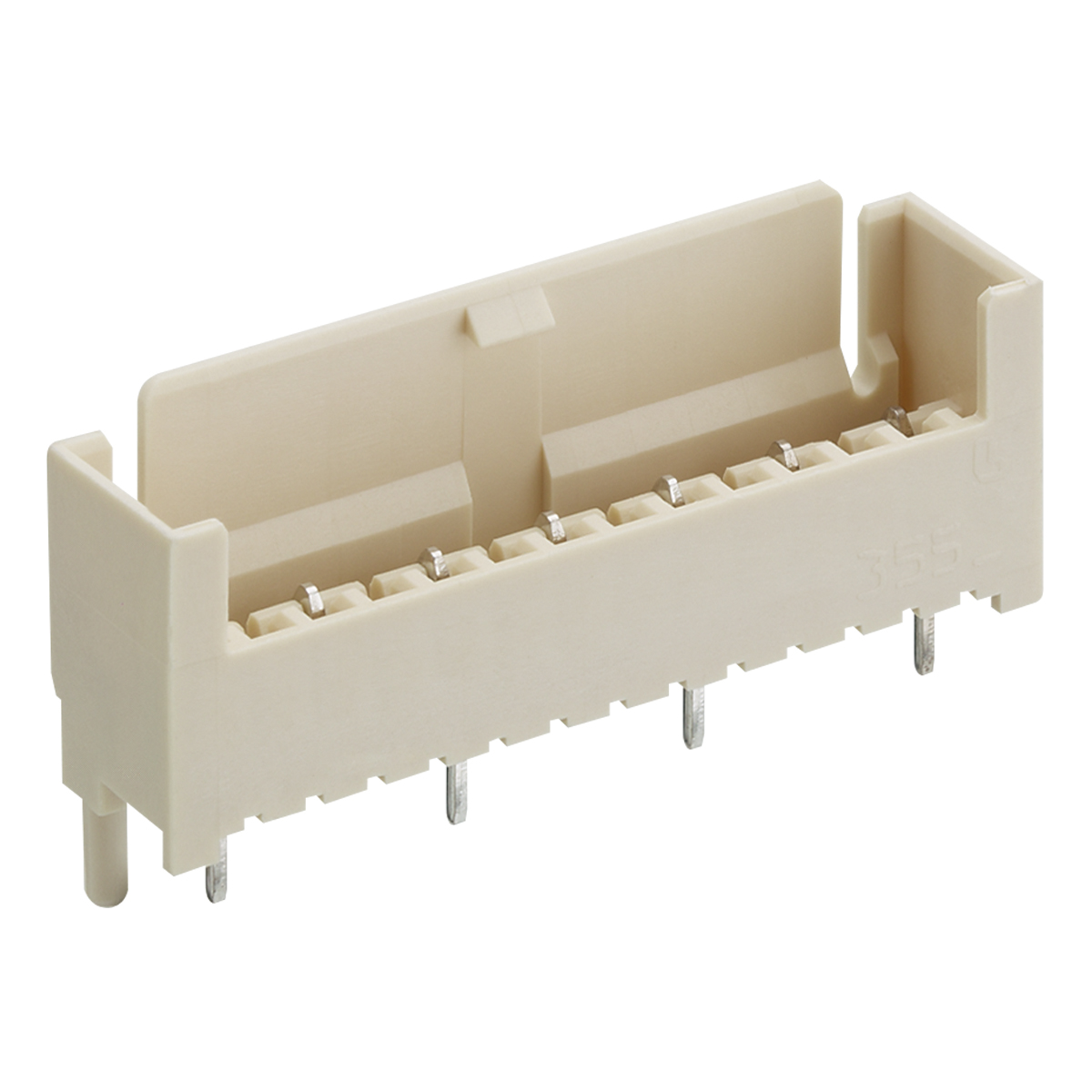

3552

RAST 2.5 pin header, with locking latch and positioning spigotcontact pitch 5.0 mm

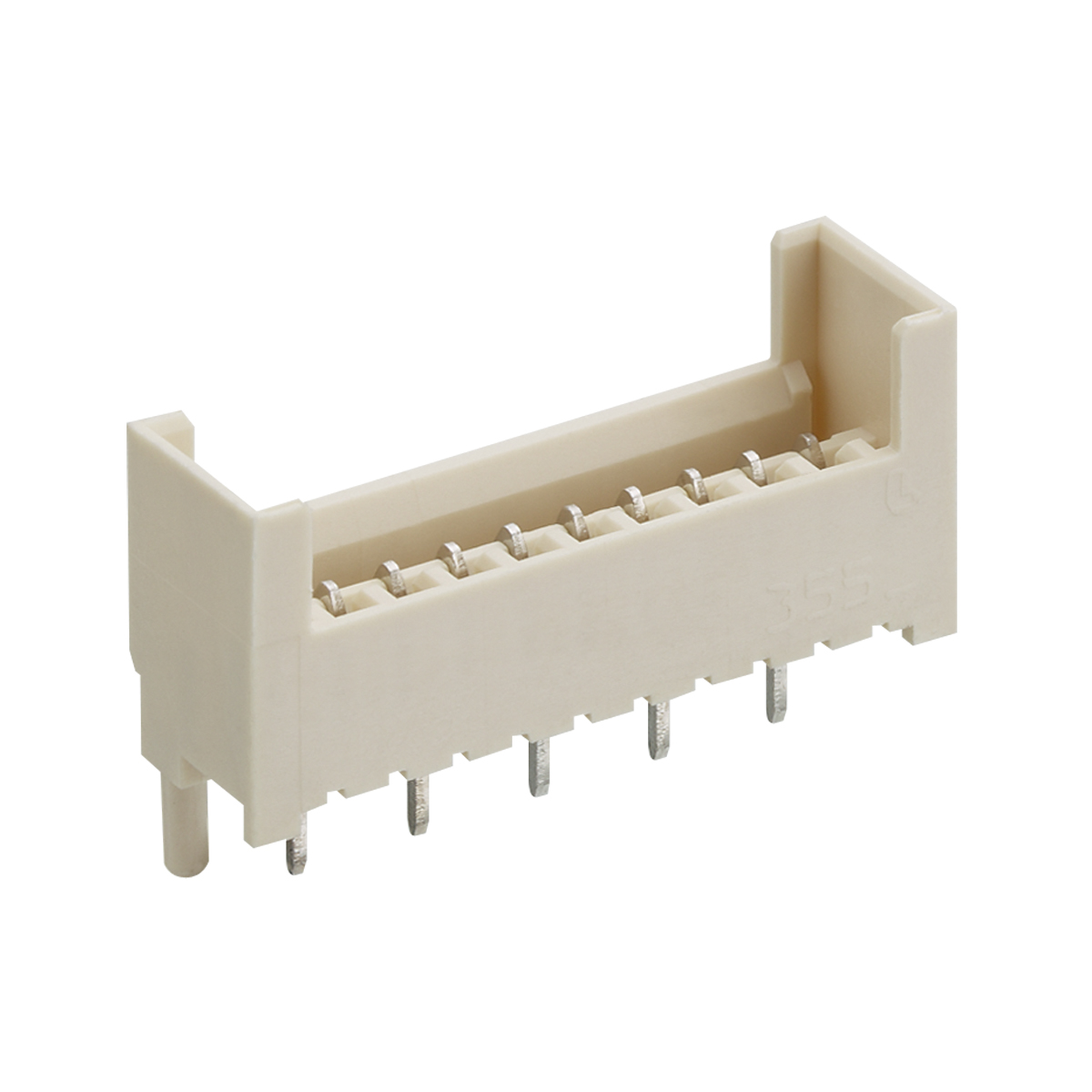

3551

RAST 2.5 pin header, upright, with positioning spigot, for interior locking, daisy chain possiblecontact pitch 2.5 mm

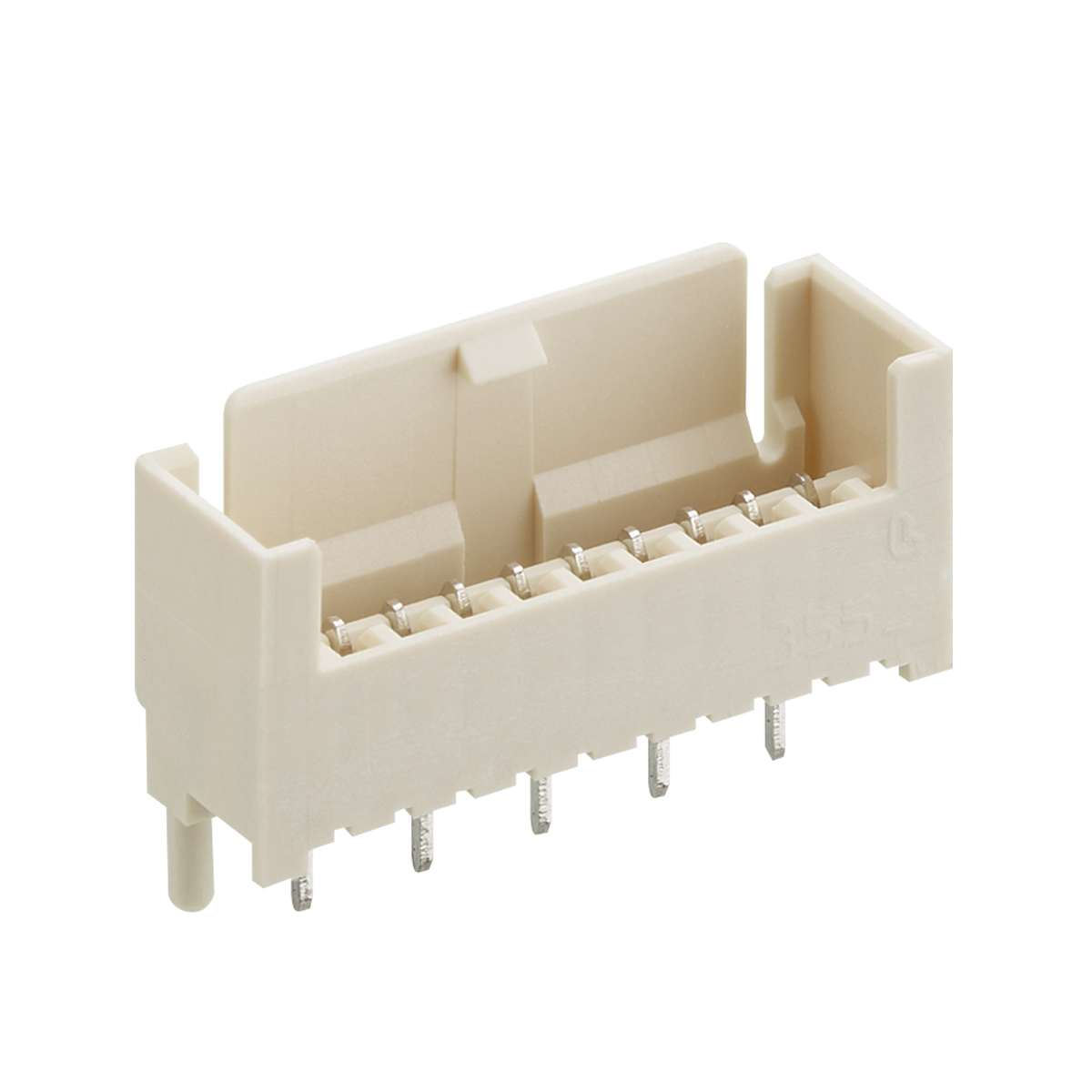

3550

RAST 2.5 pin header, with locking latch and positioning spigotcontact pitch 2.5 mm

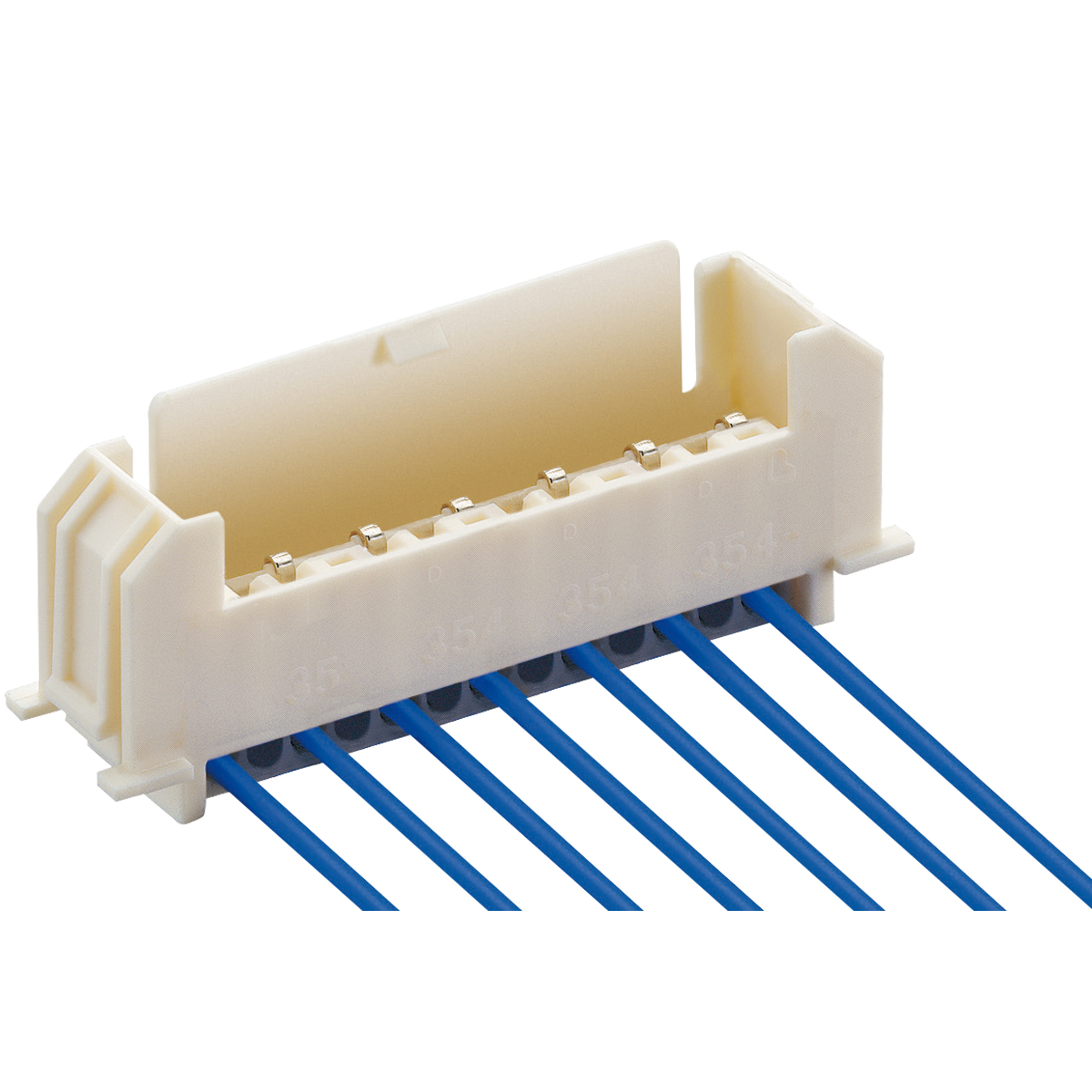

3546-1

RAST 2.5 chassis pin header, insulation displacement technology (IDT), with locking latchcontact pitch 5.0 mm

3546

RAST 2.5 chassis pin header, insulation displacement technology (IDT), with locking latchcontact pitch 5.0 mm

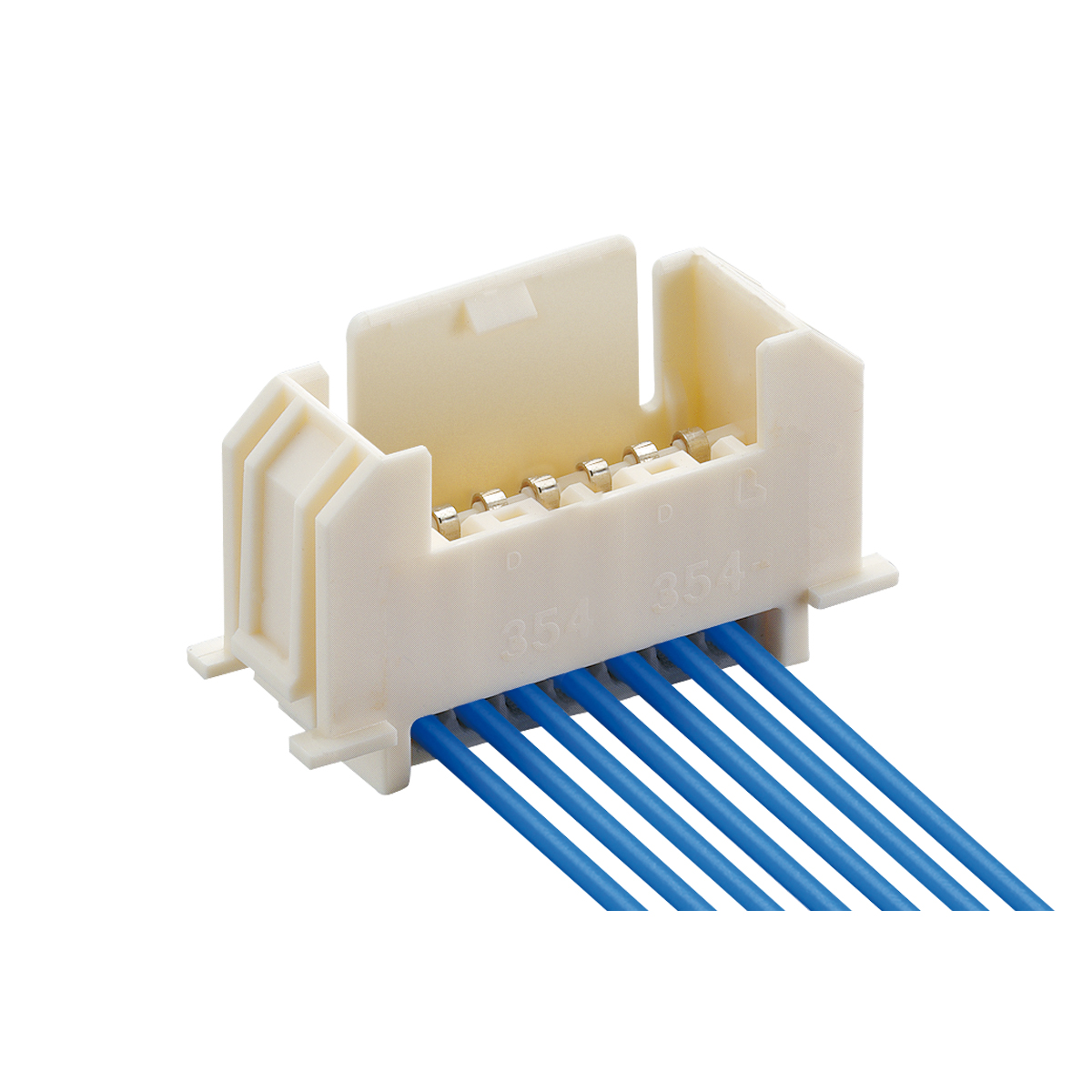

3545-1

RAST 2.5 chassis pin header, insulation displacement technology (IDT), with locking latchcontact pitch 2.5 mm

3545

RAST 2.5 chassis pin header, insulation displacement technology (IDT), with locking latchcontact pitch 2.5 mm

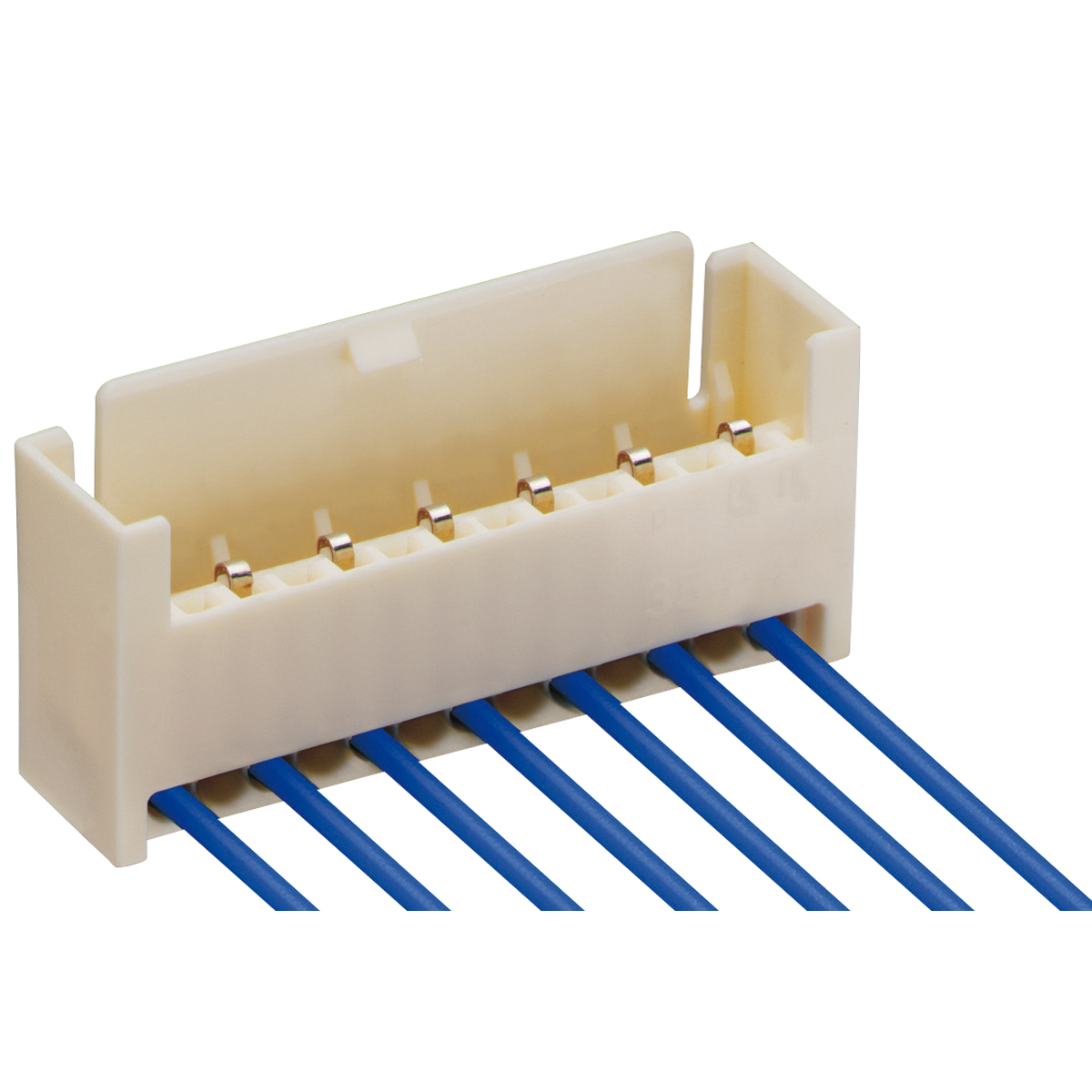

3542-1

RAST 2.5 pin header, insulation displacement technology (IDT), with locking latchcontact pitch 5.0 mm

3542

RAST 2.5 pin header, insulation displacement technology (IDT), with locking latchcontact pitch 5.0 mm

3541-1

RAST 2.5 pin header, insulation displacement technology (IDT), with locking latchcontact pitch 2.5 mm

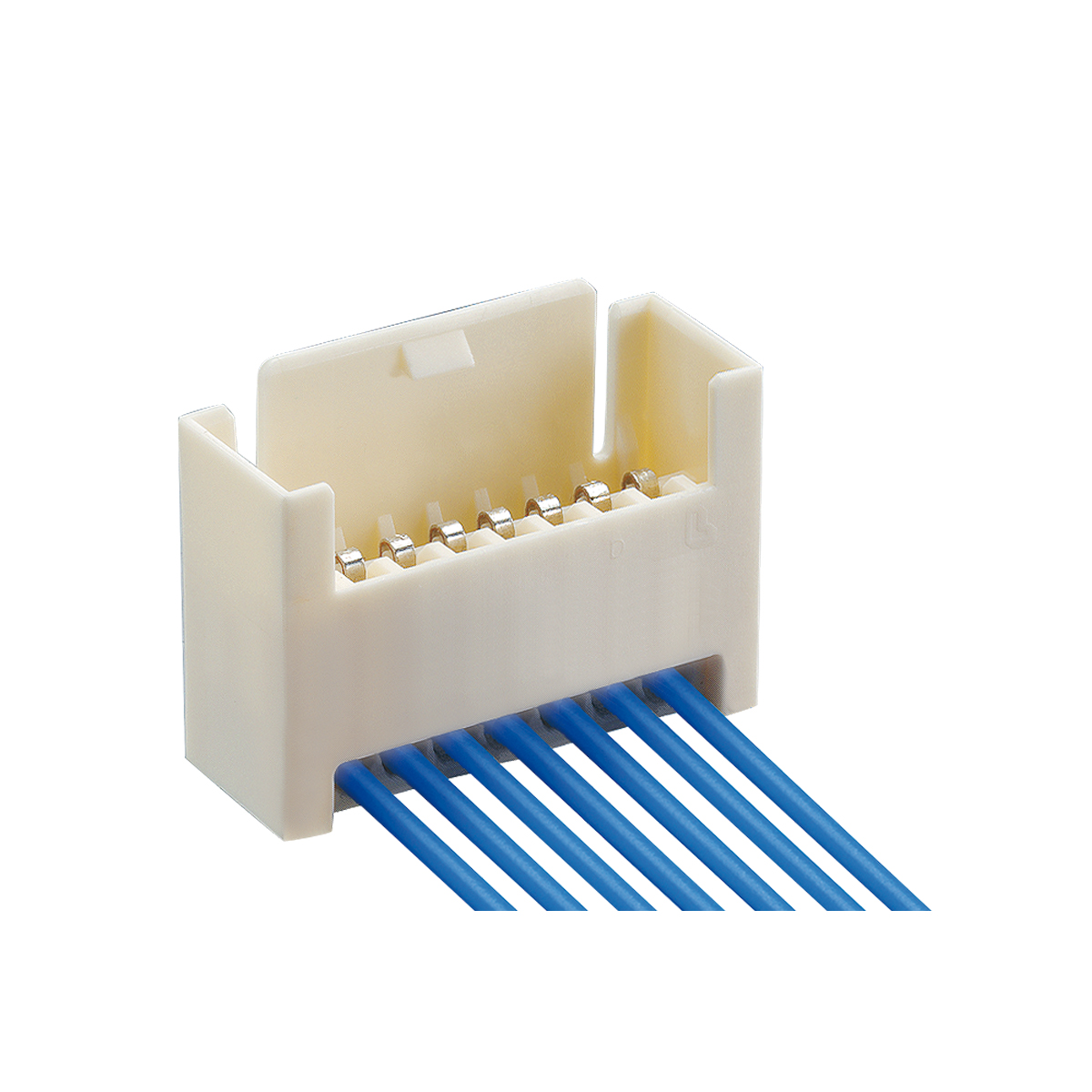

3541

RAST 2.5 pin header, insulation displacement technology (IDT), with locking latchcontact pitch 2.5 mm

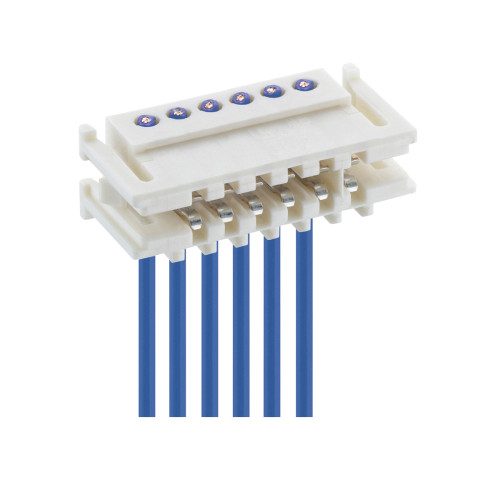

3525

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of lateral locking hooks (min. 80 N retaining force), alternatively with or without keying rib and closed sides, for individual conductors contact pitch 2.5 mm

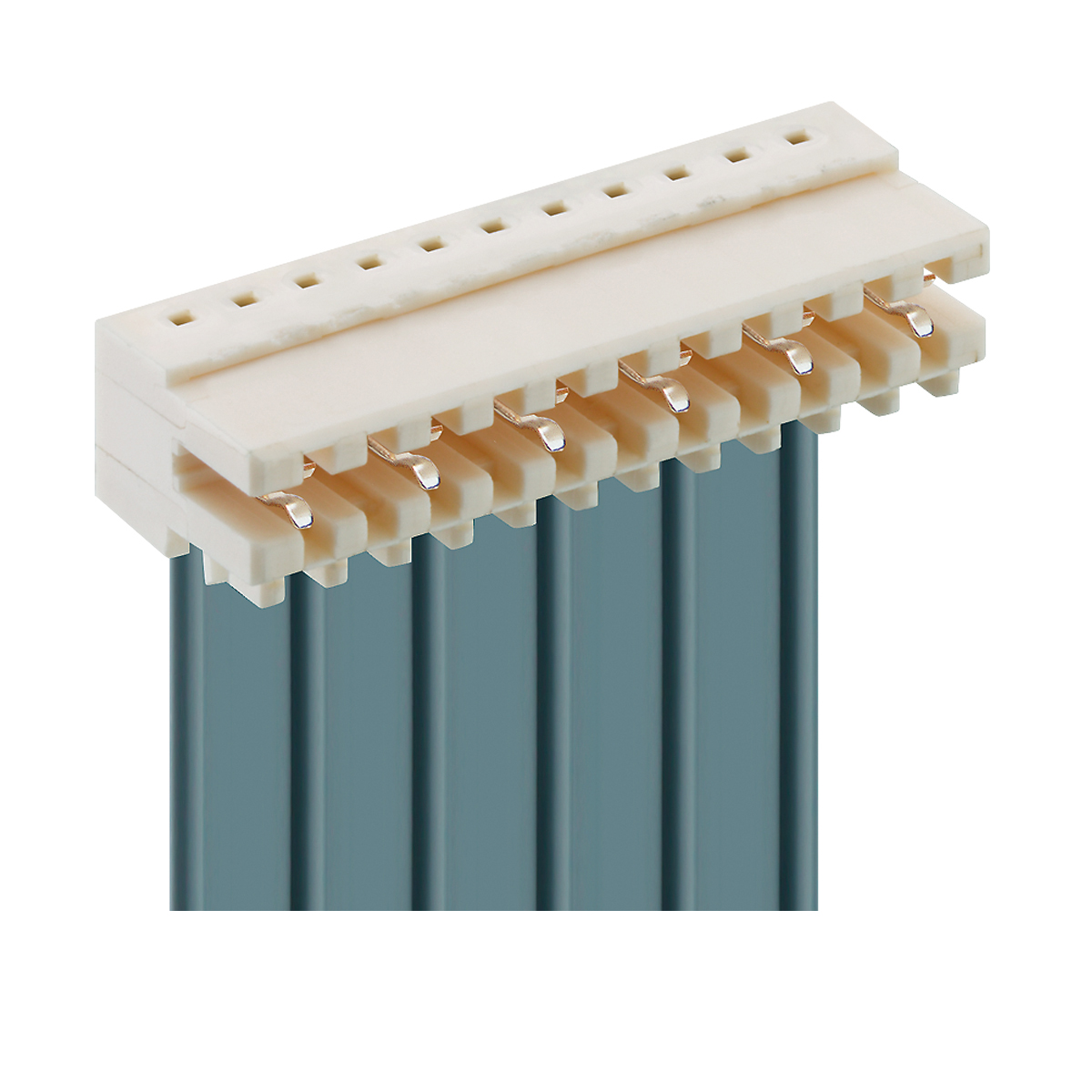

3523-2

RAST 2.5 connector for direct and indirect mating, insulation displacement technology (IDT), for ribbon cable, consecutive placement without loss of pitchcontact pitch 5.0 mm

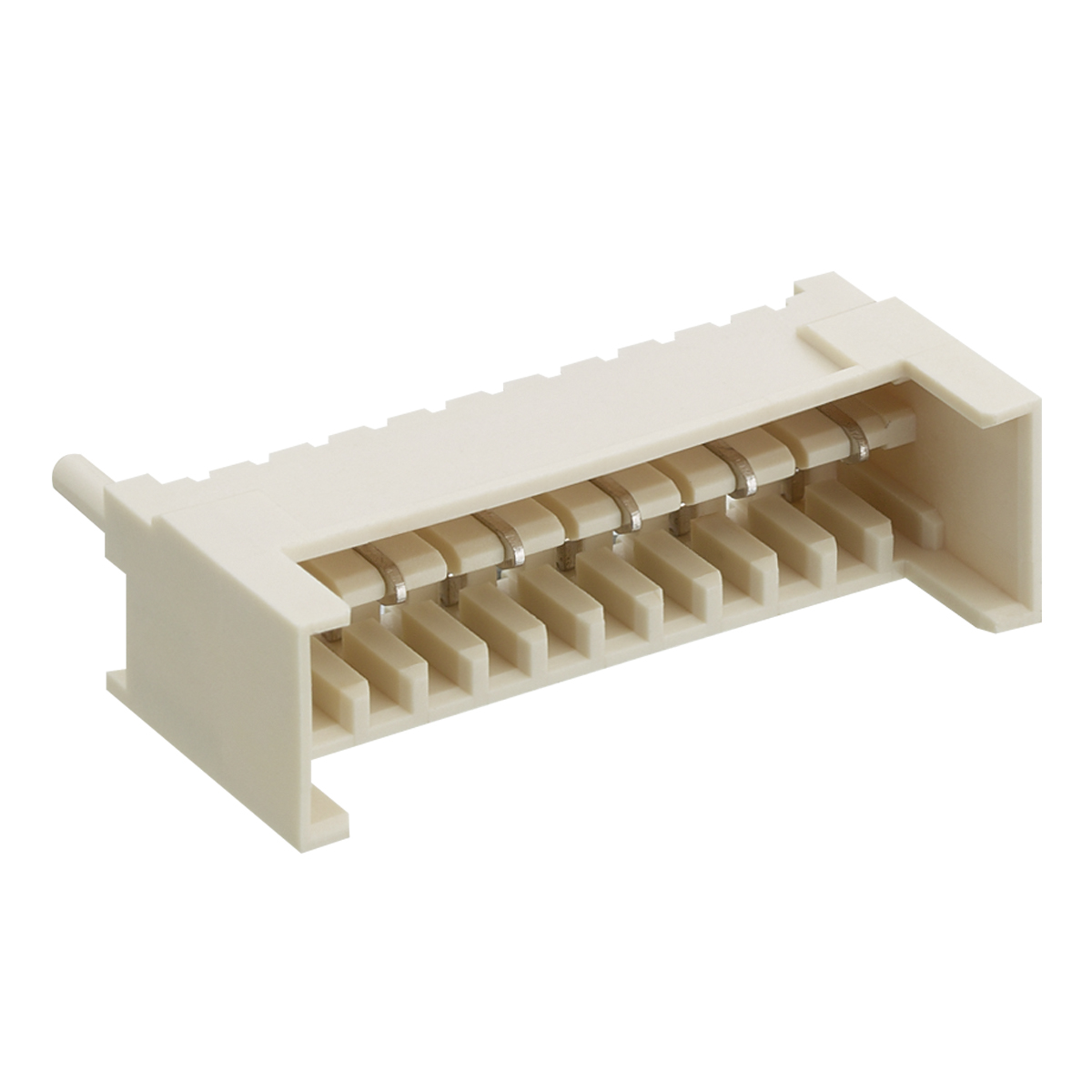

3557

RAST 2.5 pin header, angular, for interior locking, daisy chain possiblecontact pitch 5.0 mm

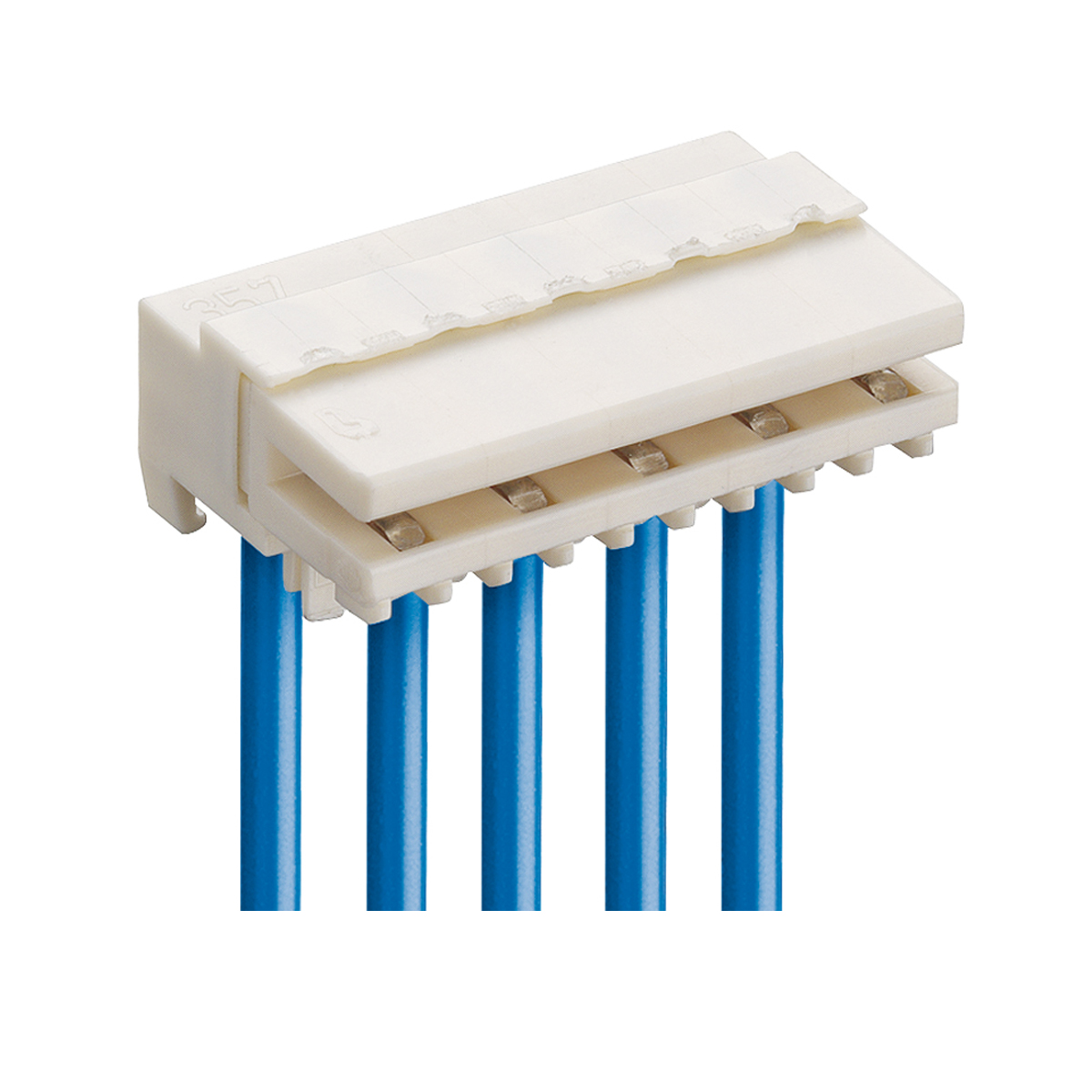

3570

RAST 2.5 Power connector for direct and indirect mating, insulation displacement technology (IDT), consecutive placement without loss of pitchcontact pitch 5.0 mm

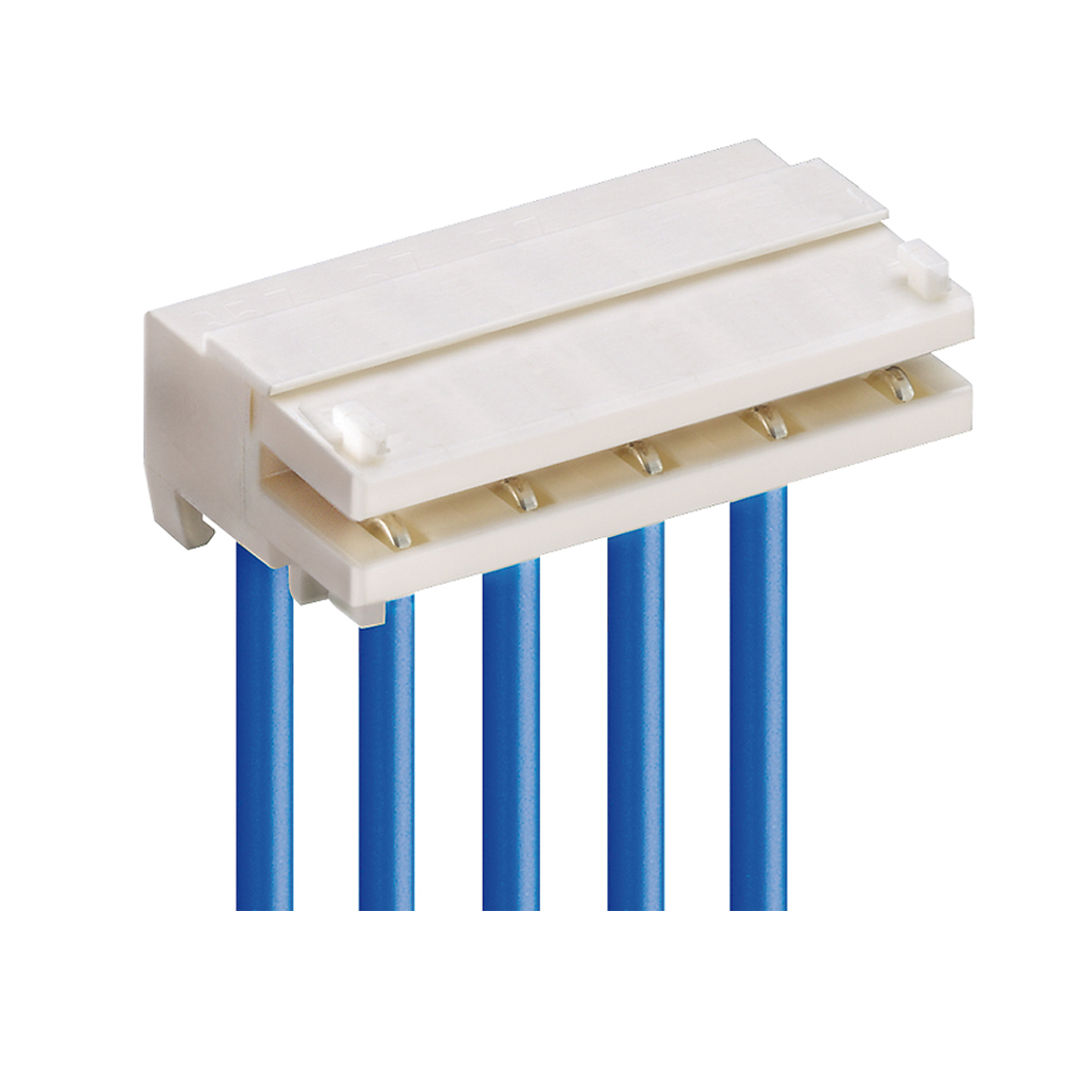

357099

RAST 2.5 Power connector for direct and indirect mating, with double-sided keying, insulation displacement technology (IDT), consecutive placement without loss of pitchcontact pitch 5.0 mm

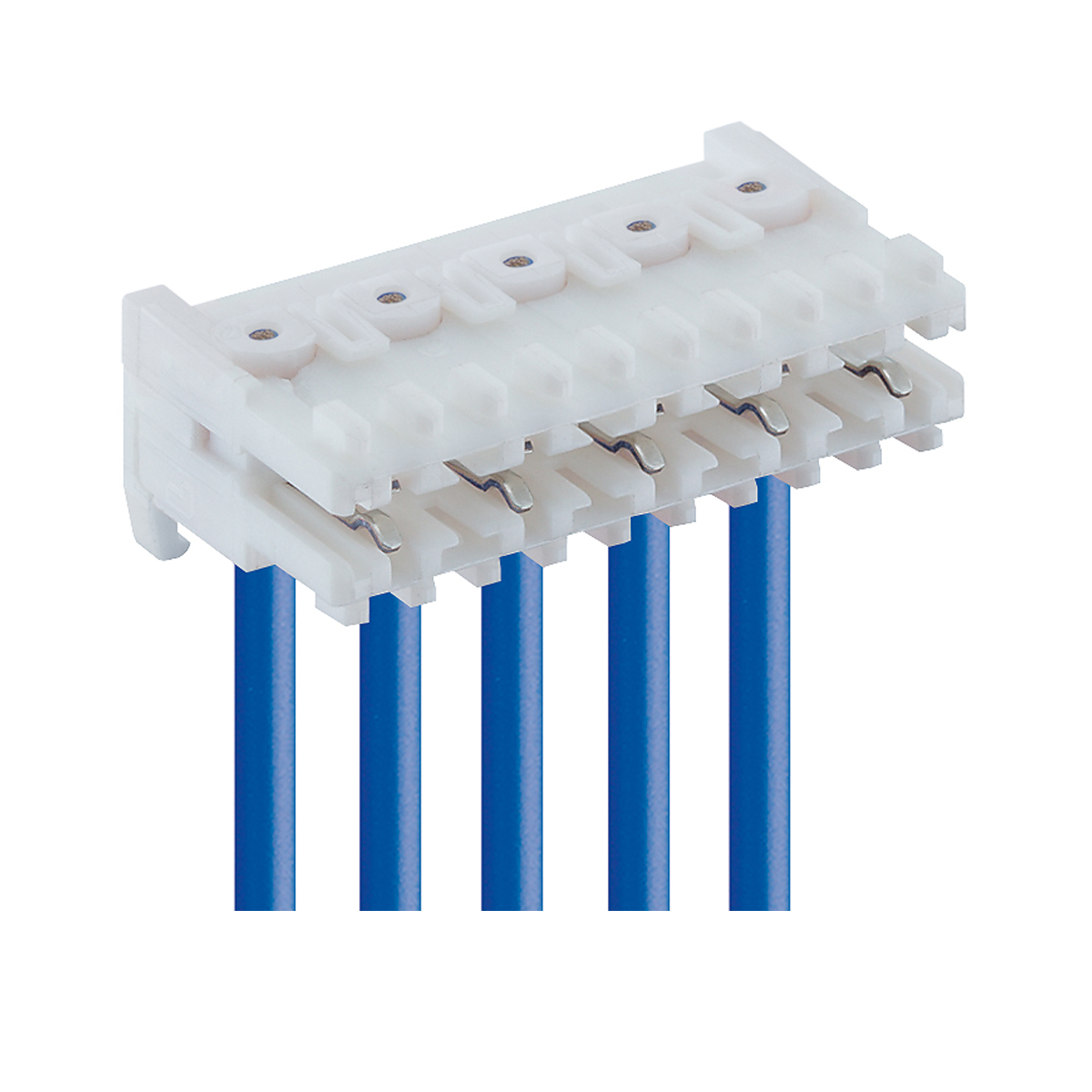

357000

RAST 2.5 Power plus™ connector for direct and indirect mating, insulation displacement technology (IDT), with double-sided keying, consecutive placement without loss of pitchcontact pitch 5.0 mm

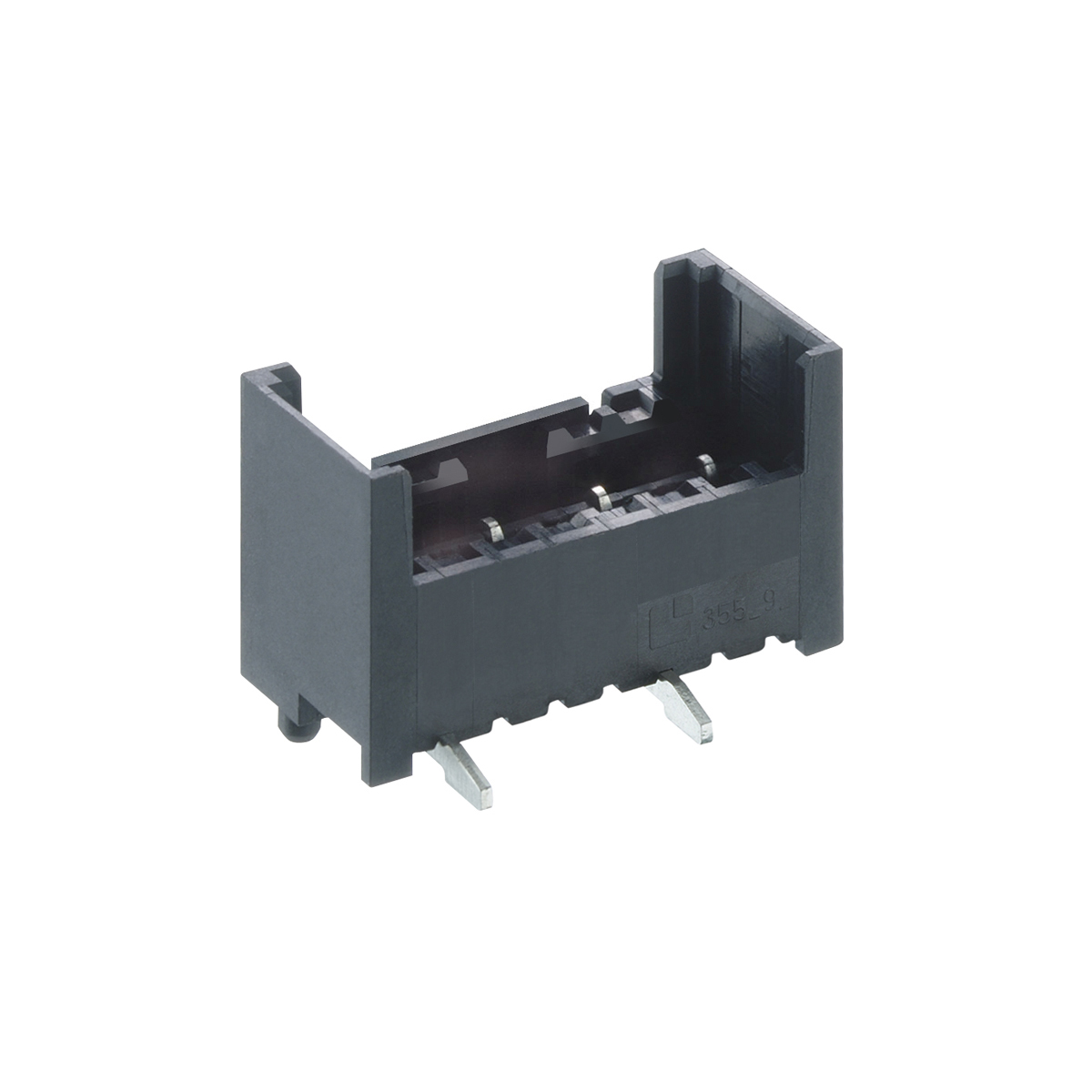

355395

RAST 2.5 plus™ pin header, upright, in surface mount technology (SMT), with one or two positioning spigots, for interior locking, daisy chain possible, with double-sided keyingcontact pitch 5.0 mm

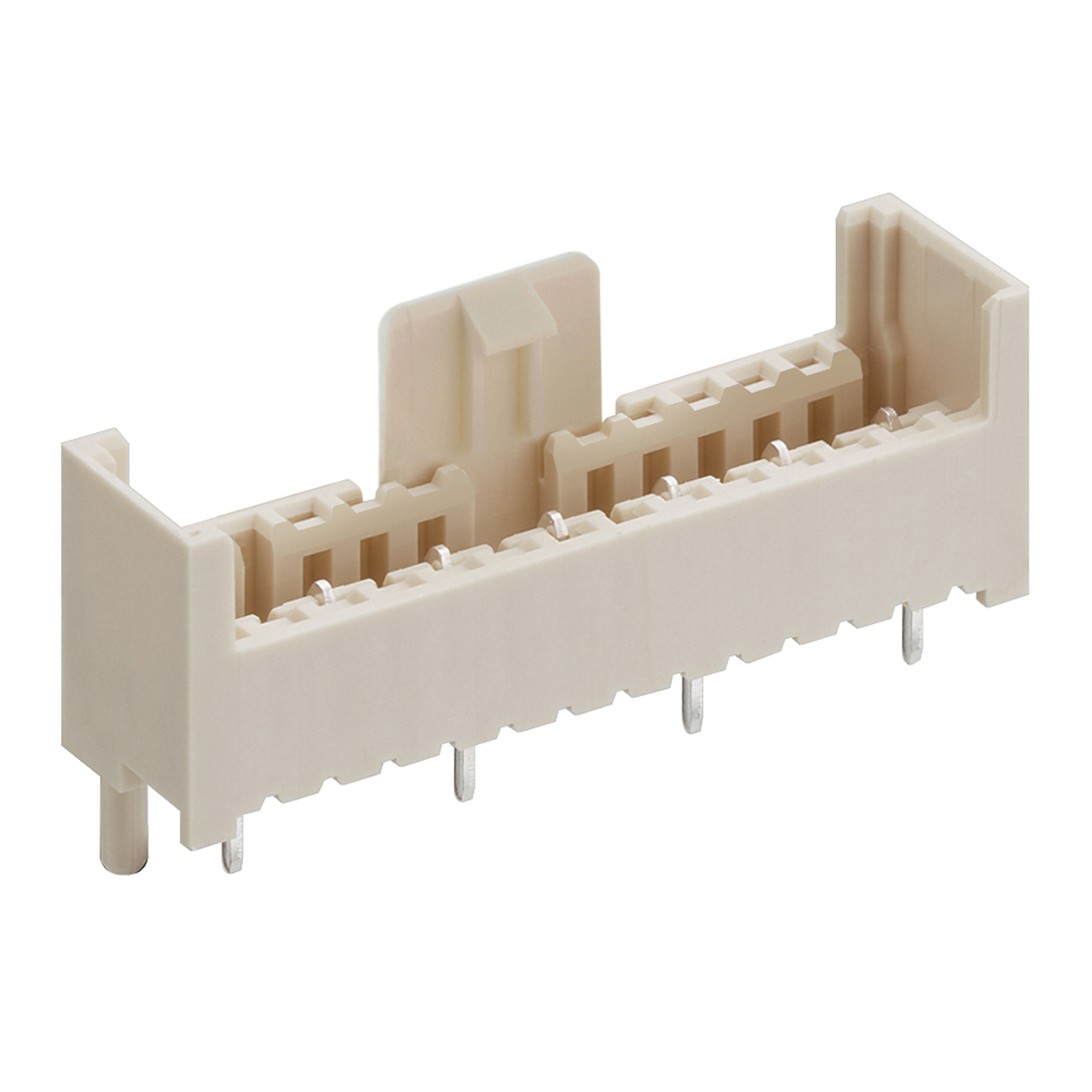

355299

RAST-2.5-plus™ pin header, upright, with locking latch and positioning spigot, with double-sided keyingcontact pitch 5.0 mm

355295

RAST 2.5 plus™ pin header, upright, in surface mount technology (SMT), with locking latch and one or two positioning spigots, with double-sided keyingcontact pitch 5.0 mm

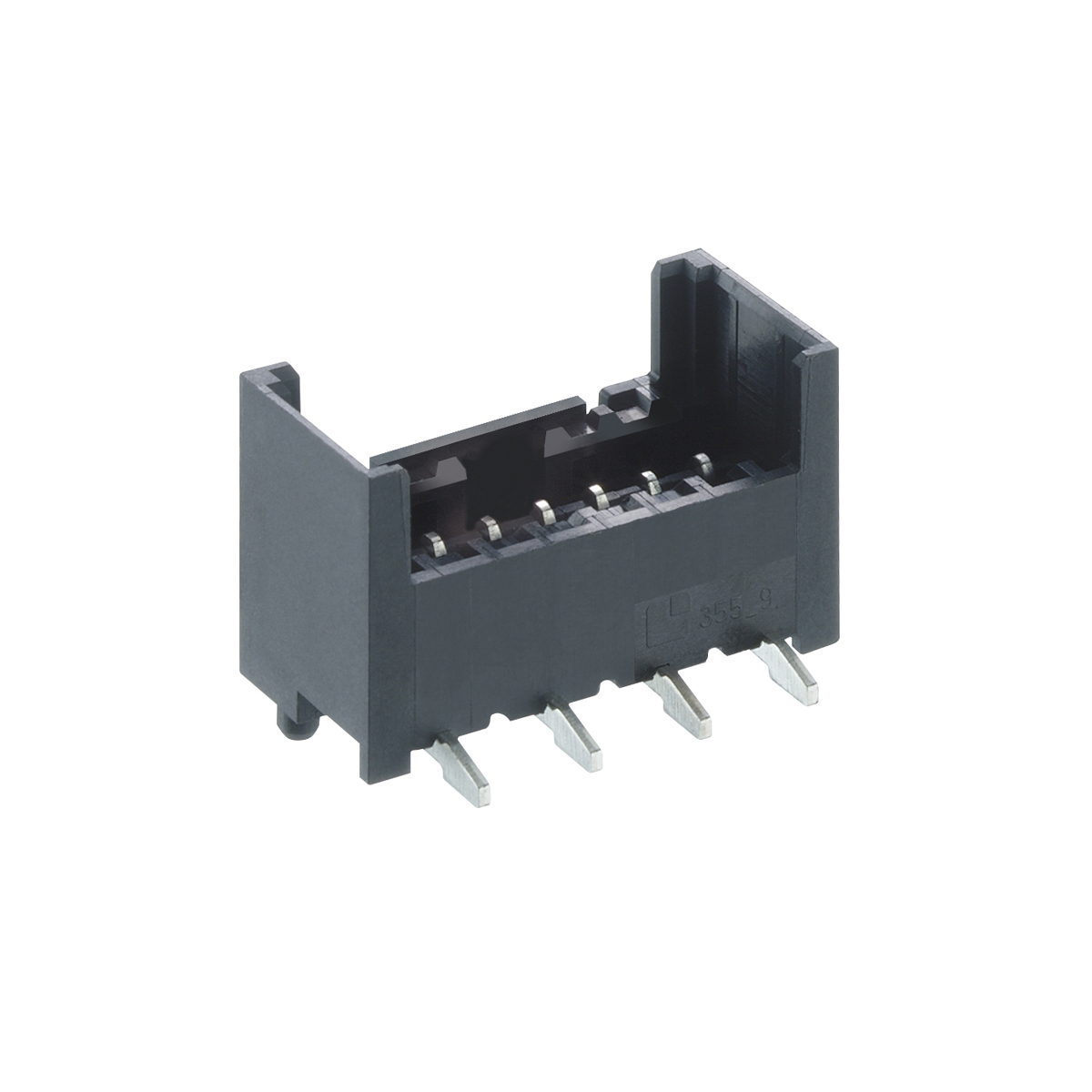

355195

RAST 2.5 plus™ pin header, upright, in surface mount technology (SMT), with one or two positioning spigots, for interior locking, daisy chain possible, with double-sided keyingcontact pitch 2.5 mm

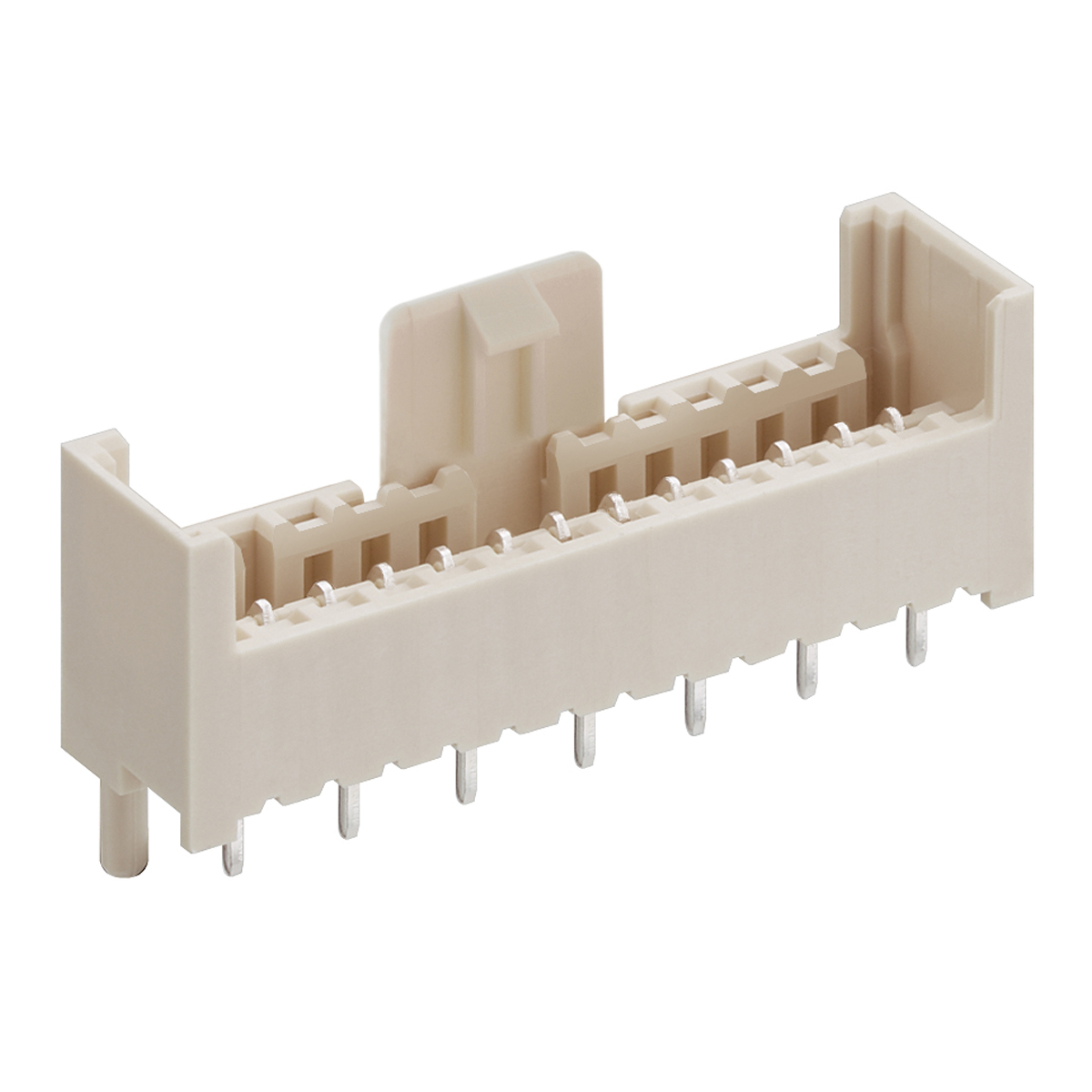

355099

RAST-2.5-plus™ pin header, upright, with locking latch and positioning spigot, with double-sided keyingcontact pitch 2.5 mm

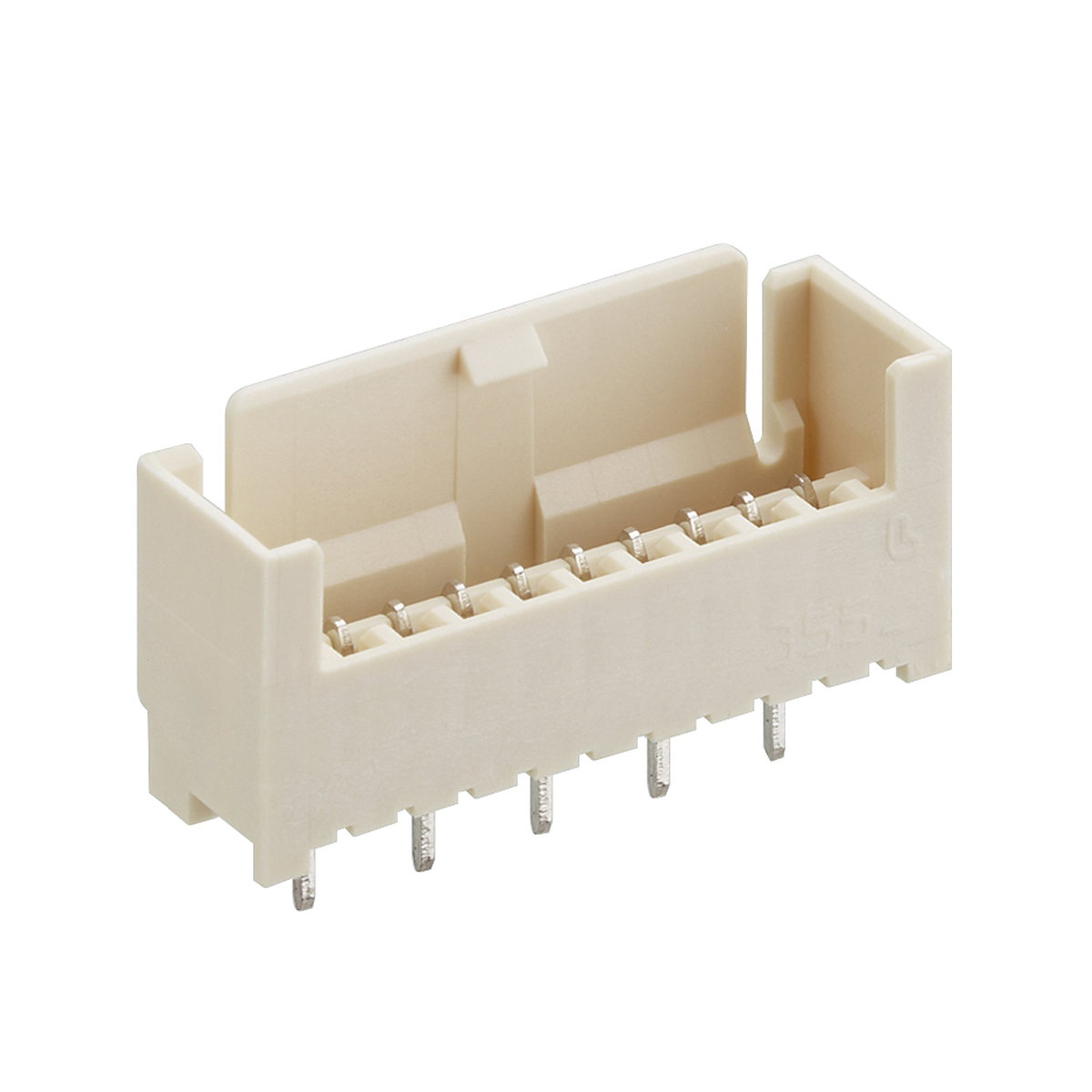

355096

RAST 2.5 pin header, with locking latch (without positioning spigot)contact pitch 2.5 mm

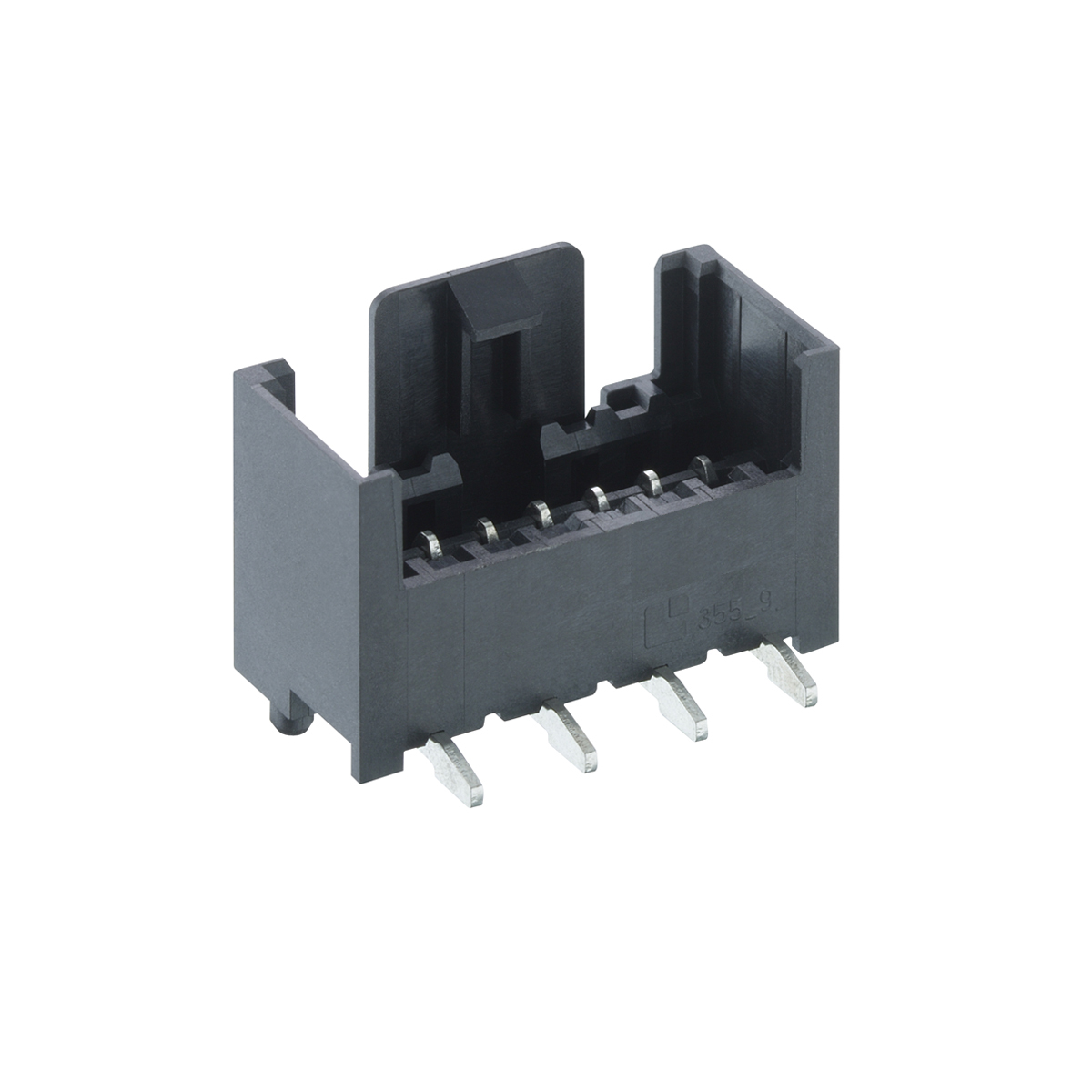

355095

RAST 2.5 plus™ pin header, upright, in surface mount technology (SMT), with locking latch and one or two positioning spigots, with double-sided keyingcontact pitch 2.5 mm

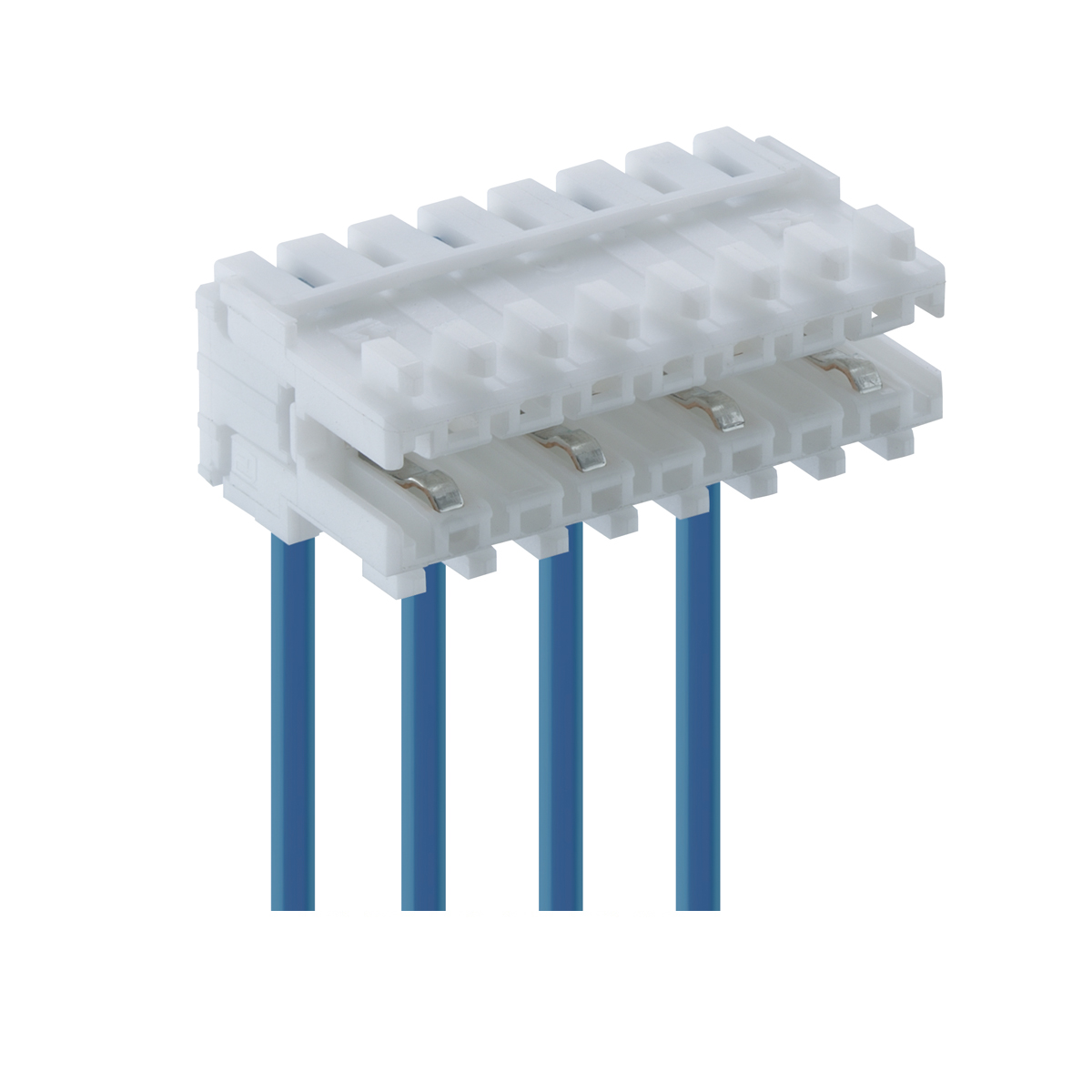

352300

RAST 2.5 plus™ connector for direct and indirect mating, with double-sided keying, insulation displacement technology (IDT), consecutive placement without loss of pitchcontact pitch 5.0 mm

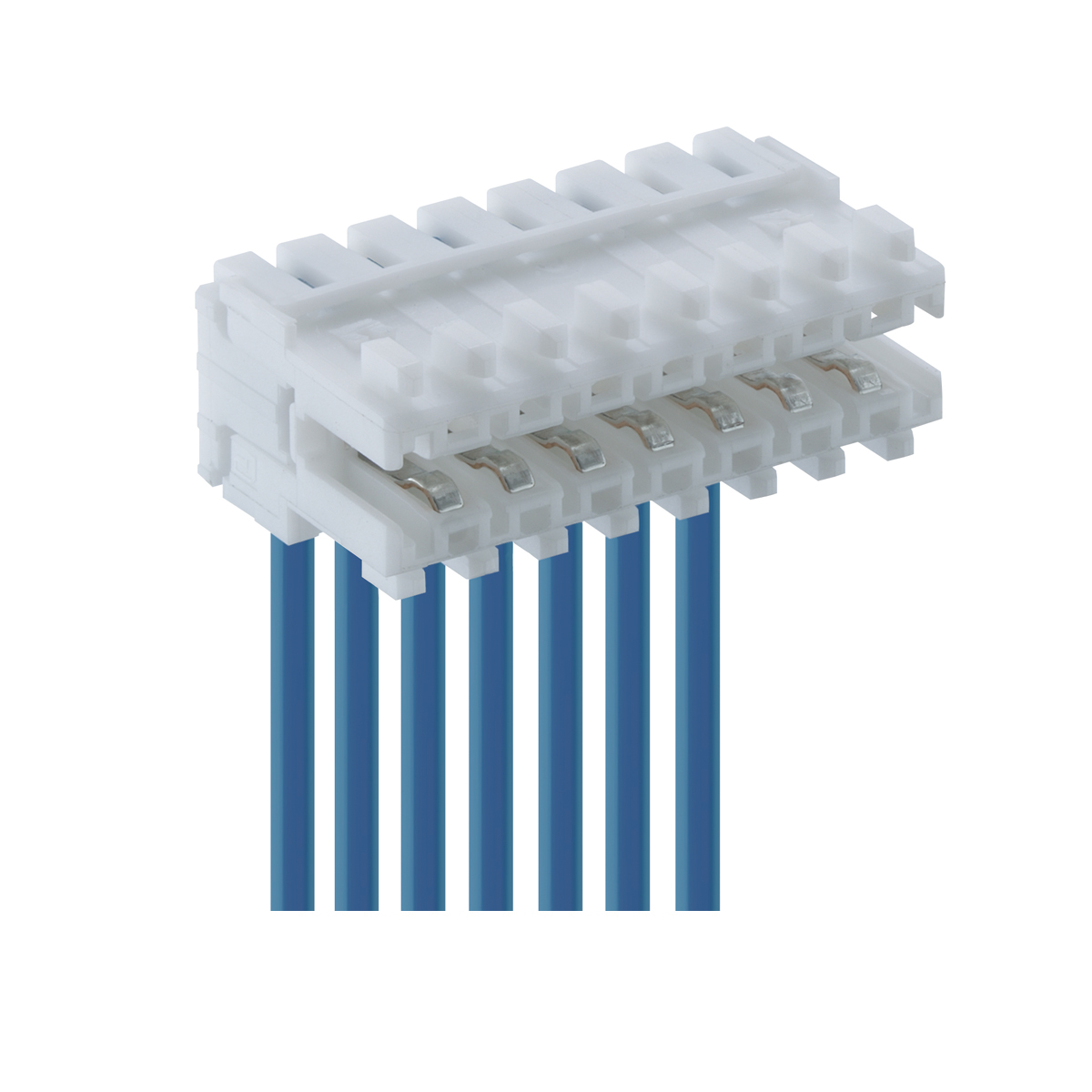

352100

RAST 2.5 plus™ connector for direct and indirect mating, with double-sided keying, insulation displacement technology (IDT) contact pitch 2.5 mm

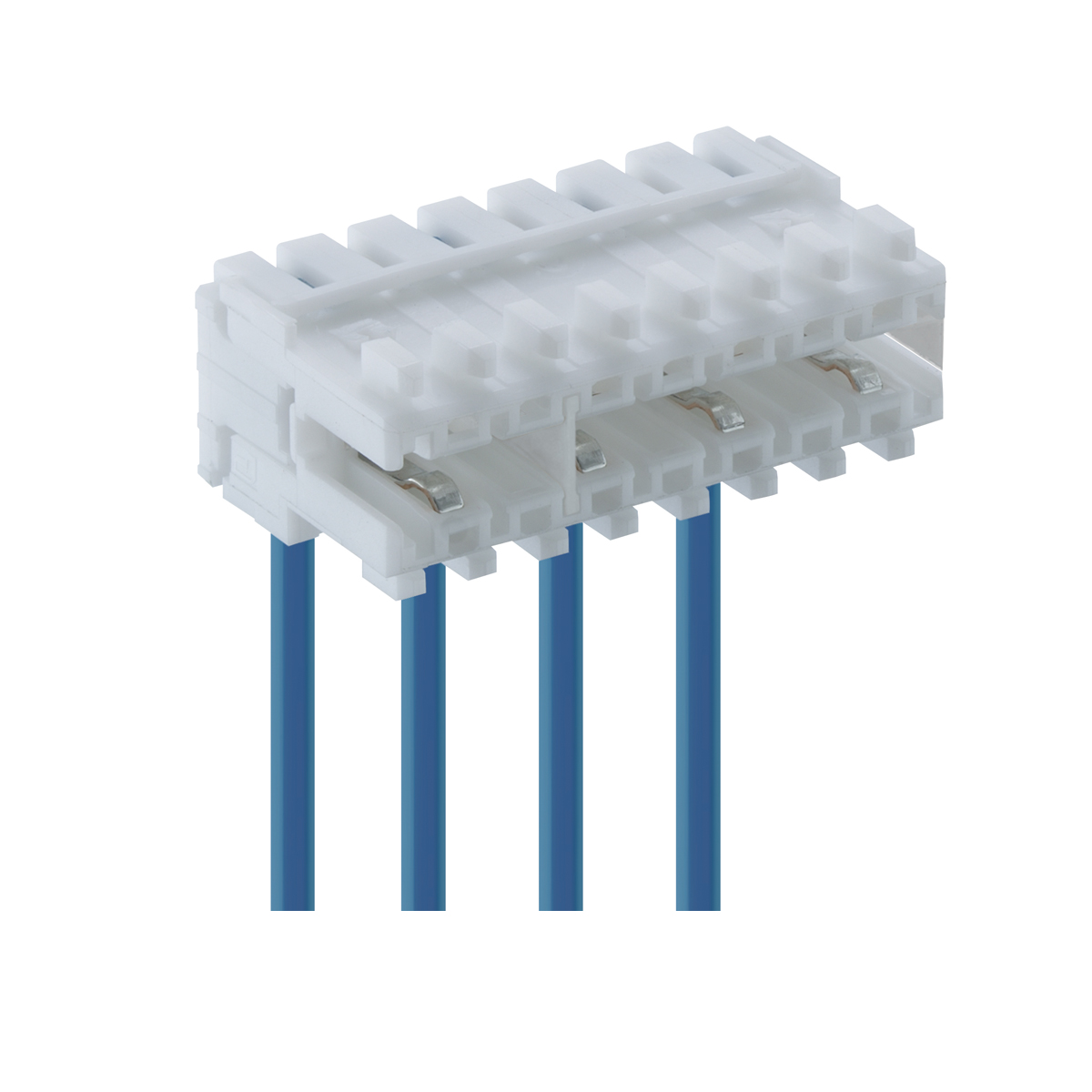

351800

RAST 2.5 plus™ connector for direct mating, with double-sided keying, insulation displacement technology (IDT), with locking on printed circuit board by means of locking toes, alternatively with or without keying rib and closed sides, consecutive placement without loss of pitchcontact pitch 5.0 mm

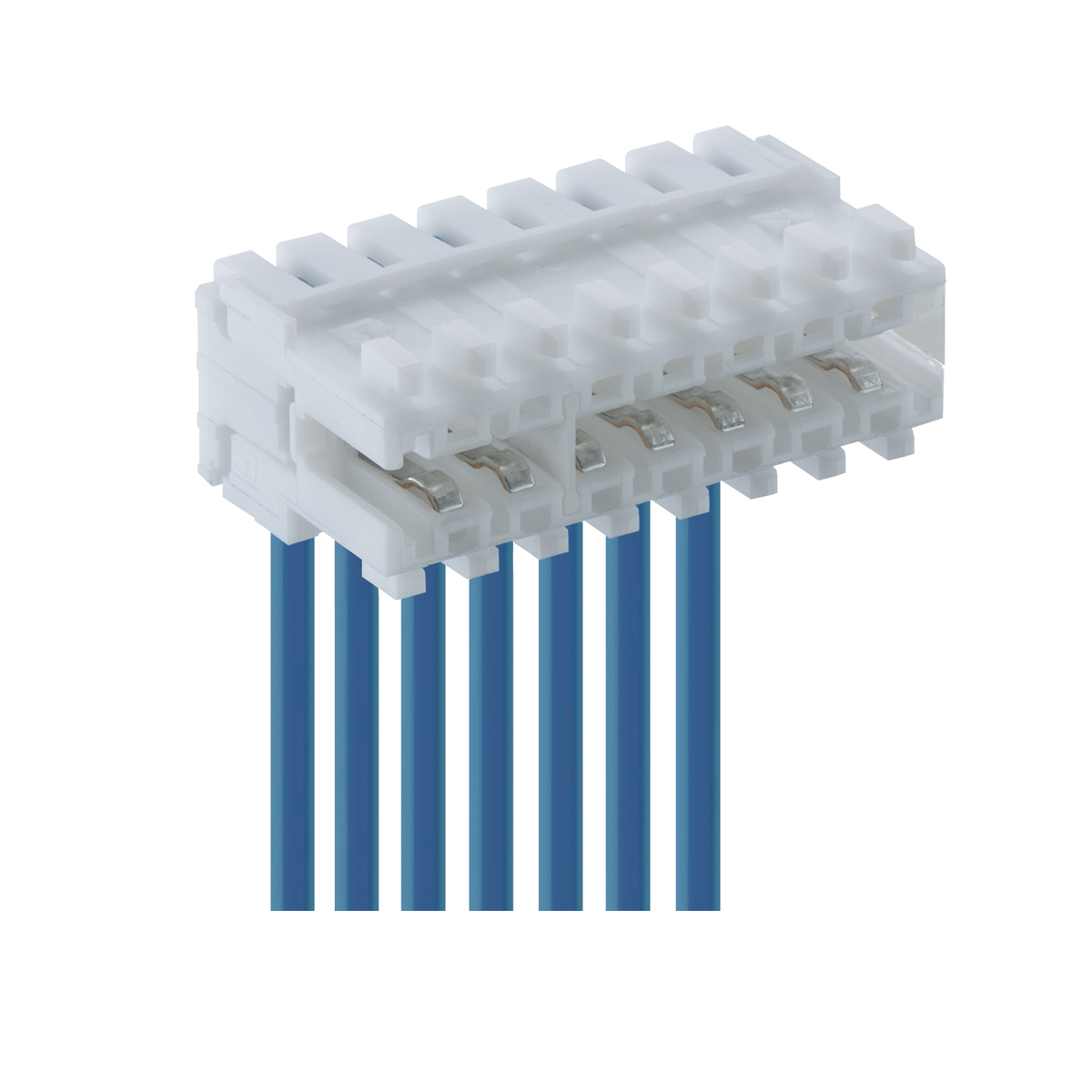

351700

RAST 2.5 plus™ connector for direct mating, with double-sided keying, insulation displacement technology (IDT), with locking on printed circuit board by means of locking toes, alternatively with or without keying rib and closed sidescontact pitch 2.5 mm

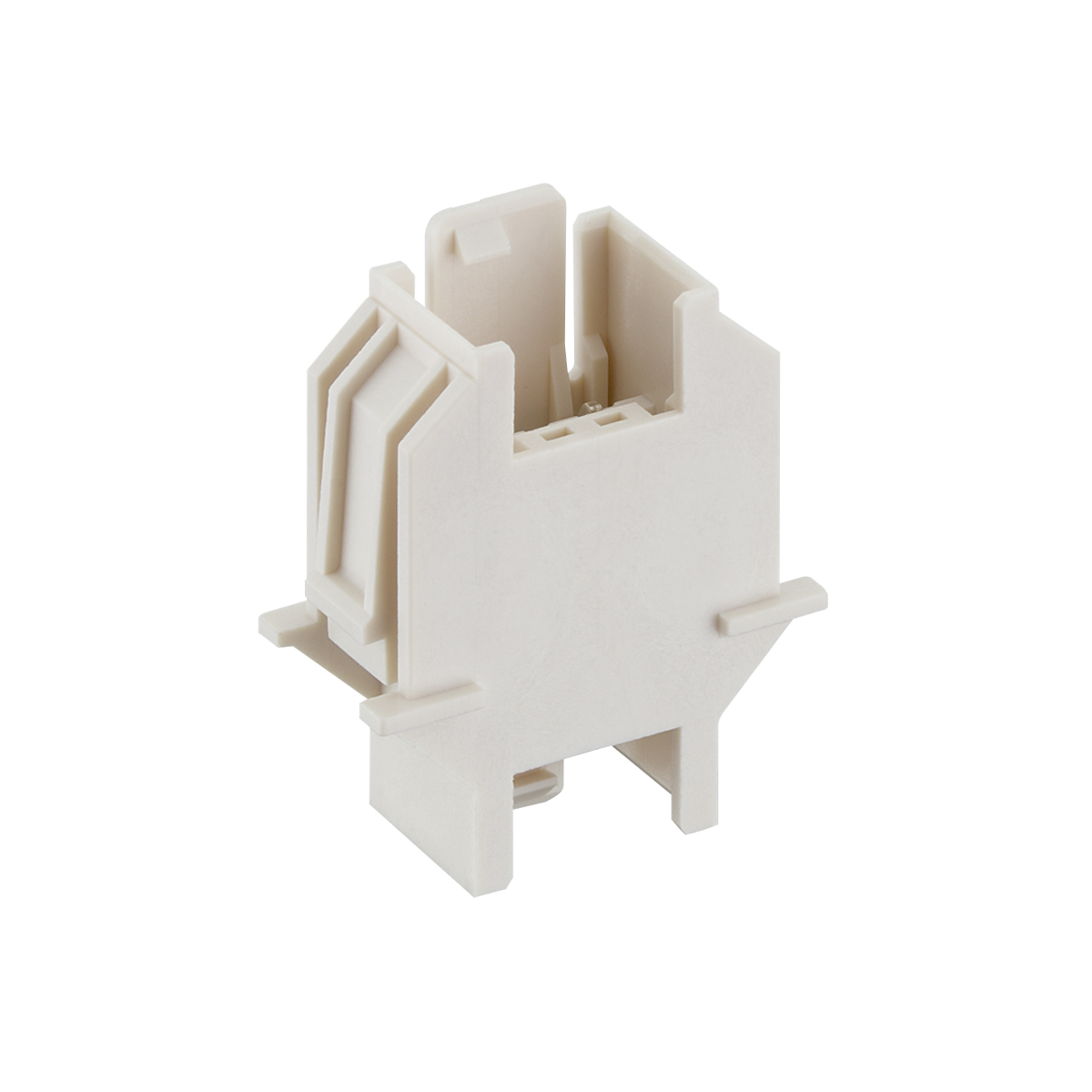

83546

RAST 2.5 double chassis pin header, with locking latches contact pitch 5.0 mm

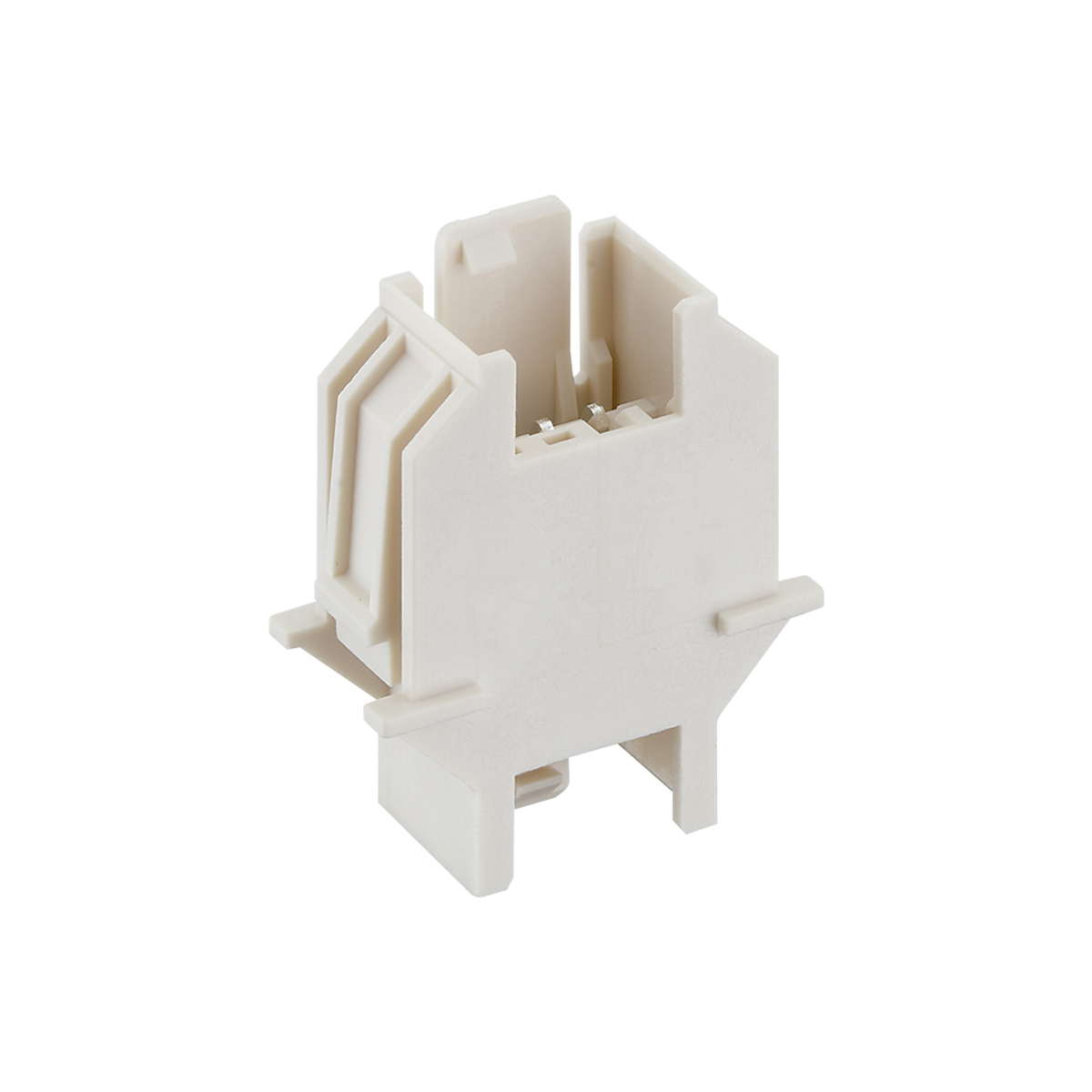

83545

RAST 2.5 double chassis pin header, with locking latches contact pitch 2.5 mm

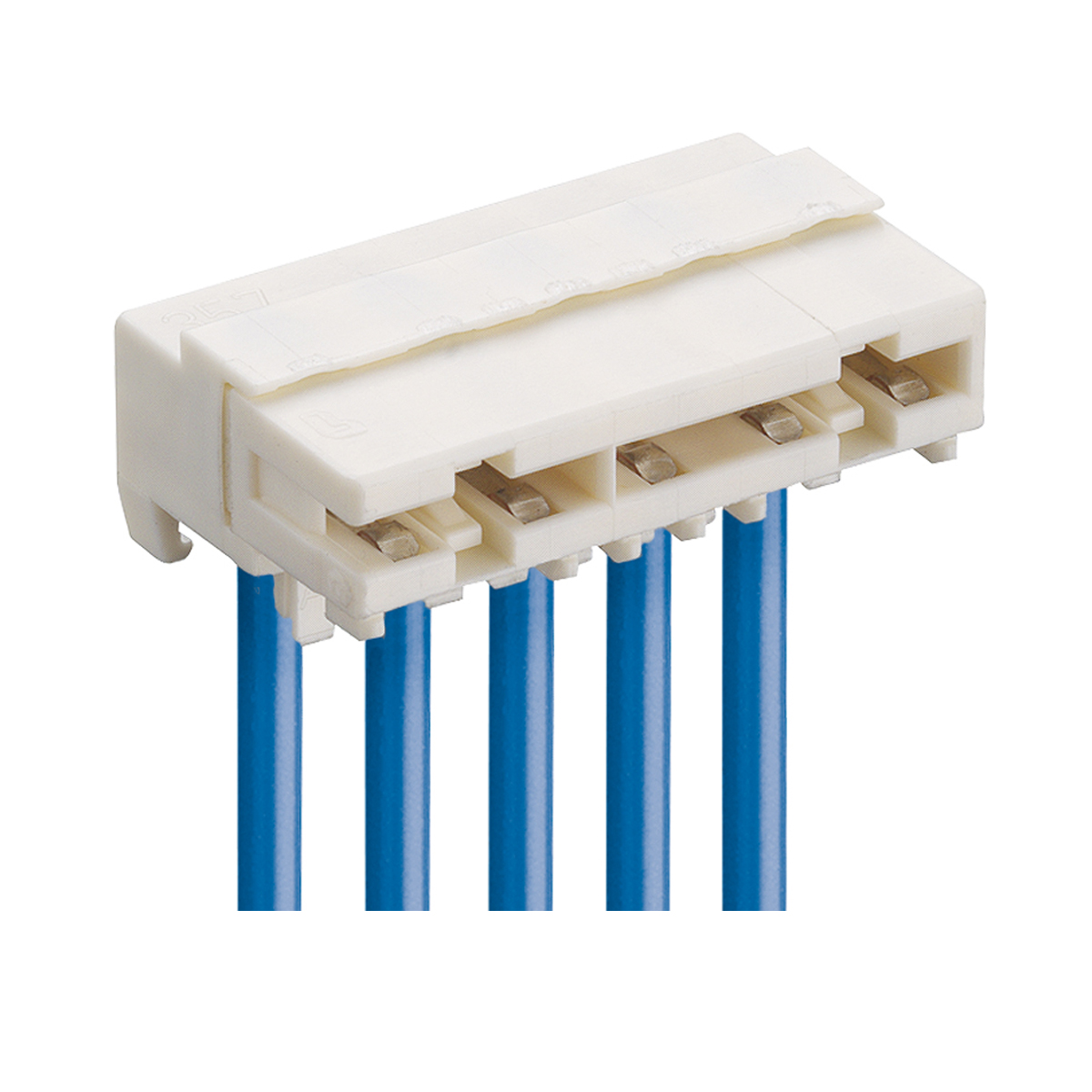

3575

RAST 2.5 Power connector for direct mating, insulation displacement technology (IDT), alternatively with or without locking on printed circuit board, with or without keying rib and closed sides, consecutive placement without loss of pitchcontact pitch 5.0 mm

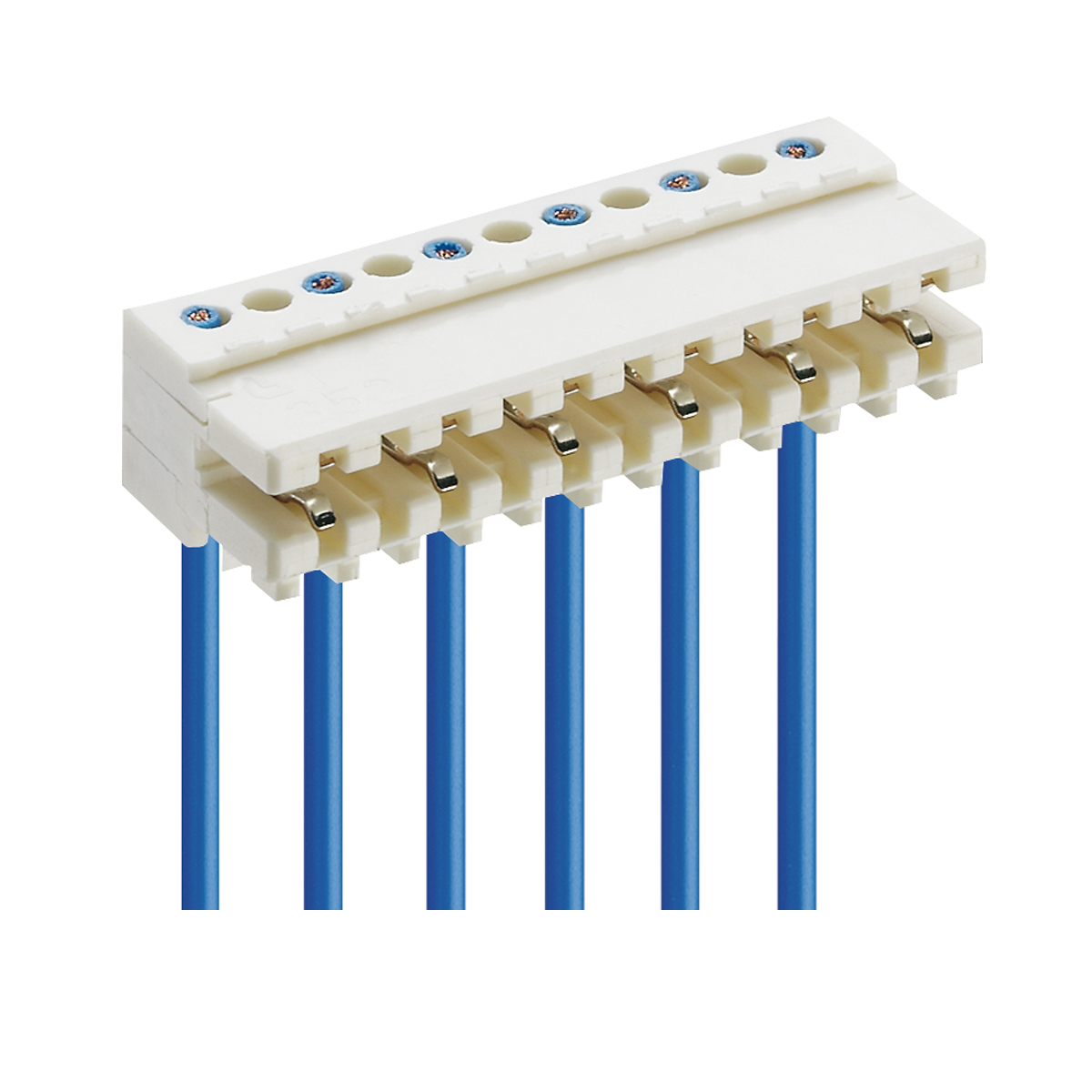

3523

RAST 2.5 connector for direct and indirect mating, insulation displacement technology (IDT) , for individual conductors, daisy chain possible, consecutive placement without loss of pitchcontact pitch 5.0 mm

3522-2

RAST 2.5 connector for direct and indirect mating, insulation displacement technology (IDT), with interior locking, for ribbon cable, consecutive placement without loss of pitchcontact pitch 5.0 mm

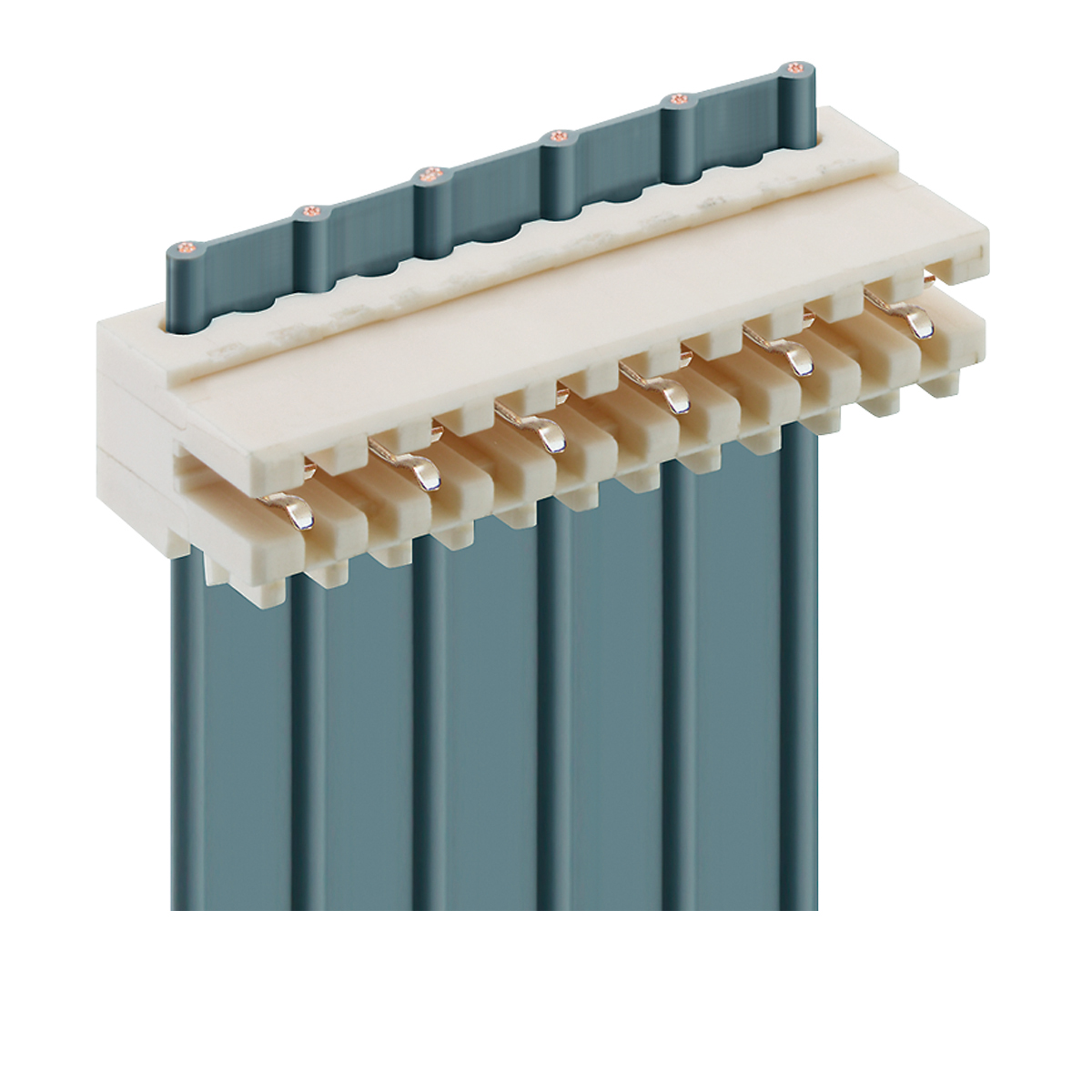

3522-1

RAST 2.5 connector for direct and indirect mating, insulation displacement technology (IDT), with interior locking, for ribbon cable, daisy chain possible, consecutive placement without loss of pitchcontact pitch 5.0 mm

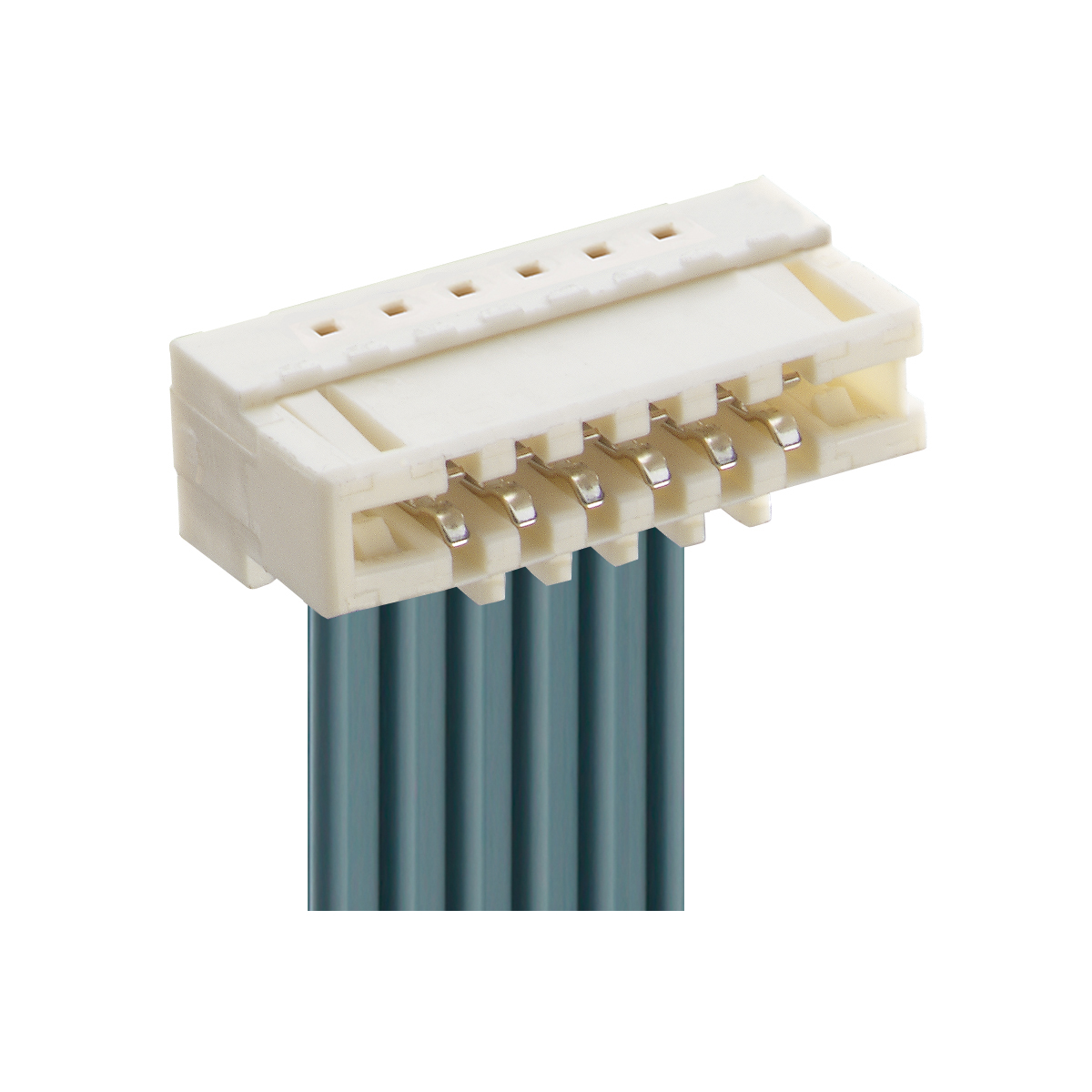

3515-2

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of locking hooks, alternatively with or without keying rib and closed sides, for ribbon cablecontact pitch 2.5 mm

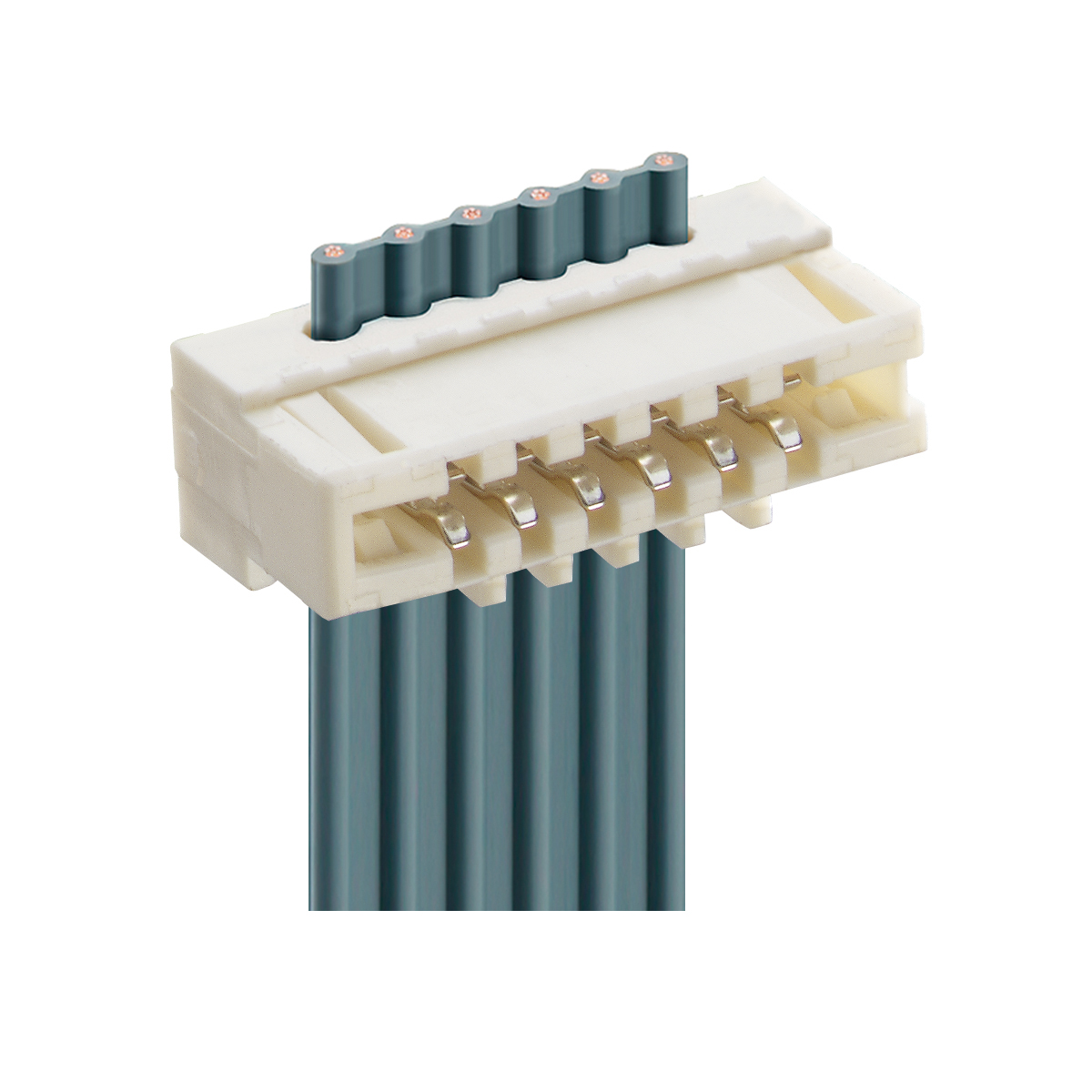

3515-1

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of locking hooks, alternatively with or without keying rib and closed sides, for ribbon cable, daisy chain possiblecontact pitch 2.5 mm

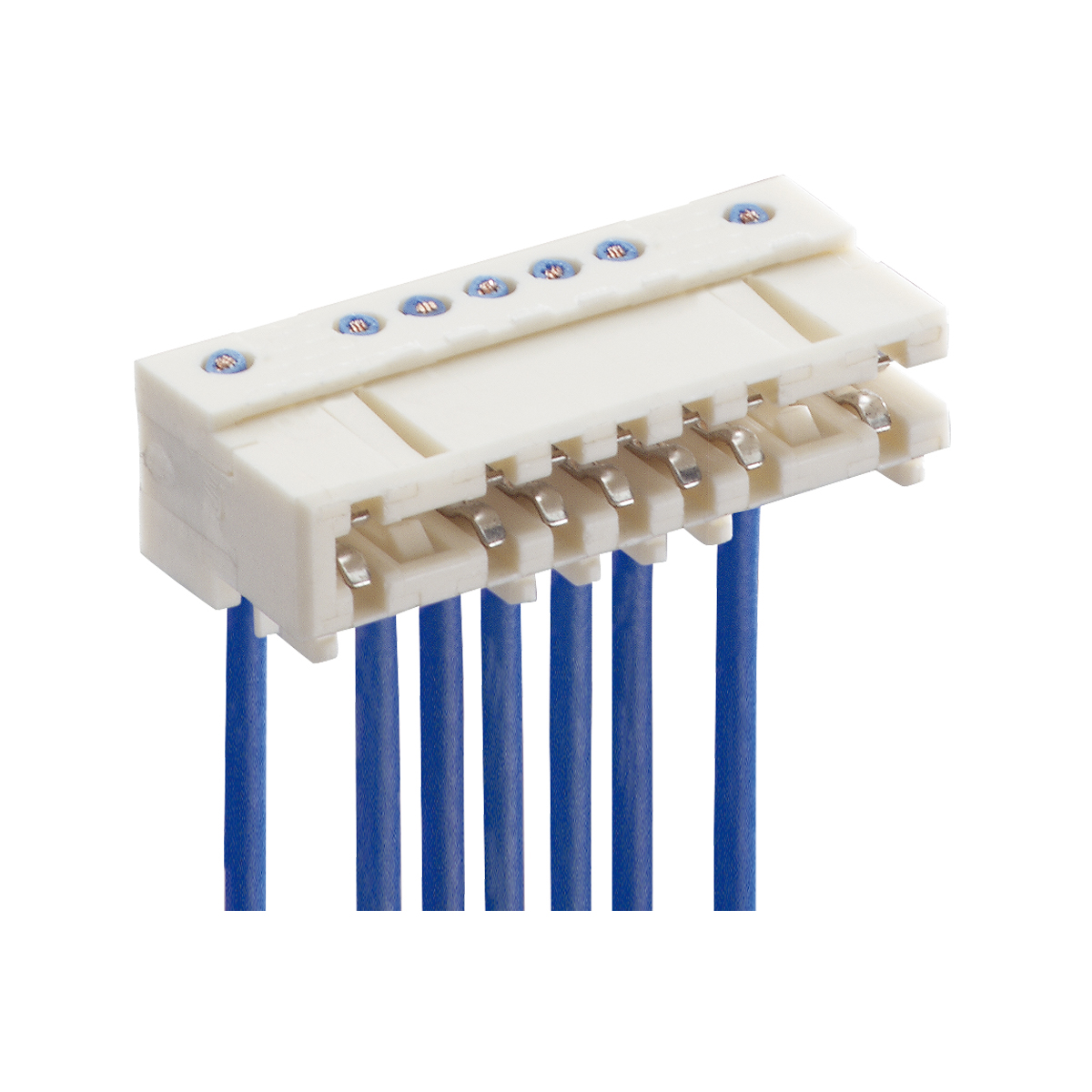

3515

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of locking hooks, alternatively with or without keying rib and closed sides, for individual conductors, daisy chain possiblecontact pitch 2.5 mm

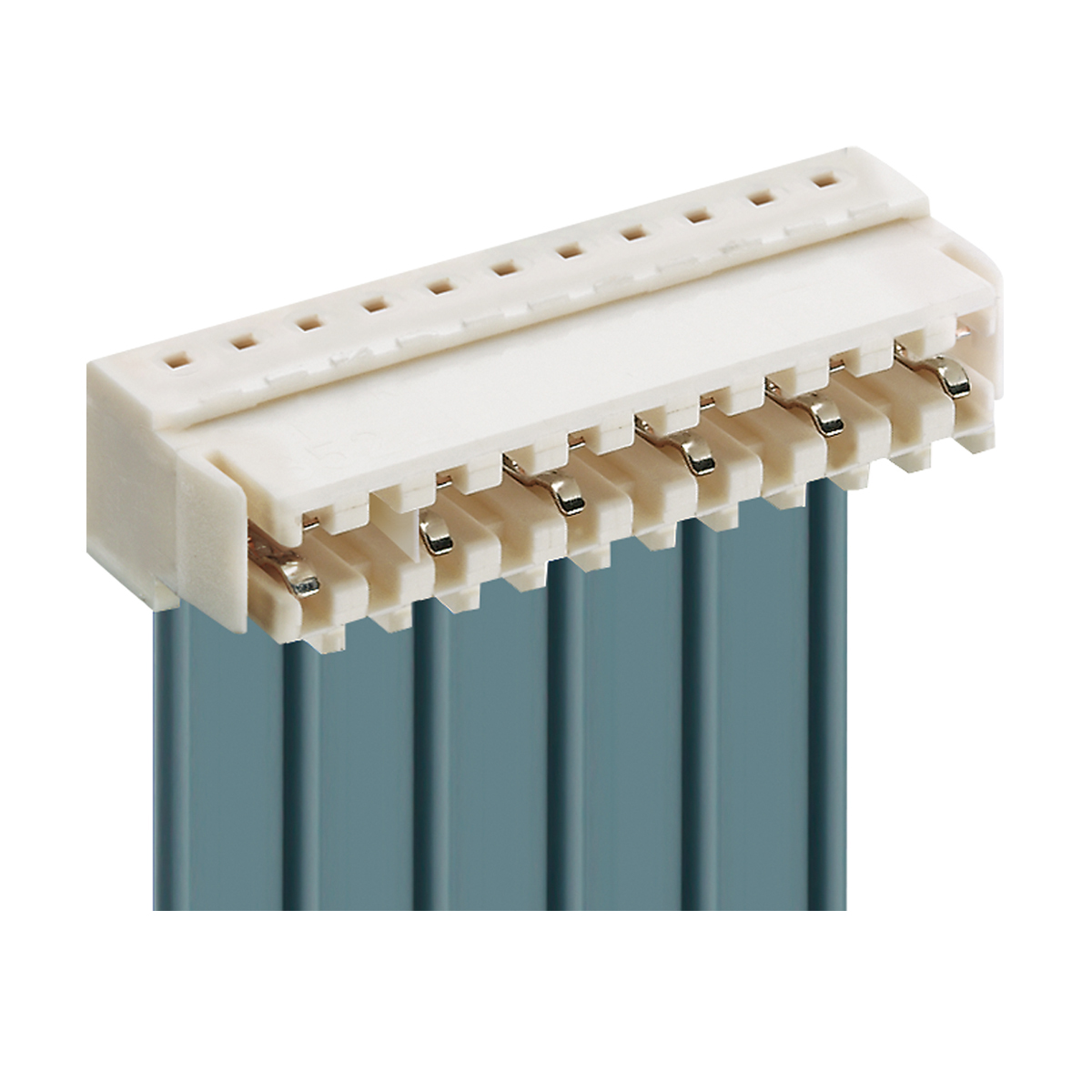

3513-2

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of lateral locking hooks, with keying rib, for ribbon cable, consecutive placement without loss of pitchcontact pitch 5.0 mm

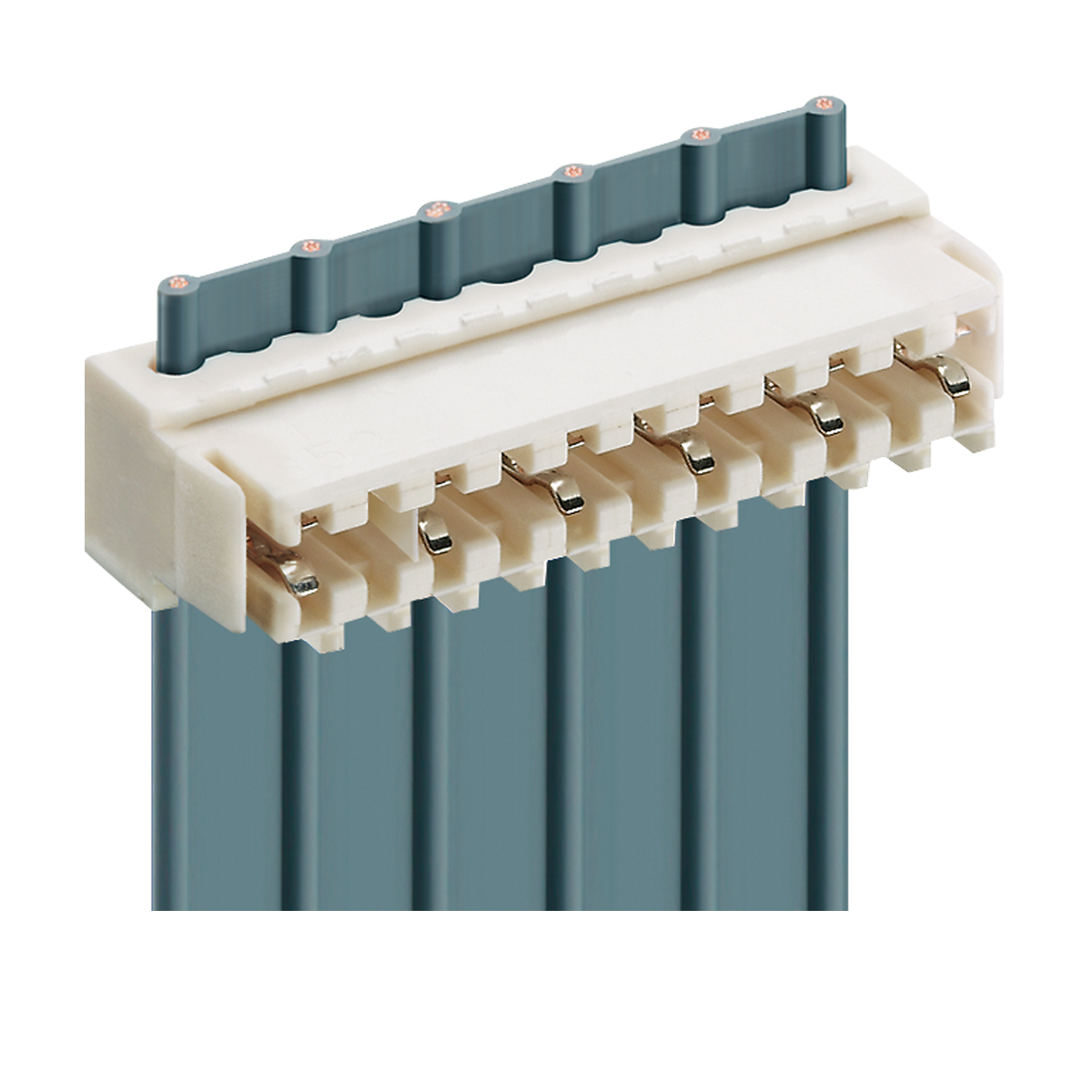

3513-1

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of lateral locking hooks, with keying rib, for ribbon cable, daisy chain possible contact pitch 5.0 mm

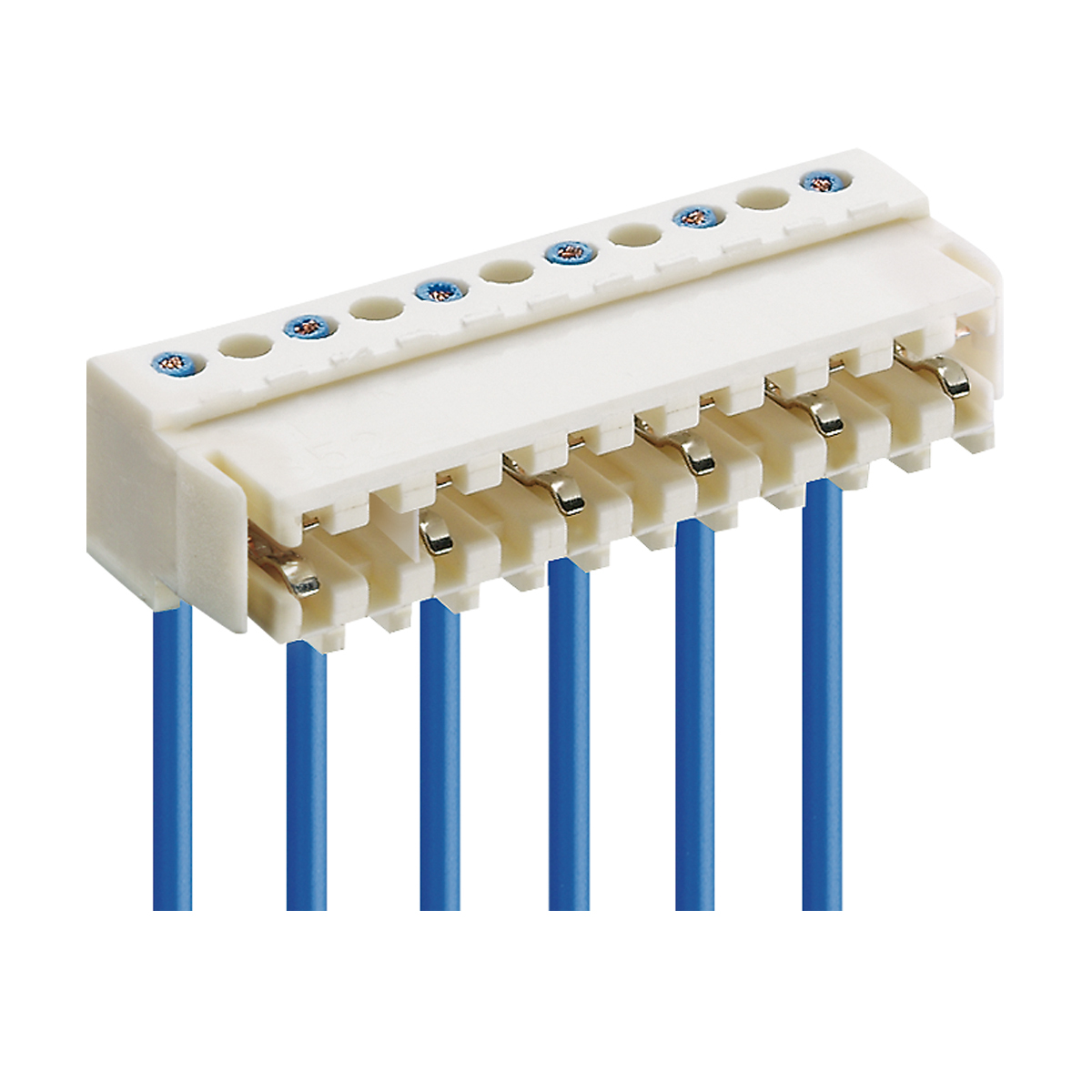

3513

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of lateral locking hooks, with keying rib, for individual conductors, daisy chain possiblecontact pitch 5.0 mm

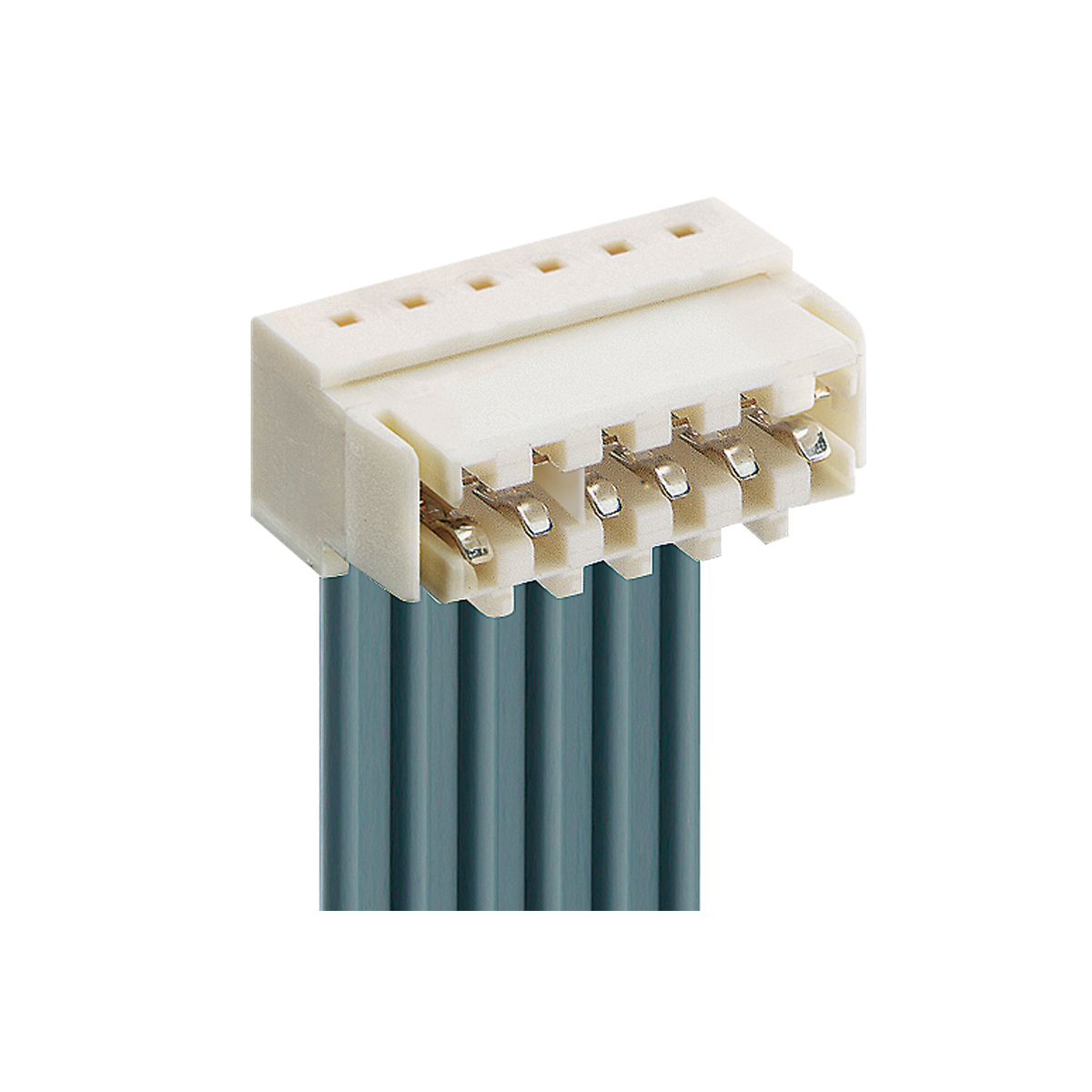

3512-2

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of lateral locking hooks, with keying rib, for ribbon cablecontact pitch 2.5 mm

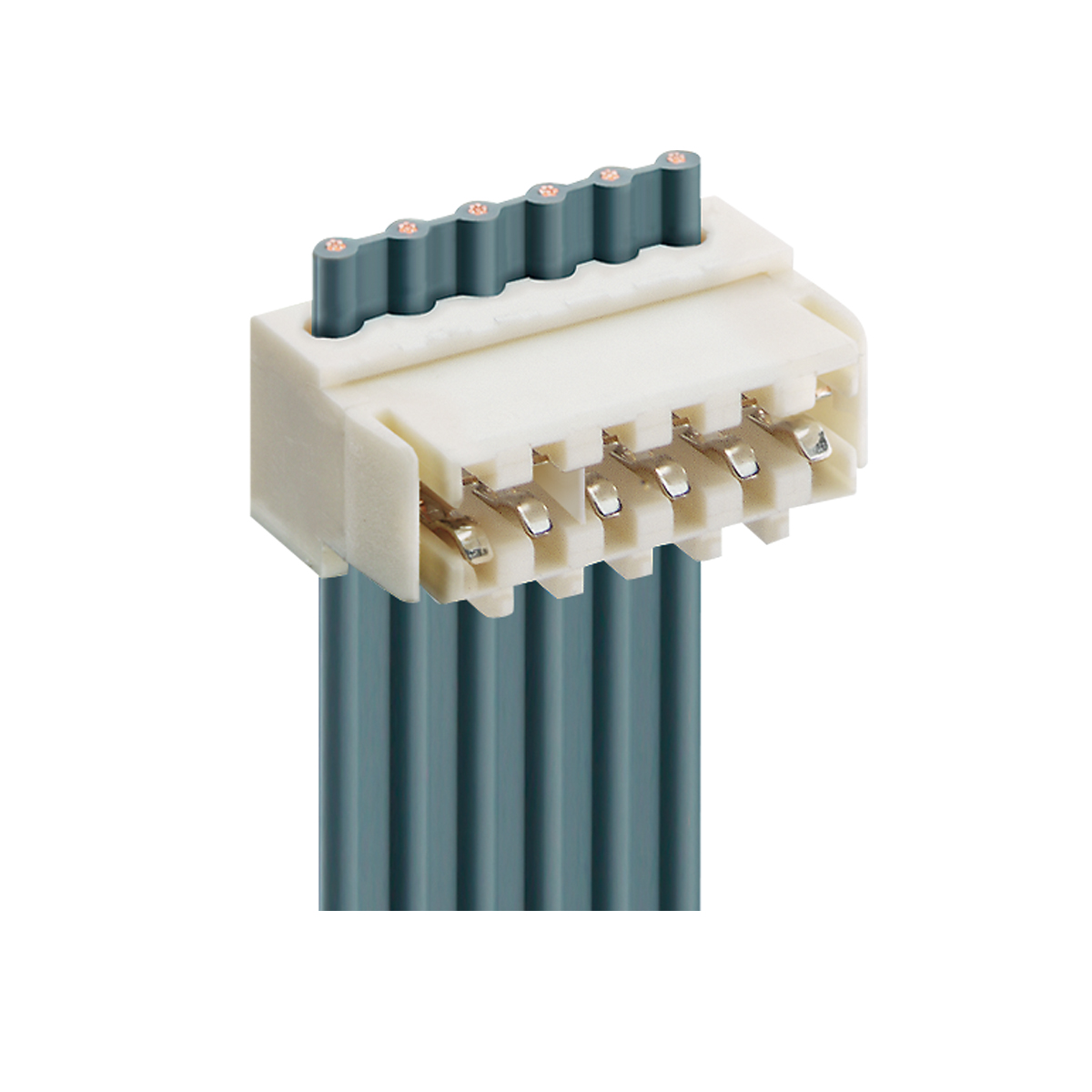

3512-1

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of lateral locking hooks, with keying rib, for ribbon cable, daisy chain possible contact pitch 2.5 mm

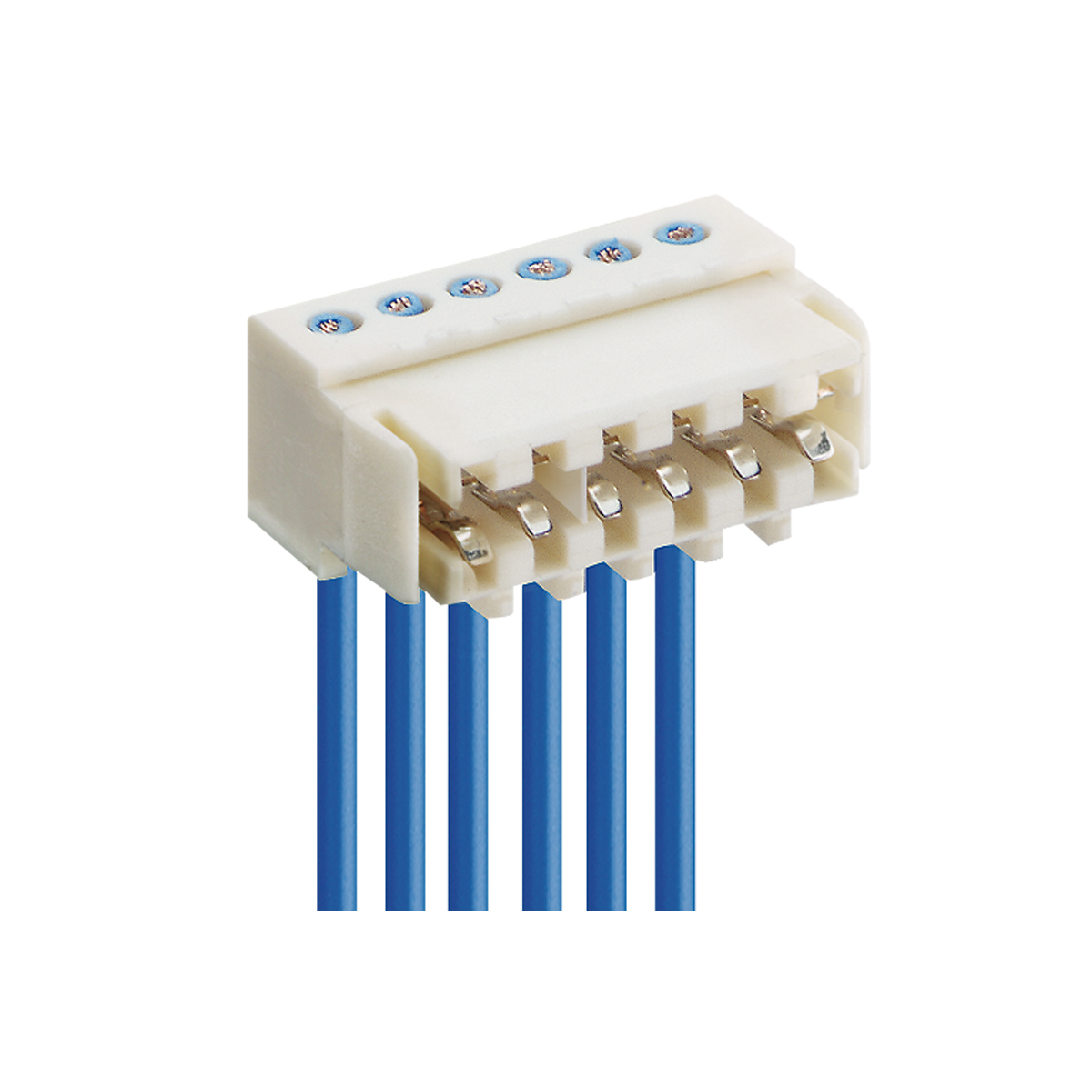

3512

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of lateral locking hooks, with keying rib, for individual conductors, daisy chain possiblecontact pitch 2.5 mm

3511-2

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), alternatively with or without keying rib and closed sides, for ribbon cable, consecutive placement without loss of pitchcontact pitch 5.0 mm

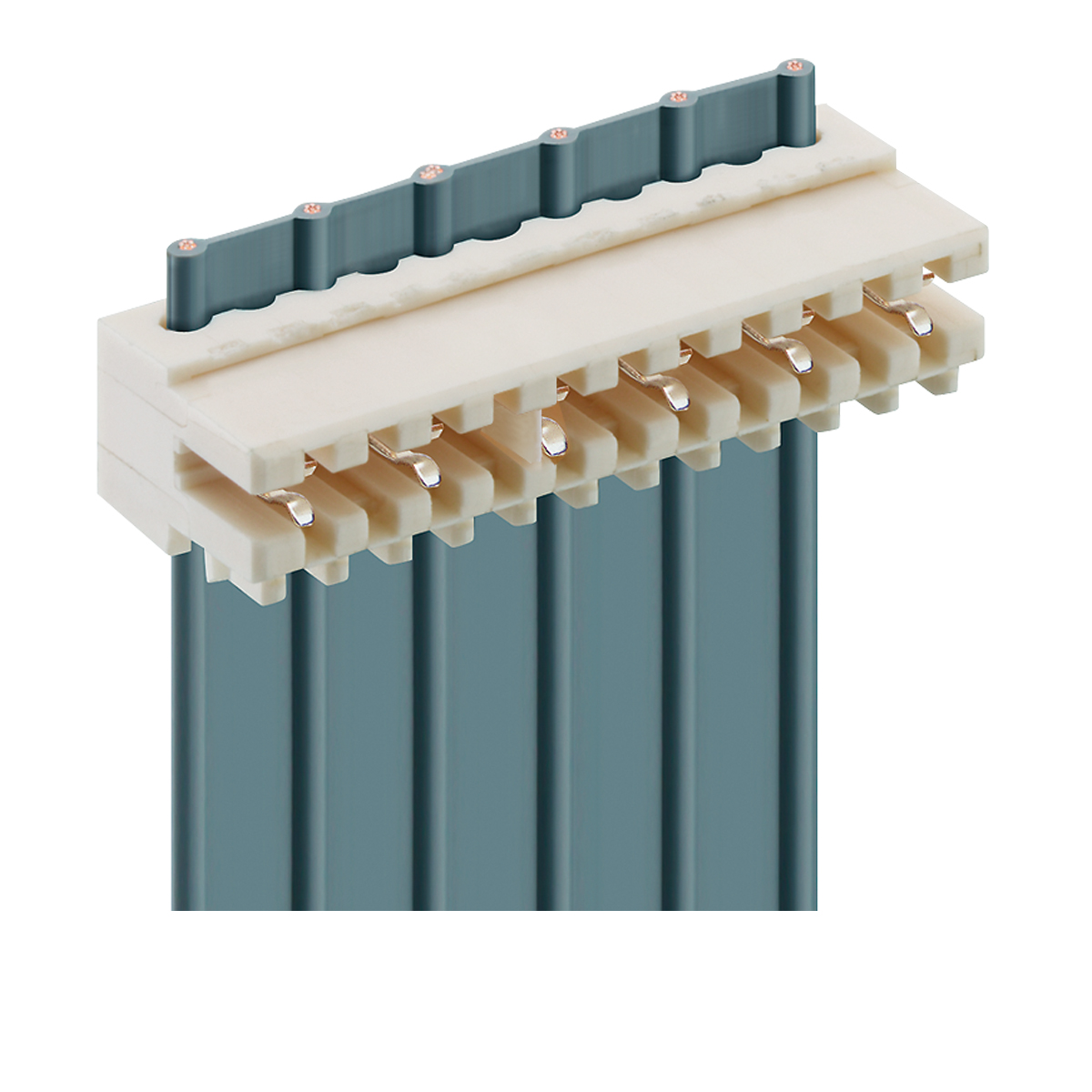

3511-1

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), alternatively with or without keying rib and closed sides, for ribbon cable, daisy chain possible, consecutive placement without loss of pitchcontact pitch 5.0 mm

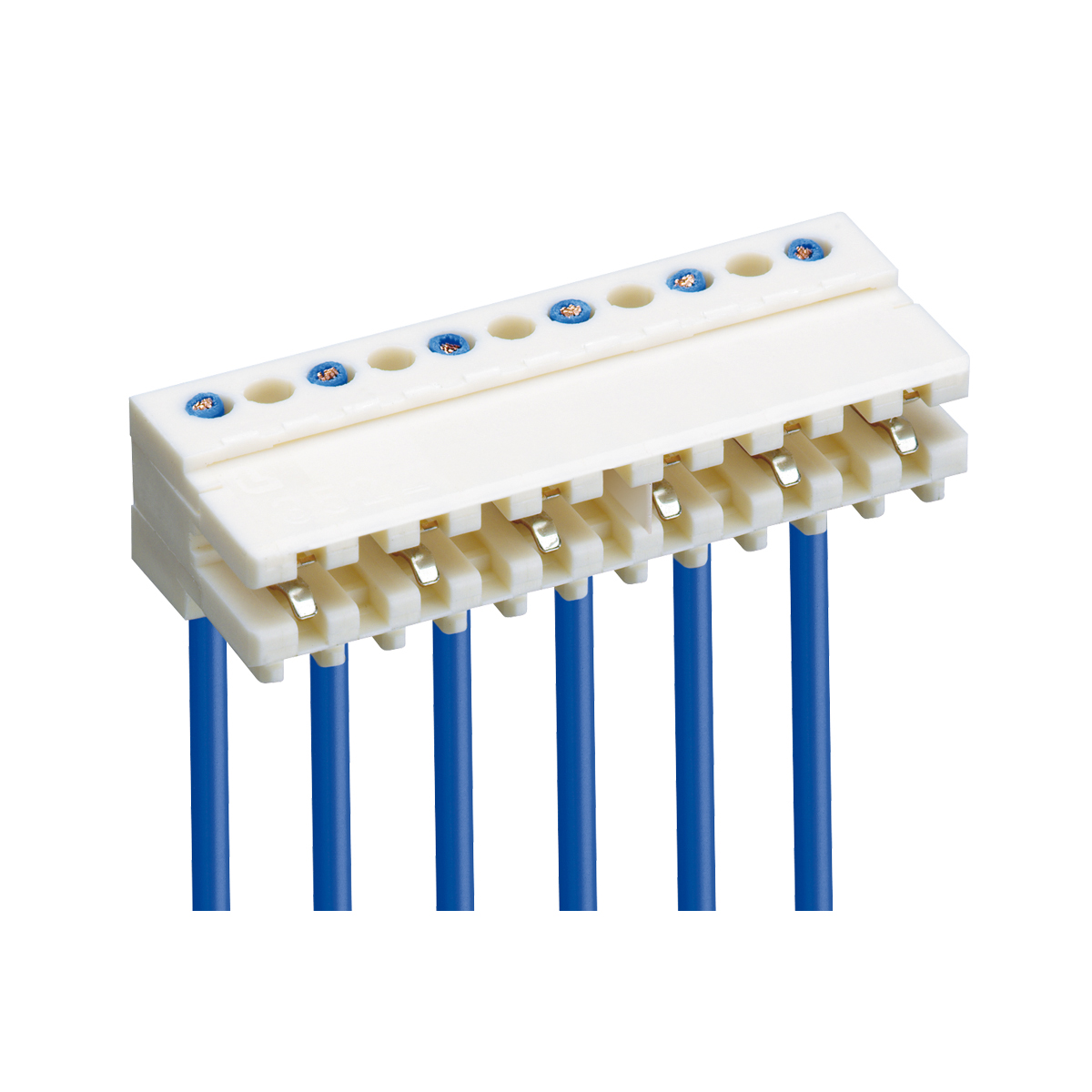

3511

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), alternatively with or without keying rib and closed sides, for individual conductors, daisy chain possible, consecutive placement without loss of pitchcontact pitch 5.0 mm

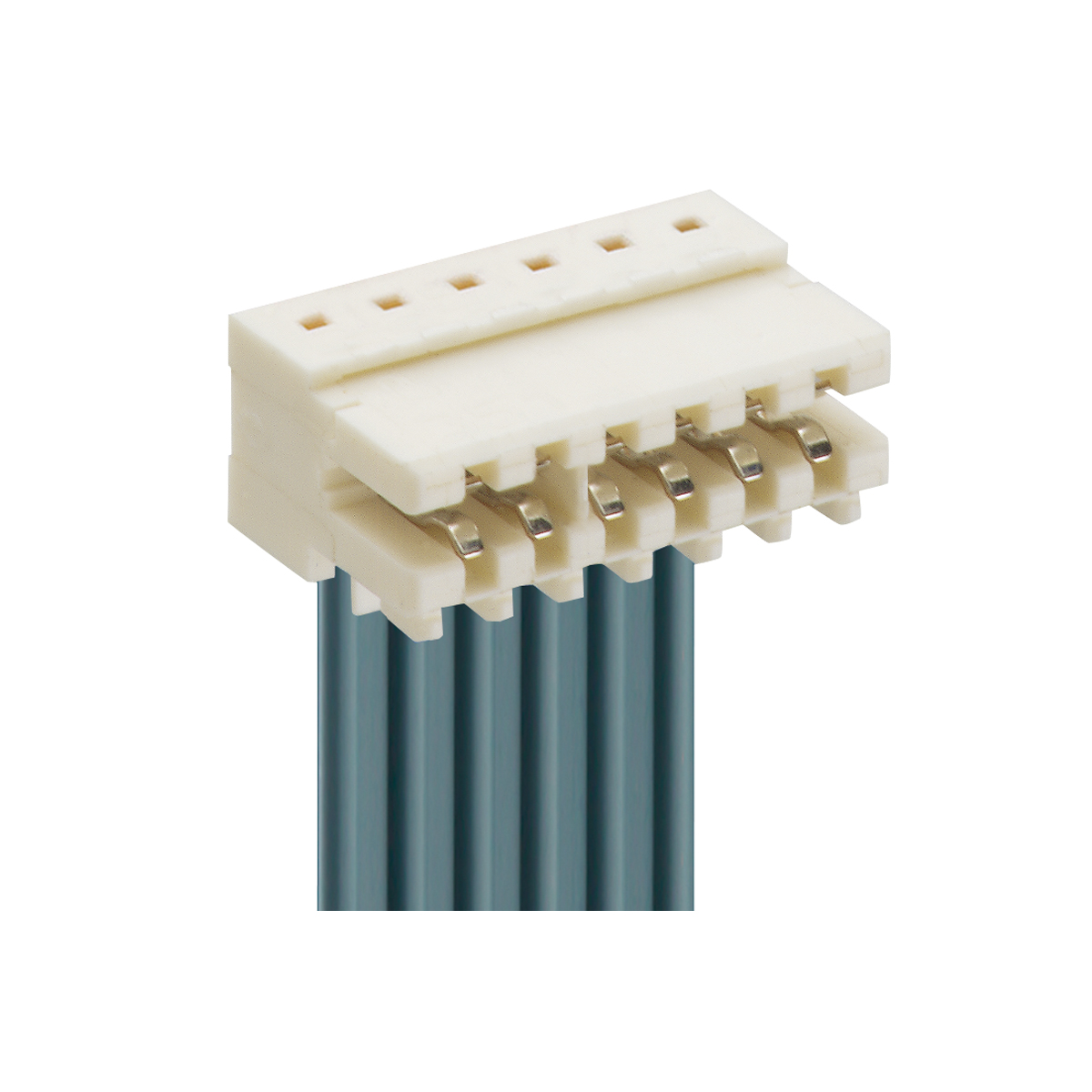

3510-2

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), alternatively with or without keying rib and closed sides, for ribbon cablecontact pitch 2.5 mm

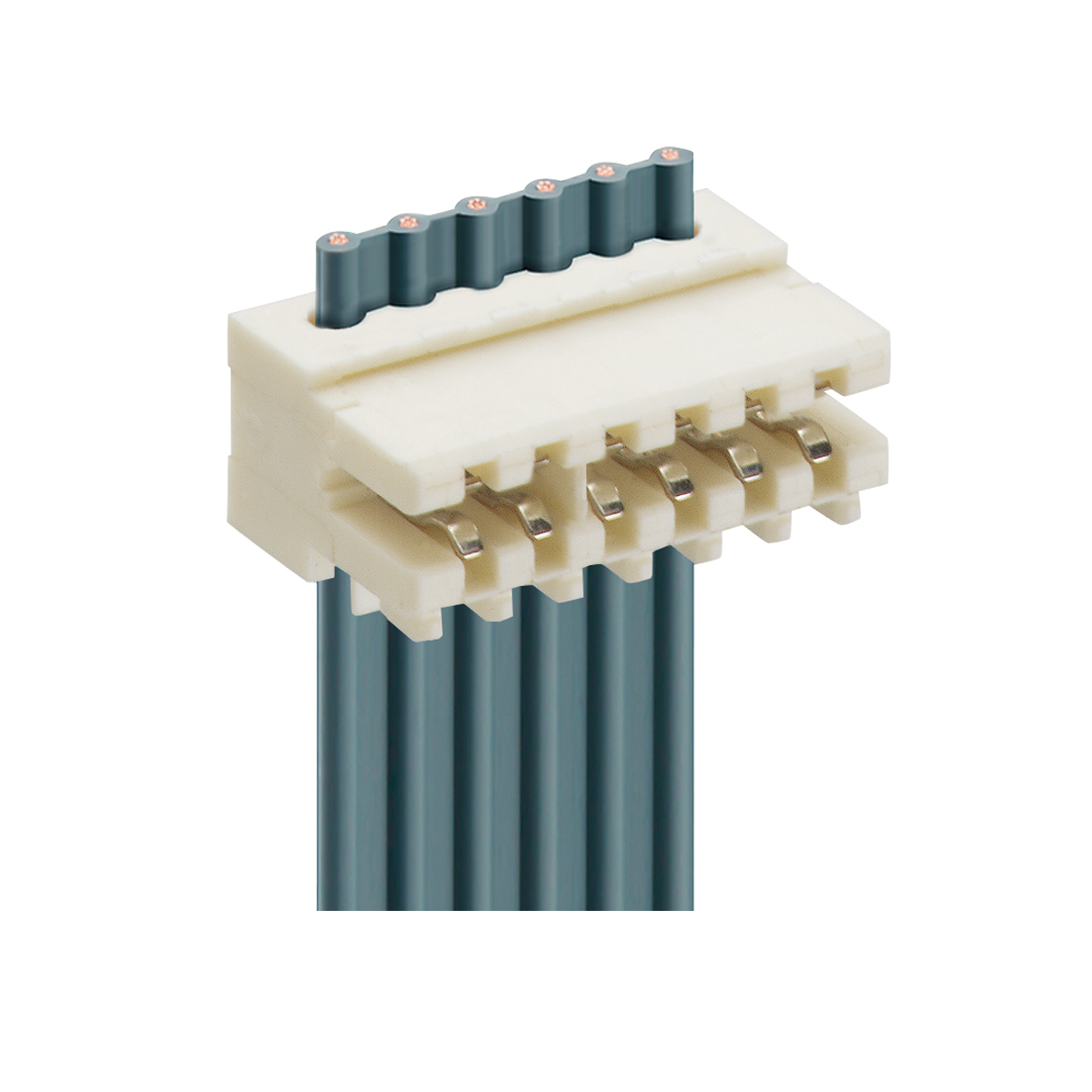

3510-1

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), alternatively with or without keying rib and closed sides, for ribbon cable, daisy chain possiblecontact pitch 2.5 mm

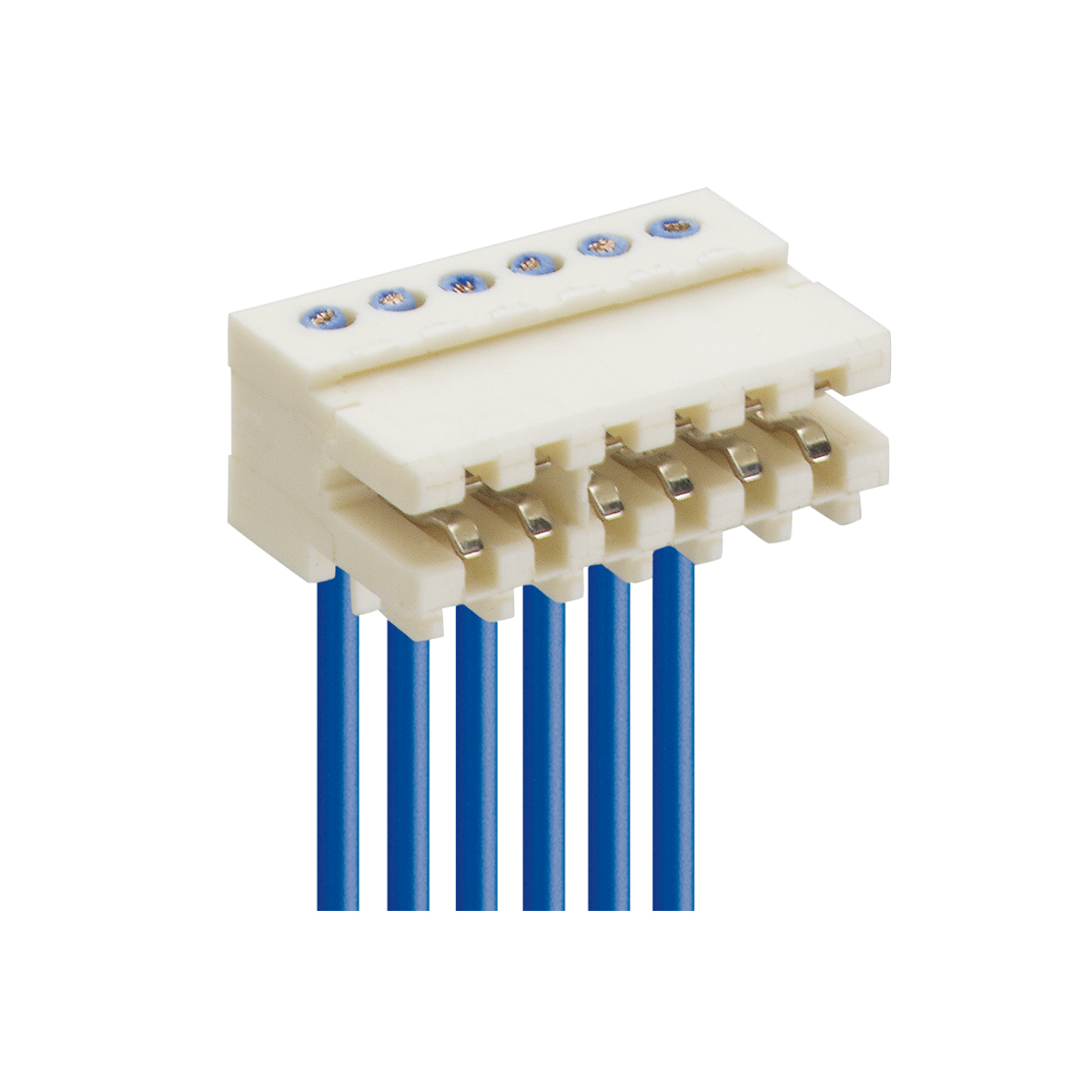

3510

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), alternatively with or without keying rib and closed sides, for individual conductors, daisy chain possiblecontact pitch 2.5 mm

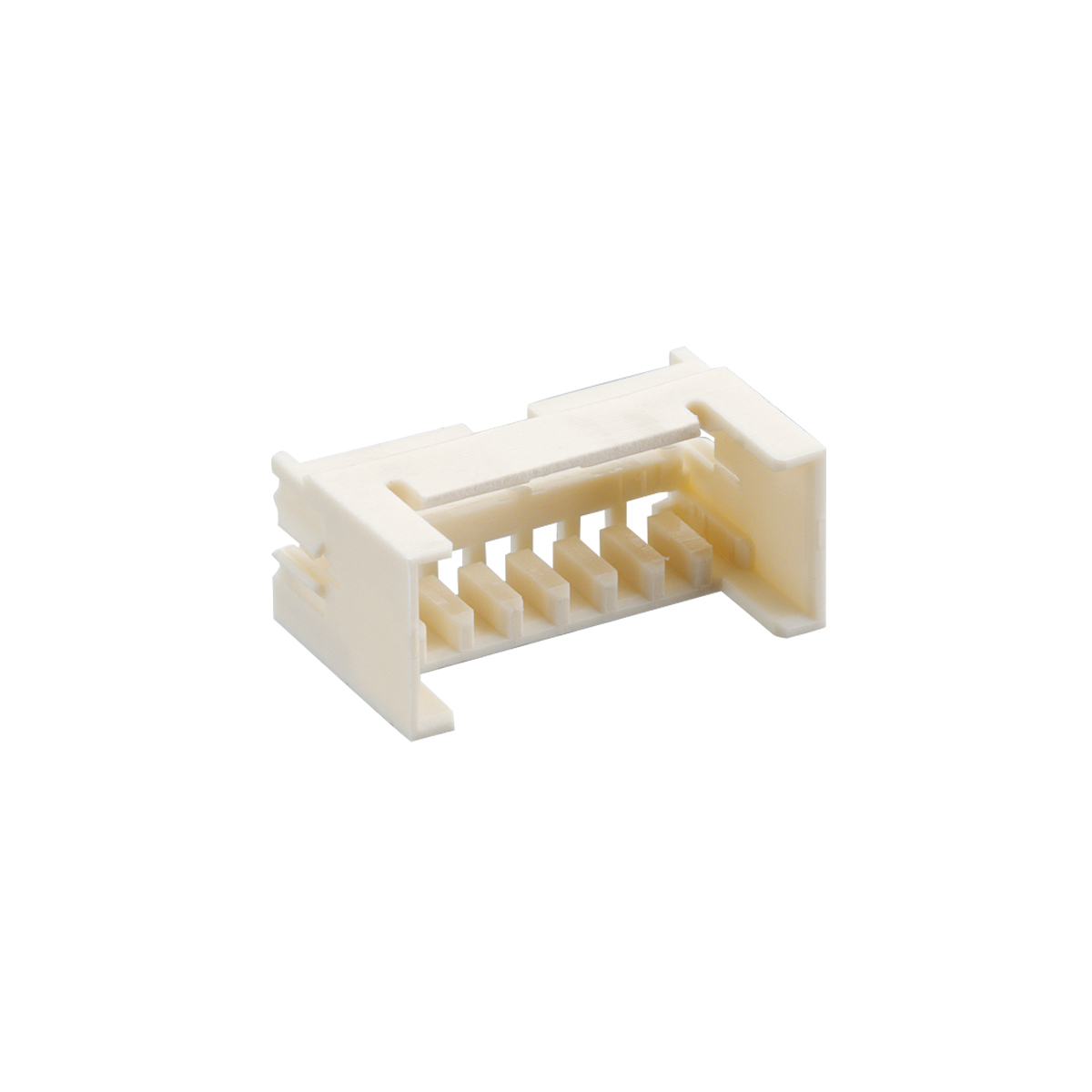

3501

RAST 2.5 guide frame, for interior locking, daisy chain possible

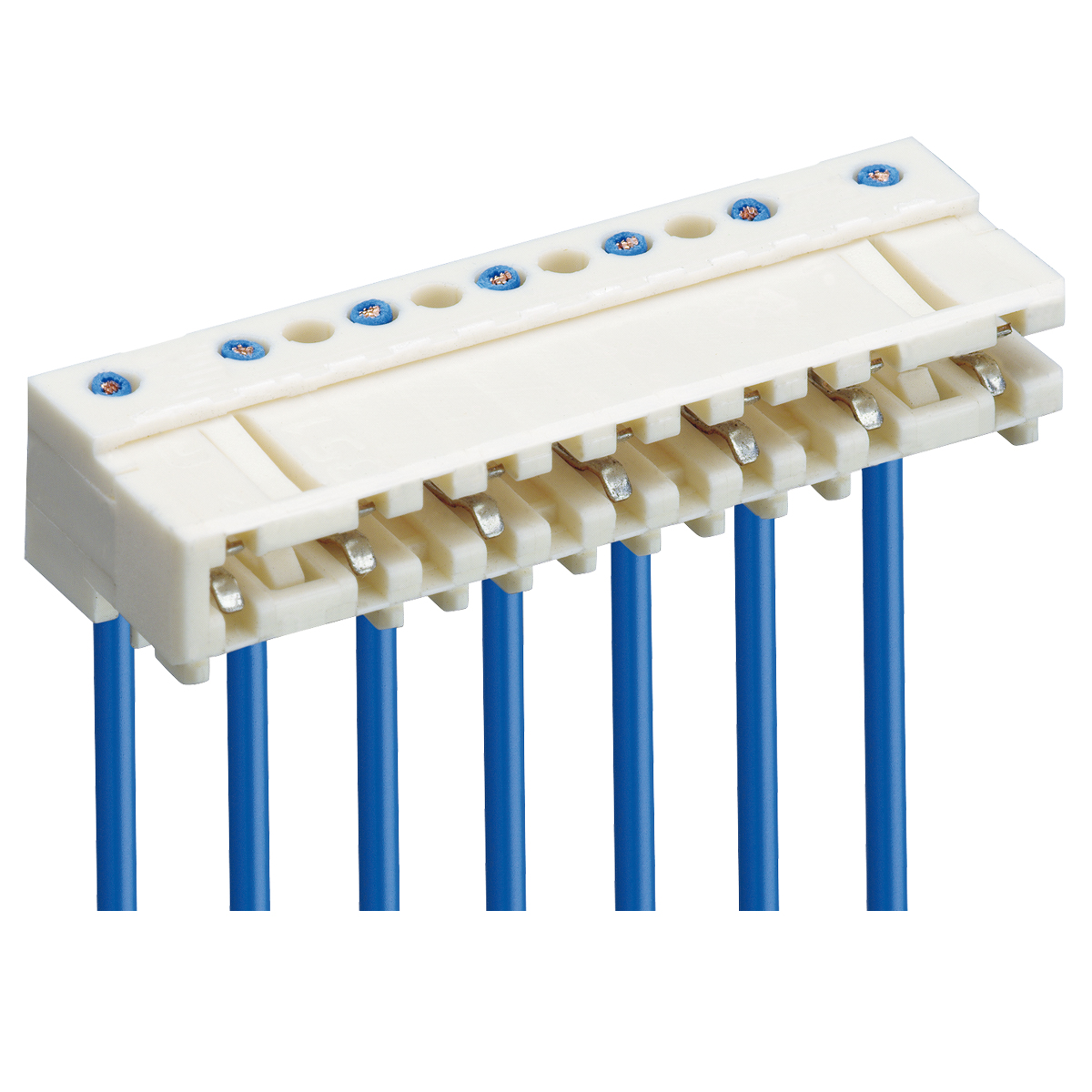

3516

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of locking hooks, alternatively with or without keying rib and closed sides, for individual conductors, daisy chain possible, consecutive placement without loss of pitchcontact pitch 5.0 mm

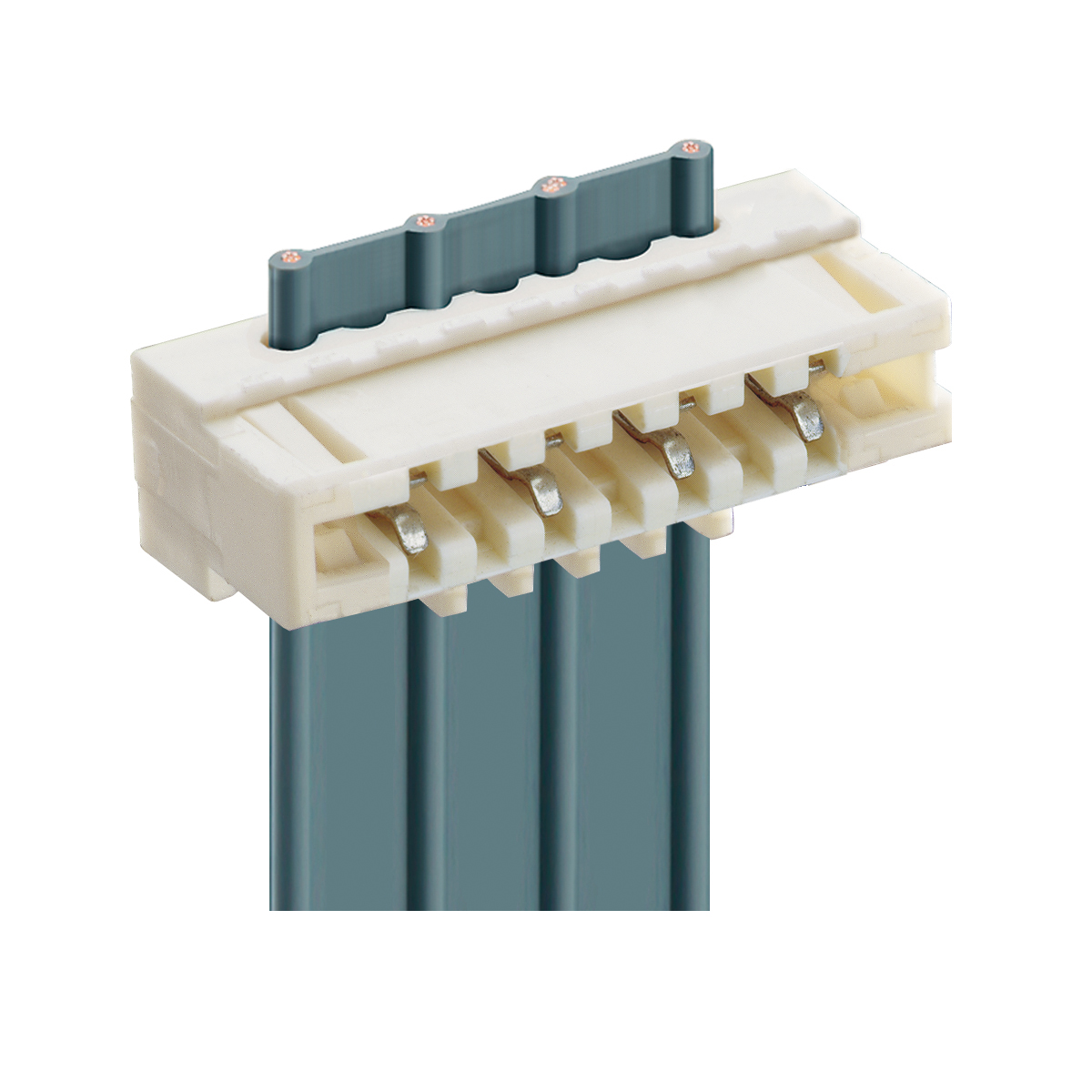

3516-1

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of locking hooks, alternatively with or without keying rib and closed sides,for ribbon cable, daisy chain possible, consecutive placement without loss of pitchcontact pitch 5.0 mm

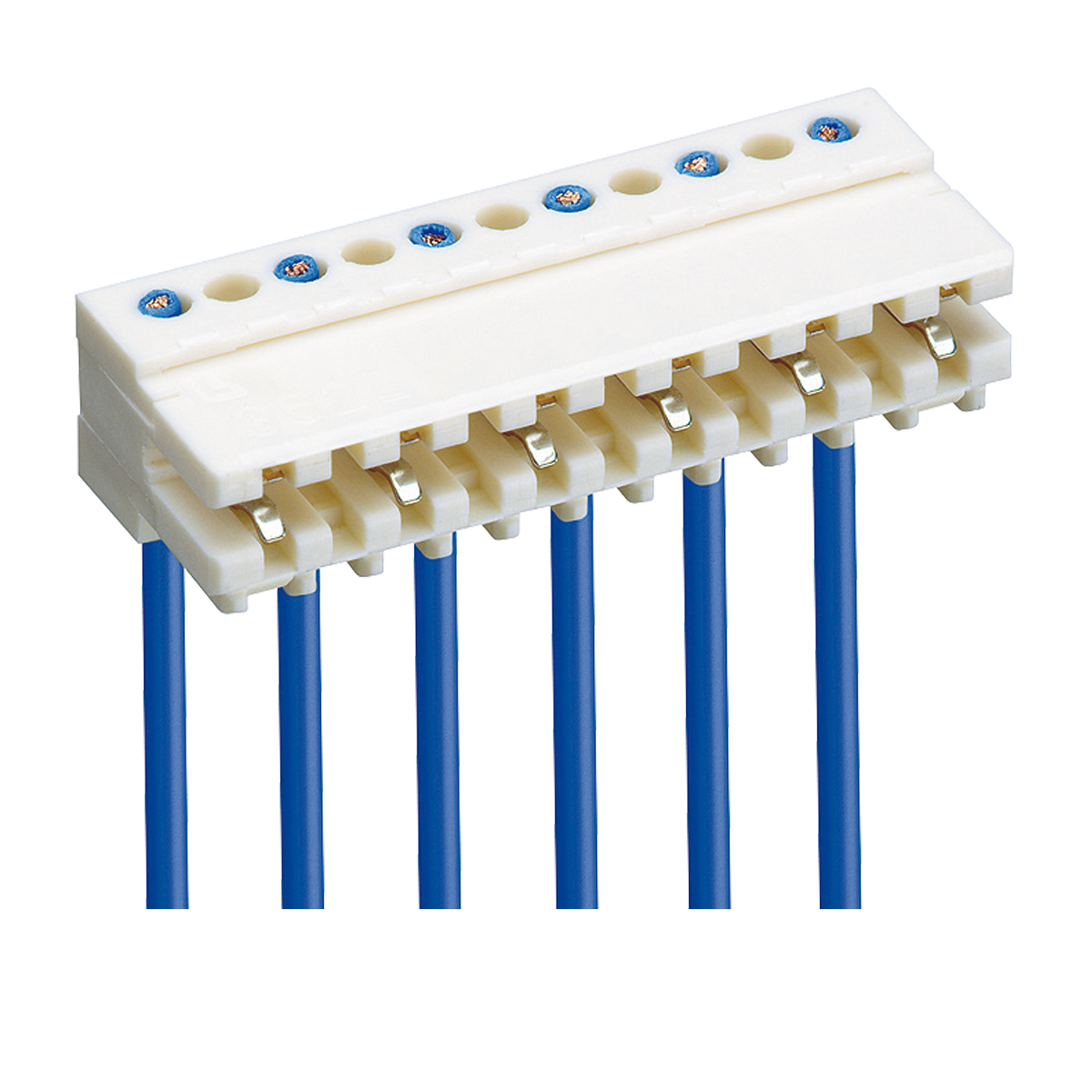

3522

RAST 2.5 connector for direct and indirect mating, insulation displacement technology (IDT), with interior locking, for individual conductors, daisy chain possible, consecutive placement without loss of pitchcontact pitch 5.0 mm

3521-2

RAST 2.5 connector for direct and indirect mating, insulation displacement technology (IDT), for ribbon cablecontact pitch 2.5 mm

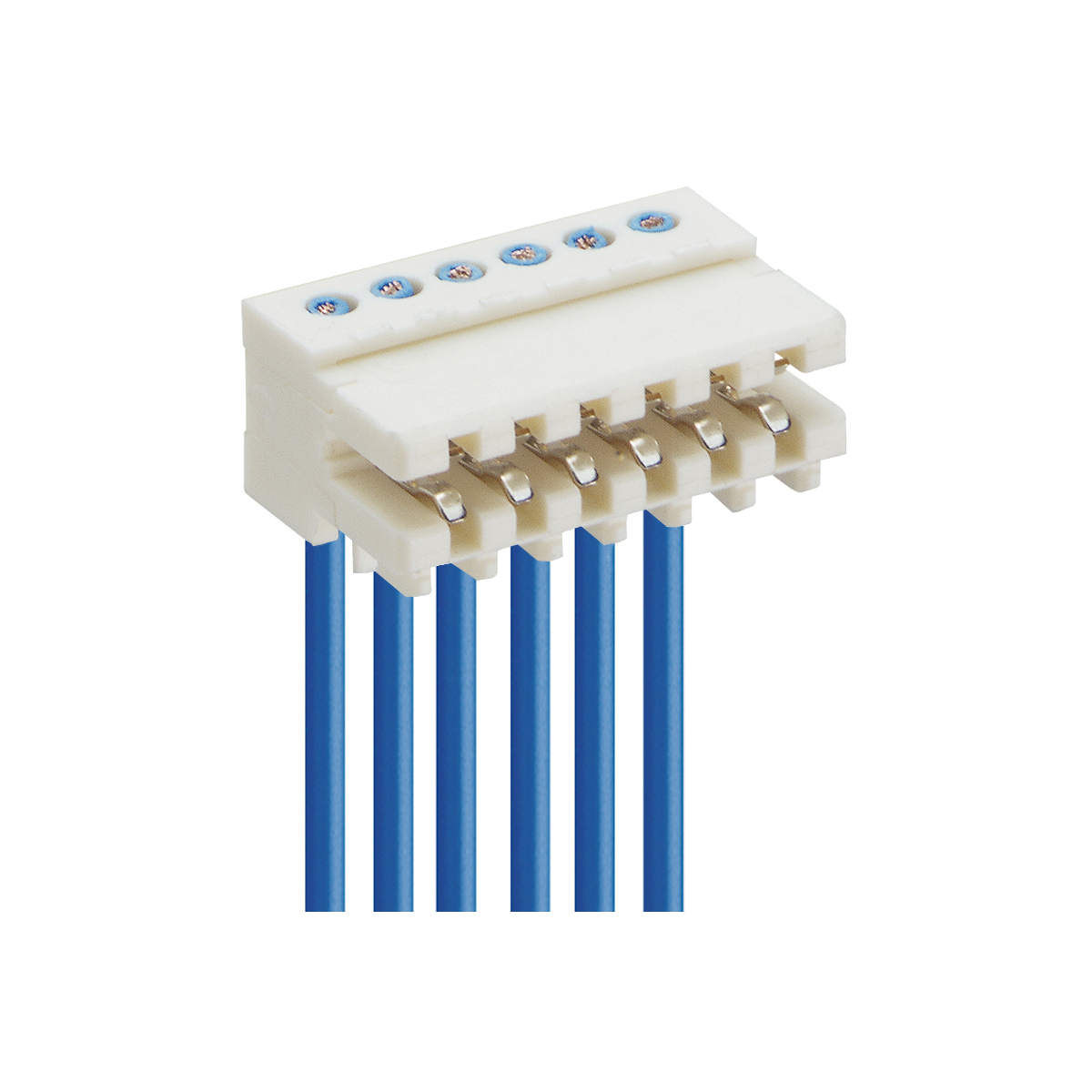

3521

RAST 2.5 connector for direct and indirect mating, insulation displacement technology (IDT), for individual conductors, daisy chain possiblecontact pitch 2.5 mm

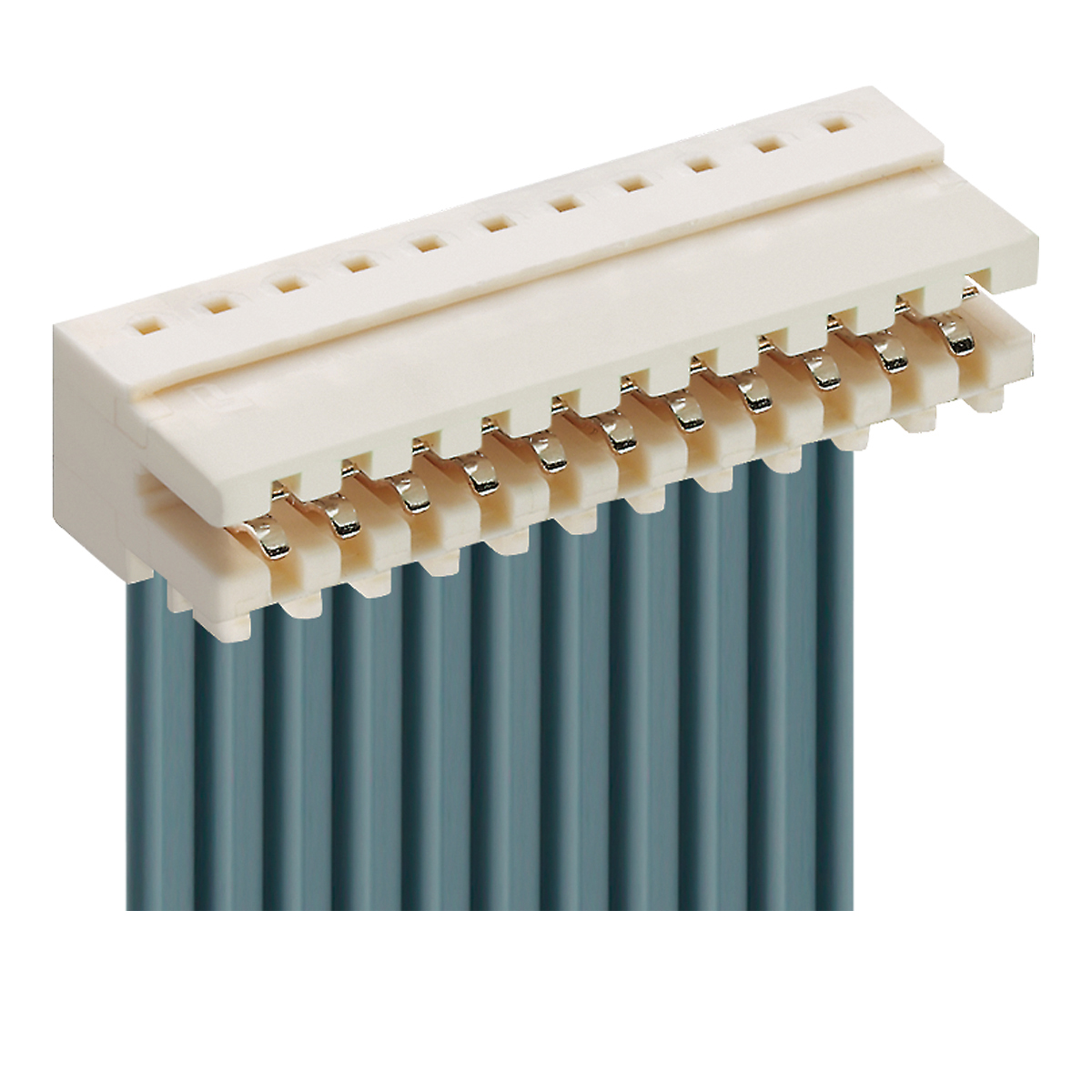

3520-2

RAST 2.5 connector for direct and indirect mating, insulation displacement technology (IDT), with interior locking, for ribbon cablecontact pitch 2.5 mm

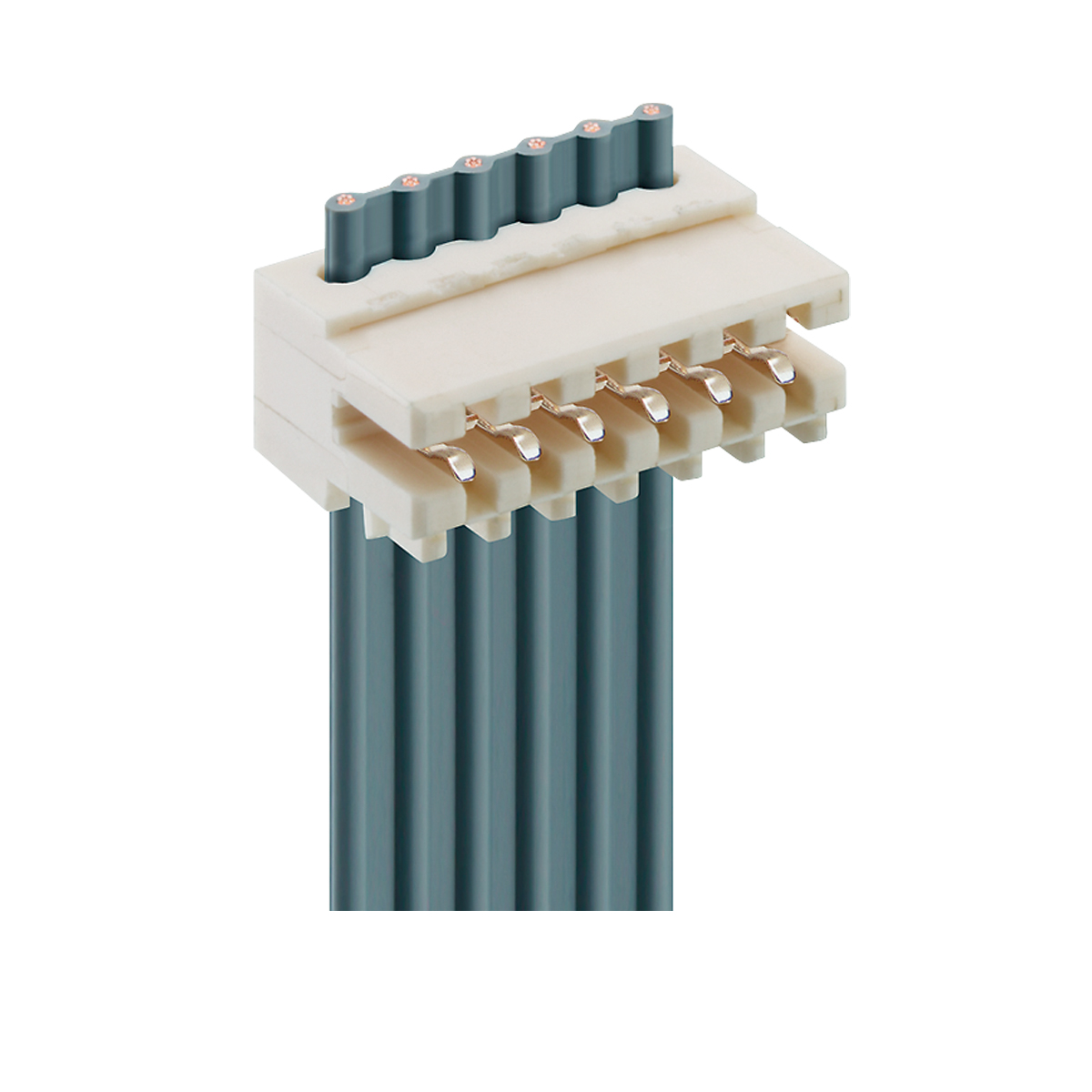

3520-1

RAST 2.5 connector for direct and indirect mating, insulation displacement technology (IDT), with interior locking, for ribbon cable, daisy chain possible contact pitch 2.5 mm

3520

RAST 2.5 connector for direct and indirect mating, insulation displacement technology (IDT), with interior locking, for individual conductors, daisy chain possiblecontact pitch 2.5 mm

3518-4

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of enhanced locking toes, alternatively with or without keying rib and closed sides, for individual conductors, daisy chain possible, consecutive placement without loss of pitchcontact pitch 5.0 mm

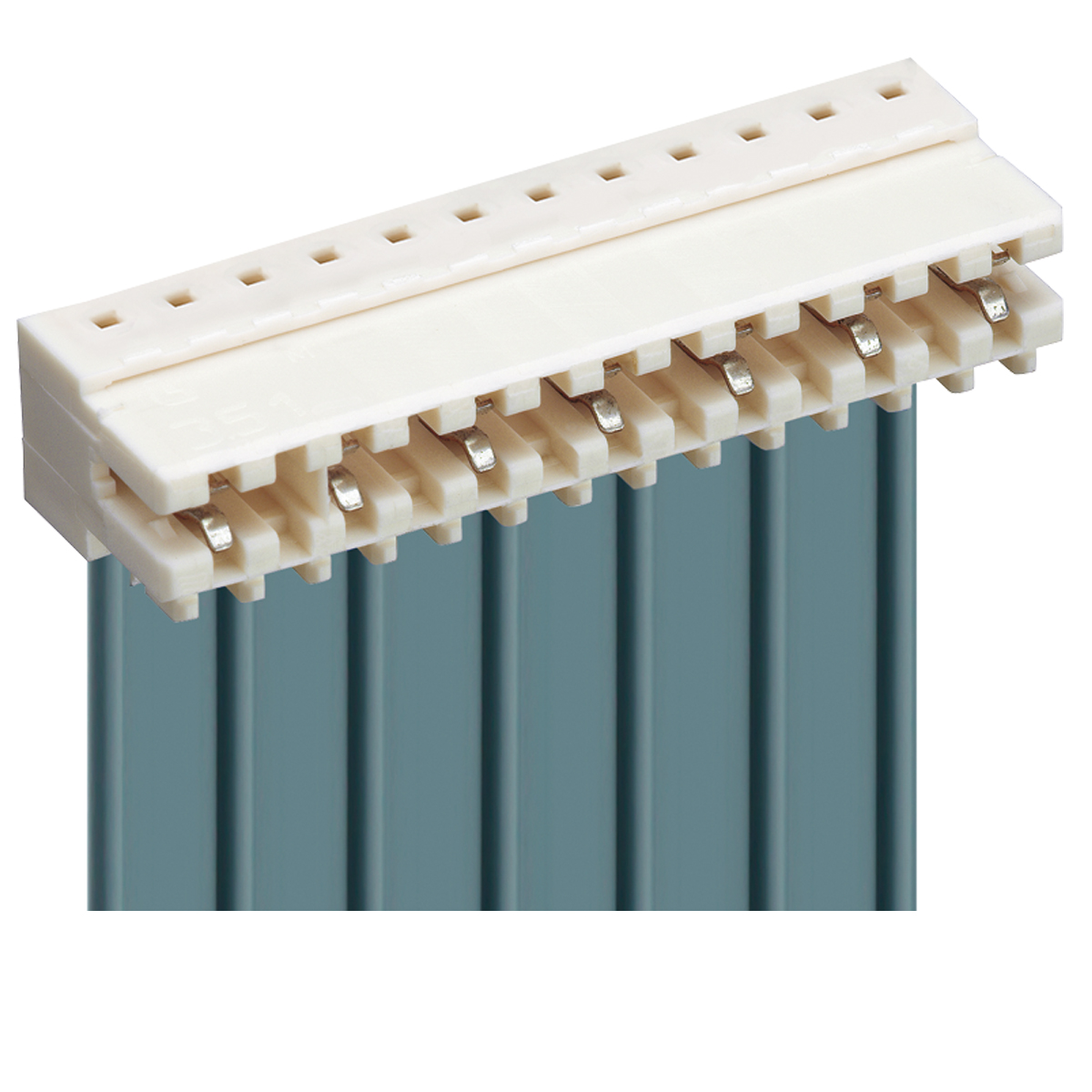

3518-2

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of locking toes, alternatively with or without keying rib and closed sides, for ribbon cable, consecutive placement without loss of pitchcontact pitch 5.0 mm

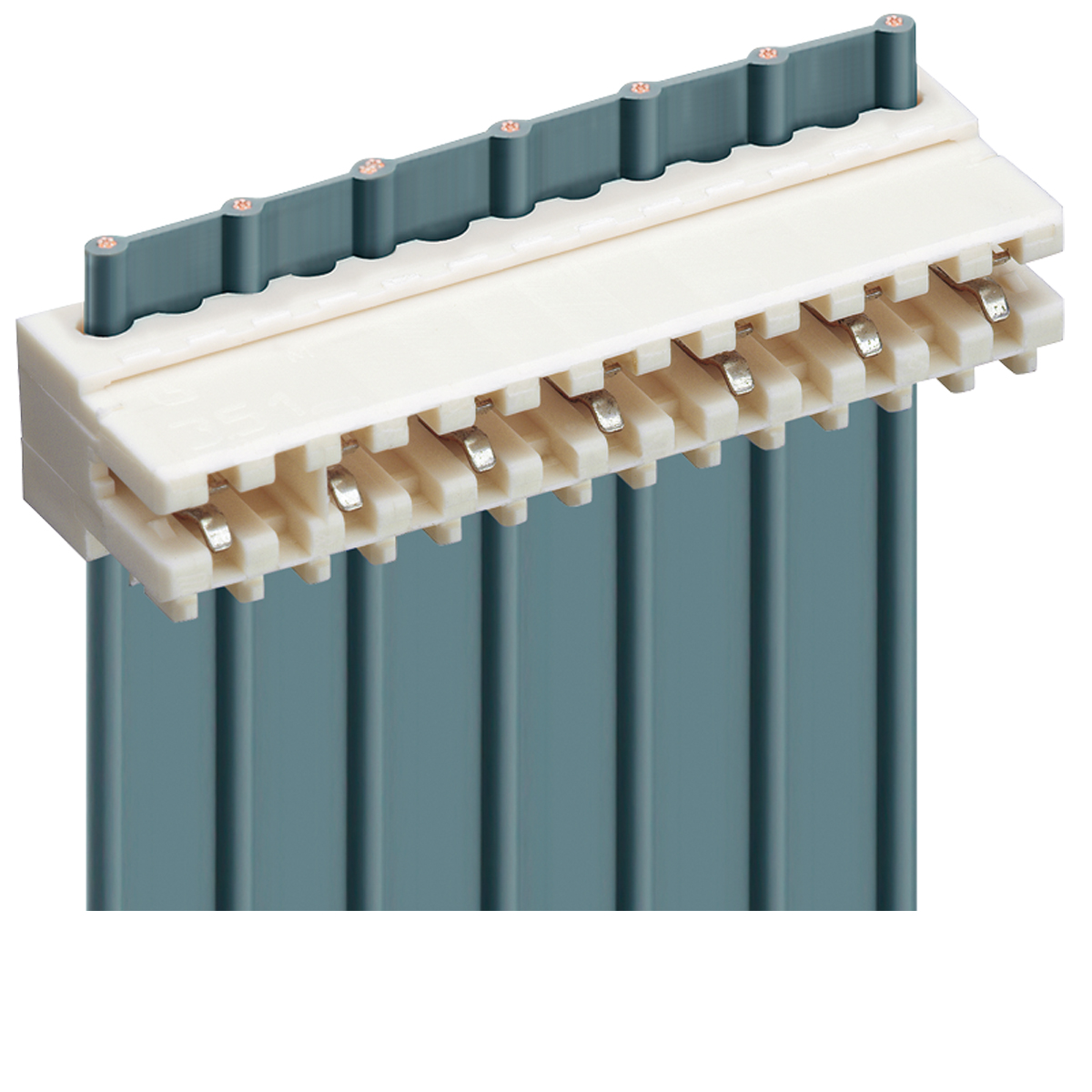

3518-1

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of locking toes, alternatively with or without keying rib and closed sides, for ribbon cable, daisy chain possible, consecutive placement without loss of pitchcontact pitch 5.0 mm

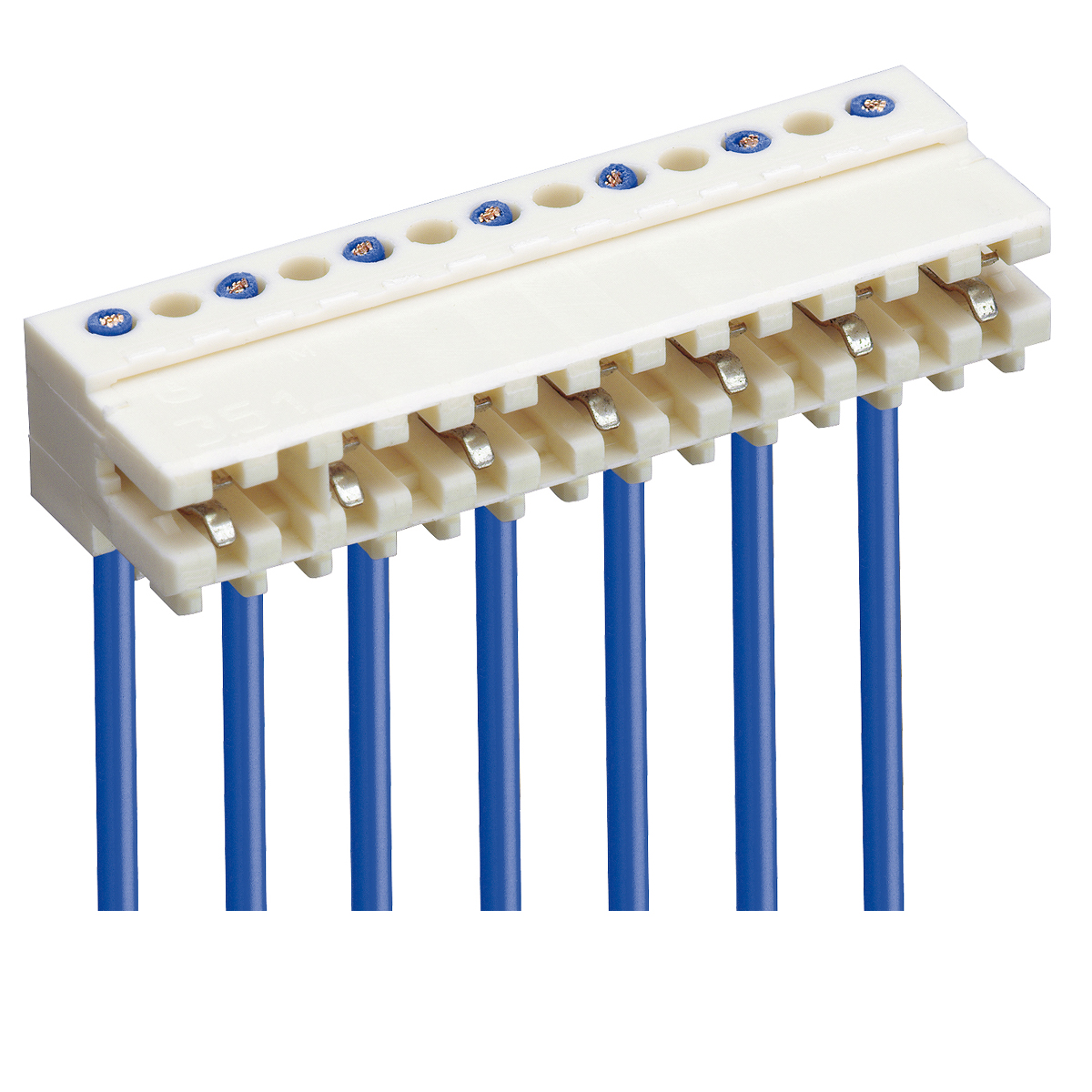

3518

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of locking toes, alternatively with or without keying rib and closed sides, for individual conductors, daisy chain possible, consecutive placement without loss of pitchcontact pitch 5.0 mm

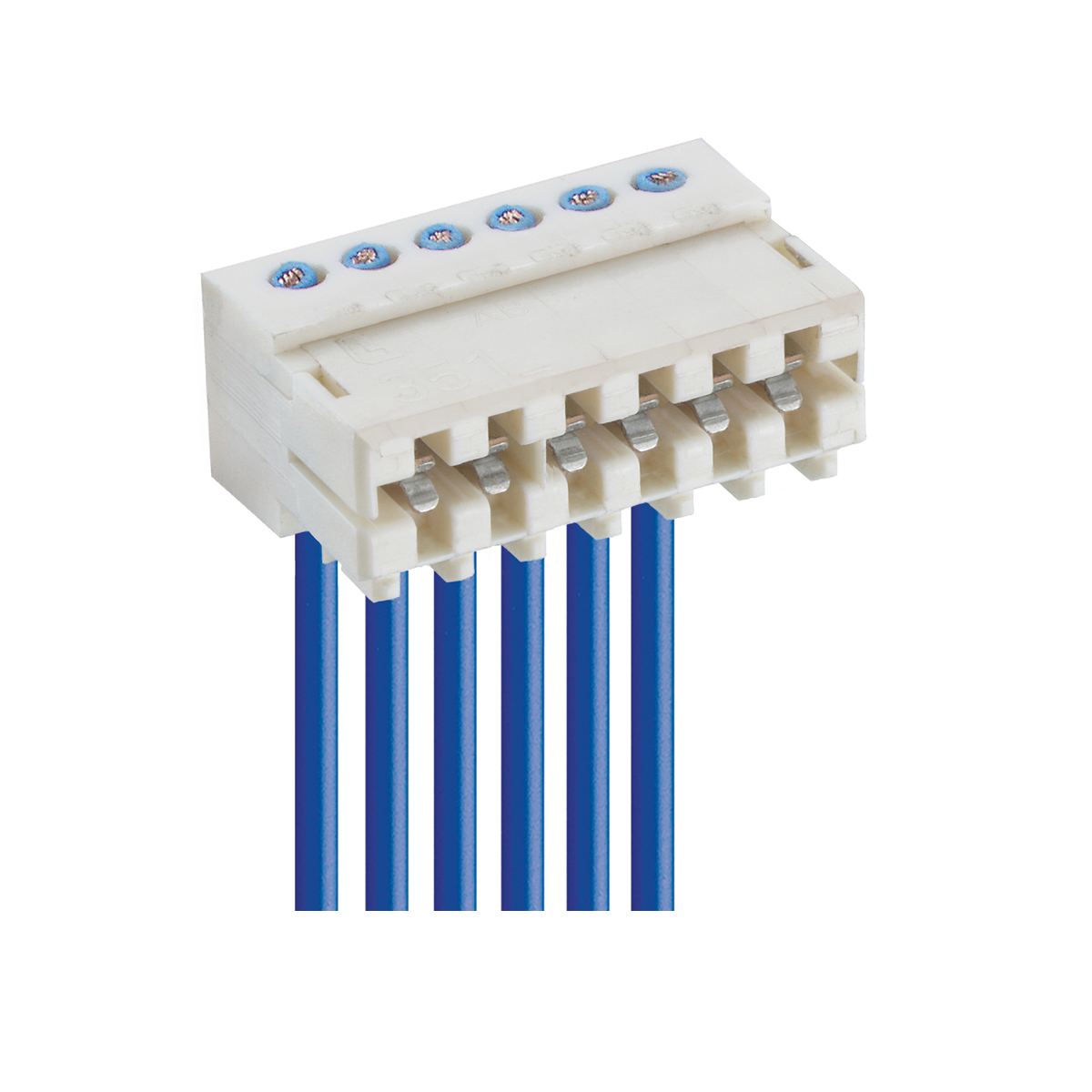

3517-5

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of enhanced locking toes, alternatively with or without keying rib and closed sides, for individual conductors, daisy chain possiblefor printed circuit boards of 1 mm thicknesscontact pitch 2.5 mm

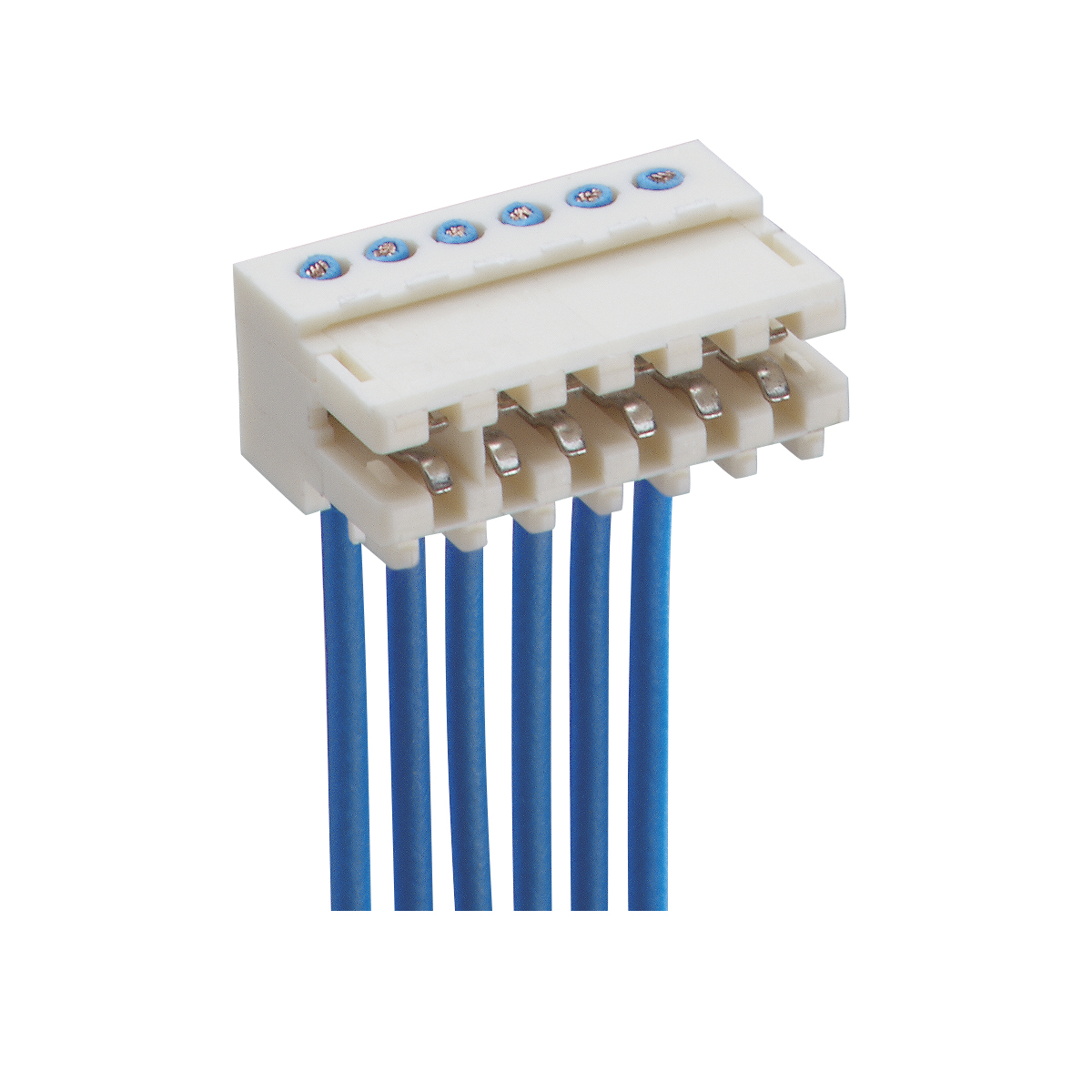

3517-4

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of enhanced locking toes, alternatively with or without keying rib and closed sides, for individual conductors, daisy chain possiblecontact pitch 2.5 mm

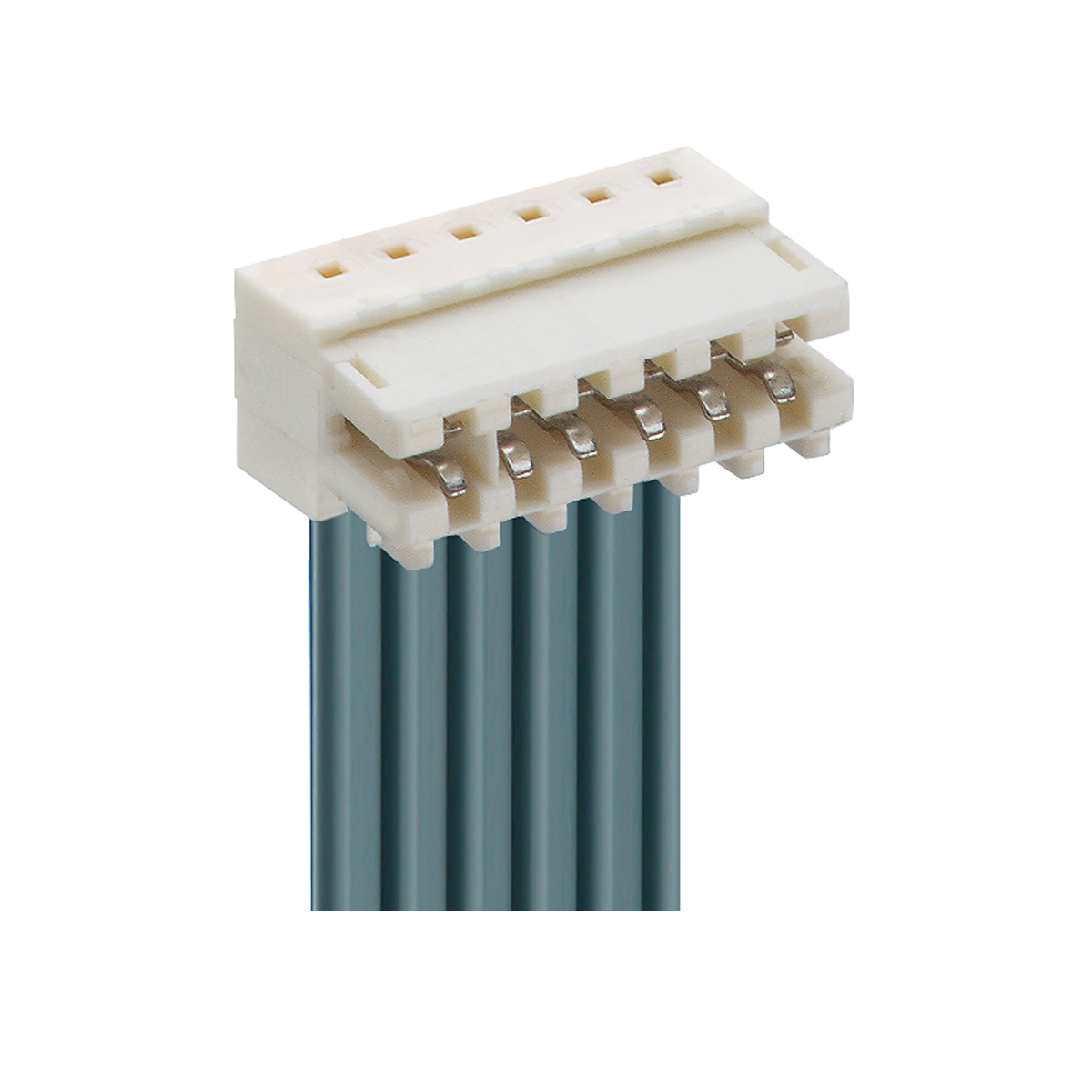

3517-2

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of locking toes, alternatively with or without keying rib and closed sides, for ribbon cablecontact pitch 2.5 mm

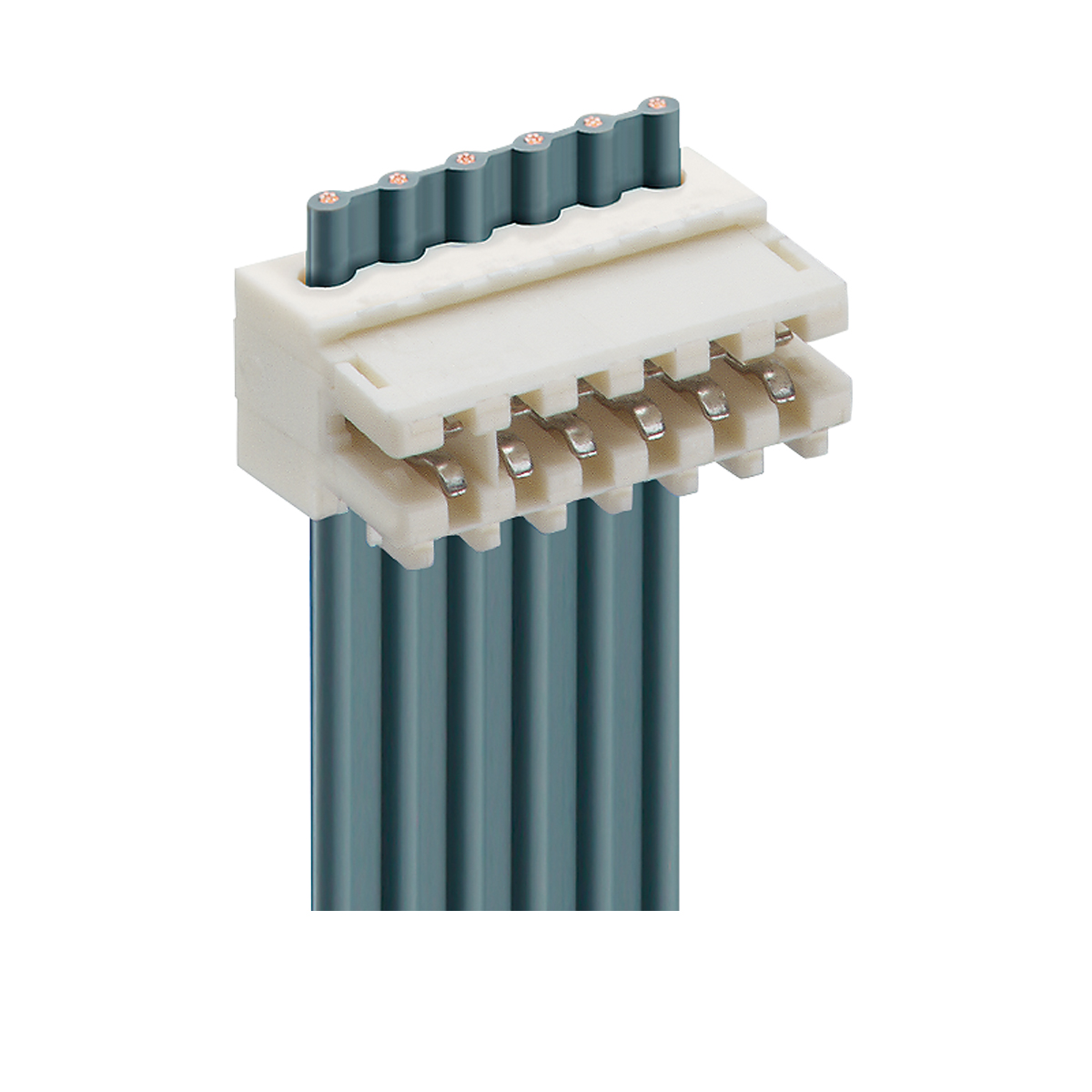

3517-1

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of locking toes, alternatively with or without keying rib and closed sides, for ribbon cable, daisy chain possiblecontact pitch 2.5 mm

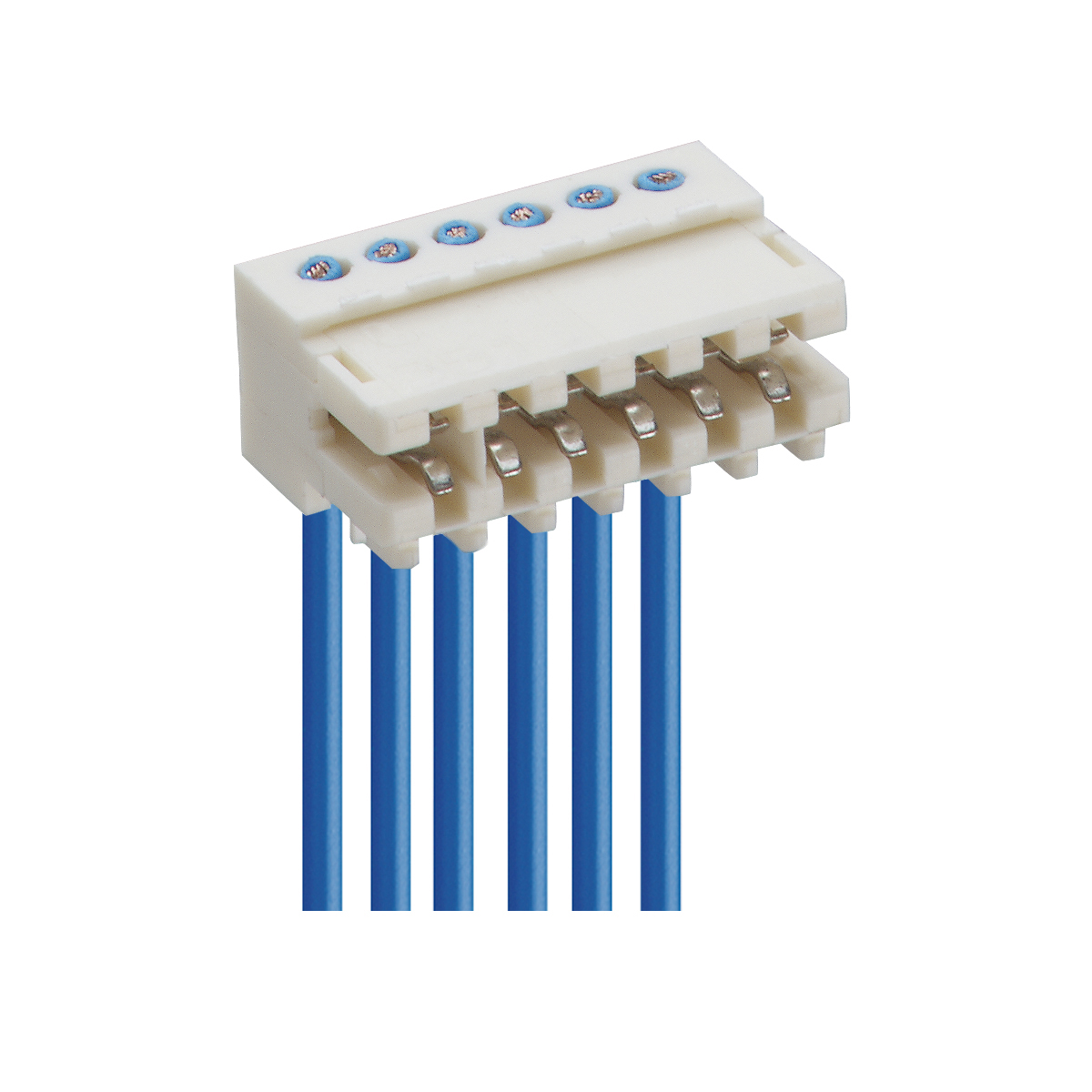

3517

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of locking toes, alternatively with or without keying rib and closed sides, for individual conductors, daisy chain possiblecontact pitch 2.5 mm

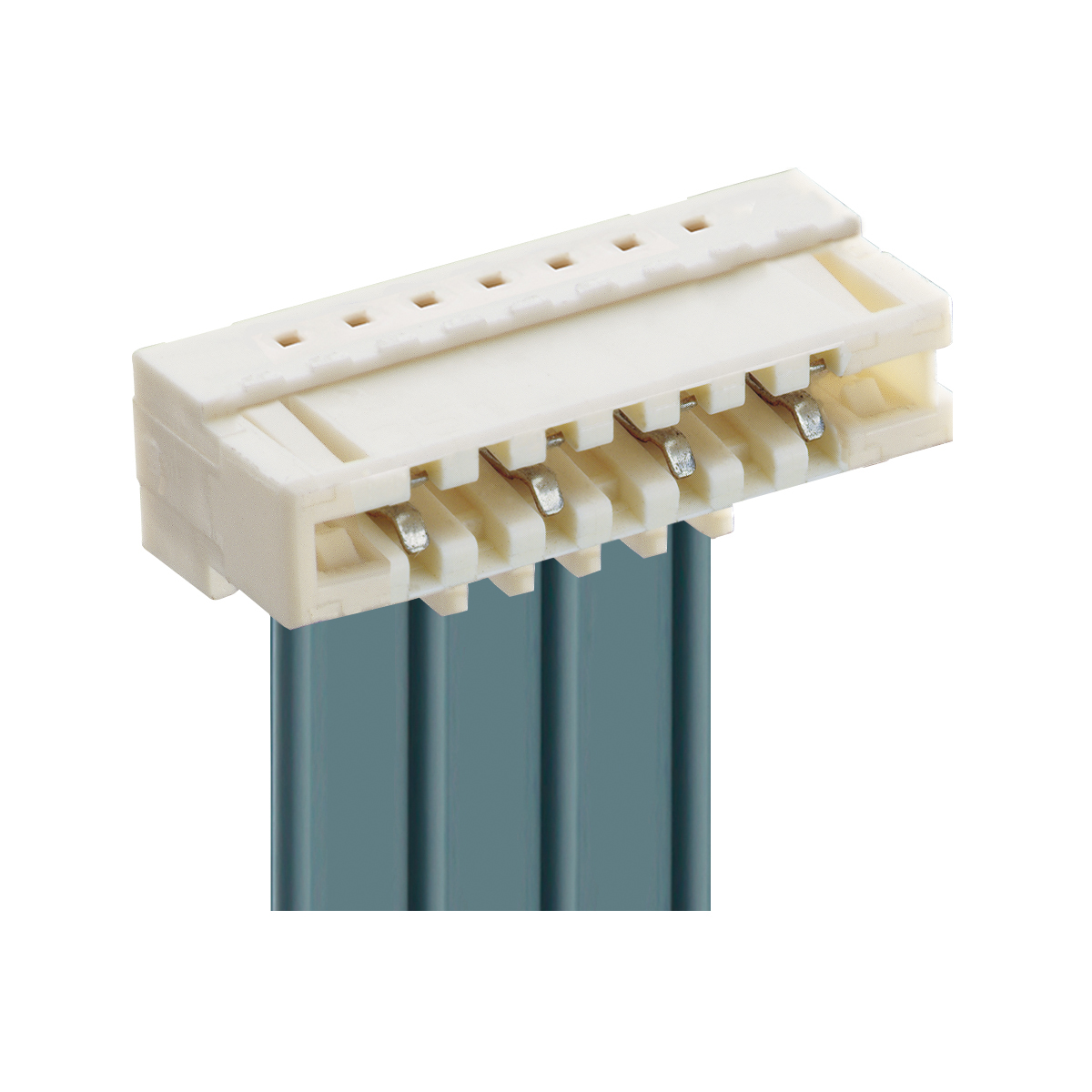

3516-2

RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of locking hooks, alternatively with or without keying rib and closed sides, for ribbon cable, consecutive placement without loss of pitchcontact pitch 5.0 mm

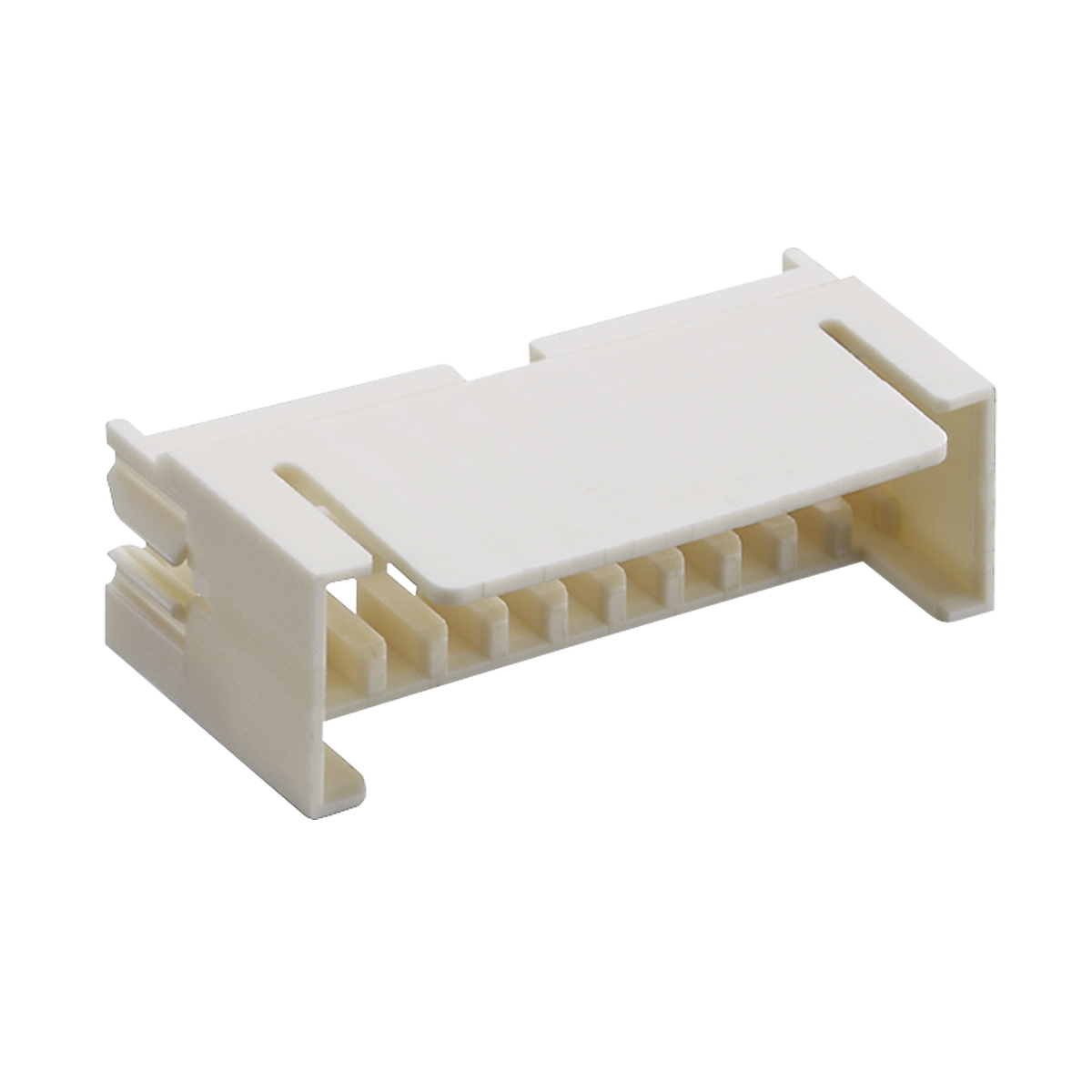

3500

RAST 2.5 guide frame, with locking latch

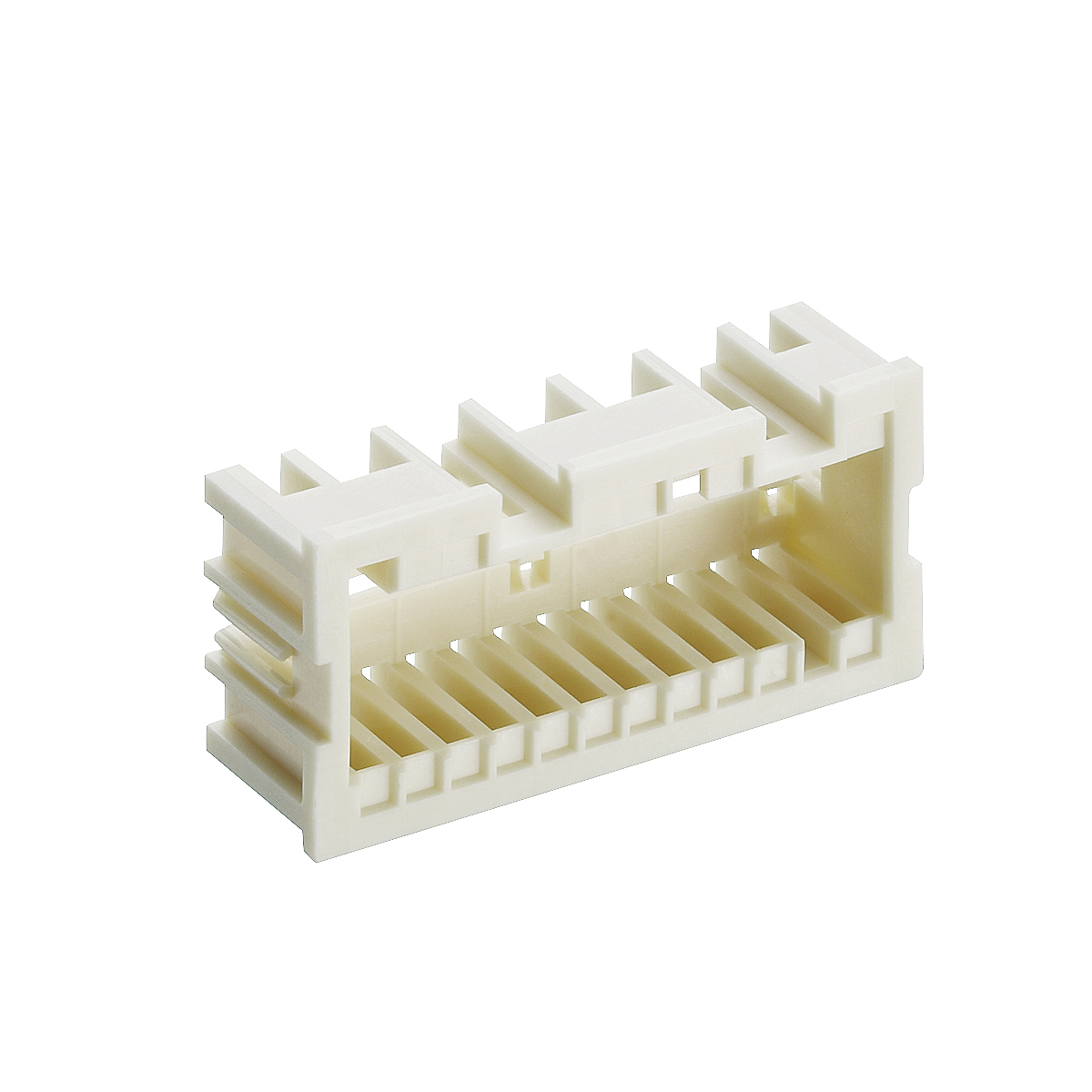

3602

RAST 5 guide frame

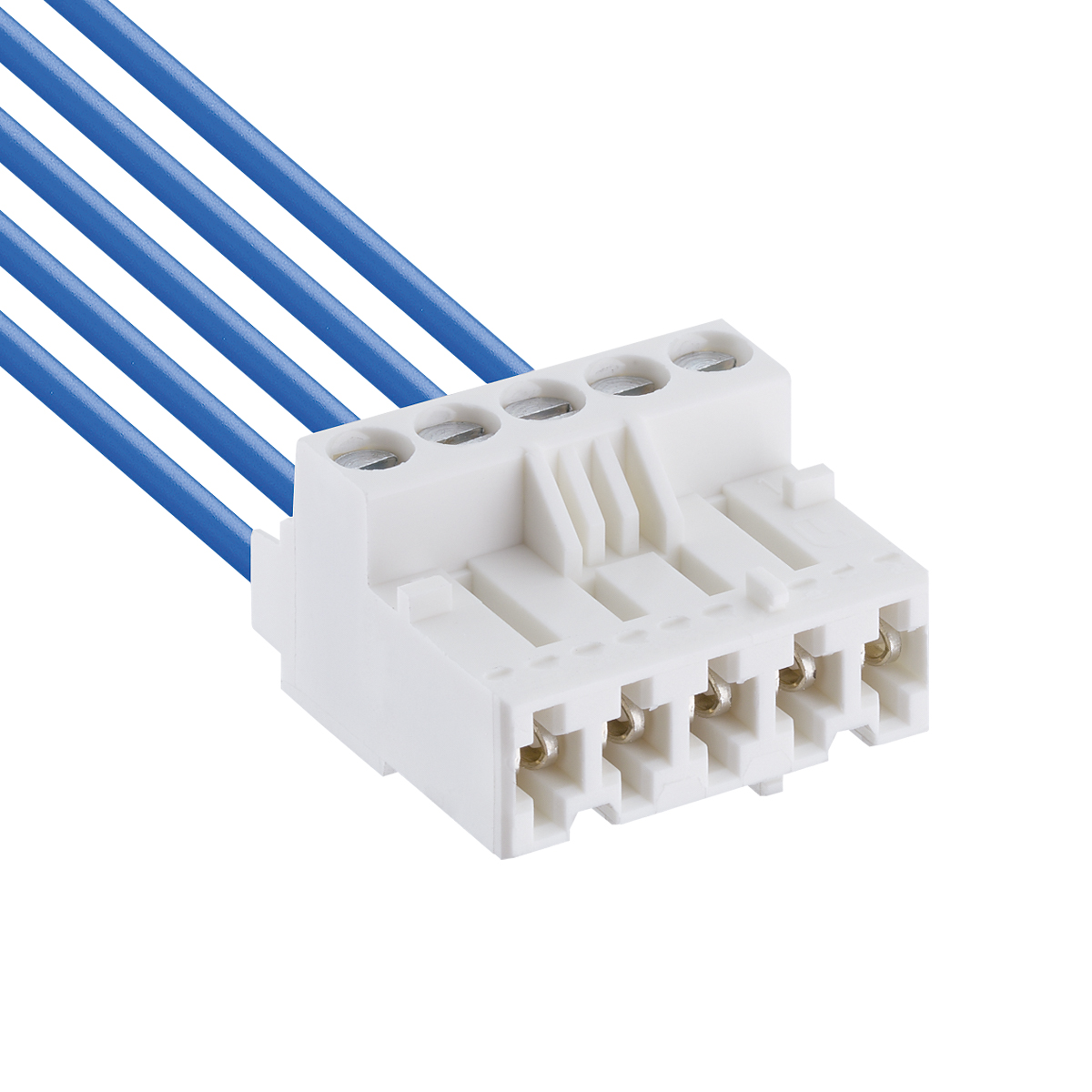

3611

RAST 5 connector for indirect mating, with screw terminal, with lift clamp with protection against misplacing, with interior locking, consecutive placement without loss of pitch

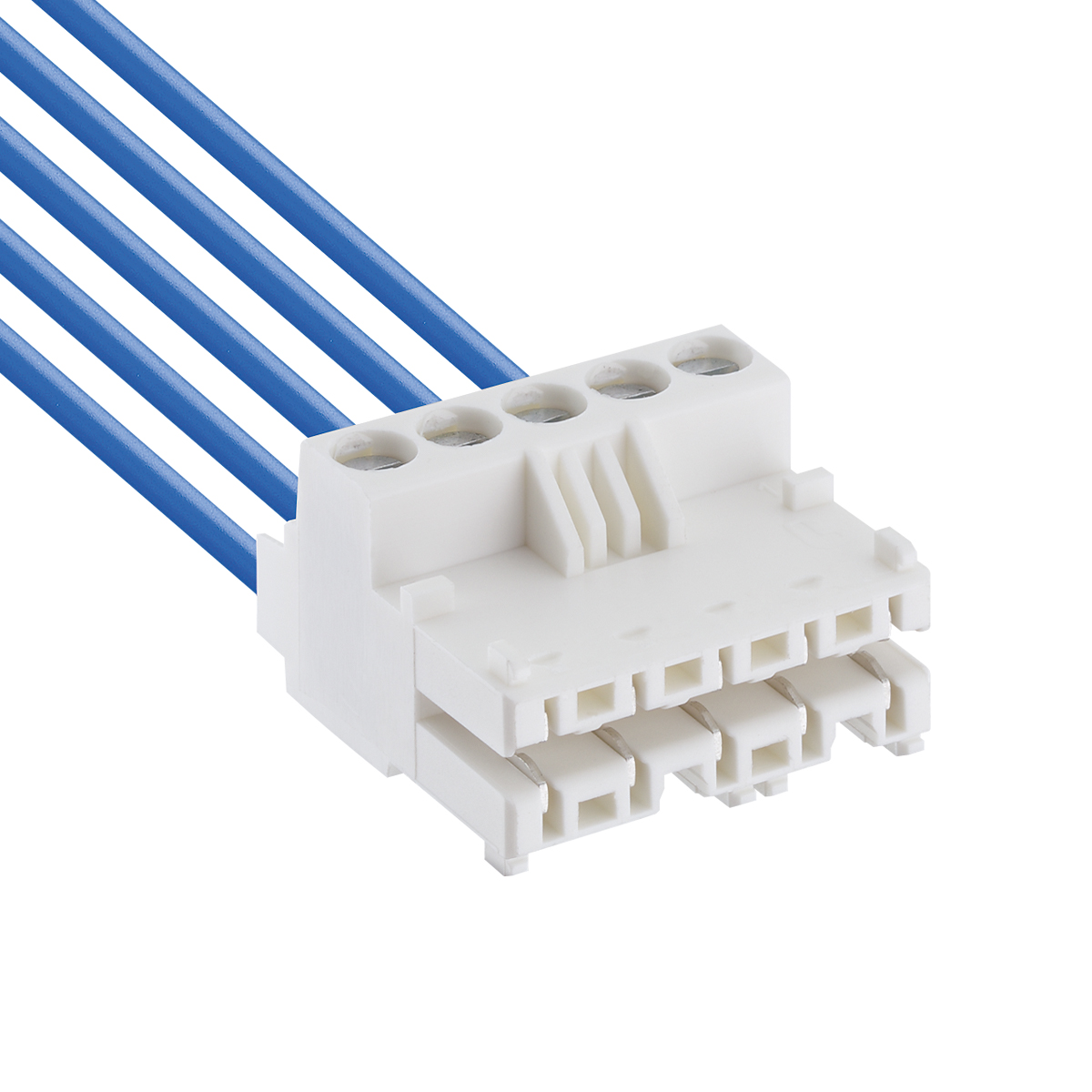

3612

RAST 5 connector for direct mating, with screw terminal, with lift clamp with protection against misplacing, with interior locking, consecutive placement without loss of pitch

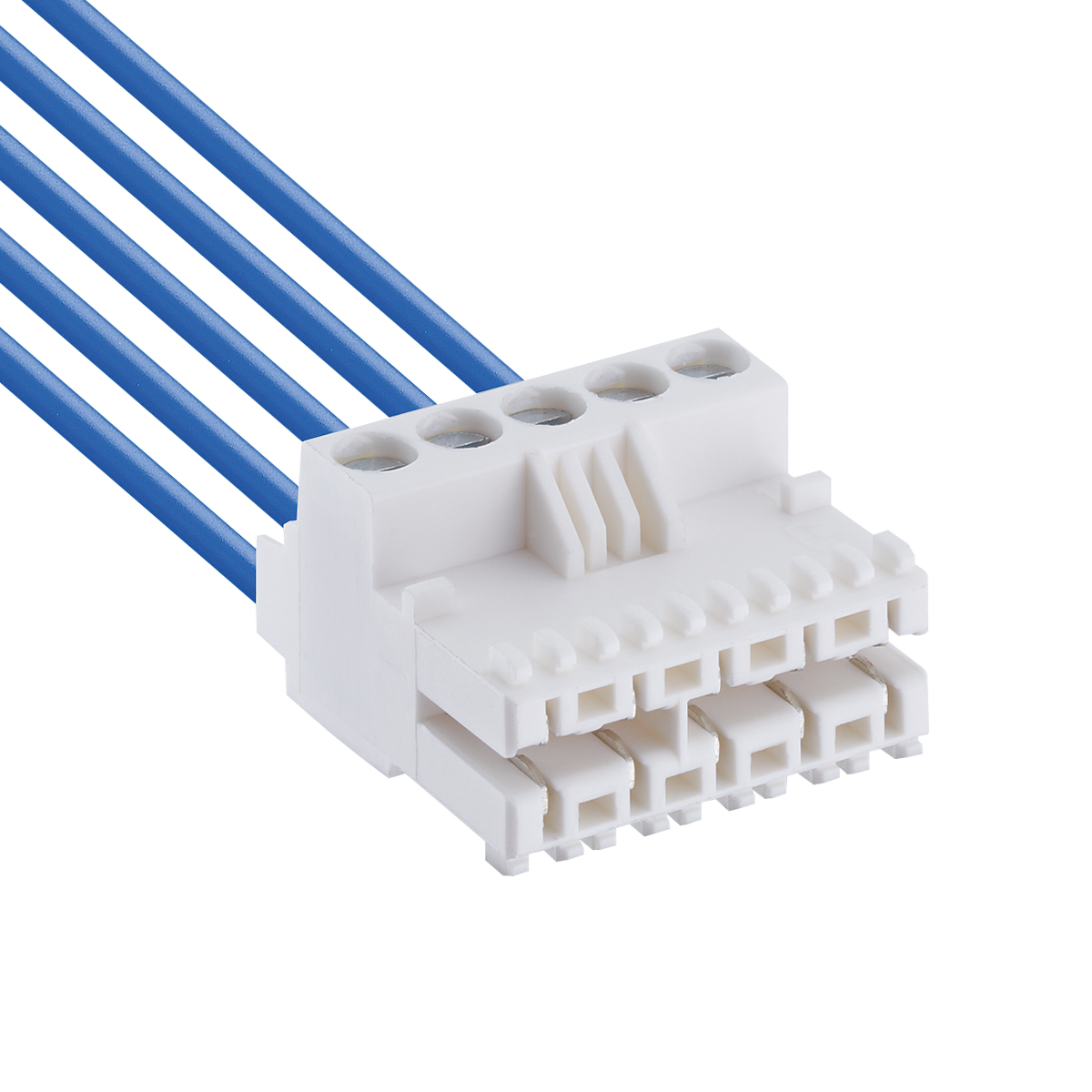

3613

RAST 5 connector for direct mating, with screw terminal, with lift clamp with protection against misplacing, with keying rib and closed sides, consecutive placement without loss of pitch

3614

RAST 5 connector for direct mating, with screw terminal, with lift clamp with protection against misplacing, alternatively with or without keying rib and (shorter) closed sides, consecutive placement without loss of pitch

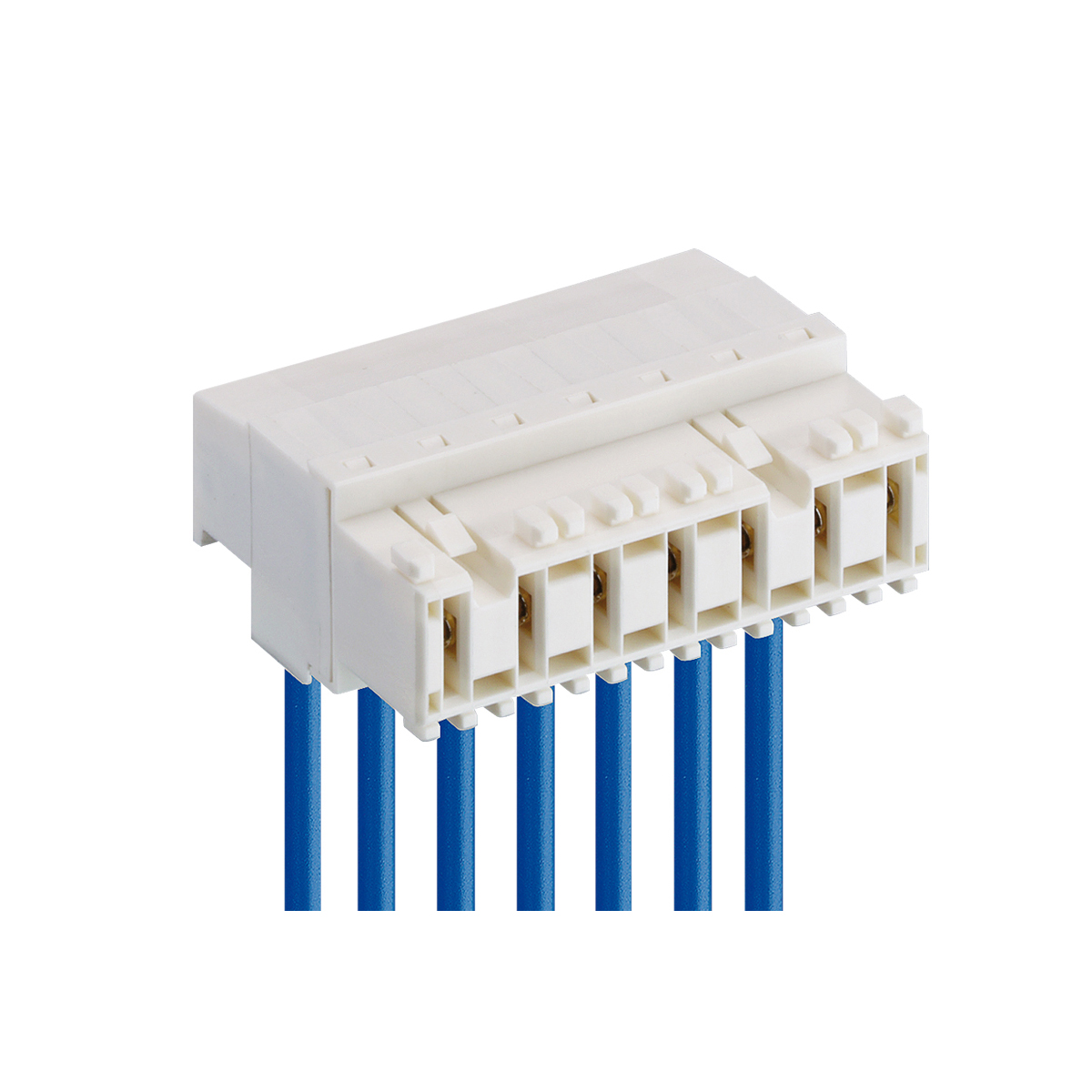

3615

RAST 5 connector for indirect mating, with screw terminal, with lift clamp with protection against misplacing, with test holes and interior locking, consecutive placement without loss of pitch, cable departure opposite to lock

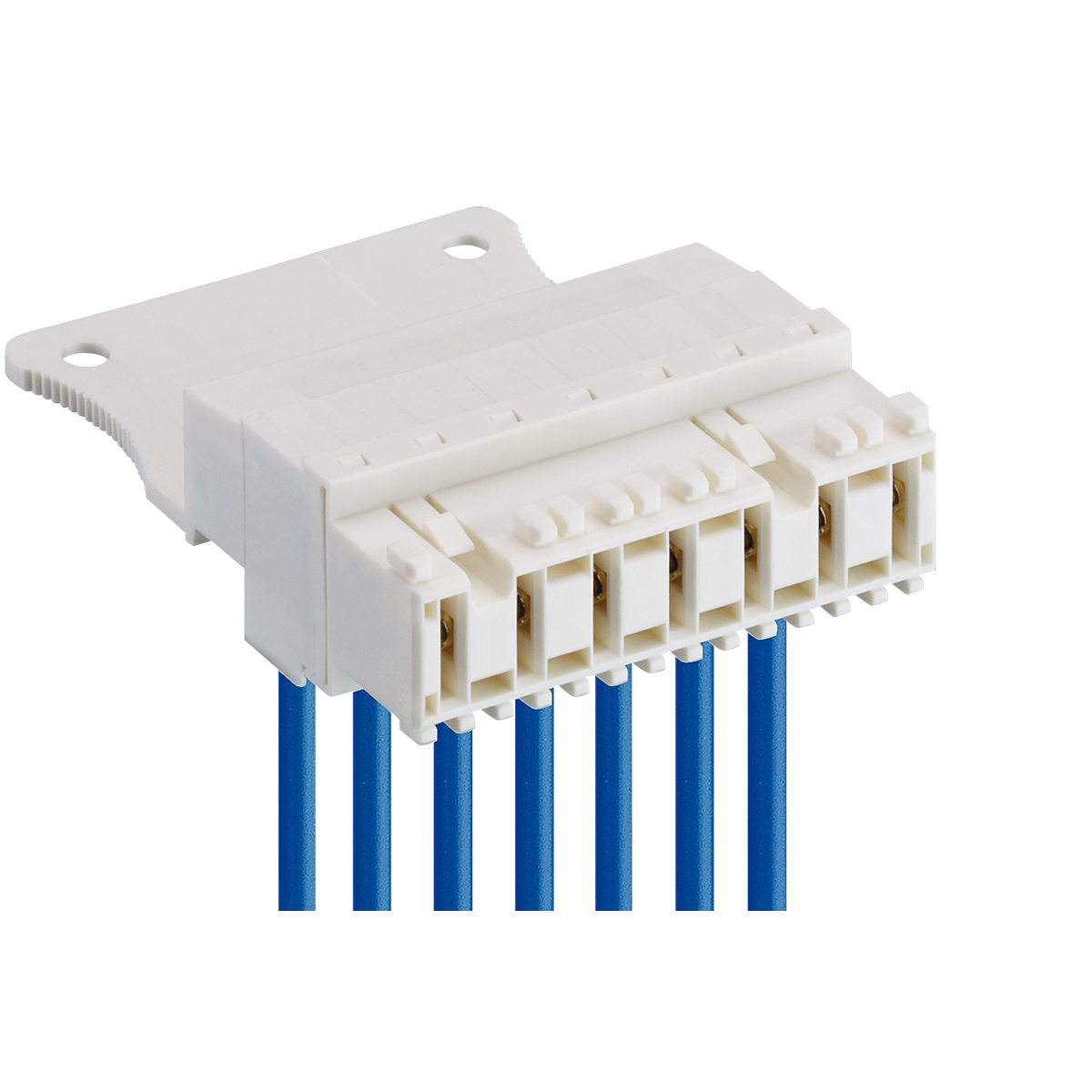

3615-1

RAST 5 connector for indirect mating, with screw terminal, with lift clamp with protection against misplacing, with test holes and interior locking, consecutive placement without loss of pitch, cable departure opposite to lock, with handle latch

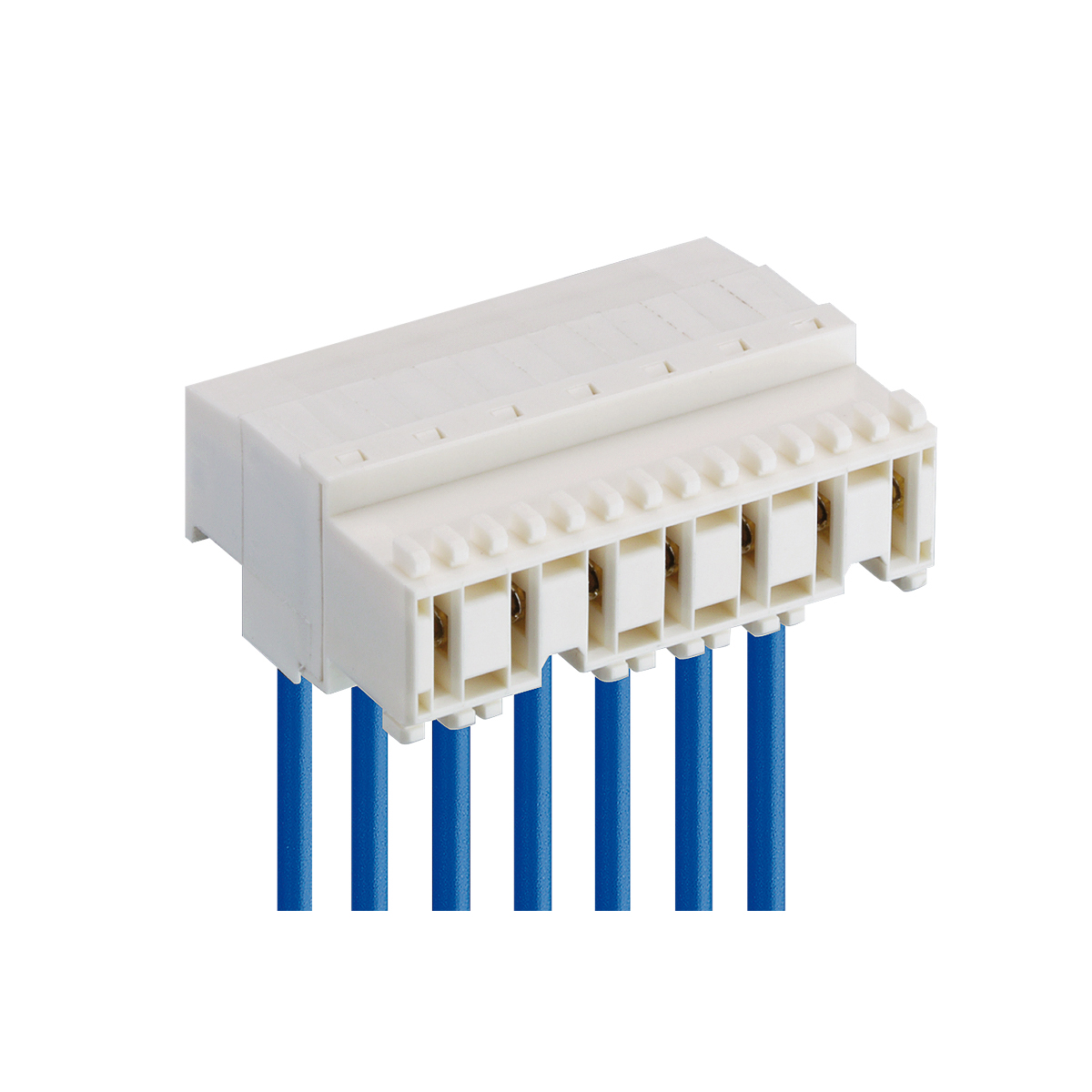

3615-2

RAST 5 connector for indirect mating, with screw terminal, with lift clamp with protection against misplacing, with test holes and interior locking, consecutive placement without loss of pitch, cable departure on side of lock

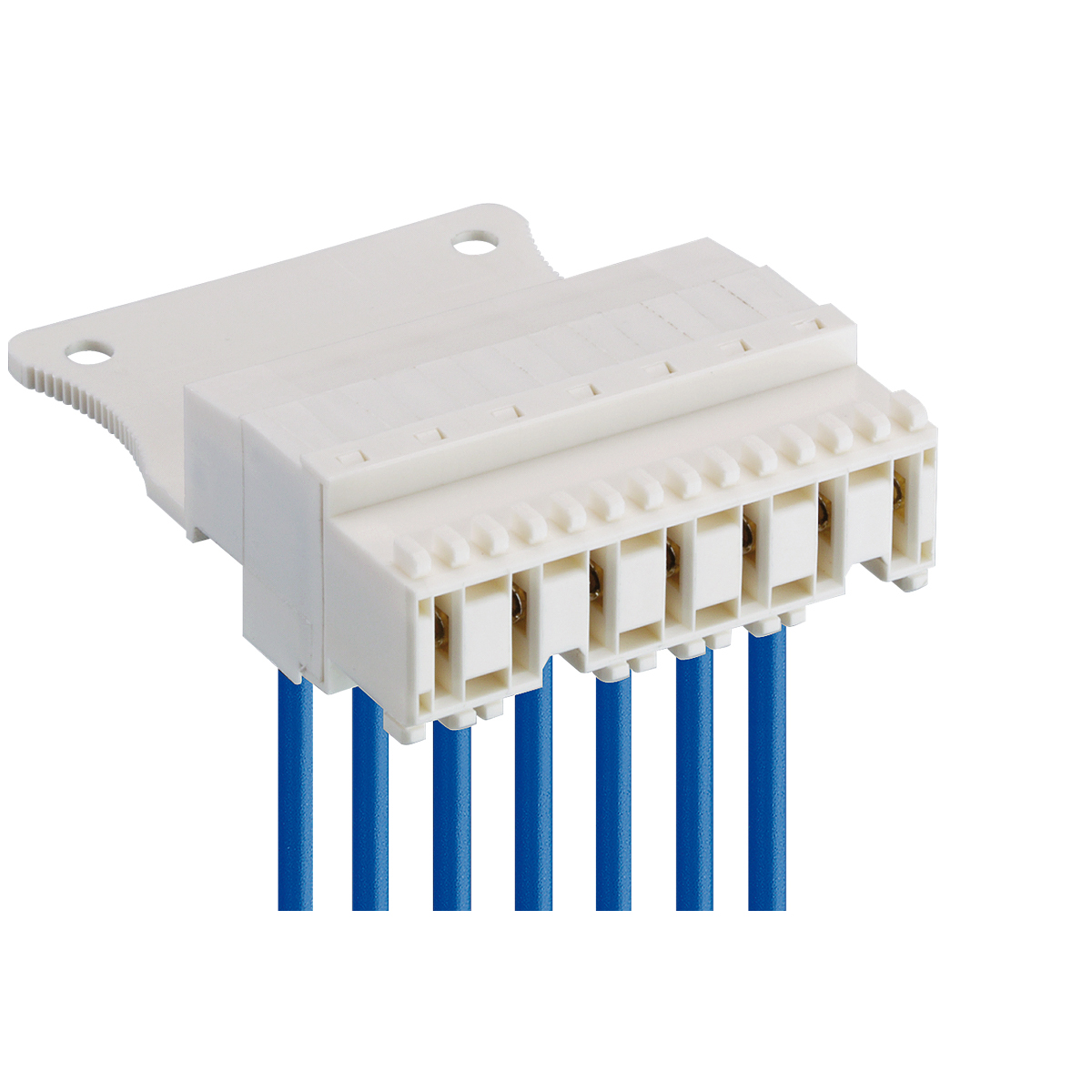

3615-3

RAST 5 connector for indirect mating, with screw terminal, with lift clamp with protection against misplacing, with test holes and interior locking, consecutive placement without loss of pitch, cable departure on side of lock, with handle latch

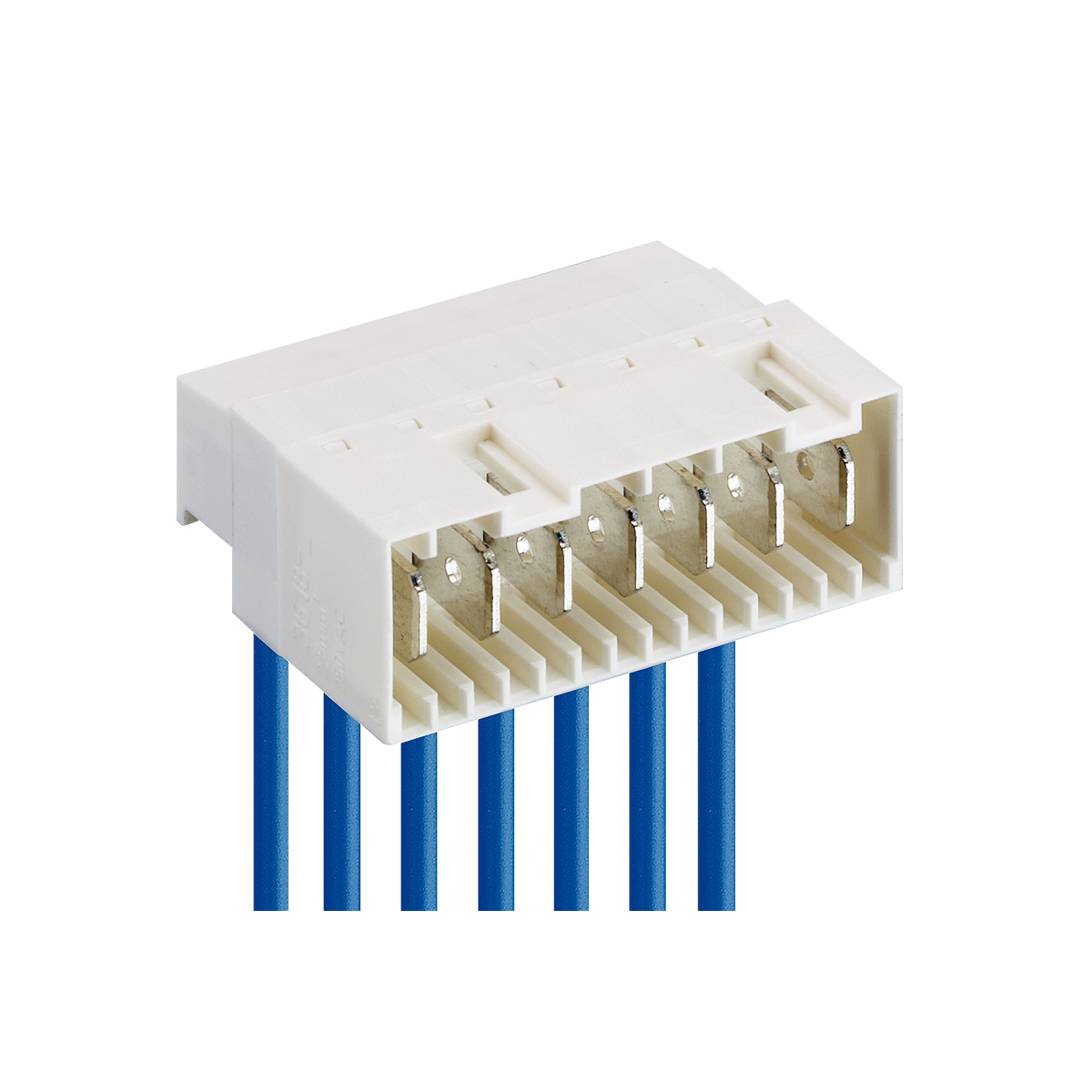

3618

RAST 5 tab header, with screw terminal, with lift clamp with protection against misplacing, with test holes, cable departure opposite to lock

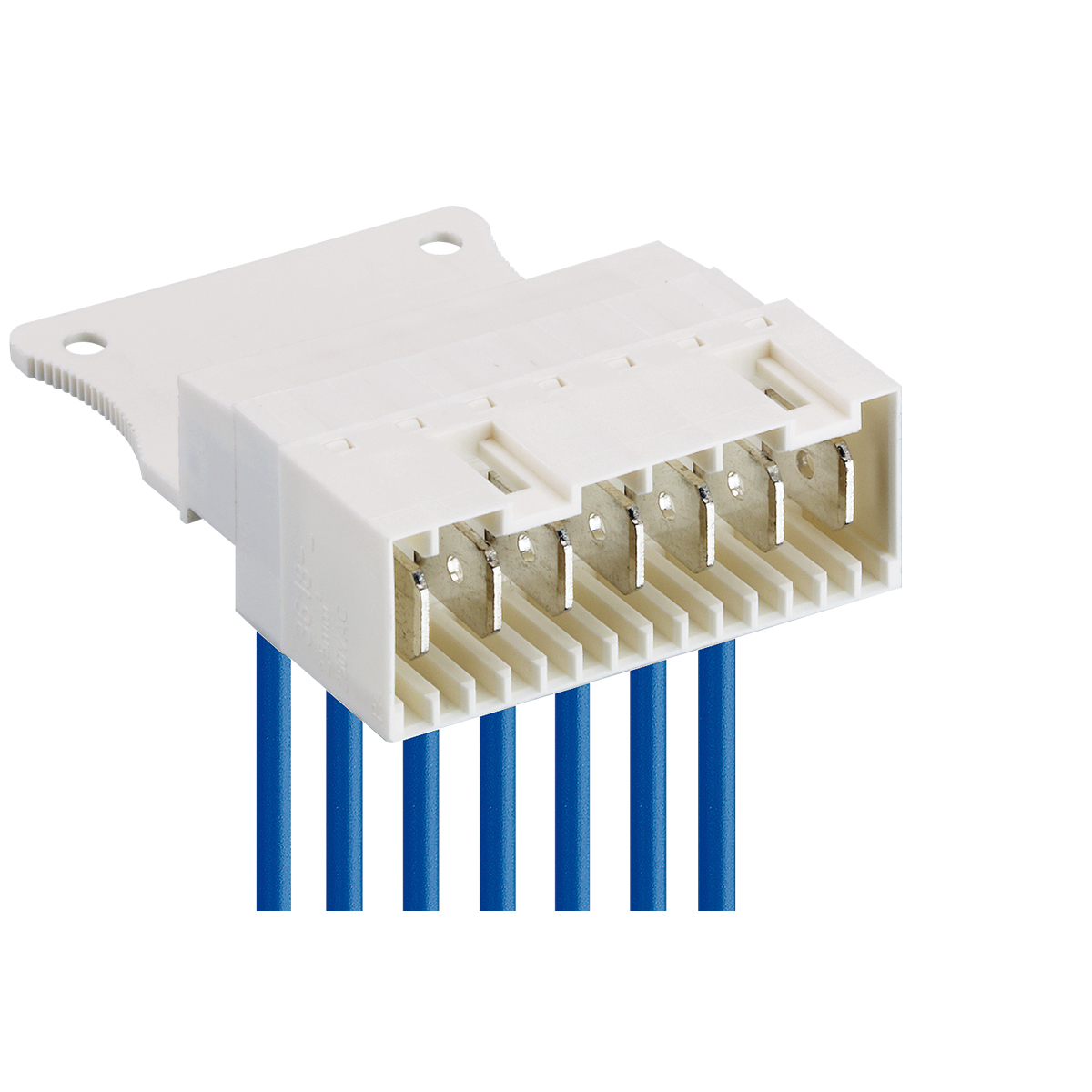

3618-1

RAST 5 tab header, with screw terminal, with lift clamp with protection against misplacing, with test holes, cable departure opposite to lock, with handle latch

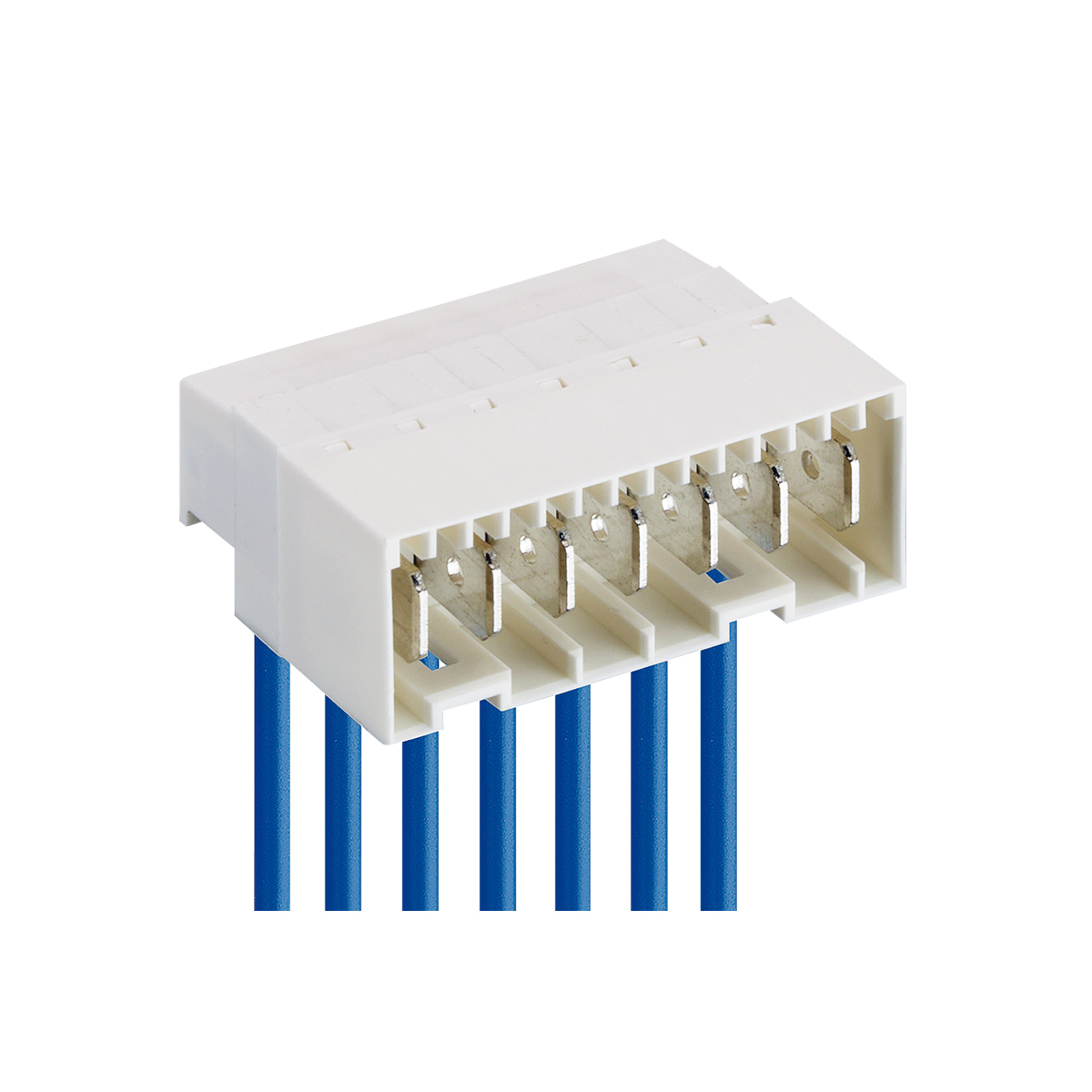

3618-2

RAST 5 tab header, with screw terminal, with lift clamp with protection against misplacing, with test holes, cable departure on side of lock

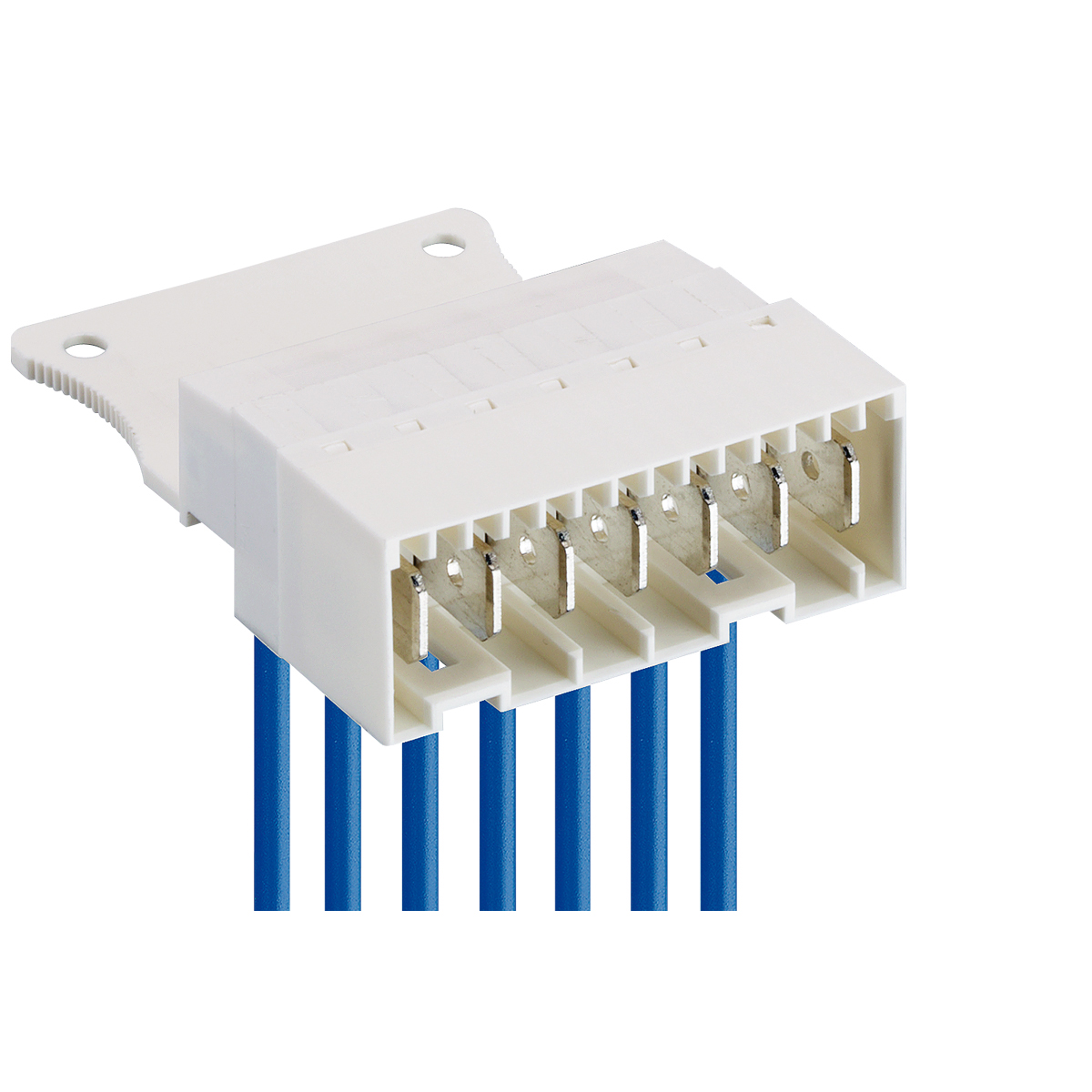

3618-3

RAST 5 tab header, with screw terminal, with lift clamp with protection against misplacing, with test holes, cable departure on side of lock, with handle latch

361899-1

RAST 5 tab header, with screw terminal, with lift clamp with protection against misplacing, with test holes, cable departure opposite to lock, with handle latch, with pre-mating protective contact

361899-2

RAST 5 tab header, with screw terminal, with lift clamp with protection against misplacing, with test holes, cable departure on side of lock, with pre-mating protective contact

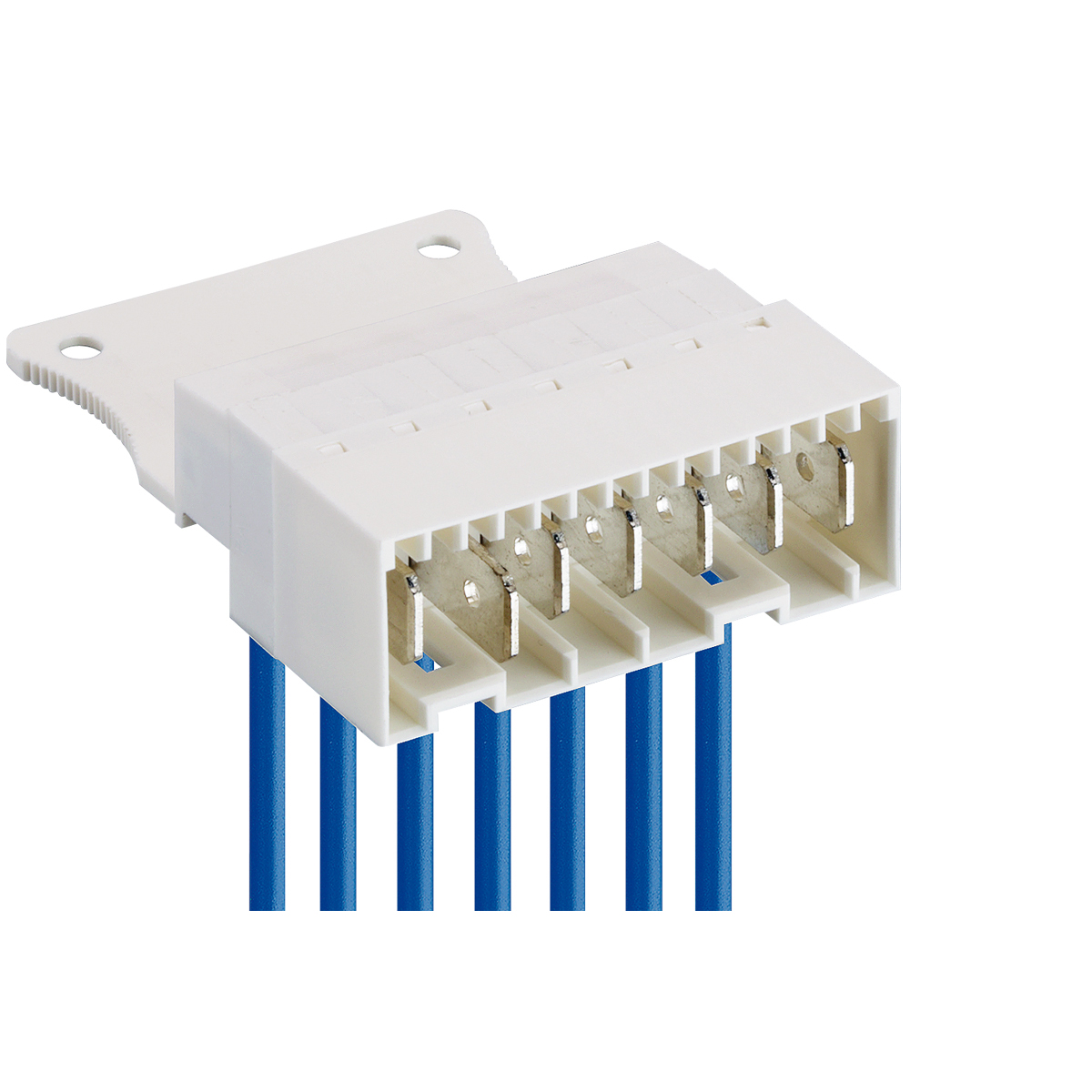

361899-3

RAST 5 tab header, with screw terminal, with lift clamp with protection against misplacing, with test holes, cable departure on side of lock, with handle latch, with pre-mating protective contact

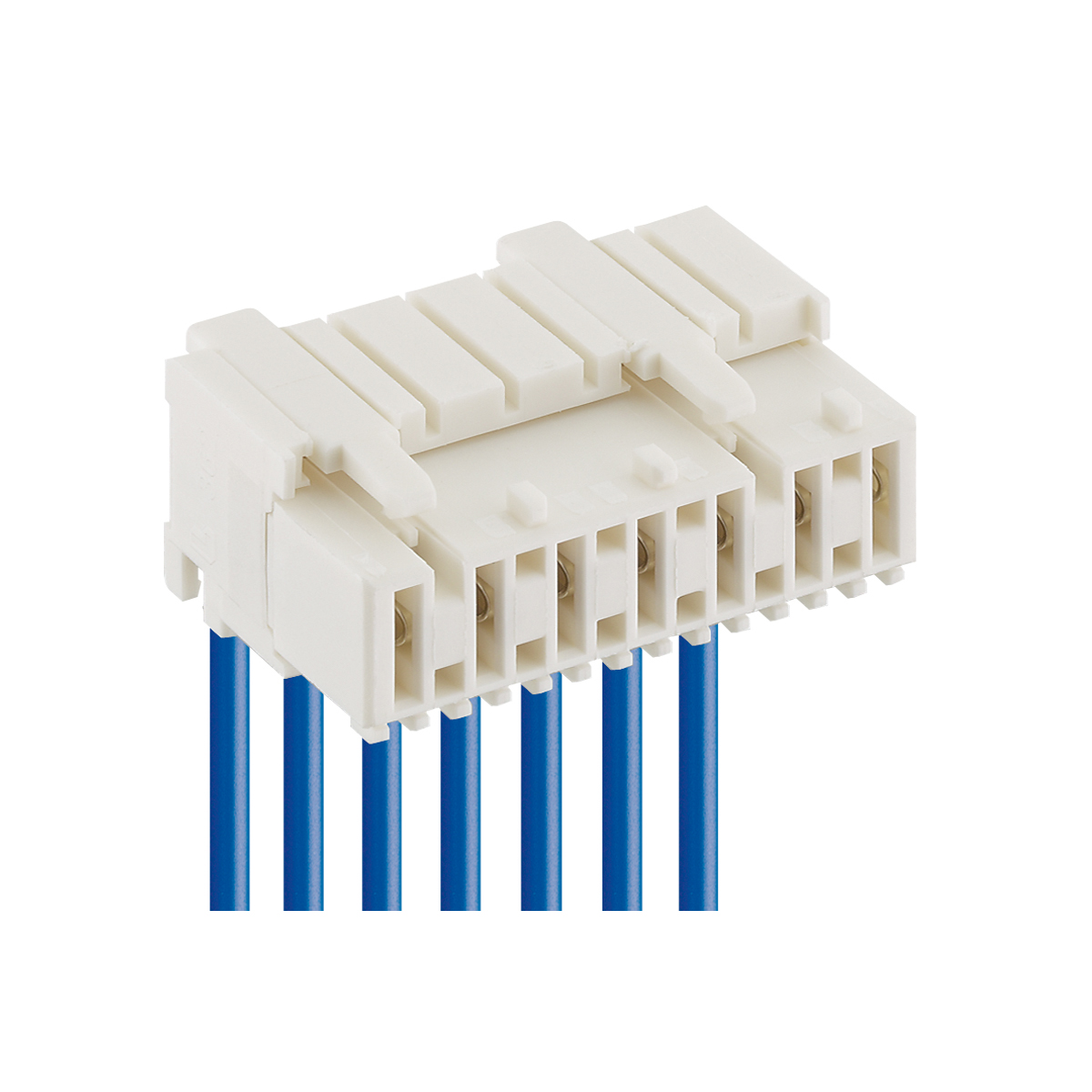

3623

RAST 5 connector for indirect mating, insulation displacement technology (IDT), with exterior lock, consecutive placement without loss of pitch

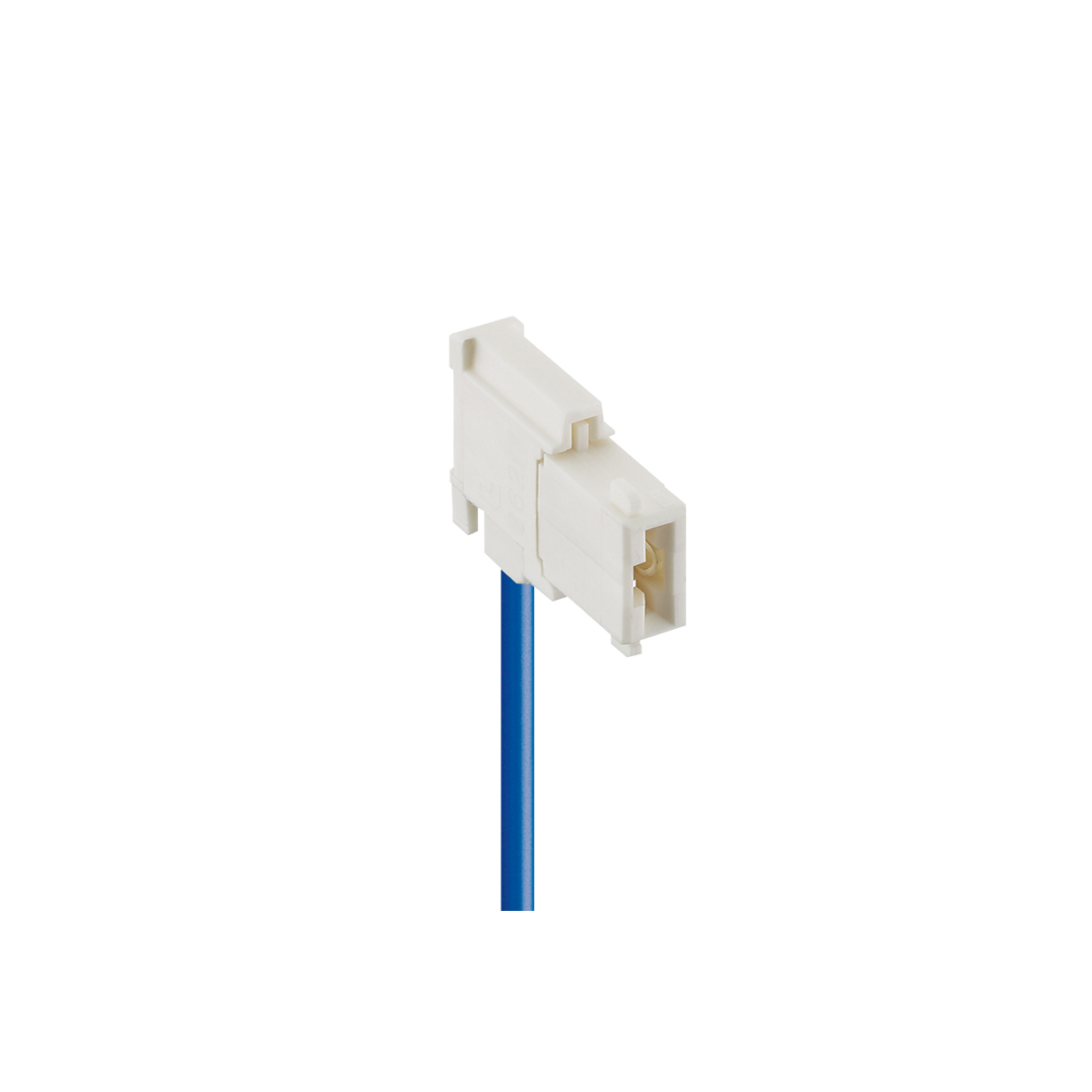

3623 01 V01

RAST 5 connector for indirect mating, insulation displacement technology (IDT), with locking on tab, consecutive placement without loss of pitch

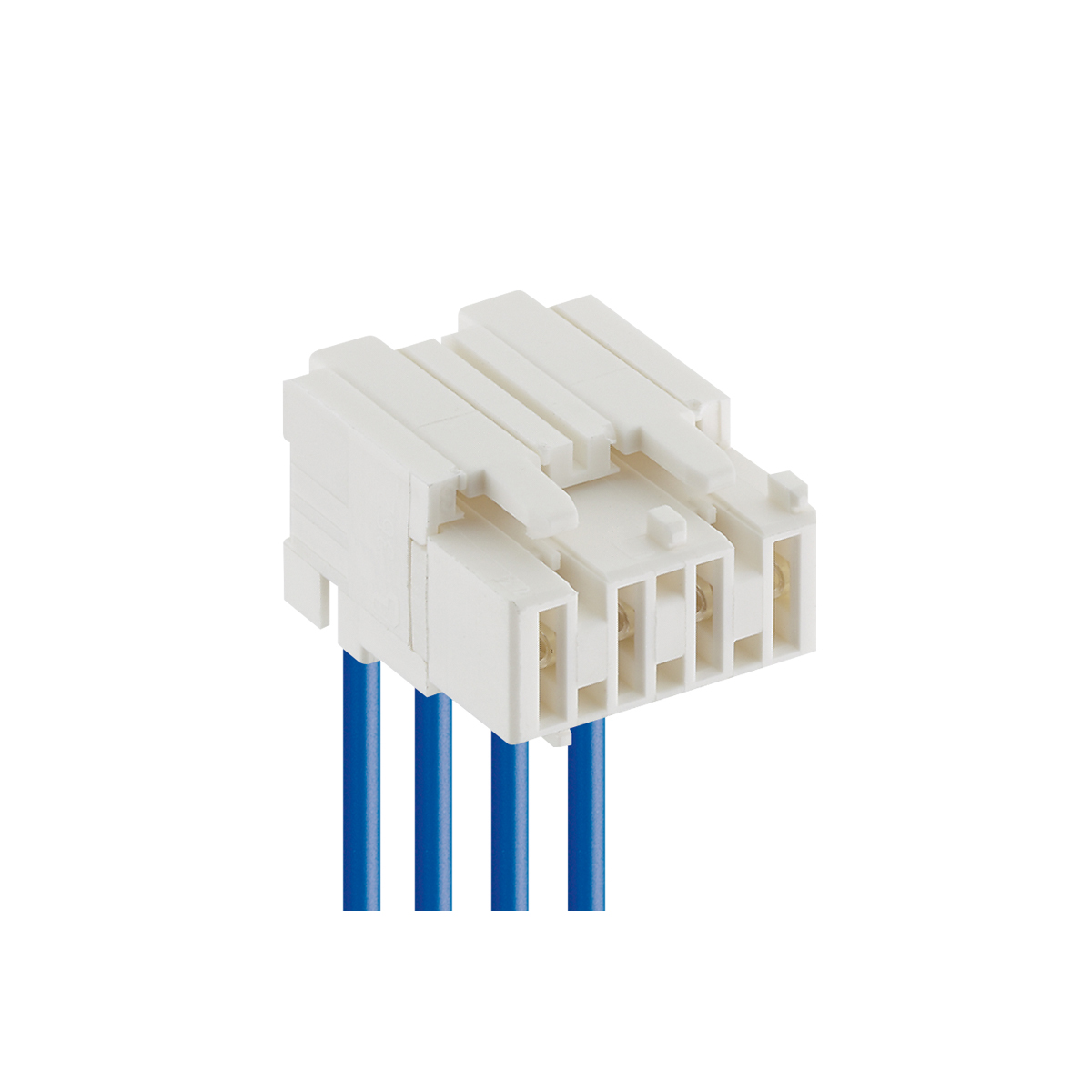

3625

RAST 5 connector for indirect mating, insulation displacement technology (IDT), with exterior locking, consecutive placement without loss of pitch

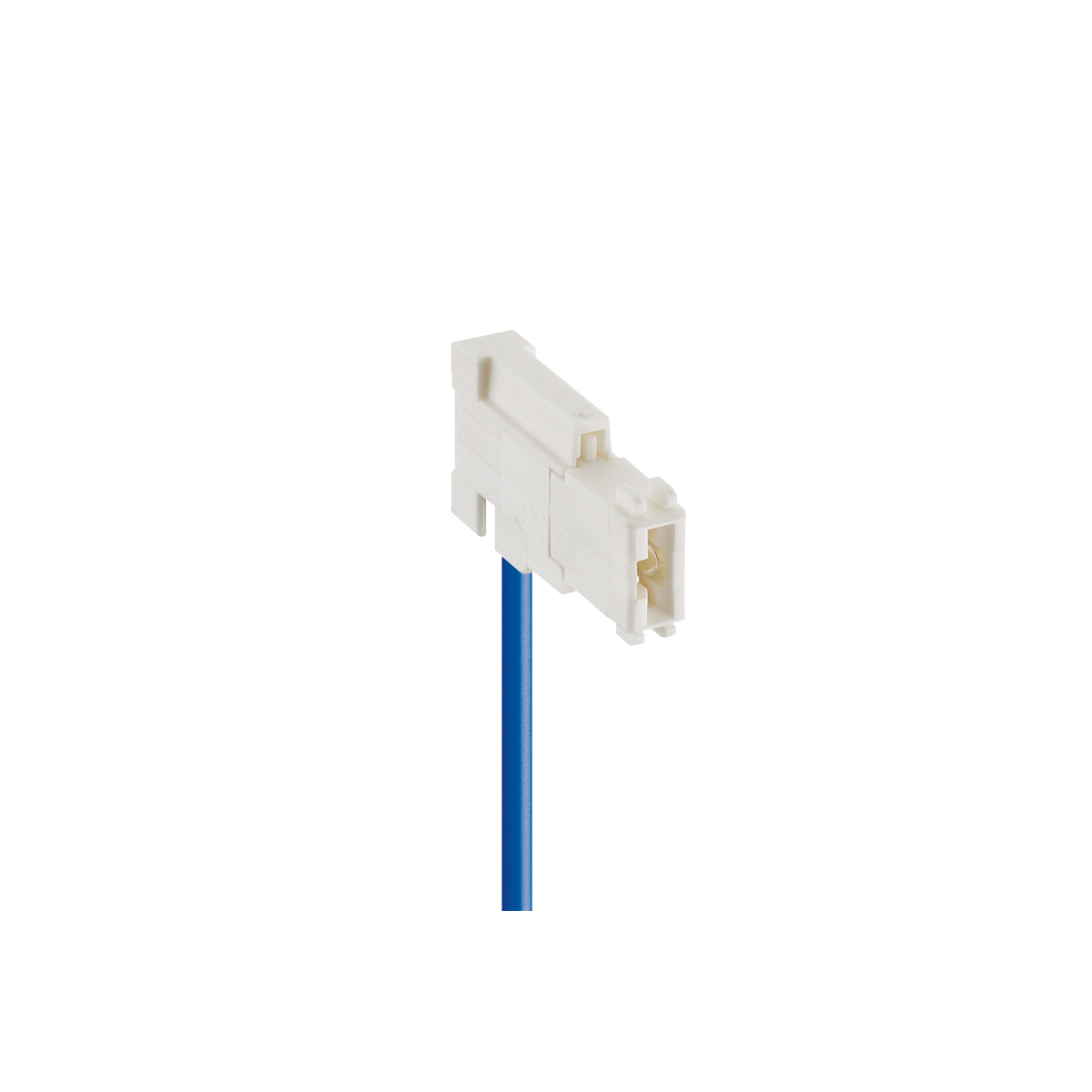

3625 01

RAST 5 connector for indirect mating, insulation displacement technology (IDT), with locking on tab, consecutive placement without loss of pitch

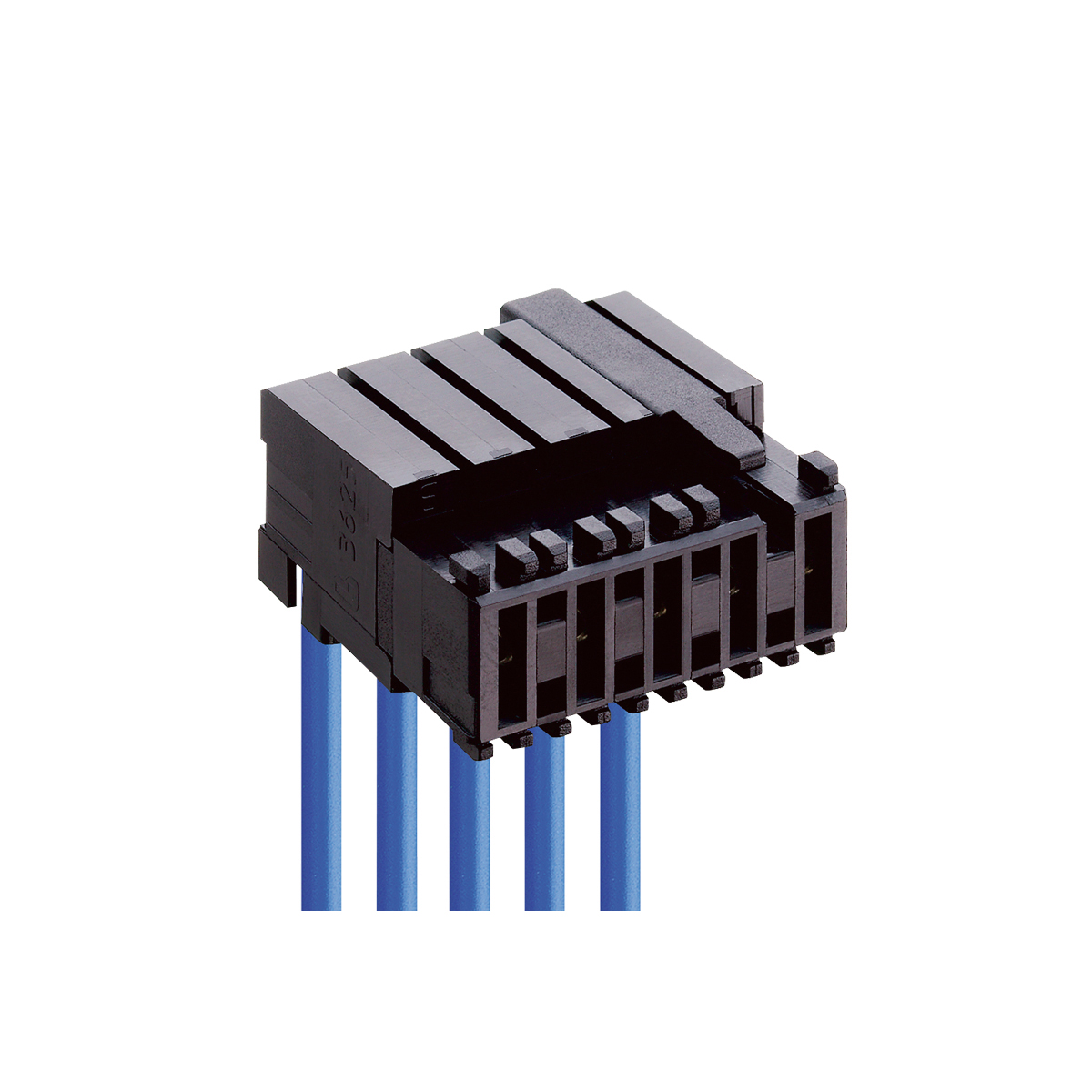

3625-1

RAST 5 connector for indirect mating, insulation displacement technology (IDT), with exterior locking, consecutive placement without loss of pitch, for use in a higher temperature range

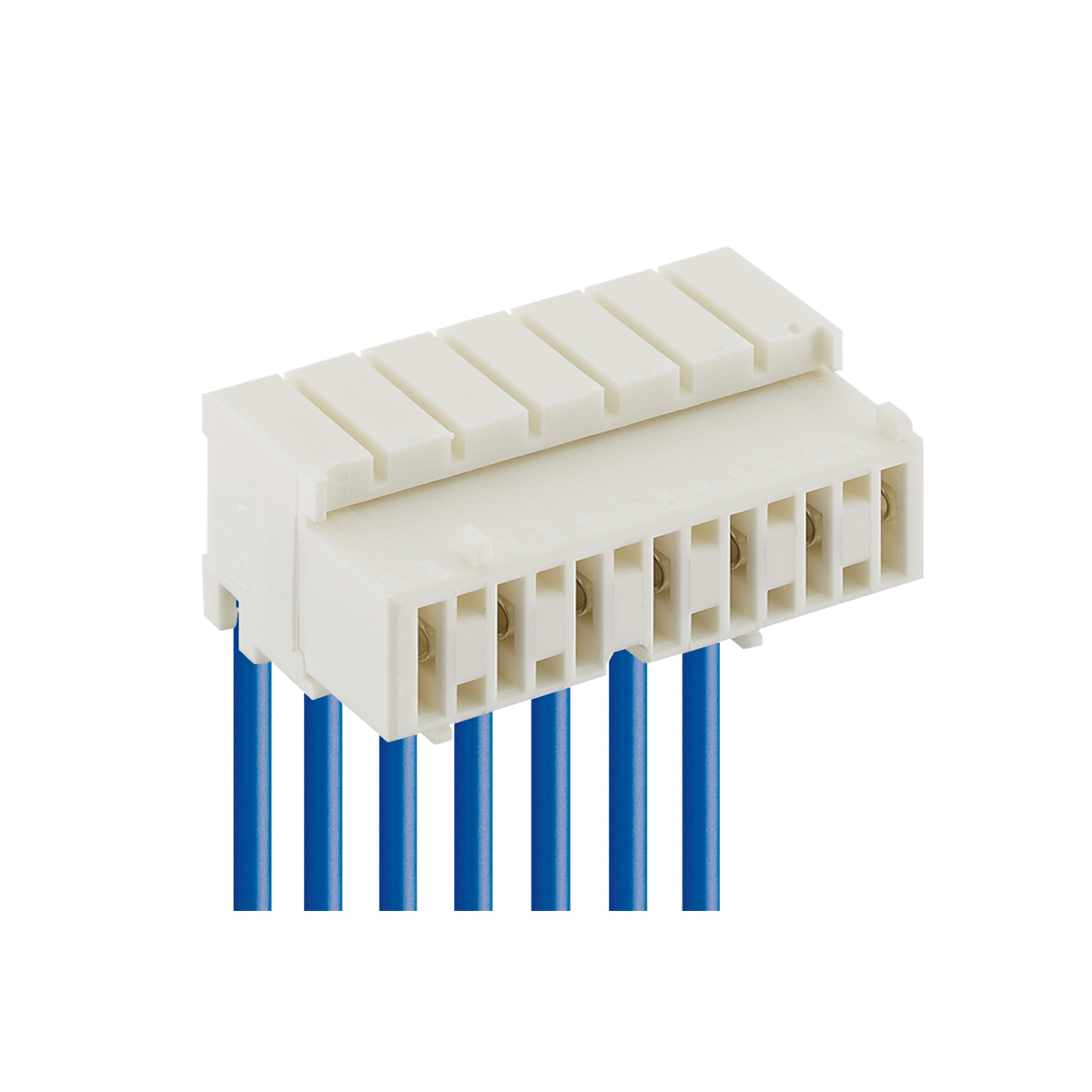

3626

RAST 5 connector for indirect mating, insulation displacement technology (IDT), with interior locking, consecutive placement without loss of pitch

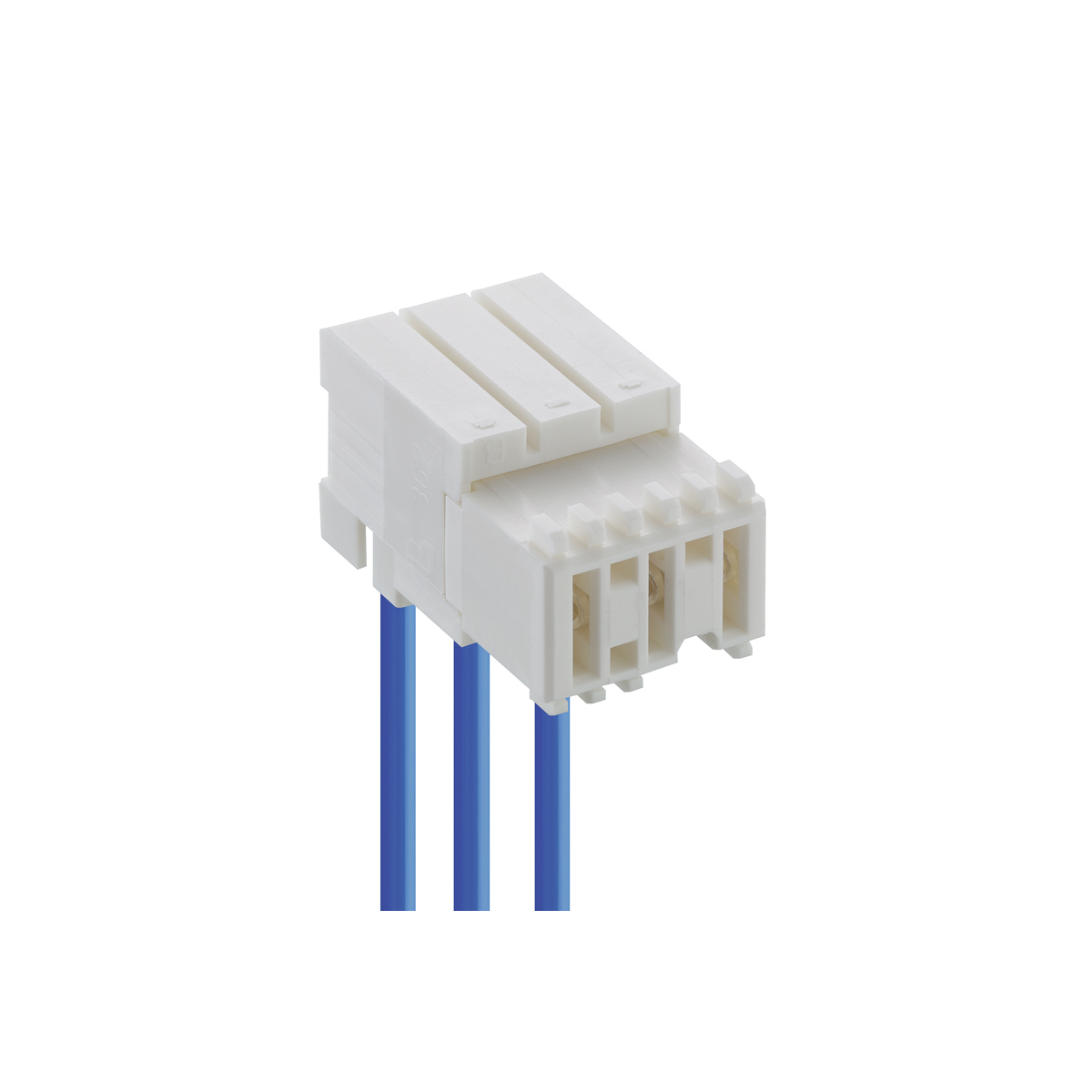

3627

RAST 5 connector for indirect mating, insulation displacement technology (IDT), with interior locking, consecutive placement without loss of pitch

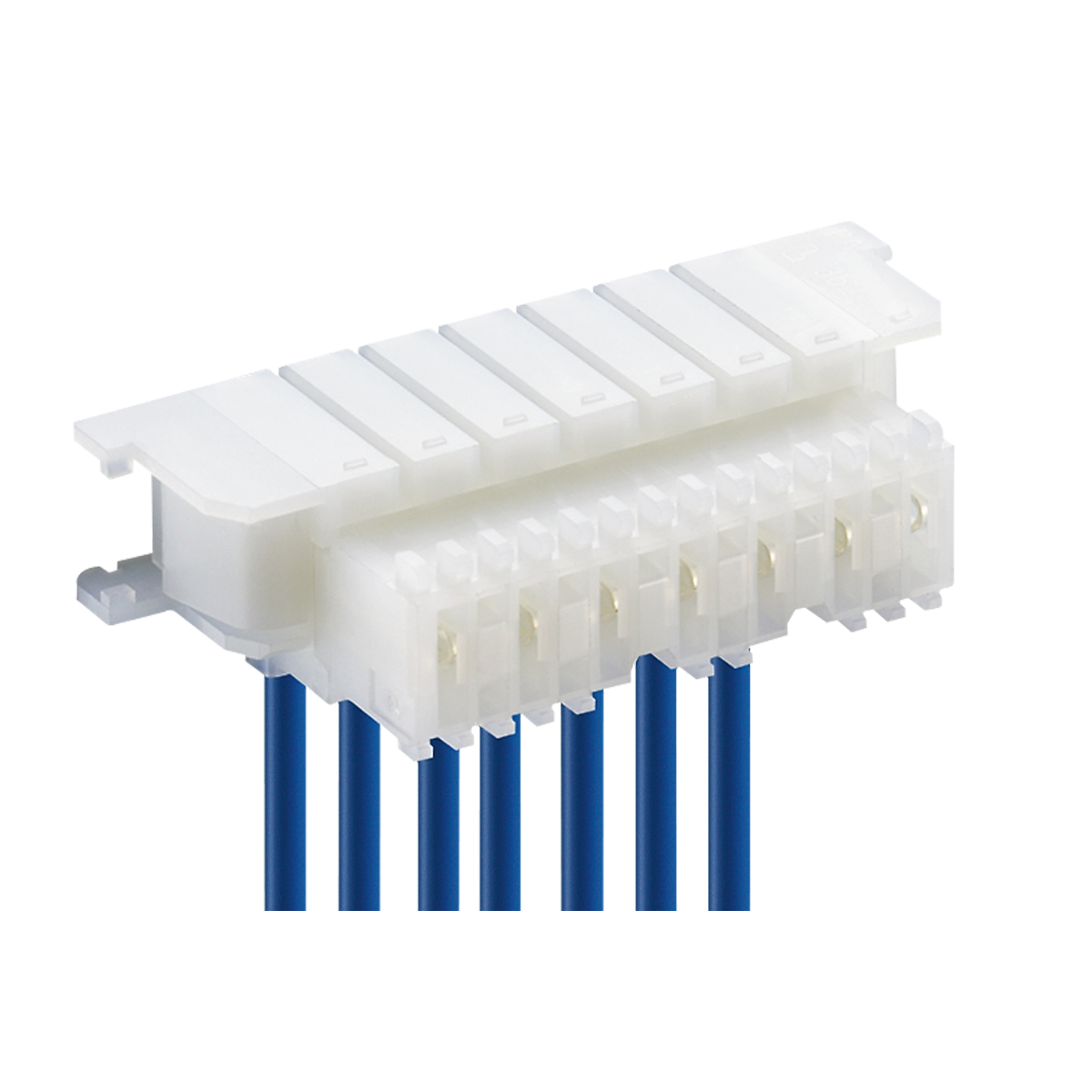

3628

RAST 5 chassis connector for indirect mating, insulation displacement technology (IDT), with interior locking

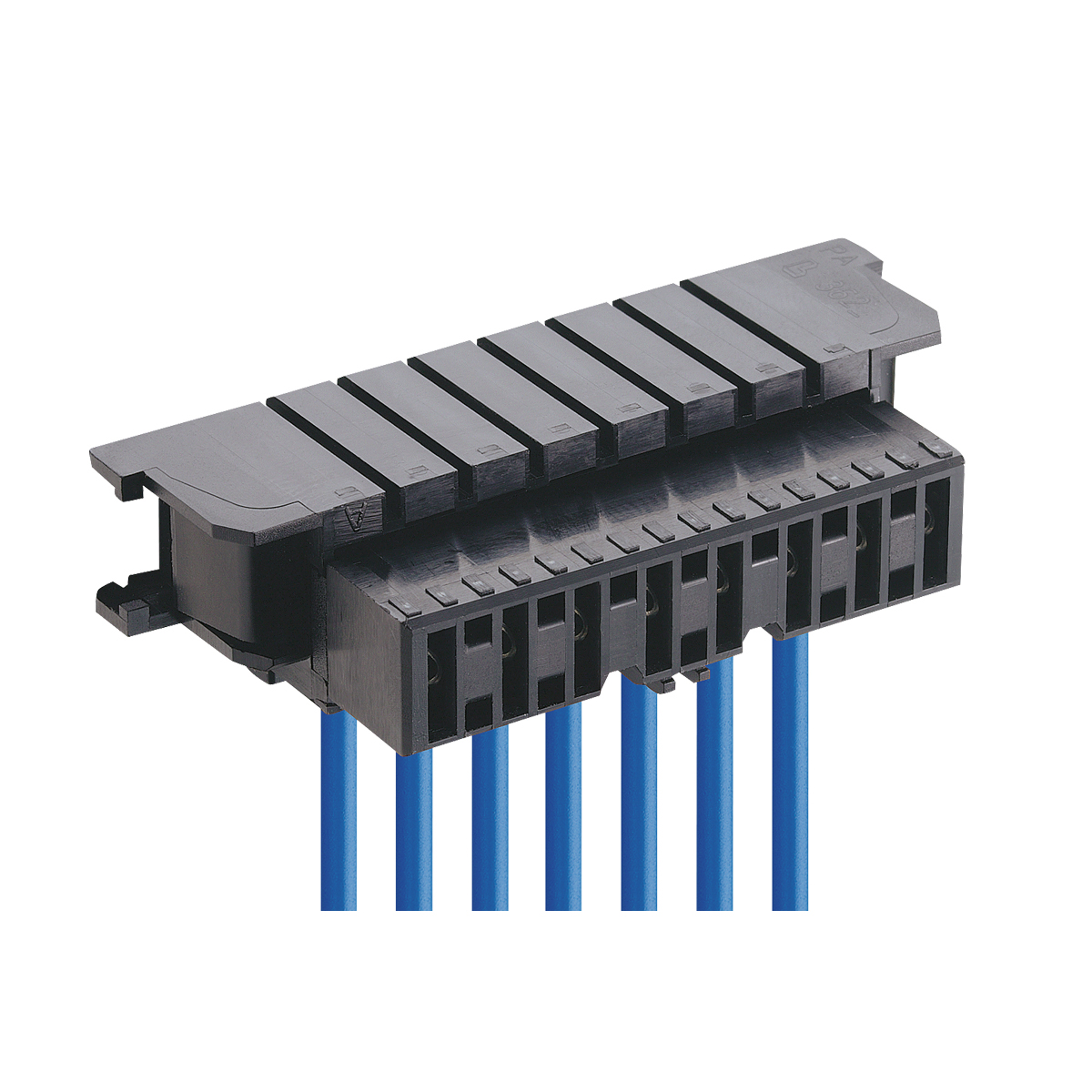

3628-1

RAST 5 chassis connector for indirect mating, insulation displacement technology (IDT), with interior locking, for use in a higher temperature range

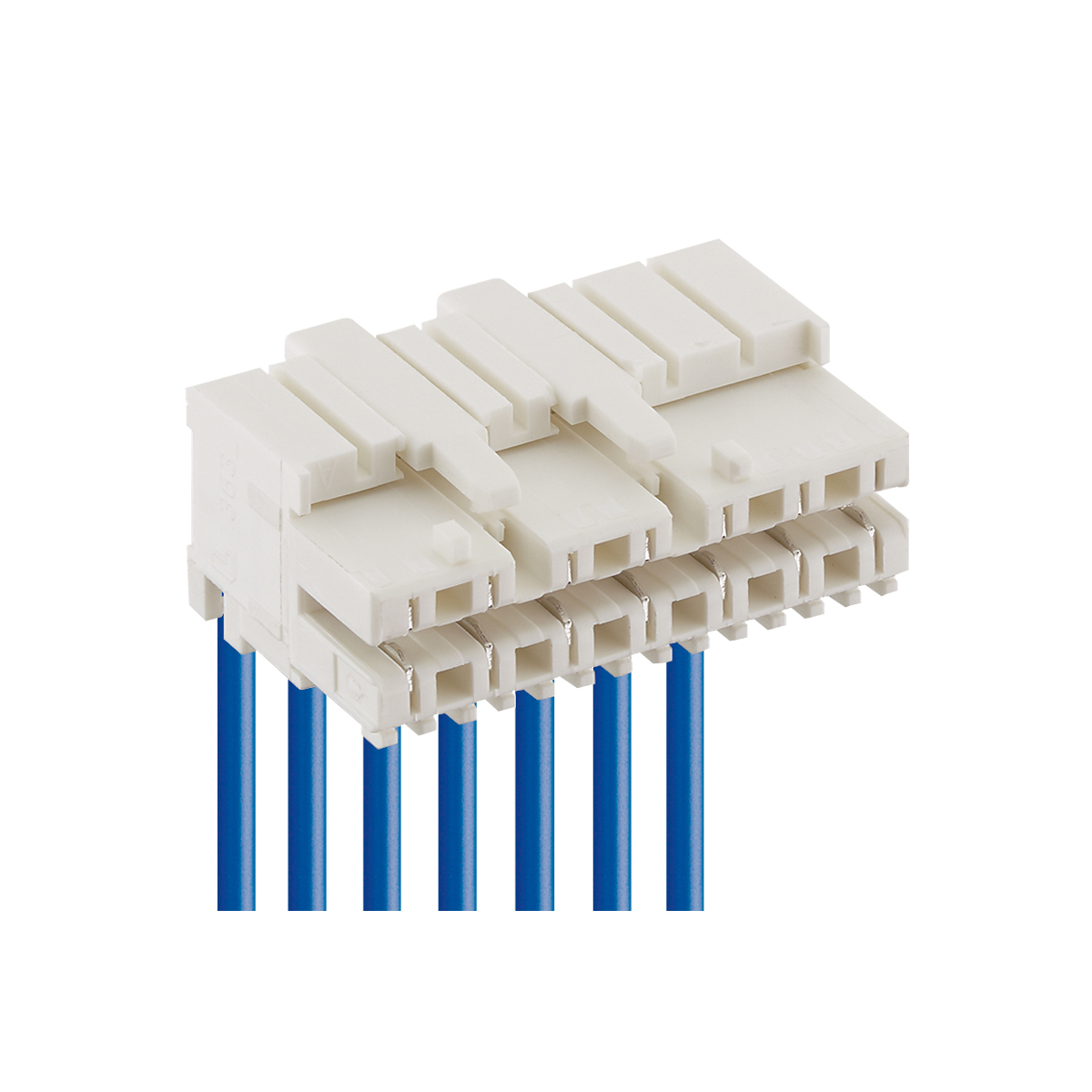

3633

RAST 5 connector for direct mating, insulation displacement technology (IDT), with exterior locking, consecutive placement without loss of pitch

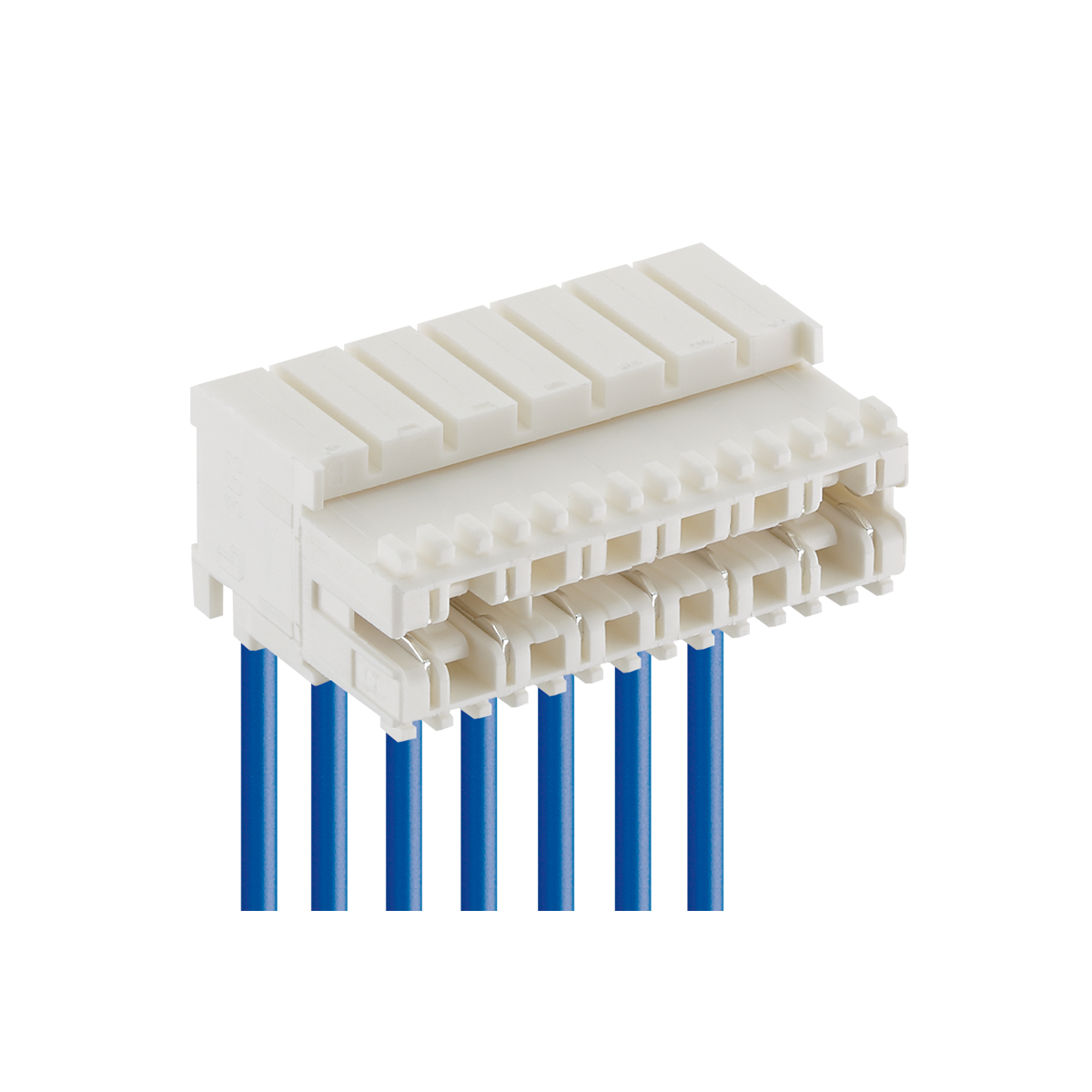

3636

RAST 5 connector for direct mating, insulation displacement technology (IDT), alternatively with or without locking on printed circuit board, with or without keying rib and closed sides, consecutive placement without loss of pitch

3641

RAST 5 tab header, upright, with positioning spigot

3641 V167

RAST 5 tab header, upright, with positioning spigot, contact tab silvered

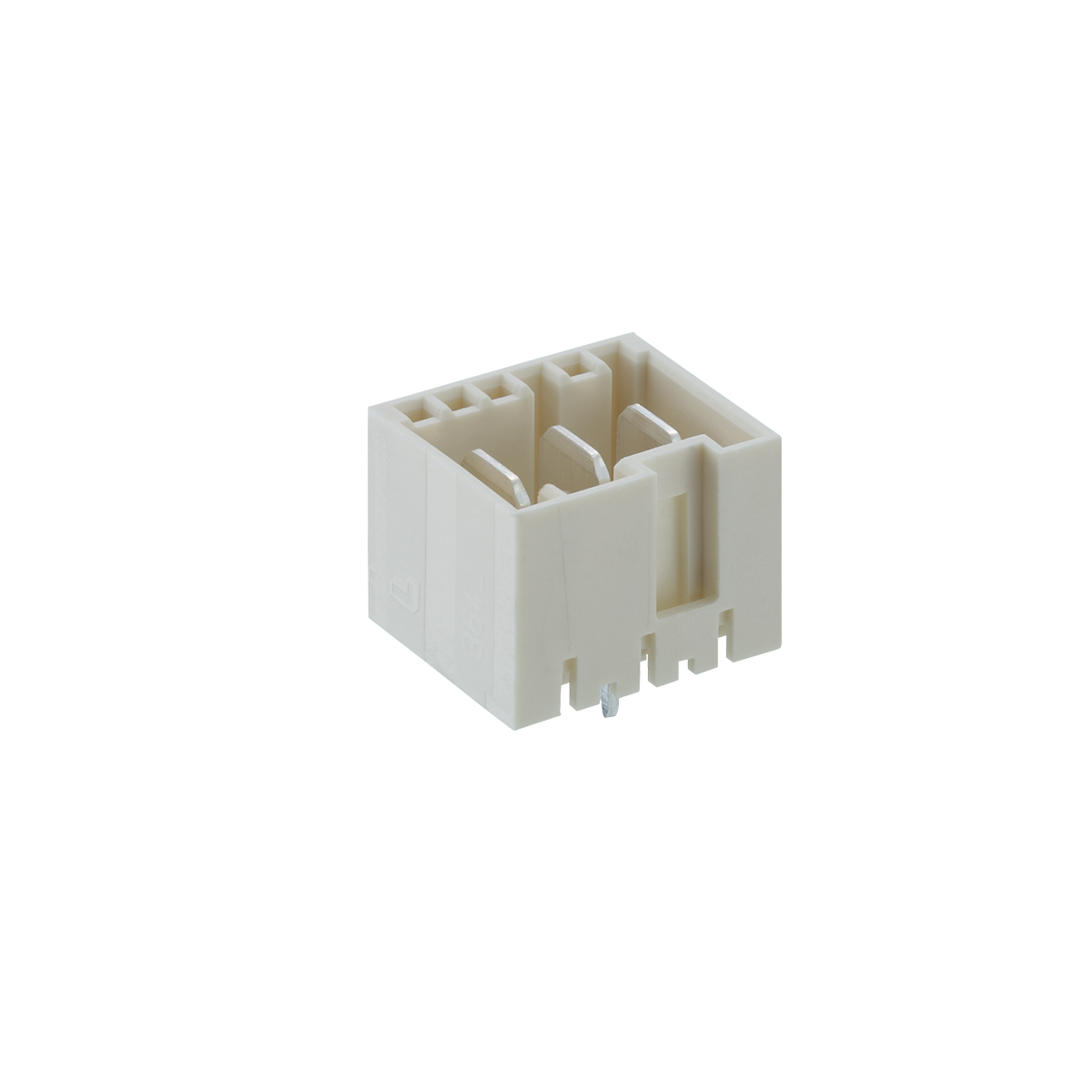

364197 V167

RAST 5 tab header, upright, with positioning spigot, pottable version, contact tab silvered

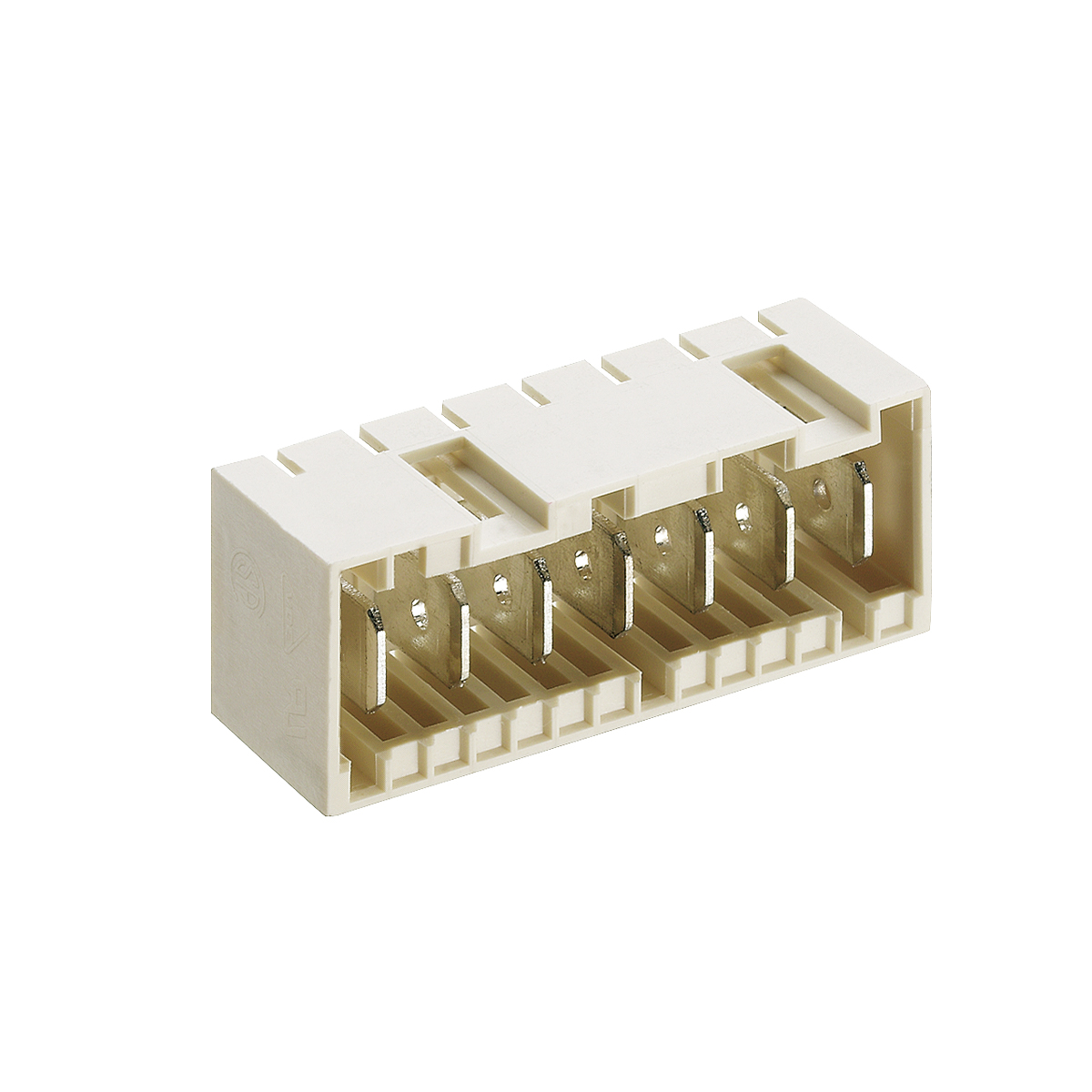

3642

RAST 5 tab header, angular, with topside lock

3642 V167

RAST 5 tab header, angular, with topside lock, contact tab silvered

3643

RAST 5 tab header, angular, with lower side lock

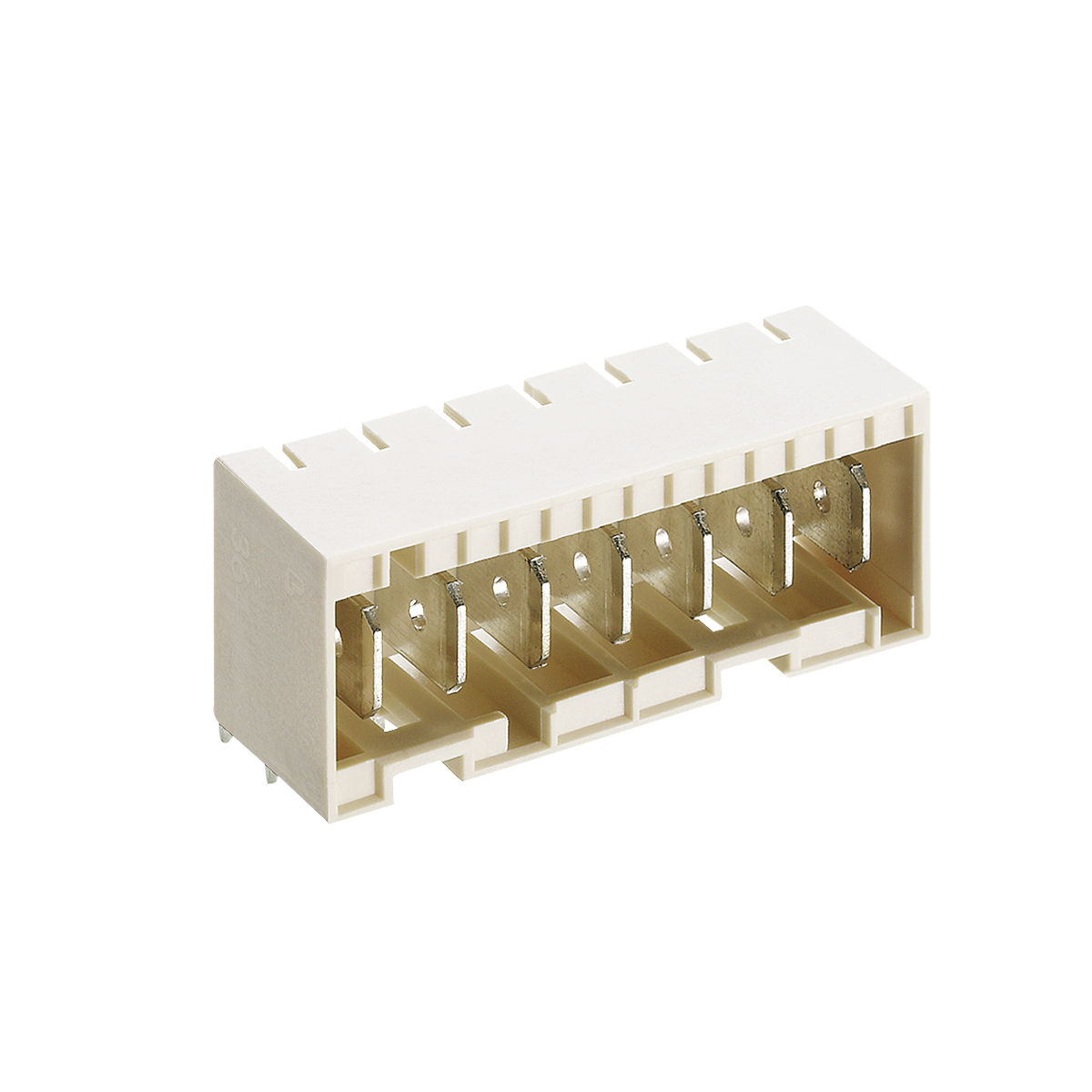

3643 V167

RAST 5 tab header, angular, with lower side lock, contact tab silvered

3644

RAST 5 tab header, angular, with lower side lock, higher version, with positioning spigots

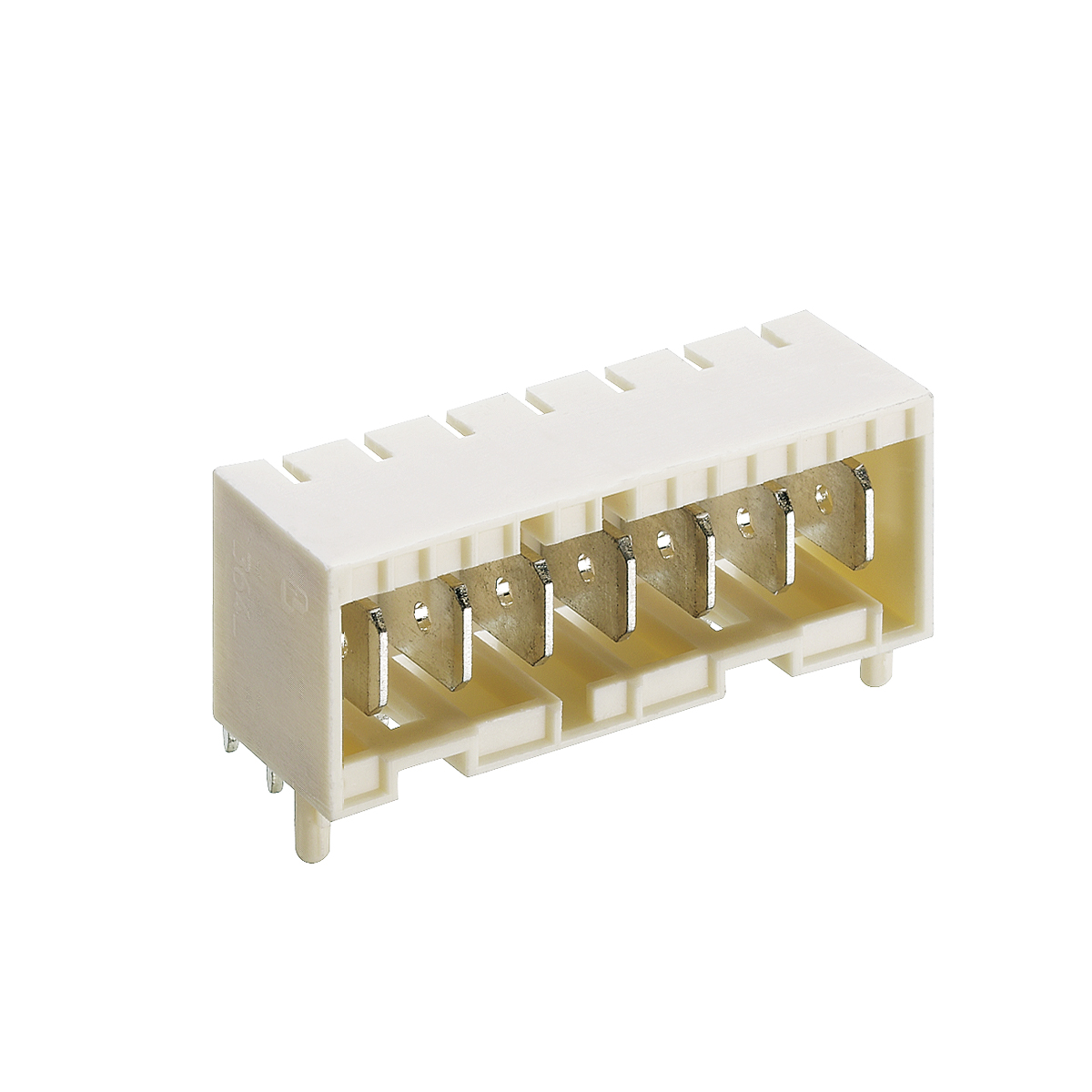

3644 V167

RAST 5 tab header, angular, with lower side lock, higher version, with positioning spigots, contact tab silvered

3645

RAST 5 tab header, angular, with lower side lock, higher version

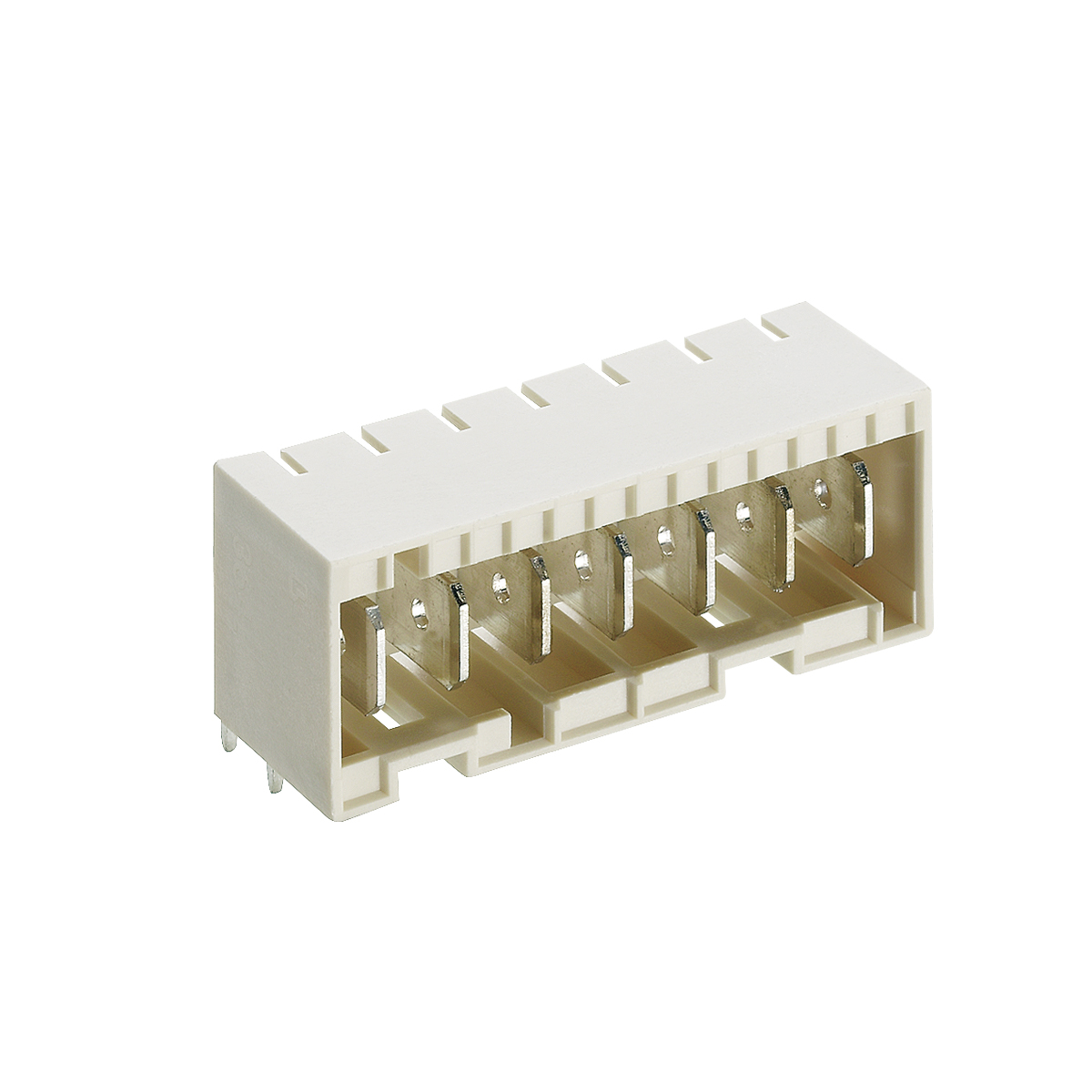

3645 V167

RAST 5 tab header, angular, with lower side lock, higher version, contact tab silvered

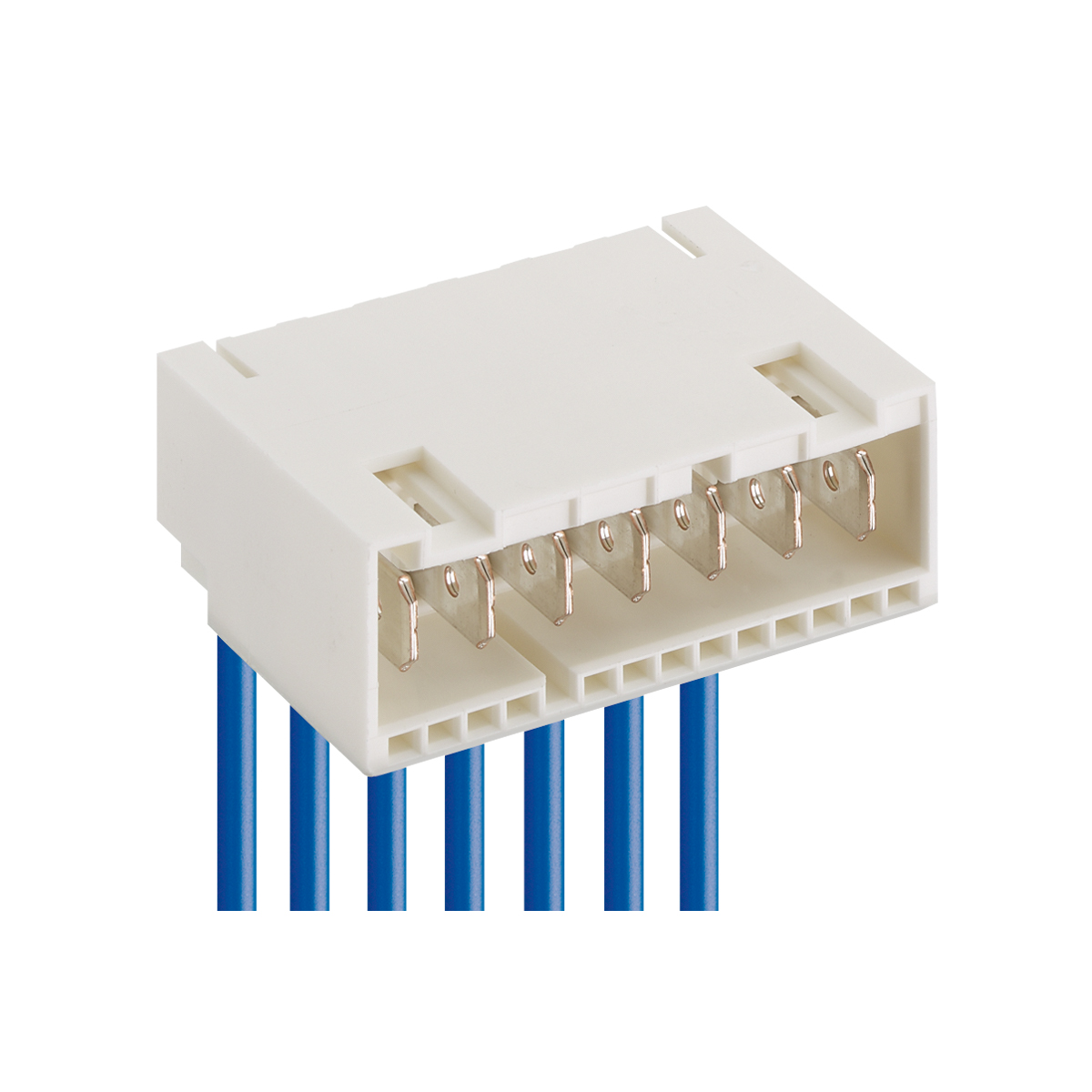

3647

RAST 5 tab header, insulation displacement technology (IDT)

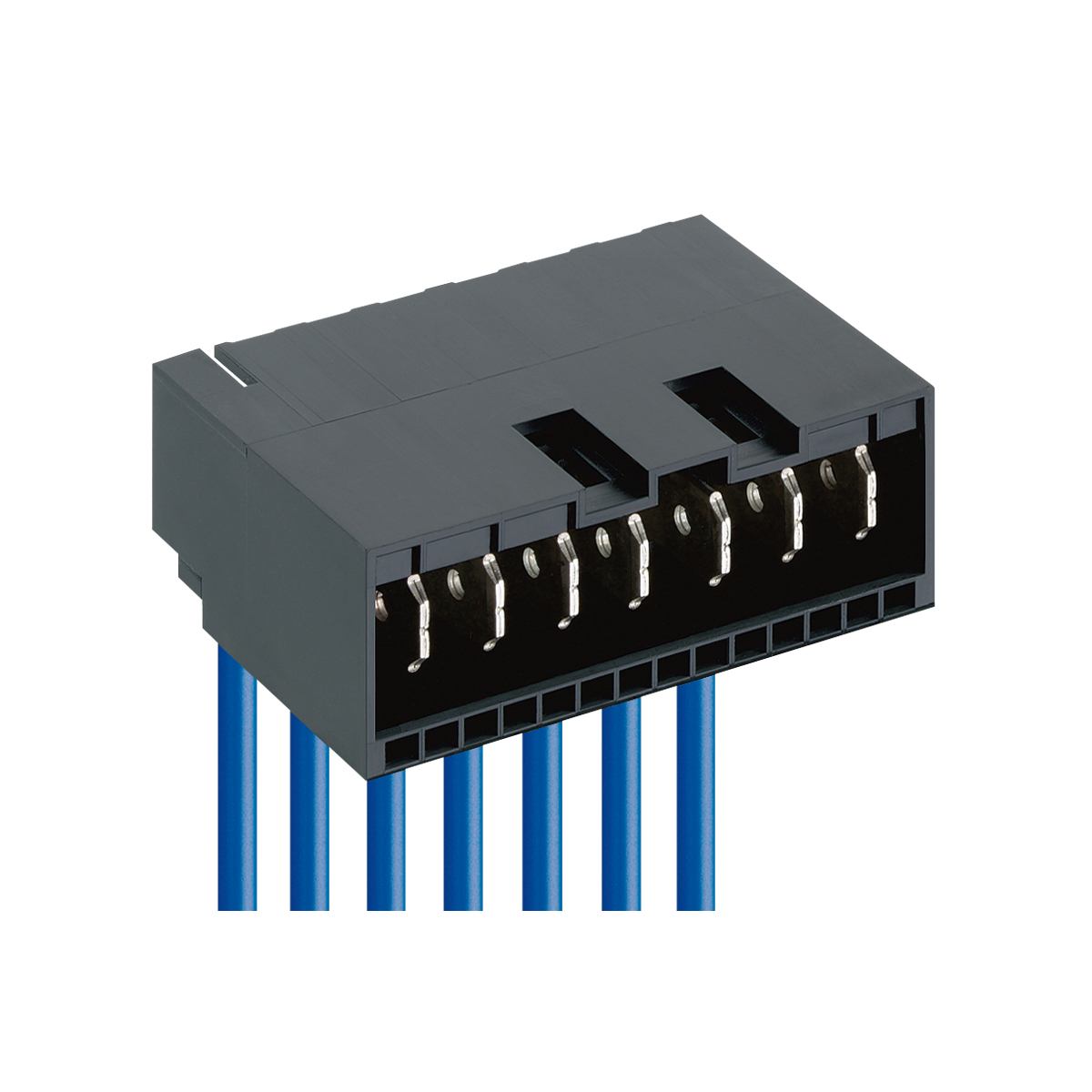

3647-1

RAST 5 tab header, insulation displacement technology (IDT), for use in a higher temperature range

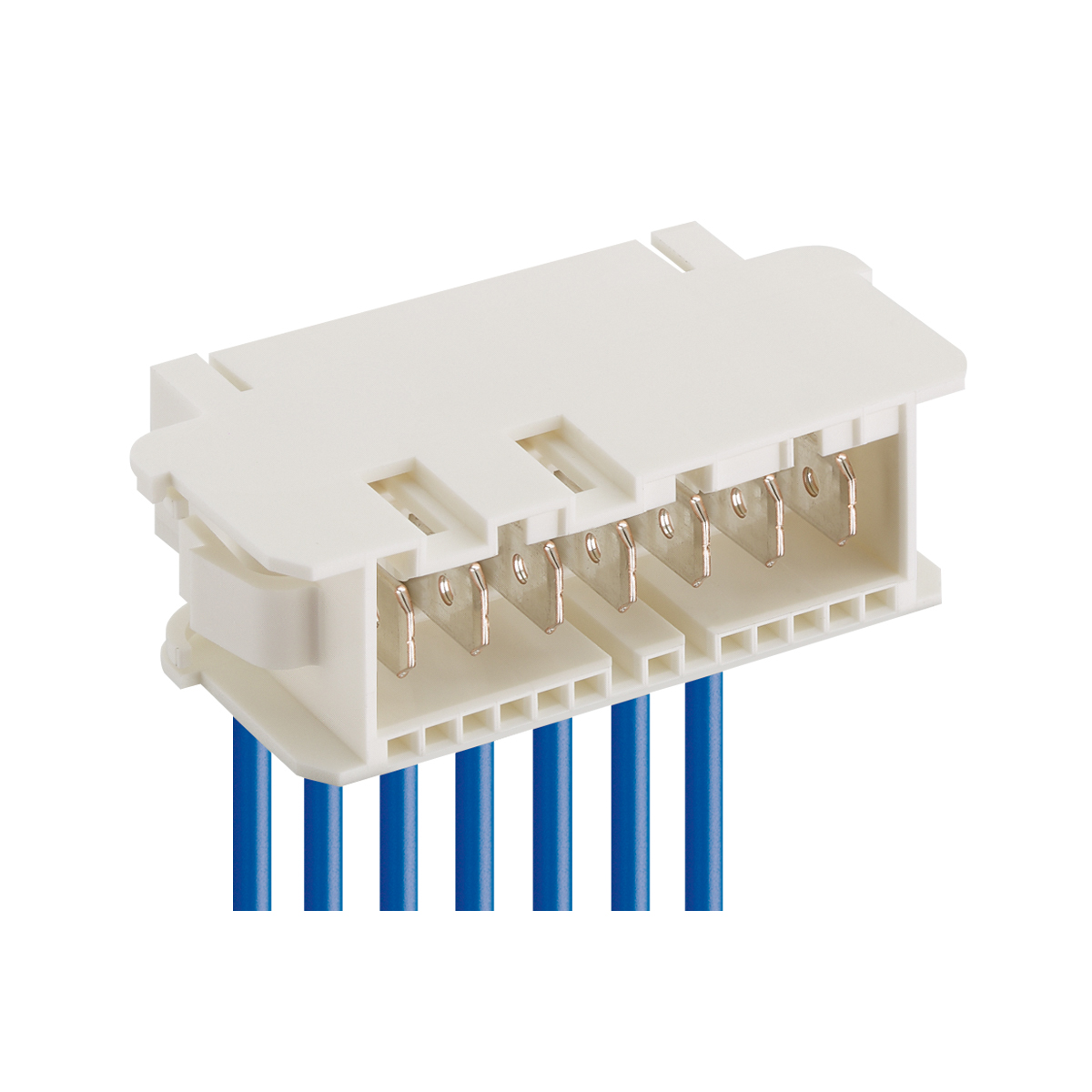

3648

RAST 5 chassis tab header, insulation displacement technology (IDT)

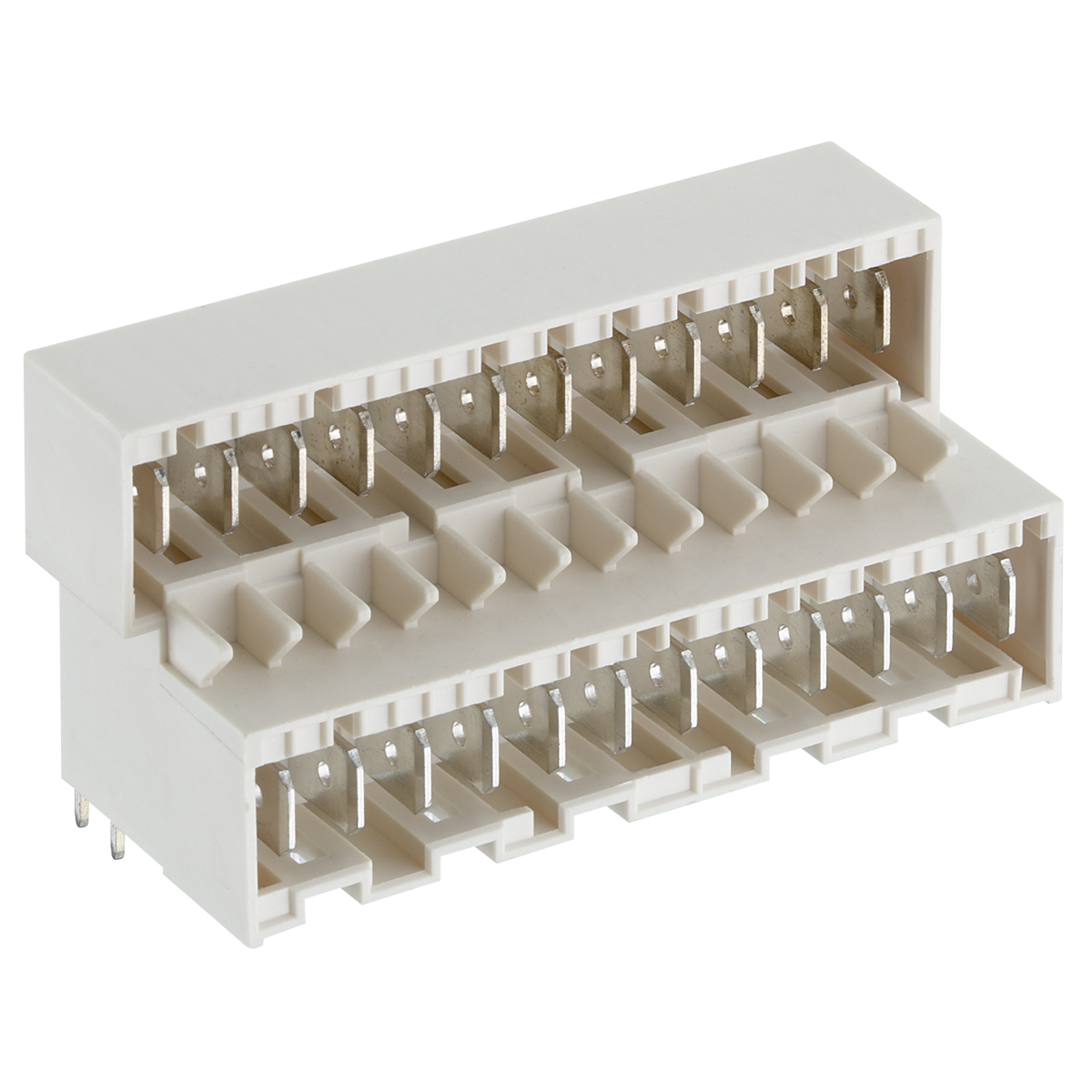

3649

Dual row RAST 5 tab header, angular, with lower side lock

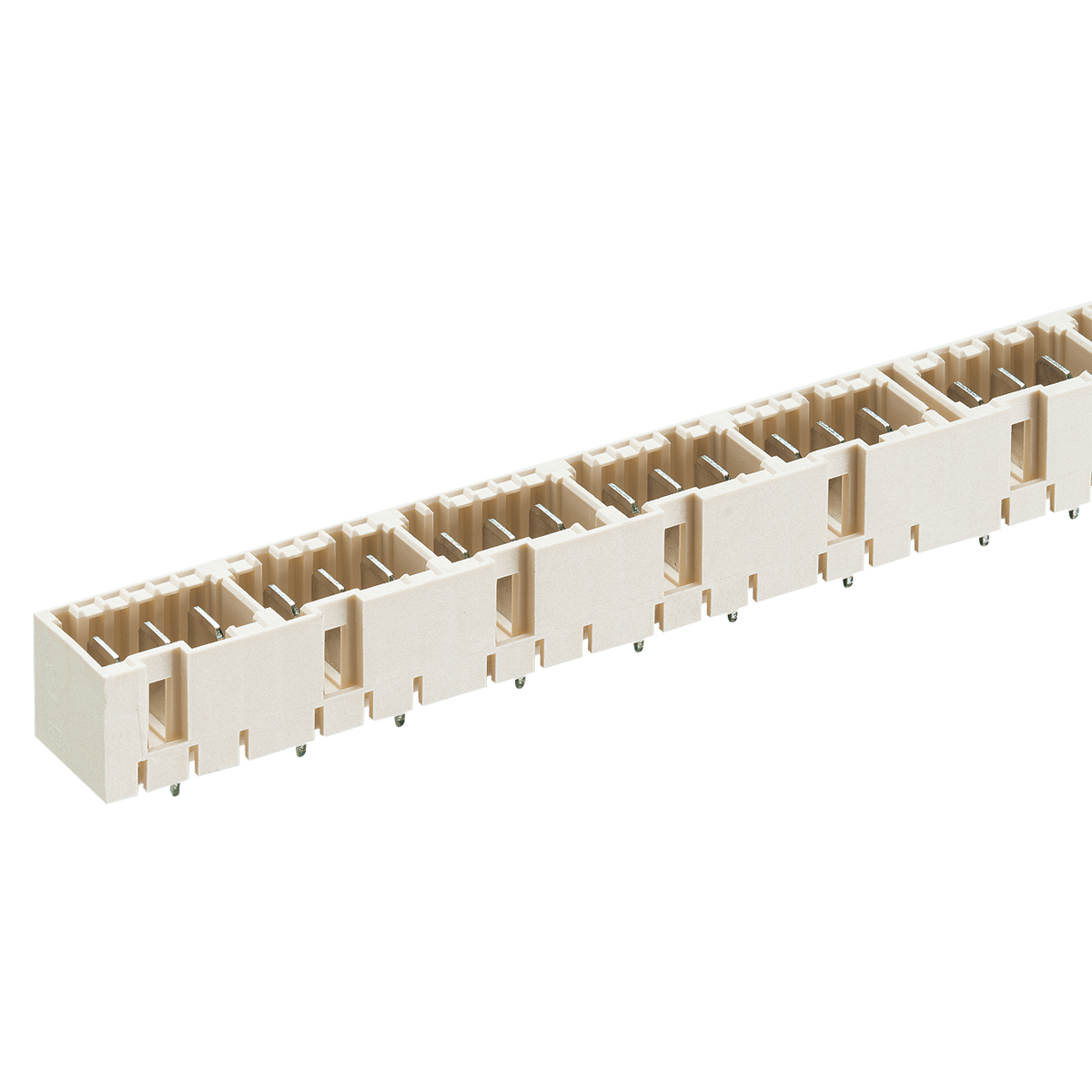

3671

RAST 5 tab header, upright, with positioning spigot, free to configure with partitions

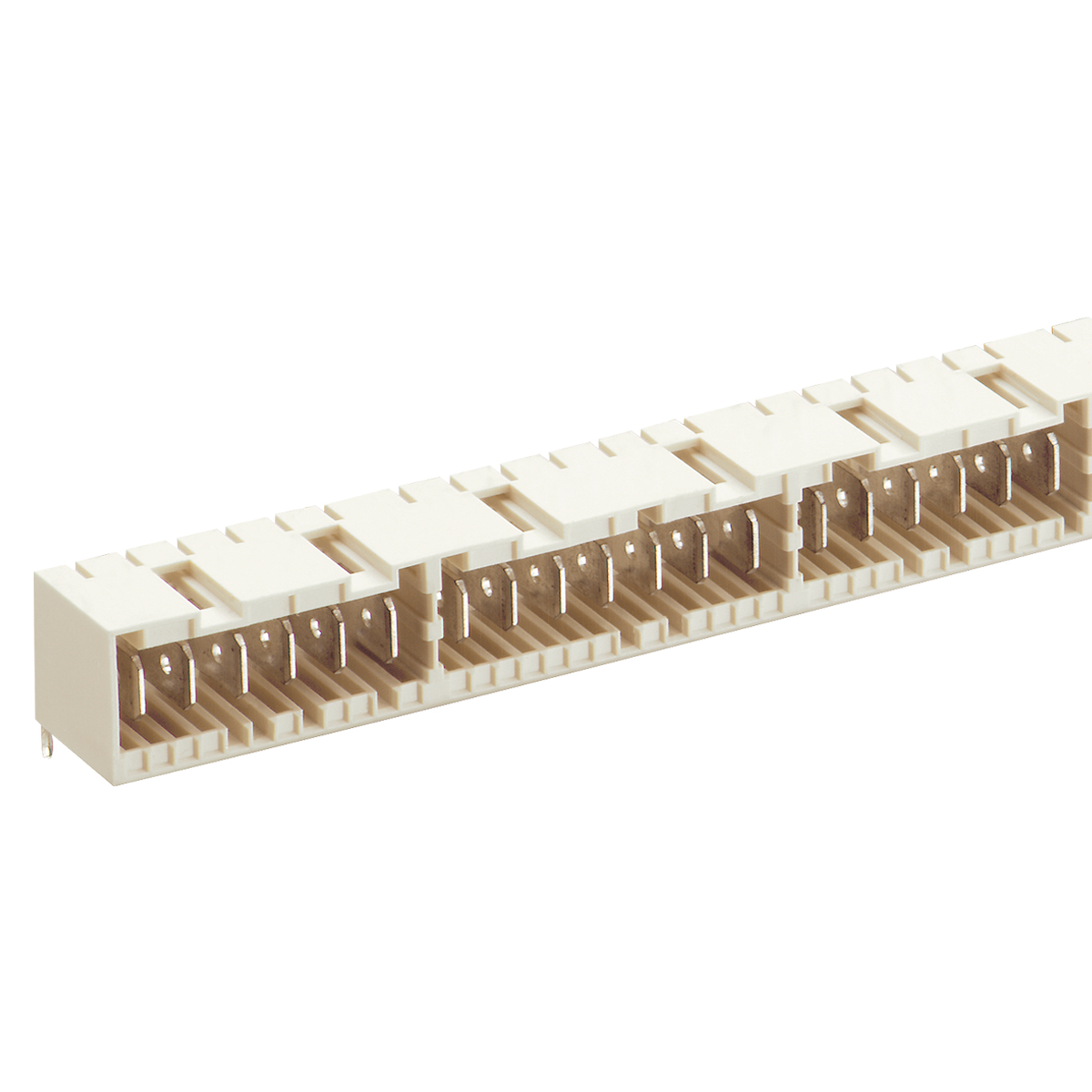

3672

RAST 5 tab header, angular, with topside lock, free to configure with partitions

3673

RAST 5 tab header, angular, with lower side lock, free to configure with partitions

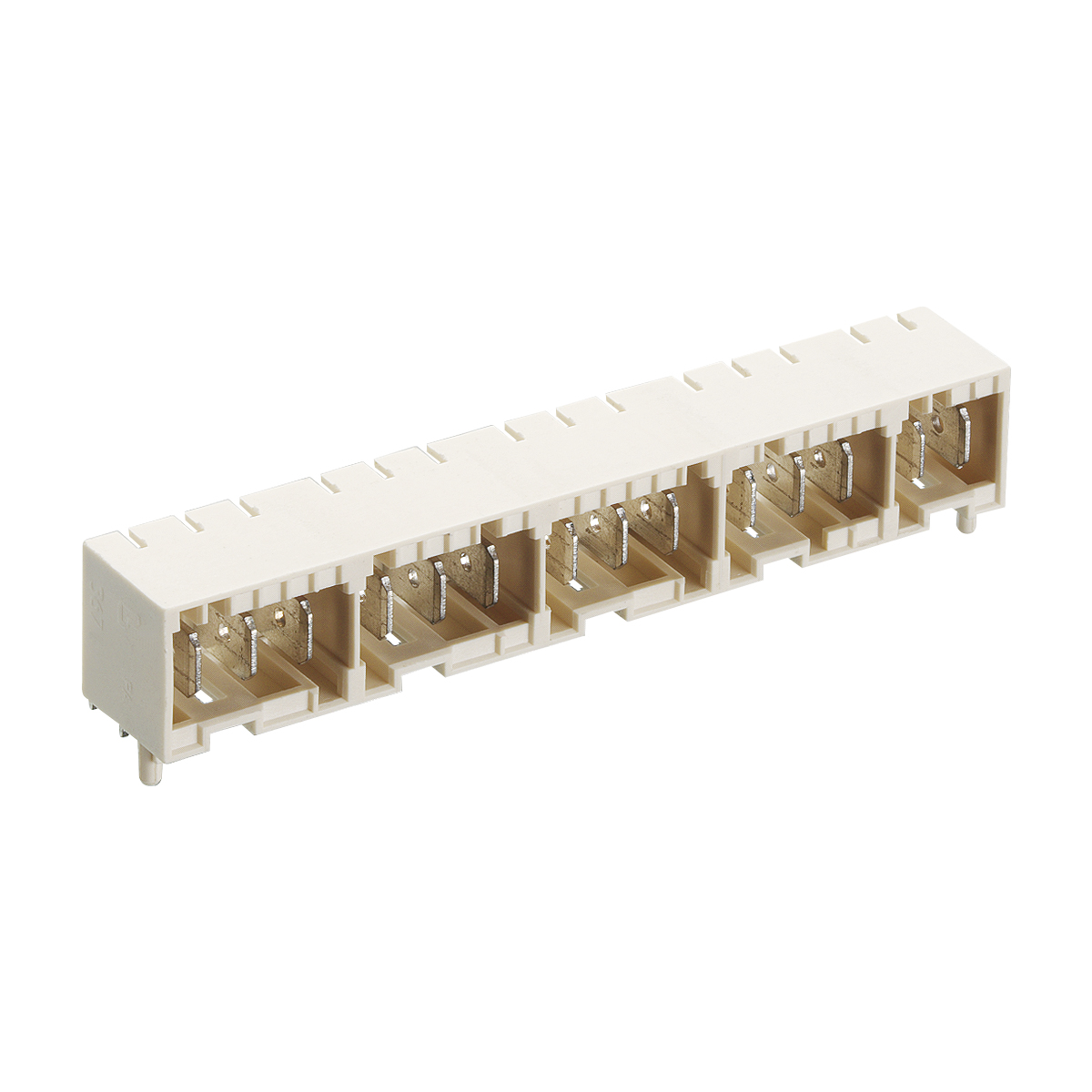

3674

RAST 5 tab header, angular, with lower side lock, higher version, with positioning spigot, free to configure with partitions

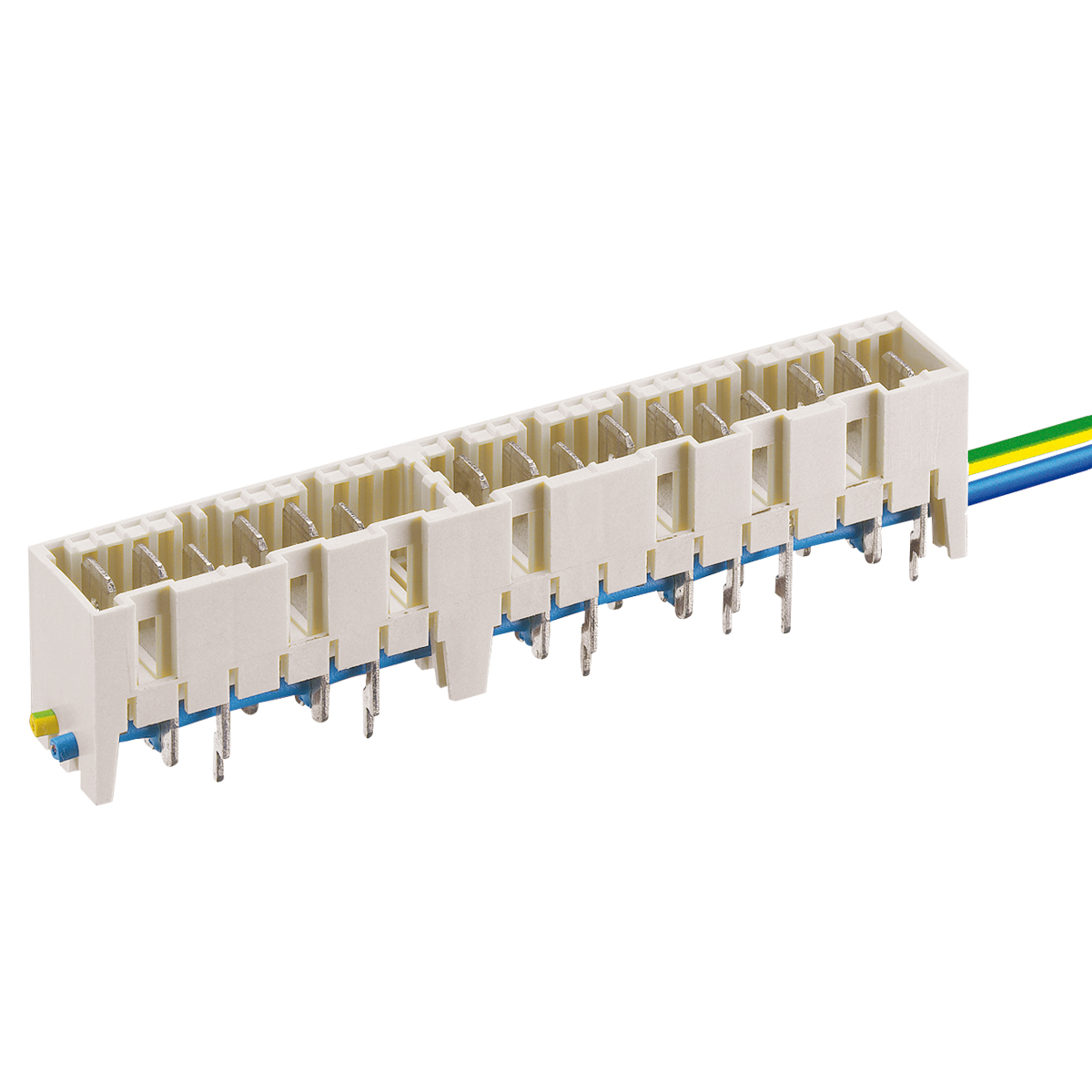

3676

RAST 5 tab header, upright, free to configure with partitions, neutral and/or protective conductor bridge in insulation displacement technology (IDT)

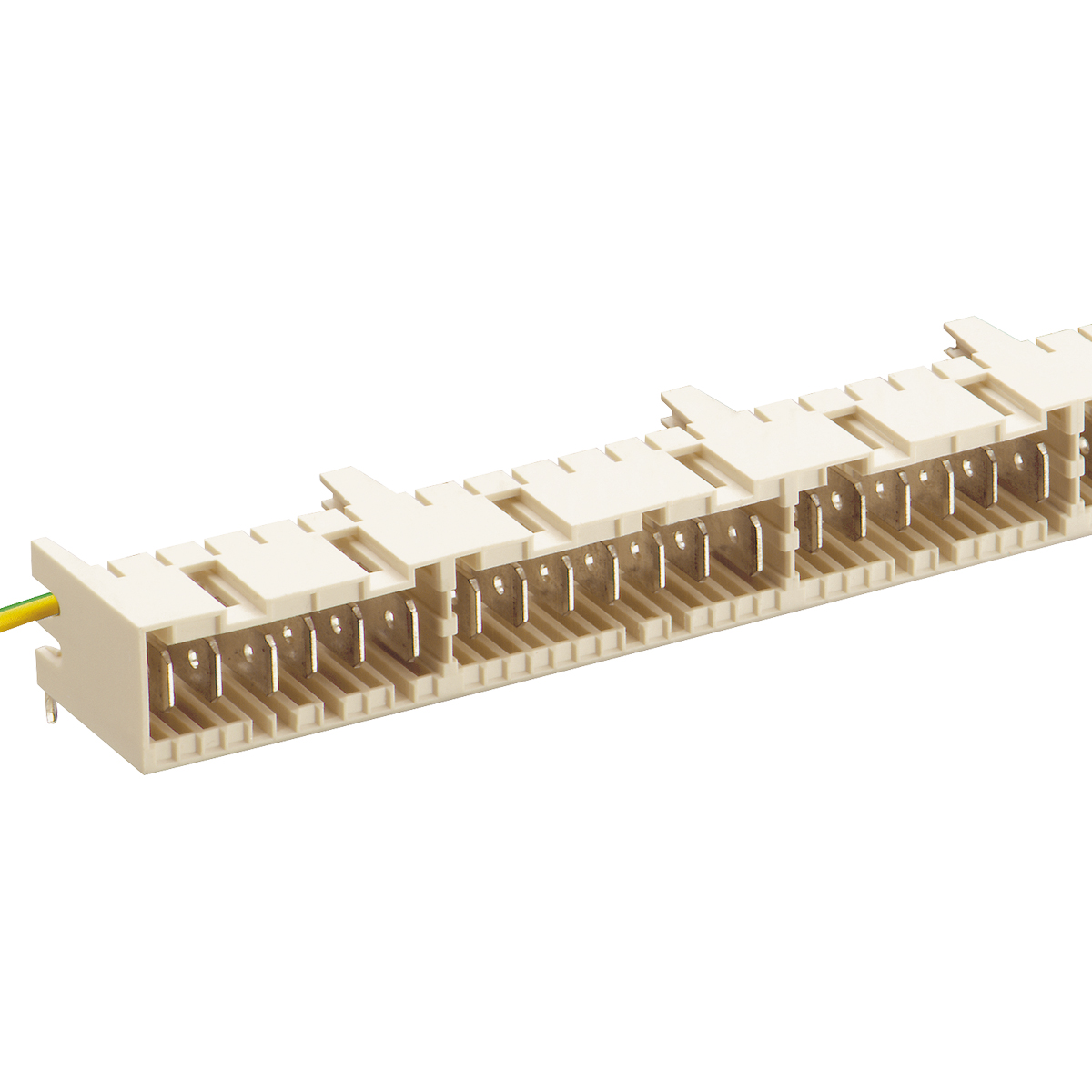

3677

RAST 5 tab header, angular, with topside lock, free to configure with partitions, neutral and/or protective conductor bridge in insulation displacement technology (IDT)

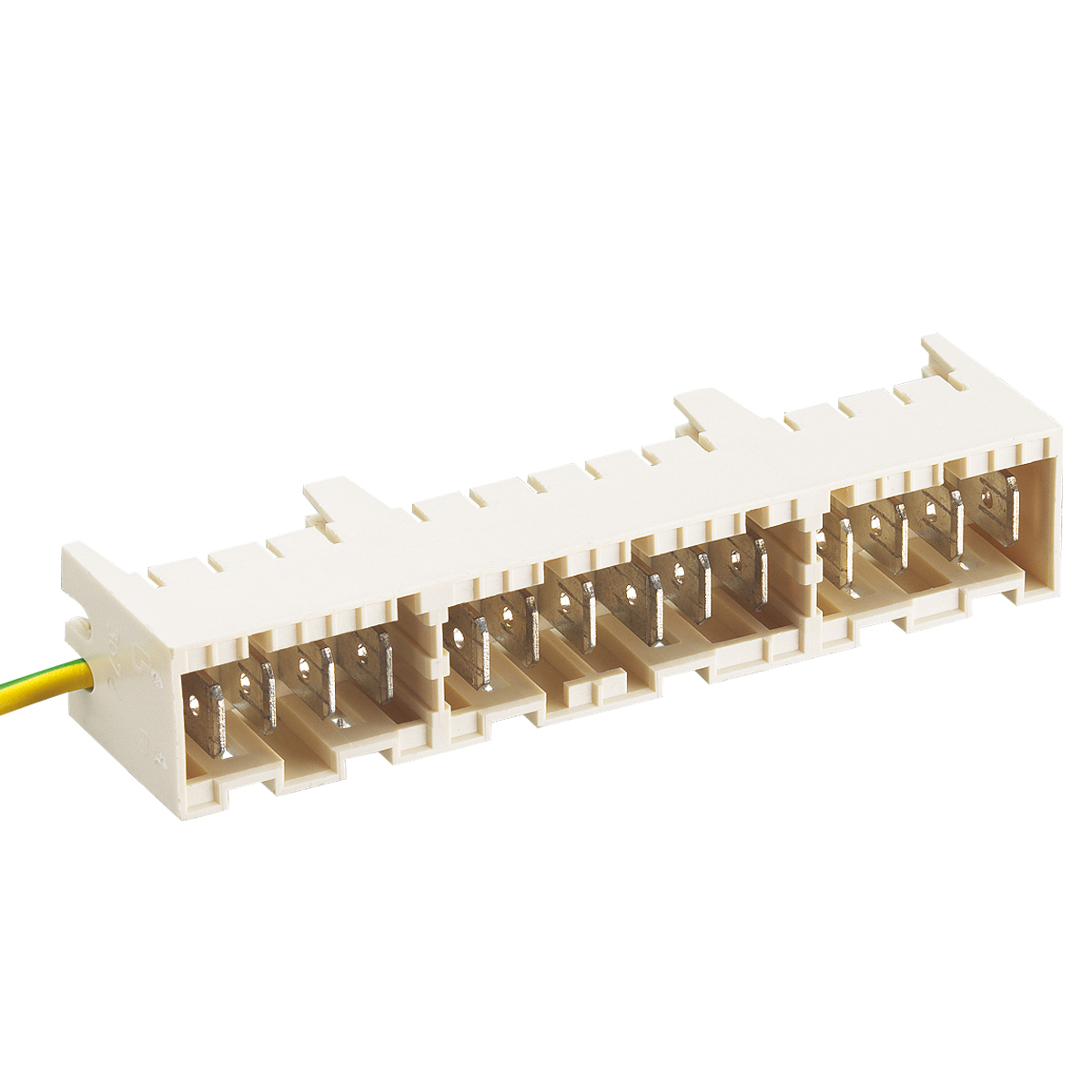

3678

RAST 5 tab header, angular, with lower side lock, free to configure with partitions, neutral and/or protective conductor bridge in insulation displacement technology (IDT)

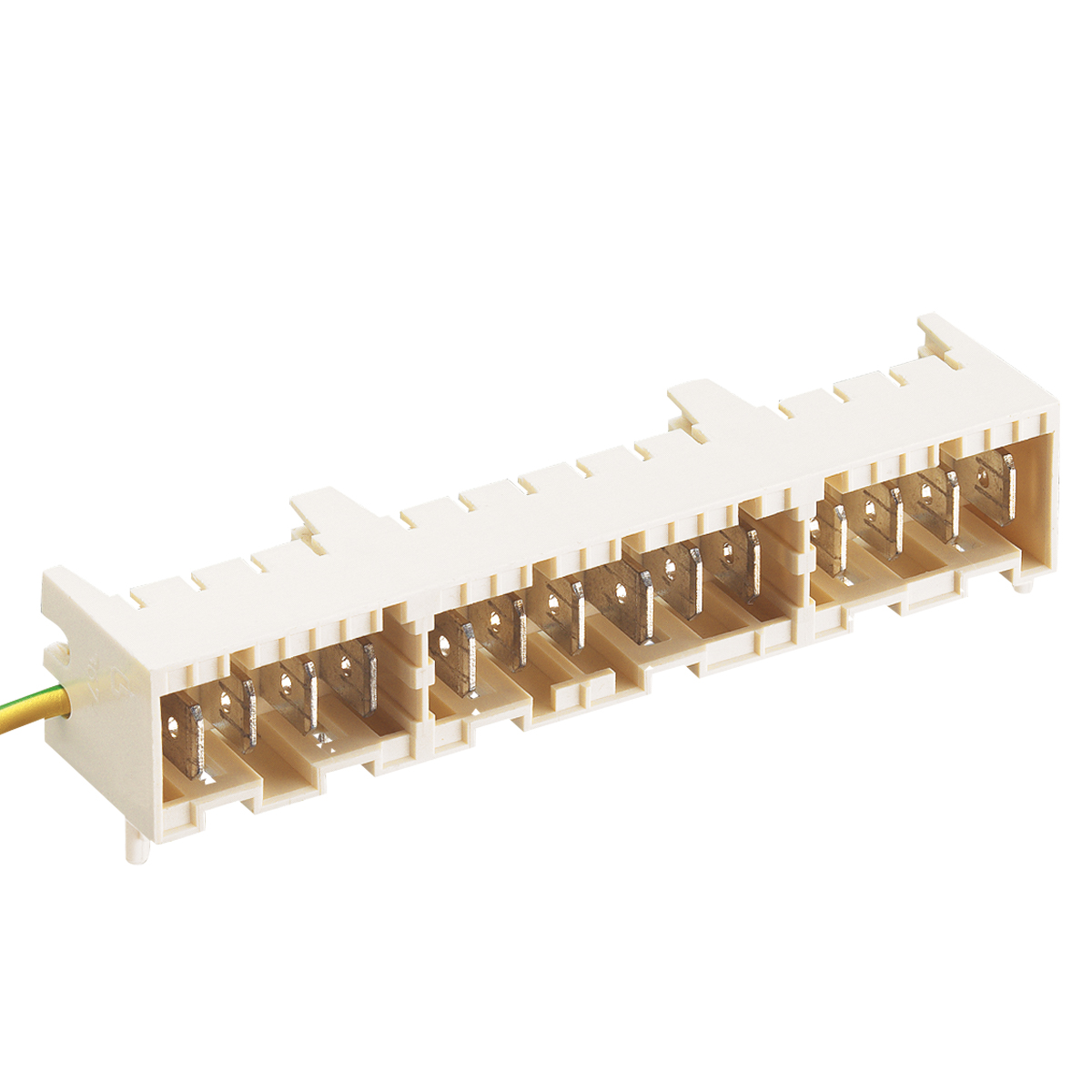

3679

RAST 5 tab header, angular, with lower side lock, higher version, with positioning spigot, free to configure with partitions, neutral and/or protective conductor bridge in insulation displacement technology (IDT)

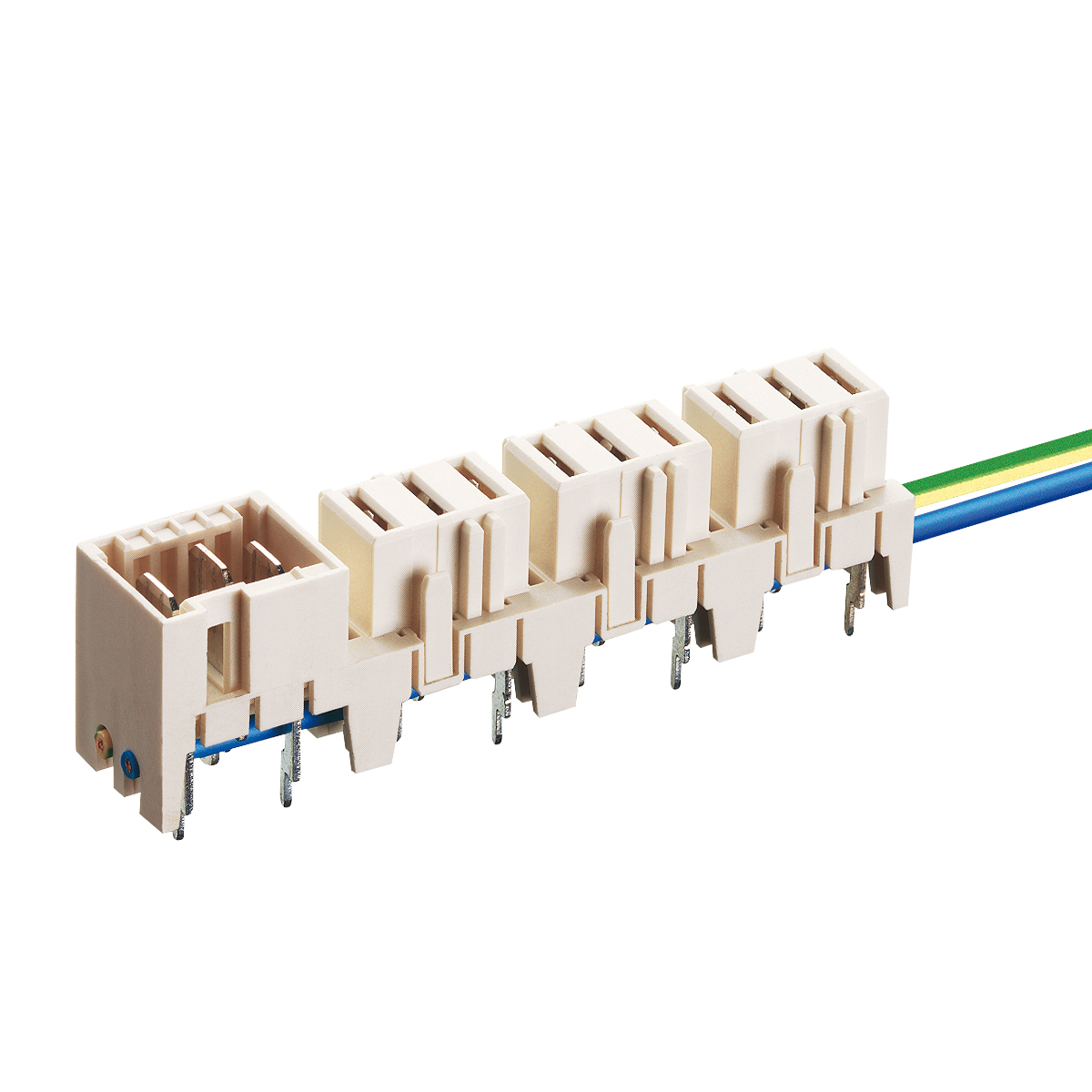

3680

Combined RAST 5 tab and socket board, upright, free to configure with partitions, positioning spigot and neutral and/or protective conductor bridge in insulation displacement technology (IDT)

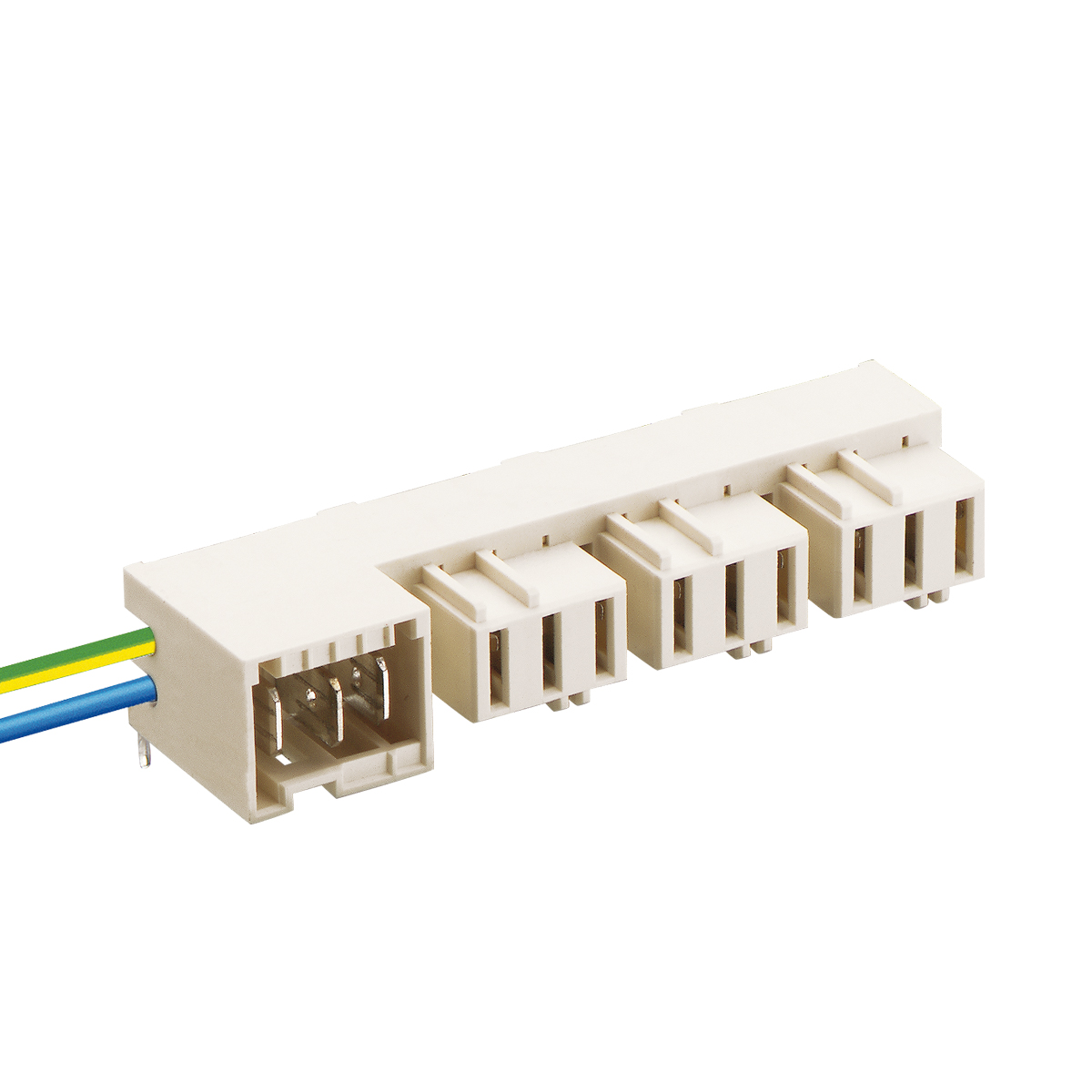

3683

Combined RAST 5 tab and socket board, angular, free to configure with partitions and neutral and/or protective conductor bridge in insulation displacement technology (IDT)

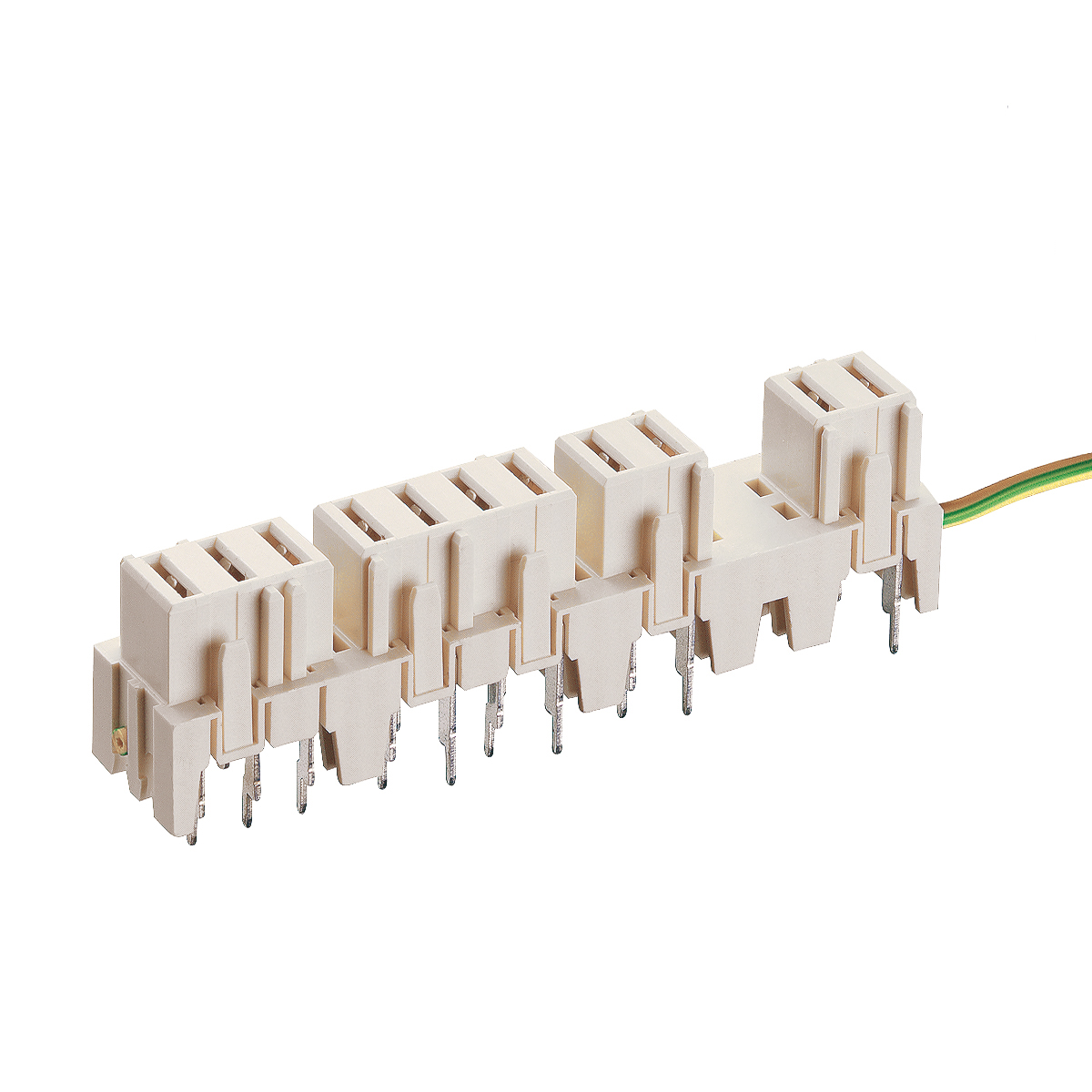

3686

RAST 5 socket board, upright, free to configure with partitions, positioning spigot and neutral and/or protective conductor bridge in insulation displacement technology (IDT)

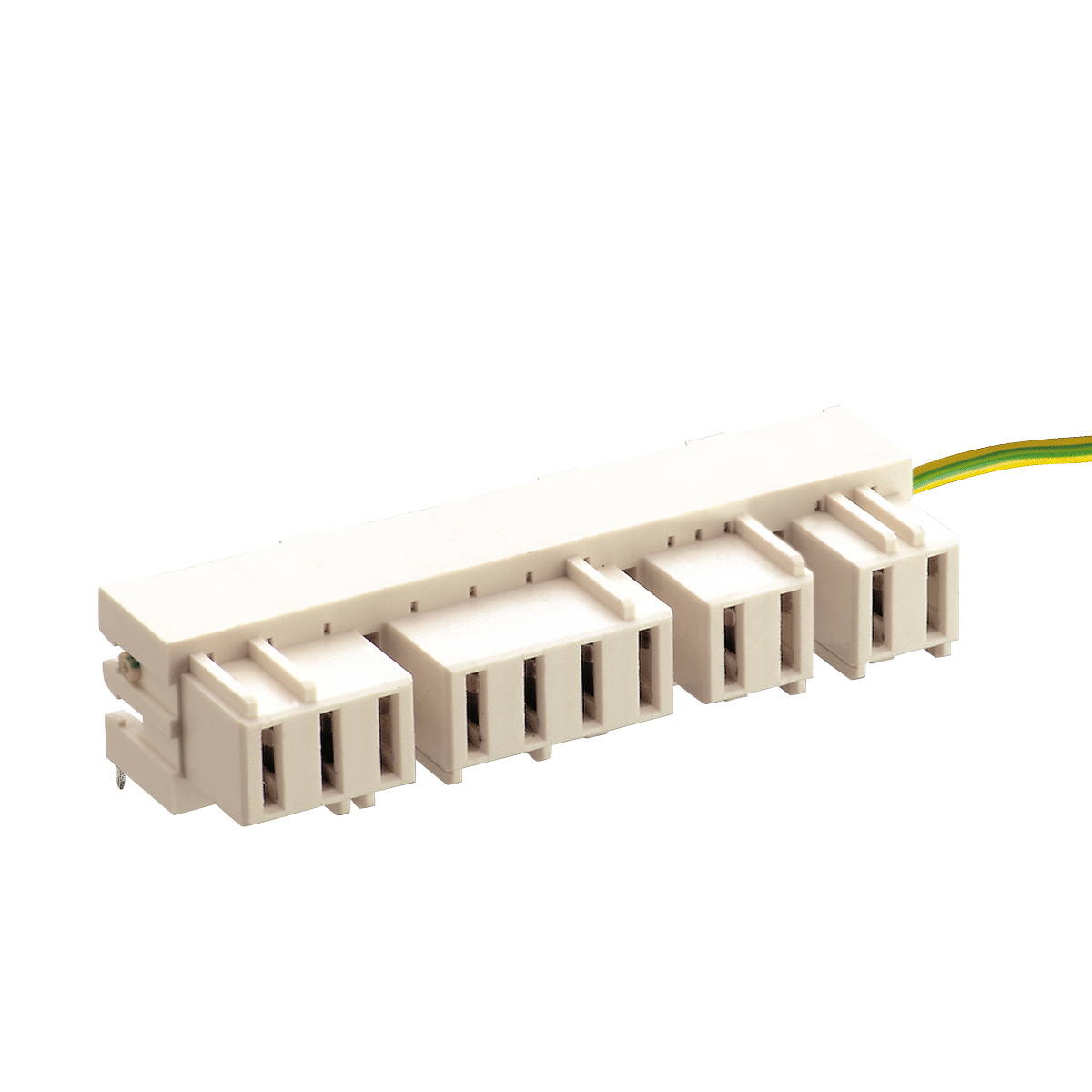

3687

RAST 5 socket board, angular, free to configure with partitions and neutral and/or protective conductor bridge in insulation displacement technique (IDT)

361899

RAST 5 tab header, with screw terminal, with lift clamp with protection against misplacing, with test holes, cable departure opposite to lock, with pre-mating protective contact

364197

RAST 5 tab header, upright, with positioning spigot, pottable version

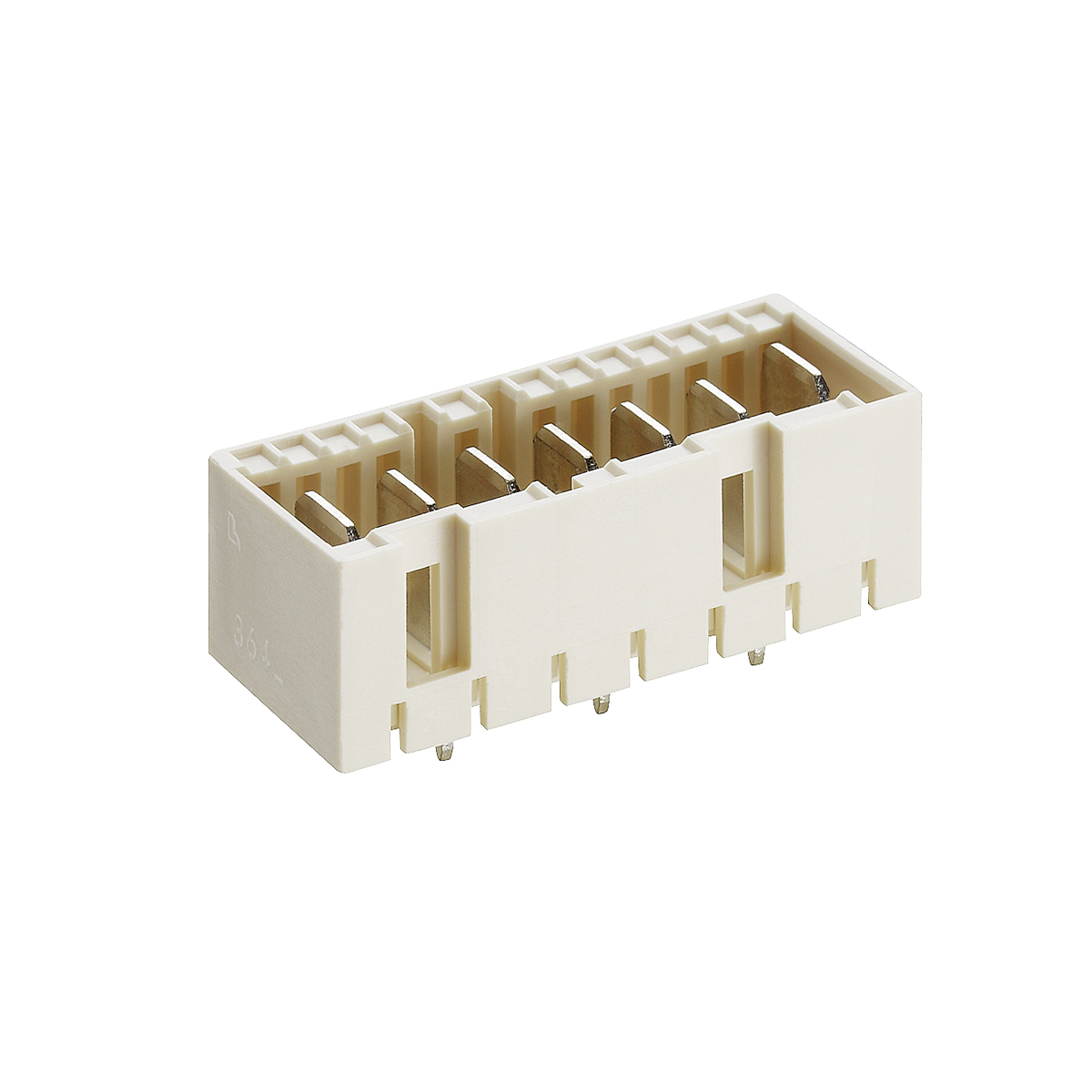

364199

RAST 5 tab header, upright, with positioning spigot, with pre-mating protective contacts

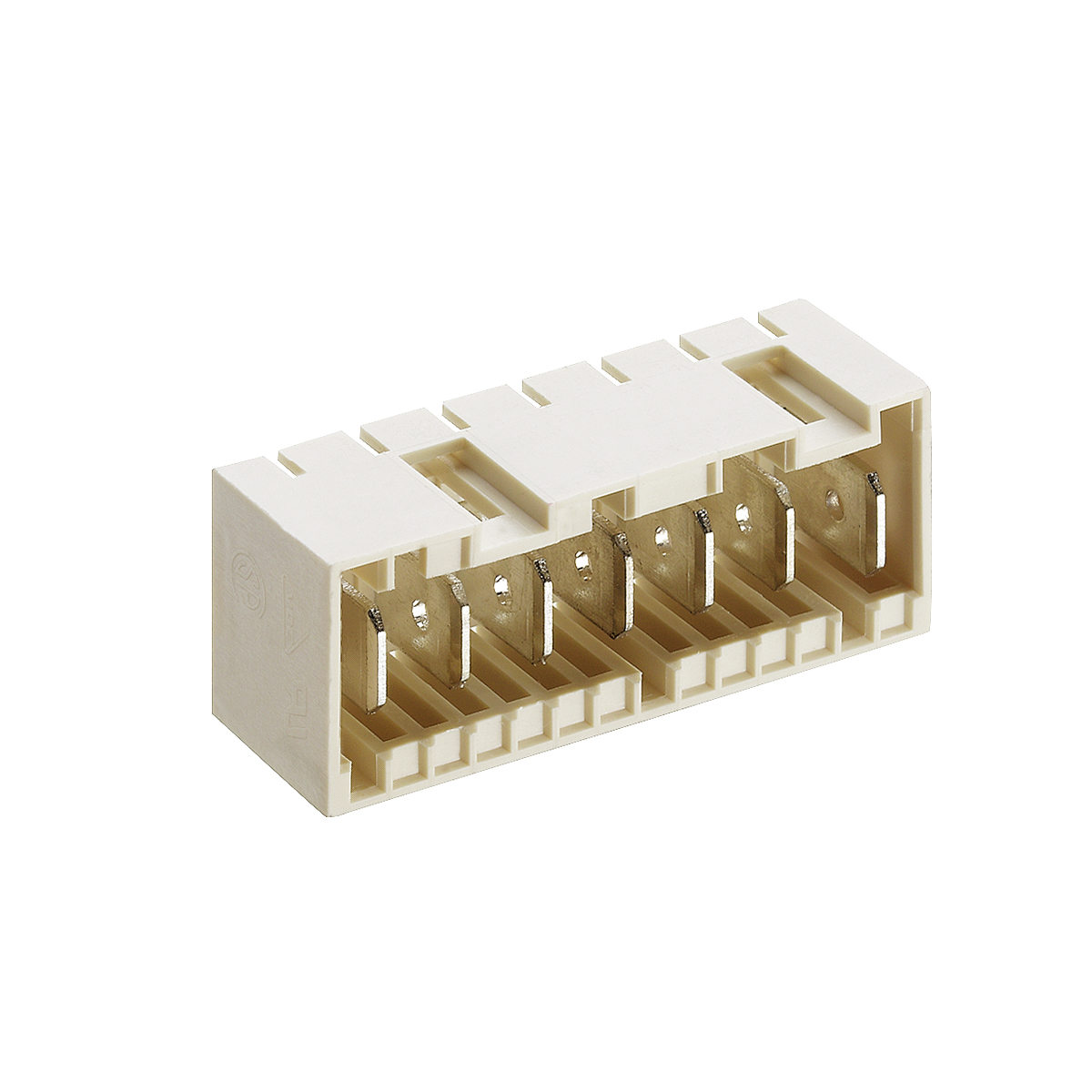

364299

RAST 5 tab header, angular, with topside lock, with pre-mating protective contacts

364399

RAST 5 tab header, angular, with lower side lock, with pre-mating protective contacts

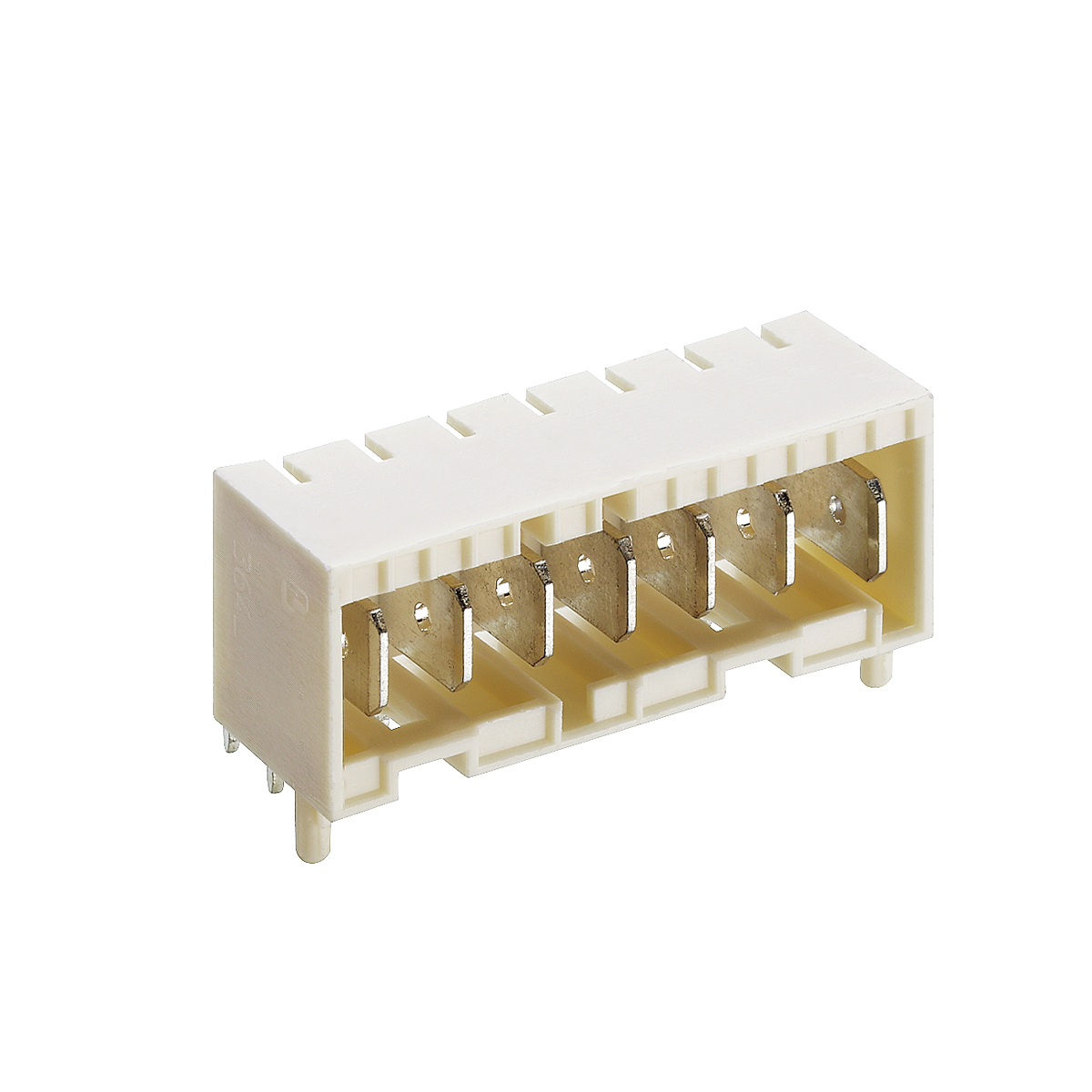

364499

RAST 5 tab header, angular, with lower side lock, higher version, with positioning spigots, with pre-mating protective contacts

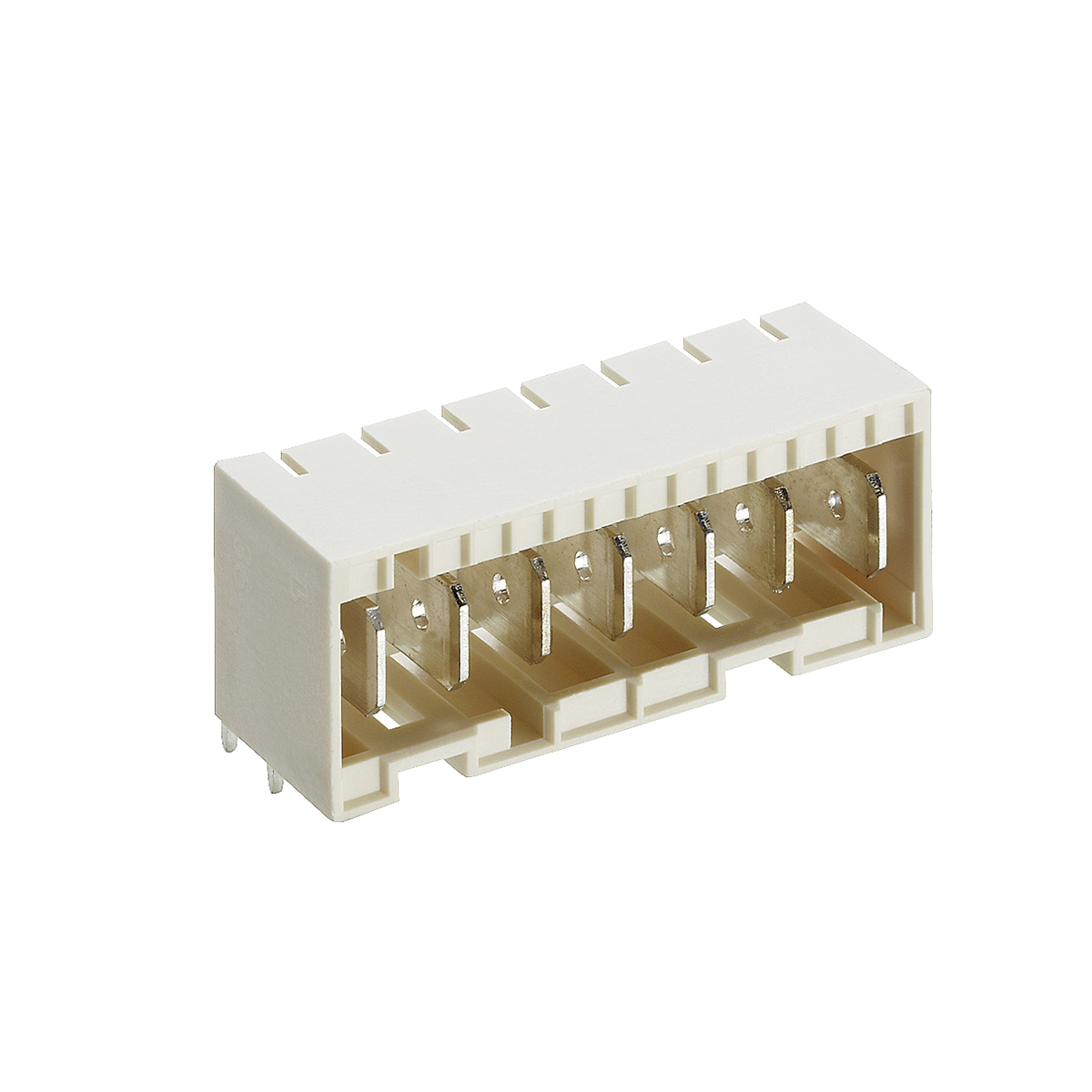

364599

RAST 5 tab header, angular, with lower side lock, higher version, with pre-mating protective contacts

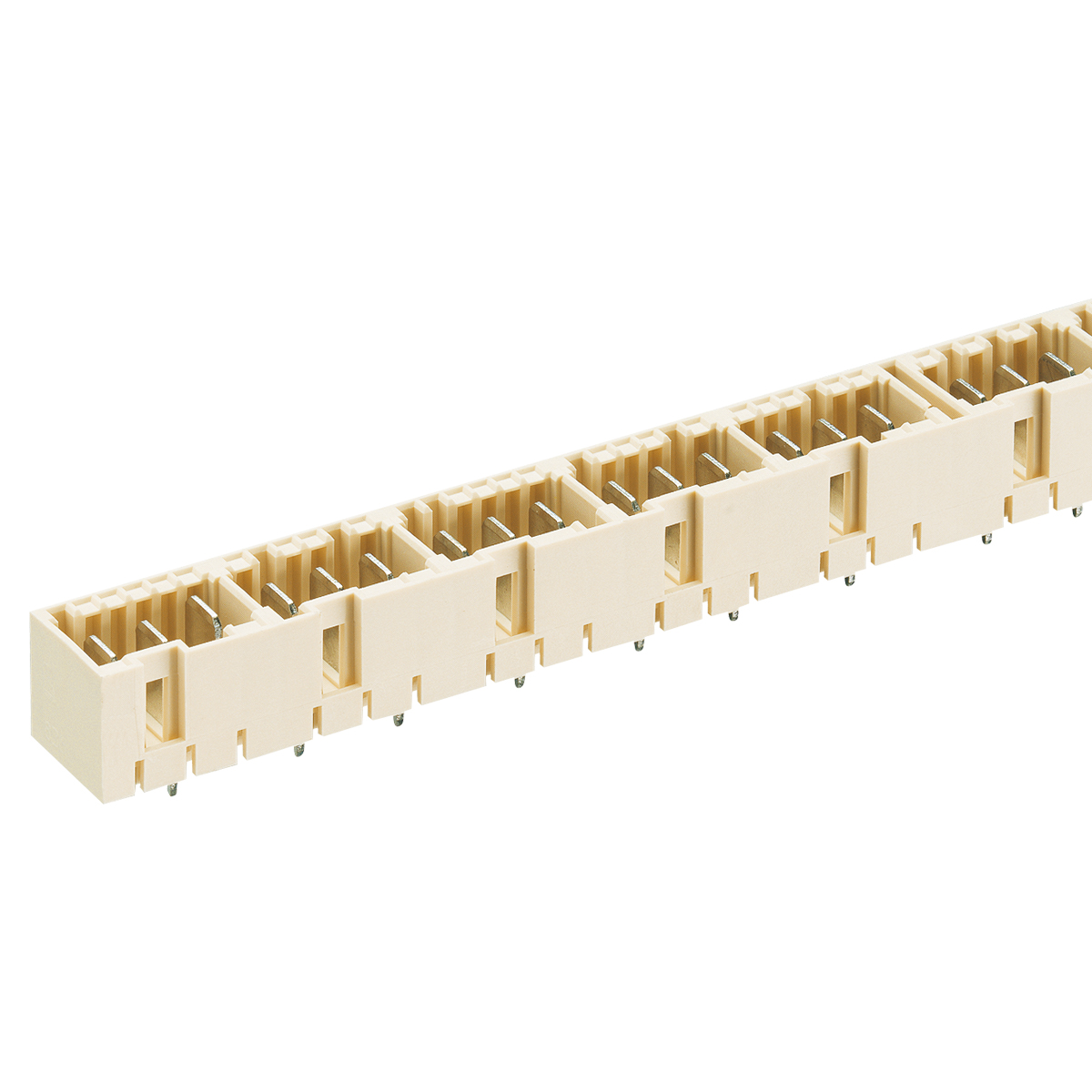

367199

RAST 5 tab header, upright, with positioning spigot, free to configure with partitions and pre-mating protective contacts

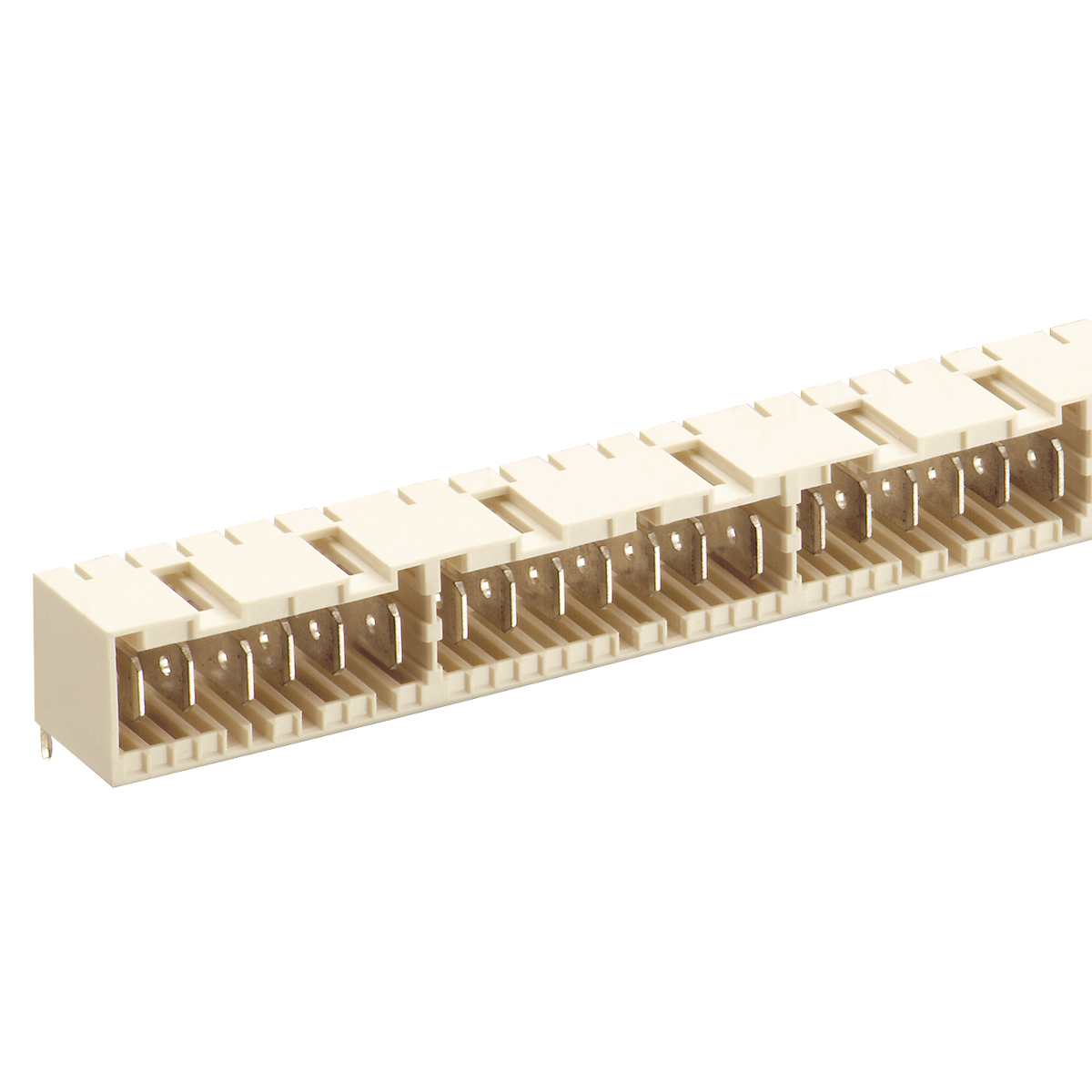

367299

RAST 5 tab header, angular, with topside lock, free to configure with partitions and pre-mating protective contacts

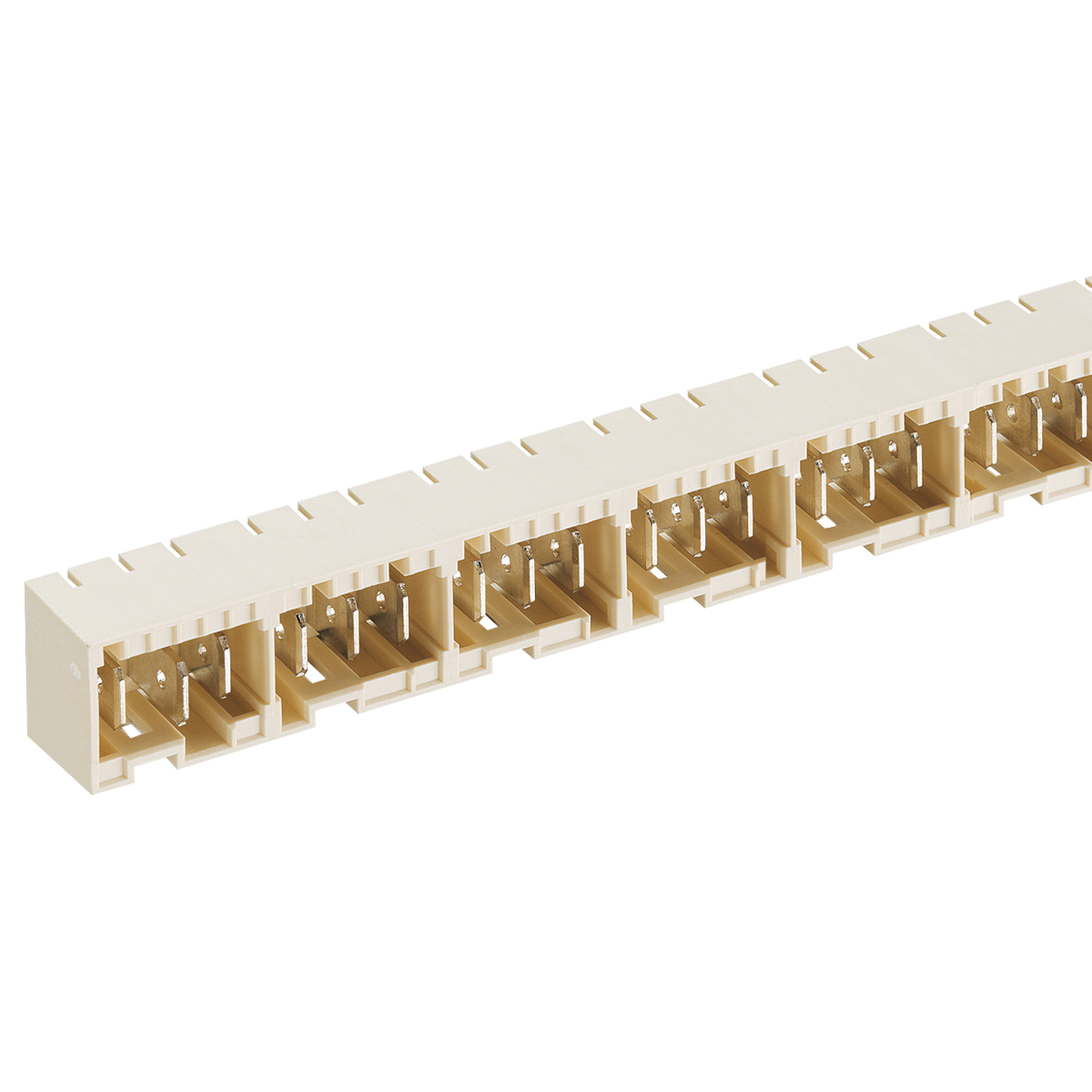

367399

RAST 5 tab header, angular, with lower side lock, free to configure with partitions and pre-mating protective contacts

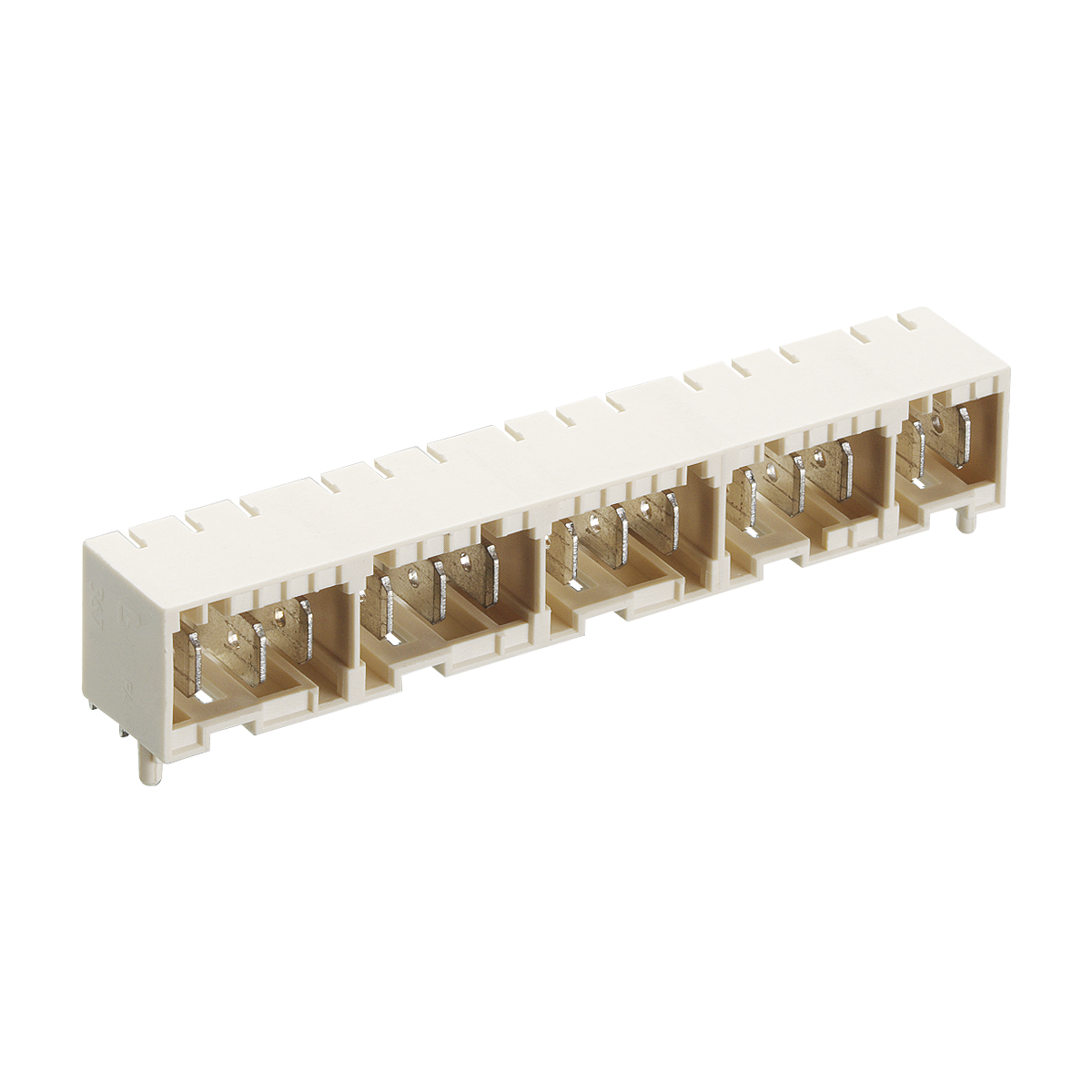

367499

RAST 5 tab header, angular, with lower side lock, higher version, with positioning spigot, free to configure with partitions and pre-mating protective contacts

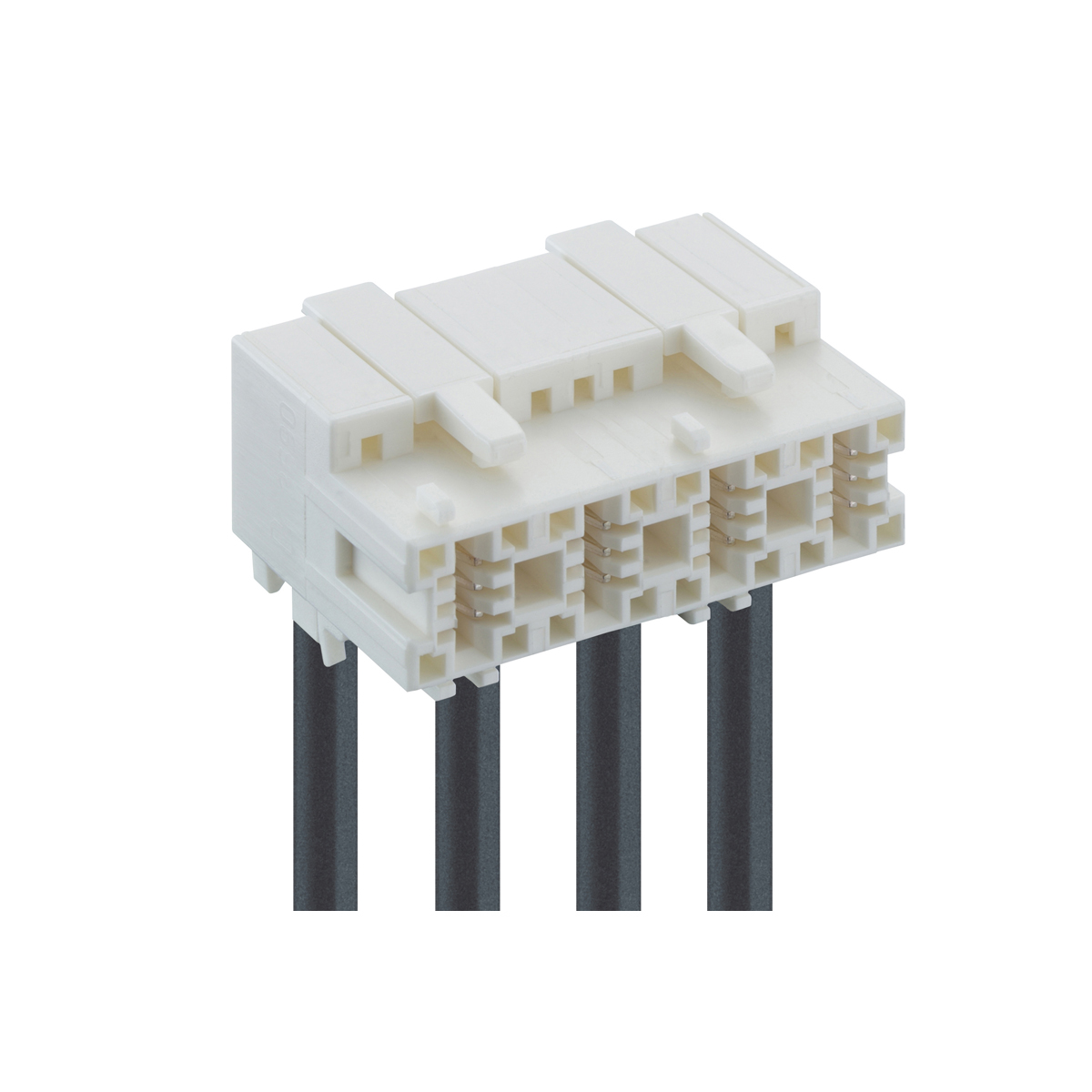

3690

RAST 7.5 Power™ connector for indirect mating, insulation displacement technology (IDT), with exterior locking, consecutive placement without loss of pitch

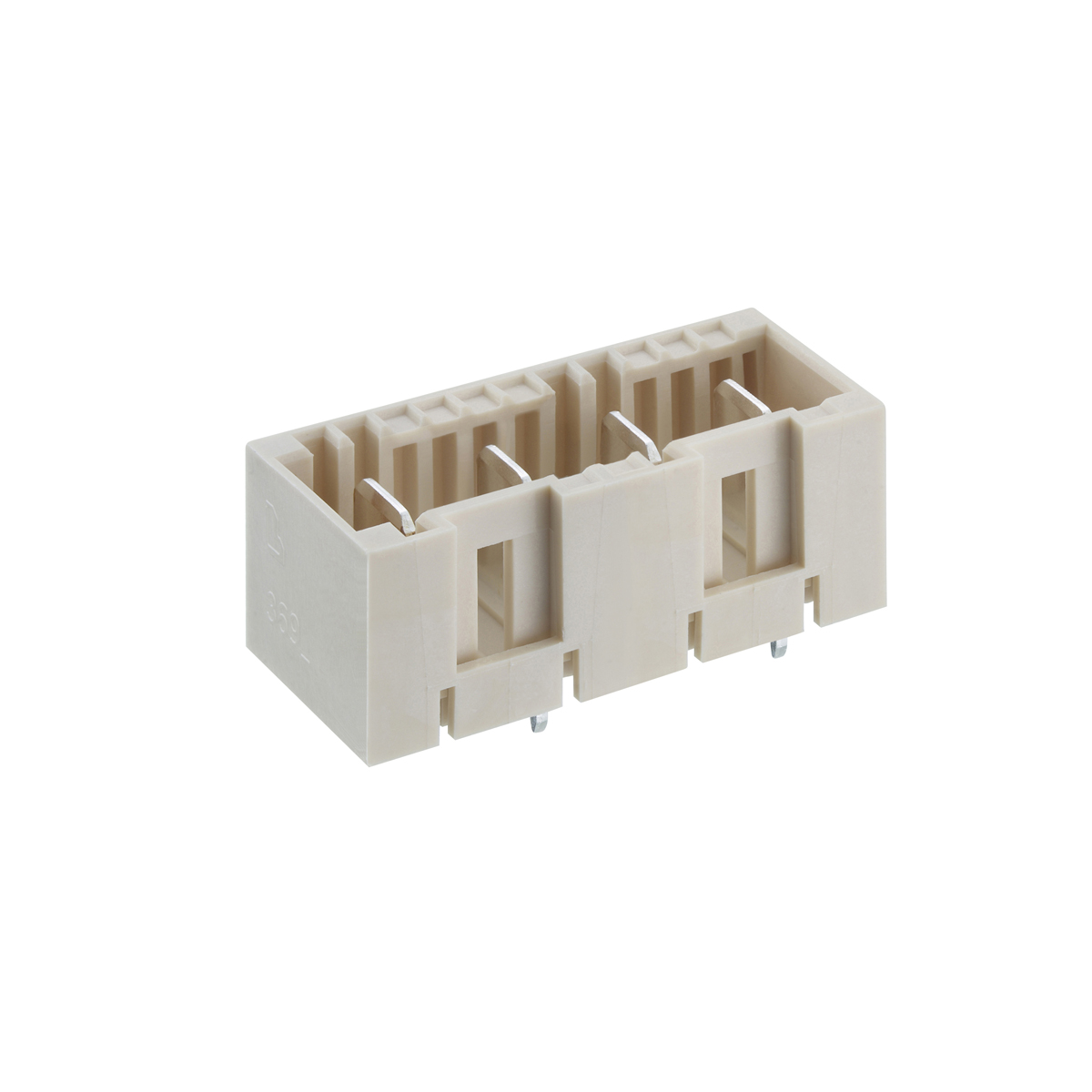

3695

RAST 7.5 Power™ tab header, upright, with positioning spigot
